SIIG 7200 Manuale utente
1
Portable Battery Charger - 7200
Quick Installation Guide
04-0890A
Introduction
The Portable Battery Charger - 7200 easily charges electronic
devices while on the go, including iPhone®/iPod®/ iPad®,
mobile phones, PDAs, portable video games, MP3 players
and more.
Key Features and Benefits
• High-quality rechargeable Lithium-polymer
battery recharges easily via computer USB port
(withtheincludedUSBchargingcable)oryourUSB
wall charger
• Extends mobile phonetalk time up to 40 hours, up
to 50 hours of video, or up to 200 hours of music
(based on iPhone®5, actual results will vary
depending on your device)
• CompatiblewithanyUSB-poweredportabledevice
Serial Number Sticker
For future product return or exchange, this serial number
is required. Please keep it for your reference.
Serial Number Part Number
2
Package Contents
•Portable Battery Charger - 7200
• USB charging cable
• Quick installation guide
Layout

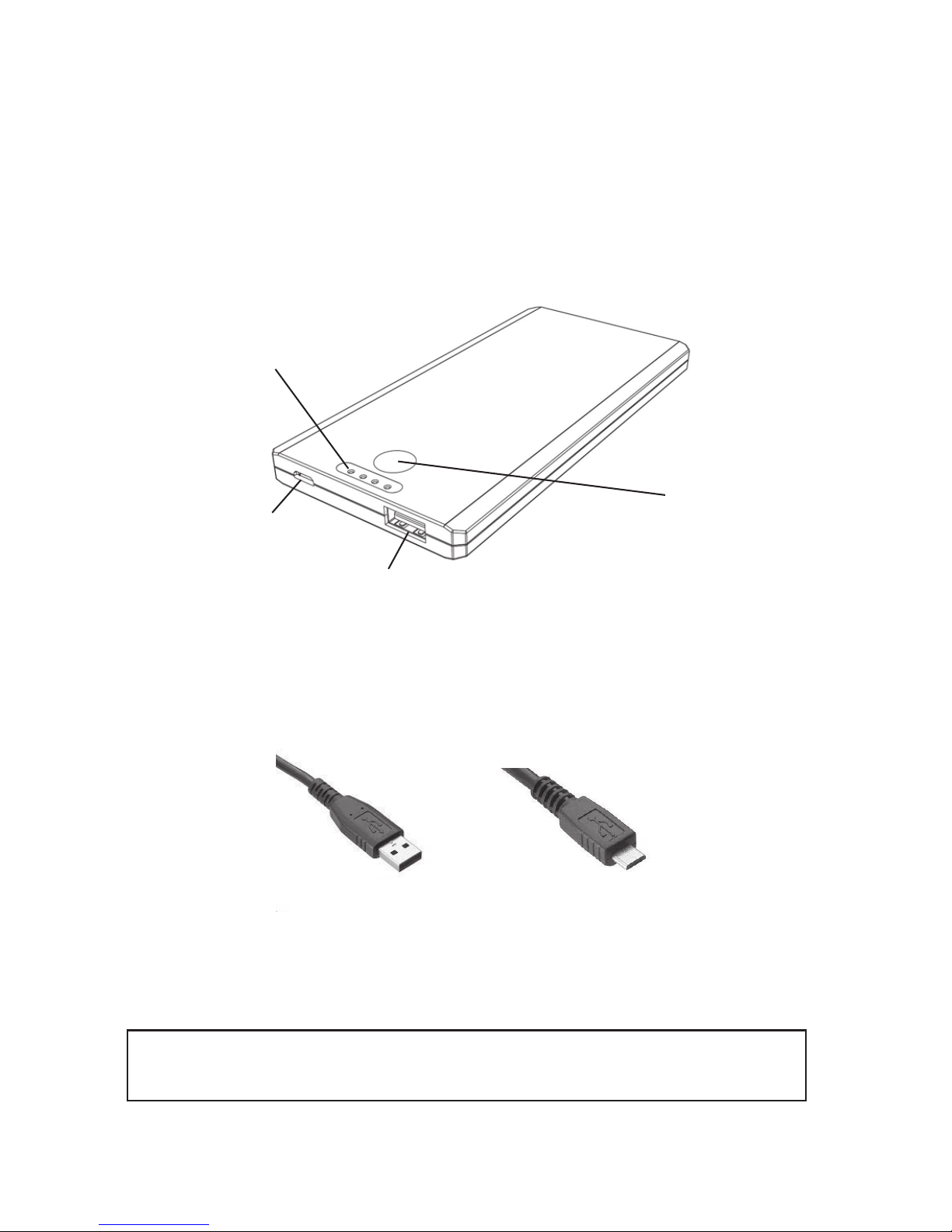

Figure 1: Portable Battery Charger - 2400
Input (Micro USB port)
Output (USB Type A port)
Figure2: USBChargingCableTips
Micro USB tip*
USB Type A tip*
Power Button
LED Indicators
*Note: Tip may vary slightly from image shown
3
LED Indicators
The LEDs display the battery life/charging status of the
Lithium-polymer battery.
• 1 LED ~ 25% charge
• 2 LEDs ~ 50% charge
• 3 LEDs ~ 75% charge
• 4 LEDs - Fully charged
Checking the Charge Capacity of the
Lithium-polymer Battery
Press and hold down briefly the power button to display
the status of the Lithium-polymer battery. The LEDs will
go off automatically in 10 seconds or you can press and
hold down the power button again.
4
Operating Instructions
Charging the Lithium-polymer Battery using a
Computer
1. Connect the Micro USB tip of the included USB
charging cable into the INPUT port (Micro USB
port) of the Portable Battery Charger - 7200, seeFigure
3.
2. Connect the USB Type A tip of the included USB
charging cable to an available USB port of your
desktop or notebook computer (make sure the
system is turned on) and the charging process will
begin automatically.
3. During the charging process, the blinking LED will
move gradually to the next LED as the battery
charges. When the Lithium-polymer battery is fully
charged 4 LEDs will be on.

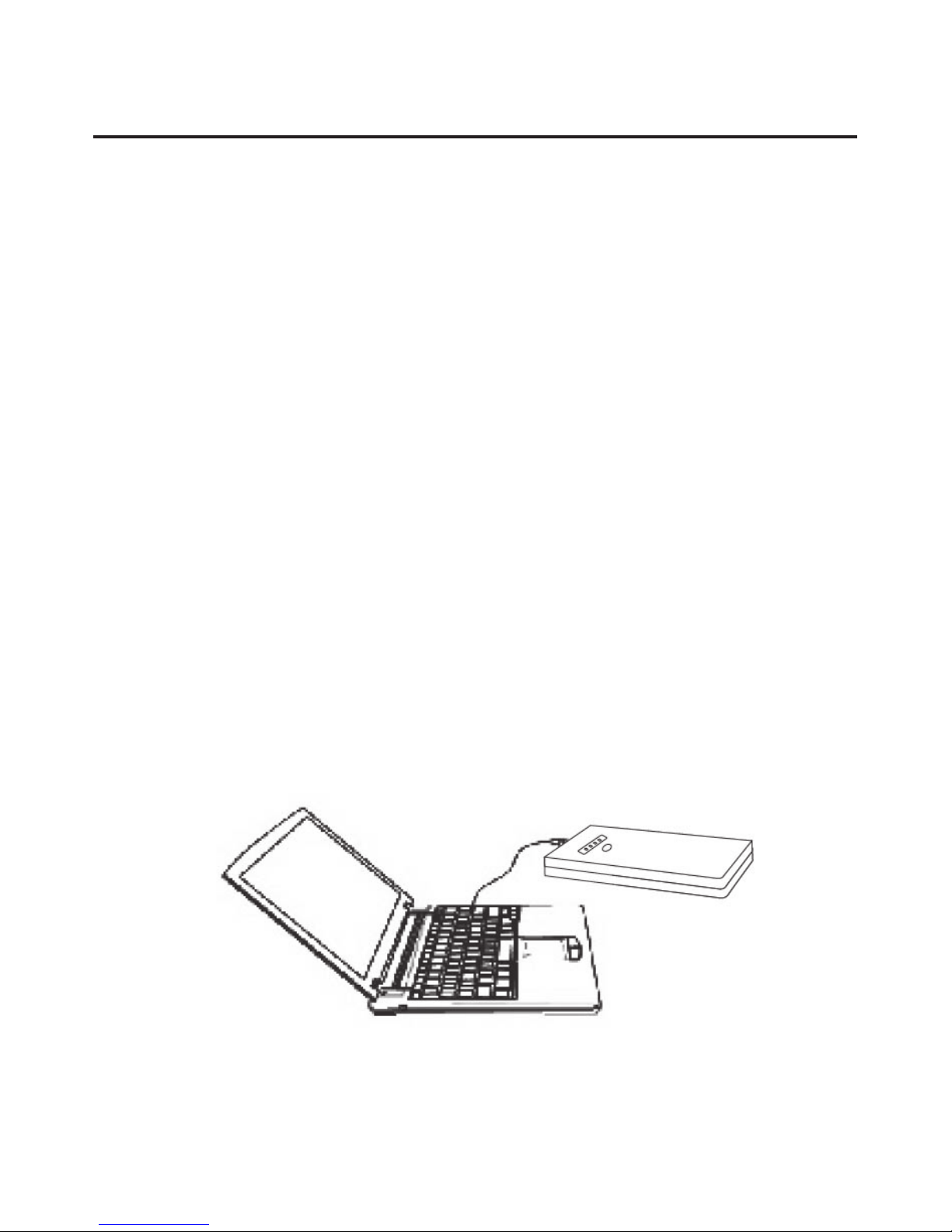

Figure 3
5
Charging the Lithium-polymer Battery using an
AC Adapter
1. PlugtheMicroUSBtip ofthe included USBcharging
cable into the INPUT port (Micro USB port) of the
Portable Battery Charger - 7200, see Figure 4.
2. Connect the USB Type A tip of the included USB
charging cable to an AC power adapter (not
included) with a 5V USB Type A charging port, see
Figure 4.
3. Plug the AC power adapter into a reliable power
outlet and the charging process will begin
automatically.
4. During the charging process, the blinking LED will
move gradually to the next LED as the battery
charges. When the Lithium-polymer battery is
fully charged 4 LEDs will be on.

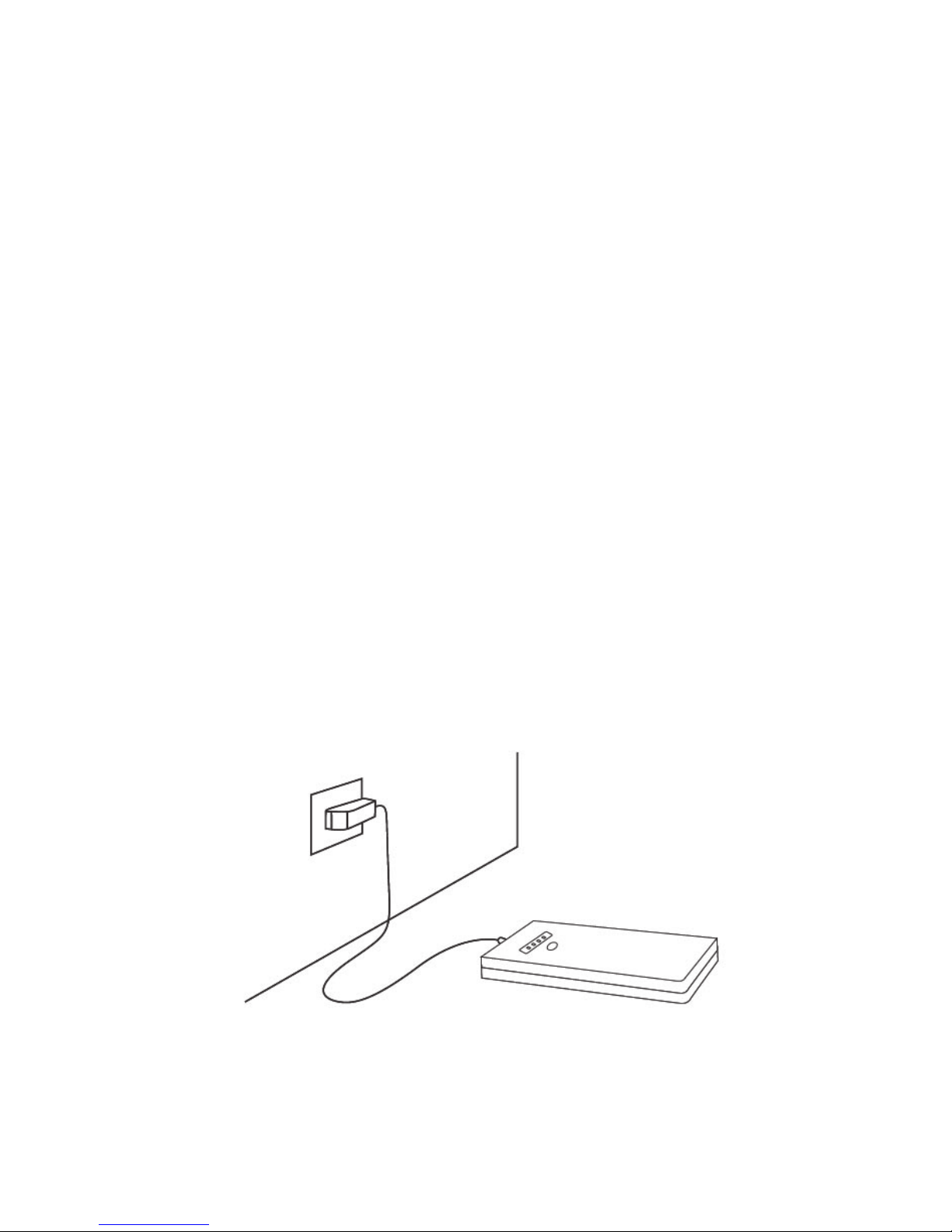

Figure 4
6
Charging Portable Devices using the included
USB Charging Cable
When your portable device is out of battery, you can
recharge it with the Portable Battery Charger - 7200 easily.
Just make sure the Portable Battery Charger - 7200 is fully
charged before proceeding.
1. Connect the USB Type A tip of the included USB
charging cable to the OUTPUT port (USB Type A
port) of the Portable Battery Charger - 7200. See
Figure 5.
2. PlugtheMicroUSB tipof theincluded USB charging
cable into the Micro USB charging port of your
portable device. See Figure 5.
3. Press and hold down briefly the charger's power
button until the LEDs come on to signal charging
has begun. If you need to stop charging at any time,
simply press and hold down the charger's power
button again until the LEDs go off or unplug the
charging cable from the portable device.

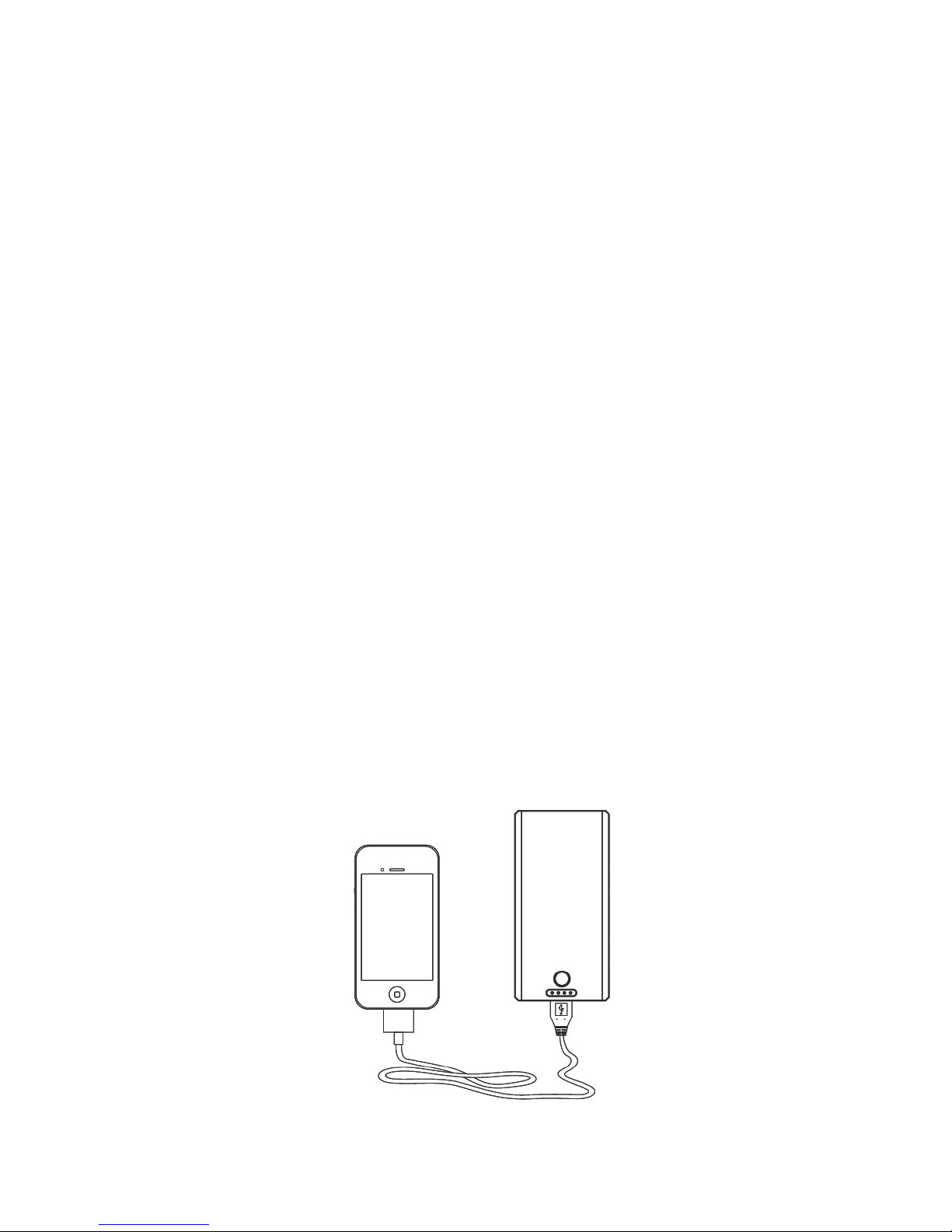

Figure 5
7
Charging Portable Devices using the Device's
USB Charging Cable
When your portable device is out of battery, you can
recharge it with the Portable Battery Charger - 7200 easily.
Just make sure the Portable Battery Charger - 7200 is fully
charged before proceeding.
1. Connect the USB charging cable (supplied with the
device) to your portable device.
2. Plug the Type A USB connector of the USB charging
cable (supplied with the device) into the OUTPUT
port (USB Type A port) of the Portable Battery
Charger - 7200. See Figure 6.
3. Press and hold down briefly the charger's power
button until the LEDs come on to signal charging
has begun. If you need to stop charging at any time,
simply press and hold down the charger's power
button again until the LEDs go off or unplug the
charging cable from the portable device.

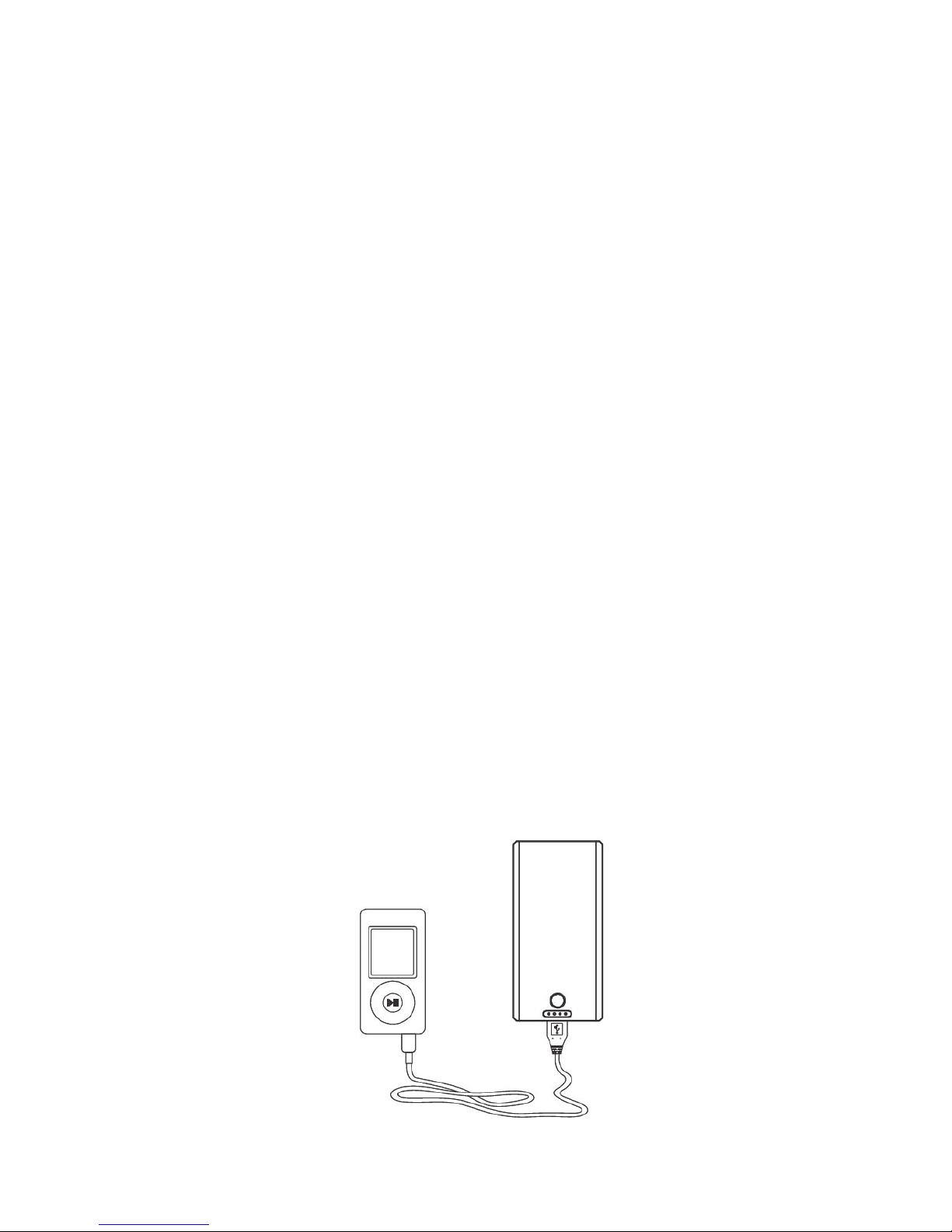

Figure 6
8
Specifications
• Battery type: Lithium-polymer
• Output: 5VDC (Type A USB)/2A (Max)
• Input: 5VDC (Micro USB)/1.5A (Max)
• Battery capacity: 7200mAh
• Operating temperature: -4 to 104 degrees F
Warning
•Do not use the charger in high temperature
environments such as, direct sunlight, next to a fire
or any other heat source.
•Do not expose the charger to wet environments. If
the charger becomes wet, discontinue use and dry
it immediately.
•Do not dismantle or open the case, the charger
contains no serviceable parts. Opening the case will
immediatly void the manufacturer warranty.
•Do not dispose of the charger into the garbage. It
must be sent to a recycling center.
•Do not use the charger if the battery appears to be
leaking. Avoid contact with any battery fluid as it
is corrosive and may result in personal injury.
9
