DP USB 3.0 4-Port PCIe i/e

Quick Installation Guide

04-0728B

Introduction

The DP USB 3.0 4-Port PCIe i/e adds four USB 3.0

ports (1 internal & 3 external) to your

PCIe-enabled desktop PC enhancing existing

systems with SuperSpeed USB 3.0 technology.

Key Features and Benefits

• Supports data transfer rate up to 5Gb/s

and backward compatible with previous

versions of USB devices

• Compliant with Universal Serial Bus 3.0

Specification

• Compliant with PCI Express Base

Specification, Revision 2.1

• Supports per port over-current protection

System Requirements

• Desktop PC with an available PCIe slot

• Windows®8 (32-/64-bit) / Windows 7 (32-

/64-bit) / Vista (32-/64-bit) / Server 2008

R2 / XP (32-/64-bit) / Server 2003 & 2008

(32-/64-bit)

Package Contents

•DP USB 3.0 4-Port PCIe i/e adapter

• Spare low profile bracket

• Driver CD

• Quick installation guide

Layout

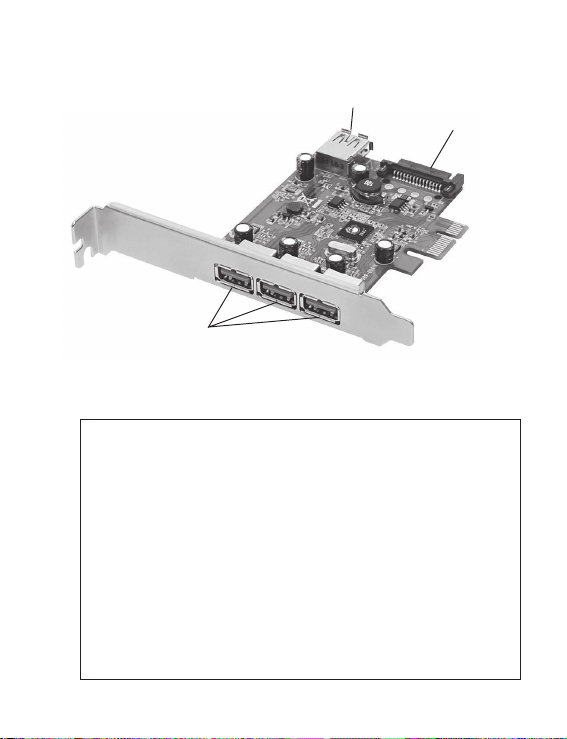

Figure 1: Board Layout

USB 3.0 Port

*Note: This power connector is designed

to provide additional power to the board

when needed. Connect this power

connector only if one or both of the

following conditions occur:

- Device(s) not being detected

- All ports are used at the same time

Power off your system first before making

this connection.

Power Connector

(optional)*

USB 3.0 Port

Hardware Installation

General instructions for installing the card are

provided below. Since the design of computer

cases and motherboards vary, refer to your

computer's reference manual for further

information, if needed.

Static Electricity Discharge may permanently

damage your system. Discharge any static

electricity build up in your body by touching your

computer's case for a few seconds. Avoid any

contact with internal parts and handle cards only

by their external edges.

Note: For low profile systems, remove the

fullheightbracketandinstallthelowprofile

bracket now.

1. Turn OFF the power to your computer and

any other connected peripheral devices.

2. Unplug the power cord from the back of the

computer.

3. Remove your computer cover.

4. Remove the slot bracket from an available

PCIe slot.

5. Carefully align the card's bus connector

with the selected PCIe slot on the

motherboard. Push the board down firmly,

but gently, until it is well seated.

6. Replace the slot bracket holding screw to

secure the card.

7. Replace the computer cover and reconnect

the power cord.

Driver Installation

Note: For Windows 8, the driver is already

embedded in the operating system. So no

additional installation steps are needed.

Windows 7 (32-/64-bit) / Server 2008 R2

1. Install the board and boot up Windows.

2. Insert the driver CD, click Open folder to

view files at the AutoPlay box.

3. Double click Setup file.

4. At the User Account Control, click Yes.

For 2008 R2, skip this step.

5. At the TI USB3 Host Driver - Installshield

Wizard, click Next.

6. Select I accept the terms of the license

agreement, click Next, then click Finish.

7. Restart the computer.

Windows Vista (32-/64-bit)

1. Install the board and boot up Windows.

2. At the Found New Hardware,click Cancel.

3. Insert the driver CD, close the Windows

Explorer screen when displayed.

4. Click Start, in the Start Search box, type

D:\setup.exe, press Enter. (Change D: to

match your CD/DVD-ROM drive letter)

5. At the User Account Control, click Allow.

6. At the TI USB3 Host Driver - Installshield

Wizard, click Next.

7. Select I accept the terms of the license

agreement, click Next, then click Finish.

8. Restart the computer.

Windows XP (32-/64-bit) / Server 2003 &

2008

1. Install the board and boot up Windows.

2. At the Found New Hardware Wizard, click

Cancel.

3. Insert the driver CD. Click Start, Run. Type

D:\Setup.exe, click OK. (Change D: to

match your CD\DVD-ROM drive letter)

4. At the TI USB3 Host Driver - Installshield

Wizard, click Next.

5. Select I accept the terms of the license

agreement, click Next, then click Finish.

6. Restart the computer.

To Verify Windows Installation

1. Go to Device Manager to verify installation.

For Windows 8/ Windows 7 / Windows XP /

Server 2008 R2 / Server 2003: Right click

Computer or My Computer, click Manage,

click Device Manager.

For Windows Vista: Right click Computer,

click Manage, click Continue, then click

Device Manager.

For Server 2008: Right click Computer, click

Manage, double click Diagnostics, then

click Device Manager.

2. Double click Universal Serial Bus

controllers. A Texas Instruments USB Root

Hub and a Texas Instruments XHCI

Controller should be displayed.

For Windows 8, a Texas Instruments USB

3.0 eXtensible Host Controller is displayed.
