SIIG CE-HM0031 Manuale utente
1
DVI + Audio to HDMI
QuickInstallationGuide
Introducing the DVI + Audio to HDMI
The DVI + Audio to HDMI provides a low cost solution for
converting DVI video plus either digital audio or analog
stereo audio to Digital HDMI.
FeaturesandBenefits
• Allows DVI based devices such as PCs with S/PDIF
or analog stereo to be connected to HDMI enabled
TVs
• Fully HDCP compliant
• Supports DVI video up to 165MHz
• Features Coaxial S/PDIF and stereo audio inputs
TechnicalSpecifications
• Video Amplifier bandwidth: 1.65Gbps
• Video signal output: 1.2V (peak to peak)
• Output DDC signal: 5V (peak to peak) TTL
• Single link range: 1080p/1920 x 1200
• HDMI connector: 19 pin female
• DVI connector: DVI-I 29-pin female (digital only)
• Power consumption: 10 watts (max)
PackageContents
•DVI + Audio to HDMI
• Power adapter (5V, 2A)
• Quick Installation Guide
04-0496A
2

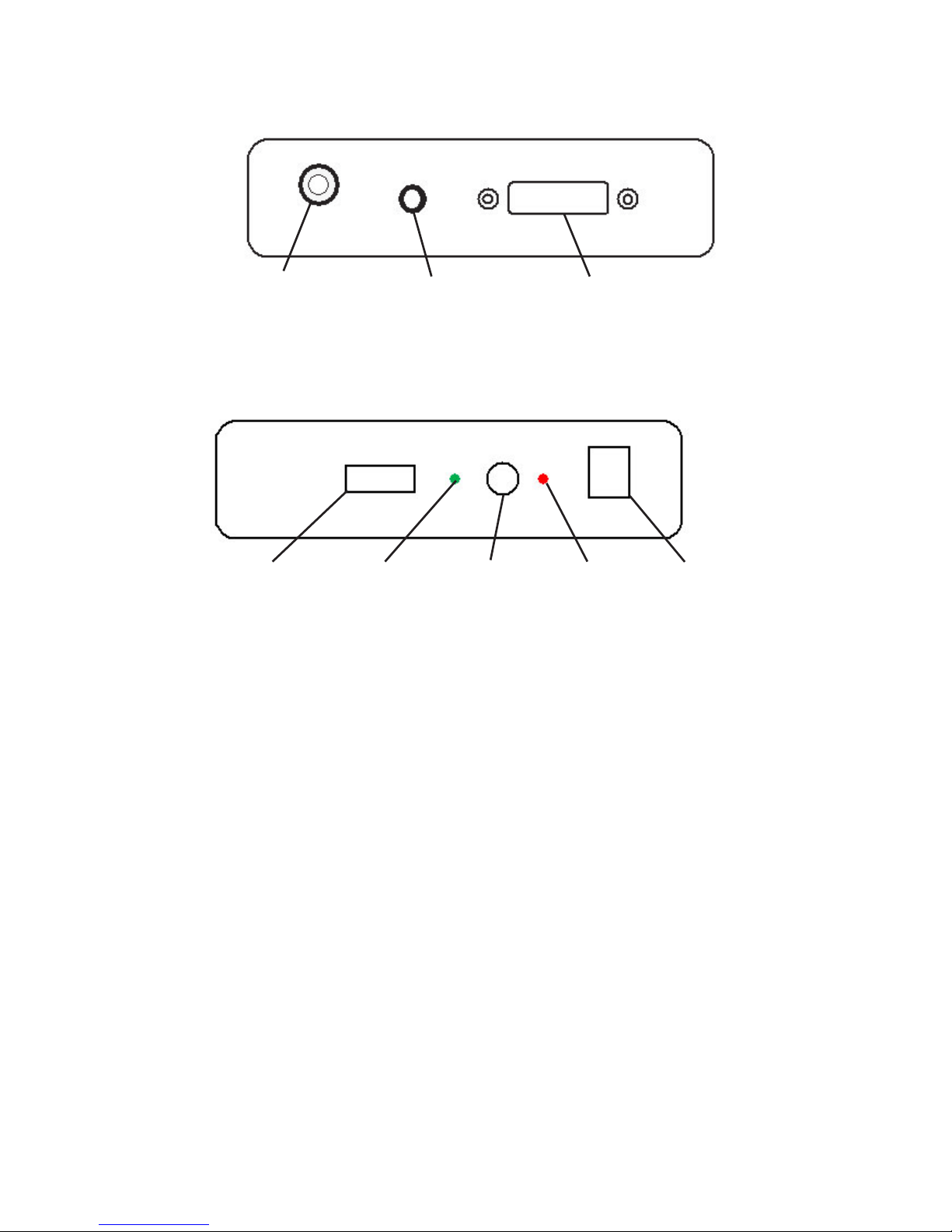

FrontPanel
RearPanel
HDMI
Out
S/PDIF In DVI In
Status
Indicator
Rotary
Switch
Power
Indicator
Power
Jack
RotarySwitchModes
•0: Analog mode
•1: S/PDIF audio mode
•2-5: Reserved
•6: EDID default
•7: EDID update from HDMI port. To enable image,
set rotary switch to 7, when image appears return to
0.
StatusIndicator
Green indicates a good connection.
Stereo Audio In
3
Hardware Installation
1. Connect your DVI source to the DVI In of the DVI +
Audio to HDMI.
2. Connect either your digital S/PDIF or stereo audio
sourcetoS/PDIFInorStereoAudioIn,respectively,
of the DVI + Audio to HDMI.
3. Connect your HDMI TV or other HDMI enabled
display to HDMI Out of the DVI + Audio to HDMI.
4. Plug the power adapter into the Power Jack of the
DVI + Audio to HDMI, then plug the power adapter
into a reliable power outlet.
Safety Precautions
Like all electronic equipment the DVI + Audio to HDMI
should be used with care. Please read and follow the
safetyprecautionstoprotect yourself from possible injury
and minimize the risk of damage to the unit.
• Follow all instructions and warnings marked on the
unit
• Provide proper ventilation and air circulation, do
not use near water
• Do not attempt to service the unit yourself, except
where explained in the manual
• Keep objects that might damage the device at a safe
distance and assure that the placement of this unit is
on a stable surface
• Do not use liquid or aerosol cleaners to clean this
unit and always unplug the power to the device
before cleaning
• Use only the power adapter and accessories that
came with the unit
4
FAQs
• OnlyHDMIenabledTVswith underscan/overscan*
support can accurately display full active video.
Some HDMI equipped TVs cannot support this
feature. If underscan/overscan is not supported,
the top, bottom, left and right border of the active
video may be distorted, and the S/PDIF audio may
not sound right.
*Note: Underscan mode displays full video frame,
which reveals content recorded on the edges of the
screen. In overscan mode, the field monitor zooms
into the area that would be visible on most TVs. Set
the field monitor to underscan if your video will be
viewed on a computer monitor or shown with a
projector, also look for light stands, microphones
and other unwanted objects on the edges of your
shot. Set to overscan to see how the video will look
on a television.
•Stereo Audio In: supports 2-channel analog audio.
This port does not support 8-channel analog audio.
•S/PDIF In: supports up to 8-channel audio input.
•S/PDIF In: supports 48KHz audio sampling rate
only. Adjust your audio source's output signal to
48KHz in order to send the correct audio signal.
•Rotary Switch: mode 7; to read EDID of the HDMI
port. Set rotary switch to 7, then return to 0when the
image appears.
5
Blank Page
6
Blank Page
7
Technical Support and Warranty
QUESTIONS? SIIG’sOnline Support hasanswers! Simplyvisitour
web site at www.siig.com and click Support. Our online support
database is updated daily with new drivers and solutions. Answers
toyourquestionscouldbejustafewclicksaway. Youcanalsosubmit
questions online and a technical support analysts will promptly
respond.
SIIGoffers a 2-year manufacturer warranty with this product. Please
see our web site for more warranty details. If you encounter any
problems with this product, please follow the procedures below.
A) If it is within the store's return policy period, please return the
product to the store where you purchased from.
B) Ifyourpurchasehaspassedthe store's return policy period, please
follow these steps to have the product repaired or replaced.
Step 1: Submit your RMA request.
Go to www.siig.com, click Support, then RMA to submit a
request to SIIG RMA. If the product is determined to be
defective, an RMA number will be issued.
Step 2: After obtaining an RMA number, ship the product.
•Properly pack the product for shipping. All software, cable(s)
and any other accessories that came with the original package
must be included.
•Clearly write your RMA number on the top of the returned
package. SIIG will refuse to accept any shipping package, and
will not be responsible for a product returned without an
RMA number posted on the outside of the shipping carton.
•You are responsible for the cost of shipping. Ship the product
to the following address:
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
RMA #:
•SIIG will ship the repaired or replaced product via Ground
in the U.S. and International Economy outside of the U.S. at
no cost to the customer.
DVI+AudiotoHDMIisatrademarkofSIIG,Inc. SIIGandtheSIIGlogoareregisteredtrademarksof
SIIG, Inc. Other names used in this publication are for identification only and may be trademarks of
theirrespectivecompanies.
September, 2008 Copyright © 2008 by SIIG, Inc. All rights reserved.
About SIIG, Inc.
Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturer
of I/O connectivity products, including PCIe, PCI & ISA serial and
parallel ports, USB, Serial ATA & UltraATA controllers, FireWire
(1394a/b),networking, sound cards,andother accessories. SIIG isthe
premier one-stop source of upgrades.
SIIGproducts offercomprehensiveuser manuals, manyuser-friendly
features, and are backed by an extensive manufacturer warranty.
High-quality control standards are evident by the overall ease of
installation and compatibility of our products, as well as one of the
lowest defective return rates in the industry. SIIG products can be
found in computer retail stores, mail order catalogs, through major
distributors, system integrators, and VARs in the Americas and the
UK, and through e-commerce sites.
PRODUCT NAME
DVI +Audio to HDMI
FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS
B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE
FCCCOMPLIANCESTATEMENT:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE
SIIG, Inc.
6078 Stewart Avenue
Fremont, CA 94538-3152, USA
Ph: 510-657-8688
