1
Cyber 2S1P PCIe
Quick Installation Guide
04-0655A
Introducing the Cyber 2S1P PCIe
The Cyber 2S1P PCIe high-speed serial I/O card
provides two 9-pin serial ports and one parallel
port.
Key Features and Benefits
• Adds 2 RS-232 9-pin serial ports and 1
ECP/EPP parallel port to your PCIe enabled
system
• Compliant with PCI Express Base
Specification, Revision 1.1
• Supports ECP, EPP and Buffered SPP
parallel port modes
System Requirements
• PCI Express enabled system with an
available PCI Express slot
• Windows®7 (32-/64-bit) / Vista (32-/64-
bit) / XP (32-/64-bit) / Server 2003 & 2008
(32-/64-bit)
2
Package Contents
•Cyber 2S1P PCIe board
• 2-Port DB9 serial port cable
• Driver CD
• Quick installation guide
Layout

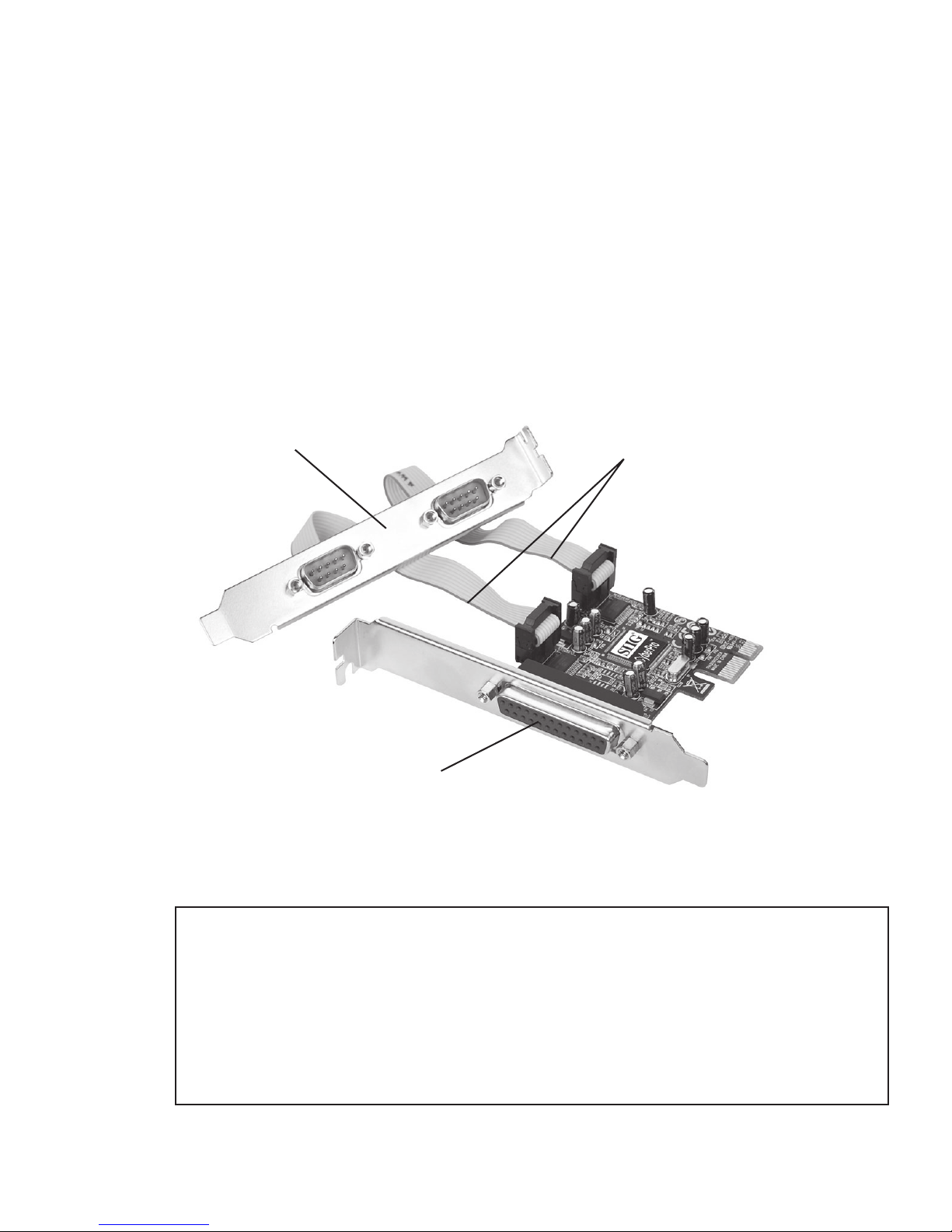

Figure 1: Board Layout
Parallel port
Stripe
2-Port DB9 serial port cable
Note: When connecting the 2-Port DB9
serial port cable, position the ribbon
cable(s) so that the stripe is on the side
closest to the parallel port. See Figure 1.
3
Hardware Installation
General instructions for installing the card are
provided below. Since the design of computer
cases and motherboards vary, refer to your
computer’s reference manual for further
information, if needed.
Static Electricity Discharge may permanently
damage your system. Discharge any static
electricity build up in your body by touching your
computer’s case for a few seconds. Avoid any
contact with internal parts and handle cards
only by their external edges.
1. Turn OFF the power to your computer and
any other connected peripheral devices.
2. Unplug the power cord from the computer.
3. Remove the computer cover.
4. Remove the slot bracket from an available
PCIe slot.
5. Connect the 2-Port DB9 (9-pin) serial port
cable connector now and remove another
slot bracket cover from the system chassis.
See Figure 1 on the page 2 for more details.
4
Skip this step if you don't need any serial
ports.
6. To install the card, carefully align the card's
bus connector with the selected PCIe slot on
the motherboard. Push the board down
firmly, but gently, until it is well seated.
7. Replace the slot bracket holding screw to
secure the card.
8. Mount the second serial port and secure it
with the slot bracket holding the screw.
Skip this step if you don't need any serial
ports.
9. Replace the computer cover and reconnect
the power cord.
Driver Installation
Please make sure the board is installed before
proceeding with driver installation.
Windows 7 (32-/64-bit)
1. Install the board and boot up Windows.
2. Right click Computer, click Manage, click
Device Manager.
5
3. Insert the driver CD. Right click PCI Parallel
Port, click Update Driver Software.
4. Click Browse my computer for driver
software.
For 32-bit: Type D:\32bit, then click Next.
(Change D: to match your CD-ROM drive)
For 64-bit: Type D:\64bit, then click Next.
(Change D: to match your CD-ROM drive)
5. At Windows has successfully updated
your driver software, click Close.
6. Right click PCI Serial Port, click Update
Driver Software.
7. Repeat steps 4-5.
8. Right click PCI Serial Port, click Update
Driver Software.
9. Repeat steps 4-5 to complete the installation.
Windows Vista (32-/64-bit)
1. Install the board and boot up Windows.
2. At the Found New Hardware, insert the
driver CD, click Locate and install driver
software (recommended), then click
Continue.
6
3. Click Don't search online. Skip this step
and go directly to step 4 if not prompted.
4. Click I don't have the driver disc. Show me
other options.
5. Click Browse my computer for driver
software (advanced).
For 32-bit: Type D:\32bit, then click Next.
(Change D: to match your CD-ROM drive
letter)
For 64-bit: Type D:\64bit, then click Next.
(Change D: to match your CD-ROM drive
letter)
6. At The sofware for this device has been
successfully installed, click Close to
complete the installation.
Windows XP (32-/64-bit)
1. At the Found New Hardware Wizard, select
No, not this time, click Next. Skip this step
and go directly to step 2 if not prompted.
2. Select Install from a list or specific location
(Advanced), then click Next.
7
3. Insert the driver CD, check Include this
location in the search, uncheck the other
box.
For 32-bit: Type D:\32bit, then click Next.
(Change D: to match your CD-ROM drive
letter)
For 64-bit: Type D:\64bit, then click Next.
(Change D: to match your CD-ROM drive
letter)
4. Click Finish to complete the installation.
Windows Server 2003 (32-/64-bit)
1. At the Found New Hardware Wizard, select
No, not this time, click Next. Skip this step
and go directly to step 2 if not prompted.
2. Select Install from a list or specific location
(Advanced), then click Next.
3. Insert the driver CD, check Include this
location in the search, uncheck the other
box.
For 32-bit: Type D:\32bit, then click Next.
(Change D: to match your CD-ROM drive
letter)
8
For 64-bit: Type D:\64bit, then click Next.
(Change D: to match your CD-ROM drive
letter)
4. Click Finish to complete the installation.
Windows Server 2008 (32-/64-bit)
1. At Found New Hardware window, click
Locate and install driver software
(recommended).
2. Click Don't search online. Skip this step
and go directly to step 3 if not prompted.
3. Click I don't have the disc. Show me other
options.
4. Click Browse my computer for driver
software.
5. Insert the driver CD.
For 32-bit: Type D:\32bit, then click Next.
(Change D: to match your CD-ROM drive
letter)
For 64-bit: Type D:\64bit, then click Next.
(Change D: to match your CD-ROM drive
letter)
6. Click Close to complete the installation.
9
To Verify Windows Installation
1. Check in Device Manager to verify
installation.
For Windows 7: Right click Computer, click
Manage, then click Device Manager.
For Windows Vista: Right click Computer,
click Manage, click Continue, then click
Device Manager.
For XP / Server 2003: Right click My
Computer, click Manage, then click Device
Manager.
For Server 2008: Right click Computer, click
Manage, double click Diagnostics, click
Device Manager.
2. Click on the +(plus sign) in front of Ports
(COM & LPT), two PCIe to High Speed...
and PCIe to Multi Mode Parallel Port...
should be displayed.
Changing COM Port Address
Some serial devices need a specific COM port in
ordertowork. Ifyourserialdeviceworksproperly,
do not change this setting. See steps in the next
page.
10
1. From the Device Manager window double
click Ports (COM & LPT), then double click
PCIe to.... port.
2. Click Port Settings tab, then click Change
Port Number.
3. Click the down arrow next to the COM Port
number box, select a COM port that is not
in use. Click OK, OK. Close Device
Manager to save the changes.
Changing Parallel Port Address (LPT)
Some parallel devices need a specific parallel port
in order to work. If your parallel device works
properly, do not change this setting.
1. From the Device Manager window double
click Ports (COM & LPT), then double click
PCIe to Multi Mode Parallel Port....
2. Click Port Settings tab.
3. At the LPT Port Number box, click the
down arrow and select an LPT port that is
not in use. Click OK, then close Device
Manager to save the changes.
