Silhouette Infinity View Manuale del proprietario

Infinity View

Technical

Instructions

Models 1594, 1595, 2922, 2923

Infinity View | Glazing with Silhouette Vision Sensation®

Lenses

Silhouette now offers premium prescription lenses

for all Silhouette frames.

Expertly crafted in Austria using our exclusive

Panorama®lens designs, Silhouette Vision Sensation®

lenses perfectly match the curve of every Silhouette

frame.

This results in a complete visual solution that offers

the wearer exceptional visual comfort and edge to

edge clarity.

For more information visit:

https://www.silhouette.com/us/us/vision-sensation

or contact your Silhouette Account Executive

Infinity View | Glazing

Frame is designed with a 5.0 base curve

Other base curves will work and should have

groove profile matching 5.0 base curve to

maintain frame curve

Recommended lenses are High Index 1.6,

1.67, Polycarbonate and Trivex

Patterns available from Silhouette customer

service at 800-223-0180

OMA shape files available at:

https://portal.silhouette.com

www.silhouettelab.com

Do not heat frame to aid lens insertion!

If lenses are large, resize to allow cold insert.

Do not clean Infinity View frames with alcohol!

Infinity View | Fullrim Groove Glazing

FULLRIM GROOVE GLAZING

0.6 mm

0.7 mm

Lenses must be cut on-size and groove must

follow size specification for proper lens

retention.

For best aesthetics, lens curve should match

the frame curve whenever possible to

maintain the frame curve.

Groove should be positioned so the front

surface of the prescription lens is flush with

the front surface of the frame.

Flatter lenses should have groove cut to

match a 5.0 base curve.

Groove depth: 0.6 mm | Groove width: 0.7 mm

Infinity View | Fullrim Groove Glazing Rubber Ring

Infinity View shapes require the use of

Silhouette Rubber Ring MH3 to prevent lens

rotation.

Lenses should not be cut large to prevent

rotation as this could stress the frame.

Do not heat frame to aid lens insertion!

Do not clean Infinity View frames with alcohol based liquids!

Infinity View end pieces are attached

to frame front using BLS sleeve.

In the event of end piece needing

replacement, use BLS 58 sleeve to

remount.

Compress using Silhouette mounting

plier and turquoise or blue tip.

Infinity View | End Piece Mounting

Infinity View | Lens Mounting

1. Insert lens from back side of frame

starting at the nasal corner.

2. Continue inserting lens along the

top to the temporal corner,

continuing around circumference

until lens snaps into place.

Infinity View | Lens Dismounting

Partially push frame off lens toward the back and remove lens

from front of frame.

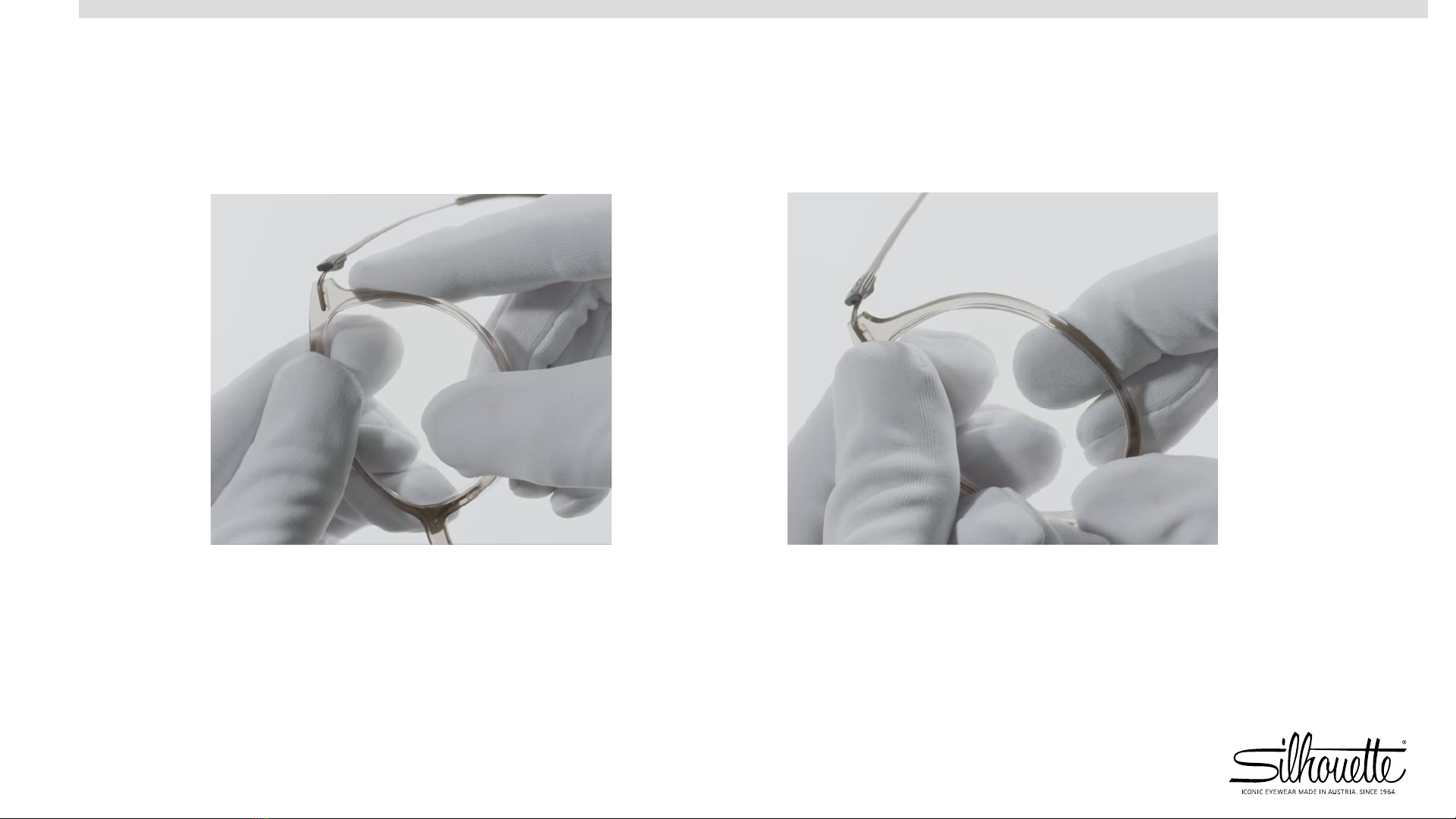

Infinity View | Inclination

1. Open the temple.

2. Support BLS temple fixation

firmly with the mounting

pliers.

3. Hold end piece firmly and adjust

inclination into the required

position with fingers.

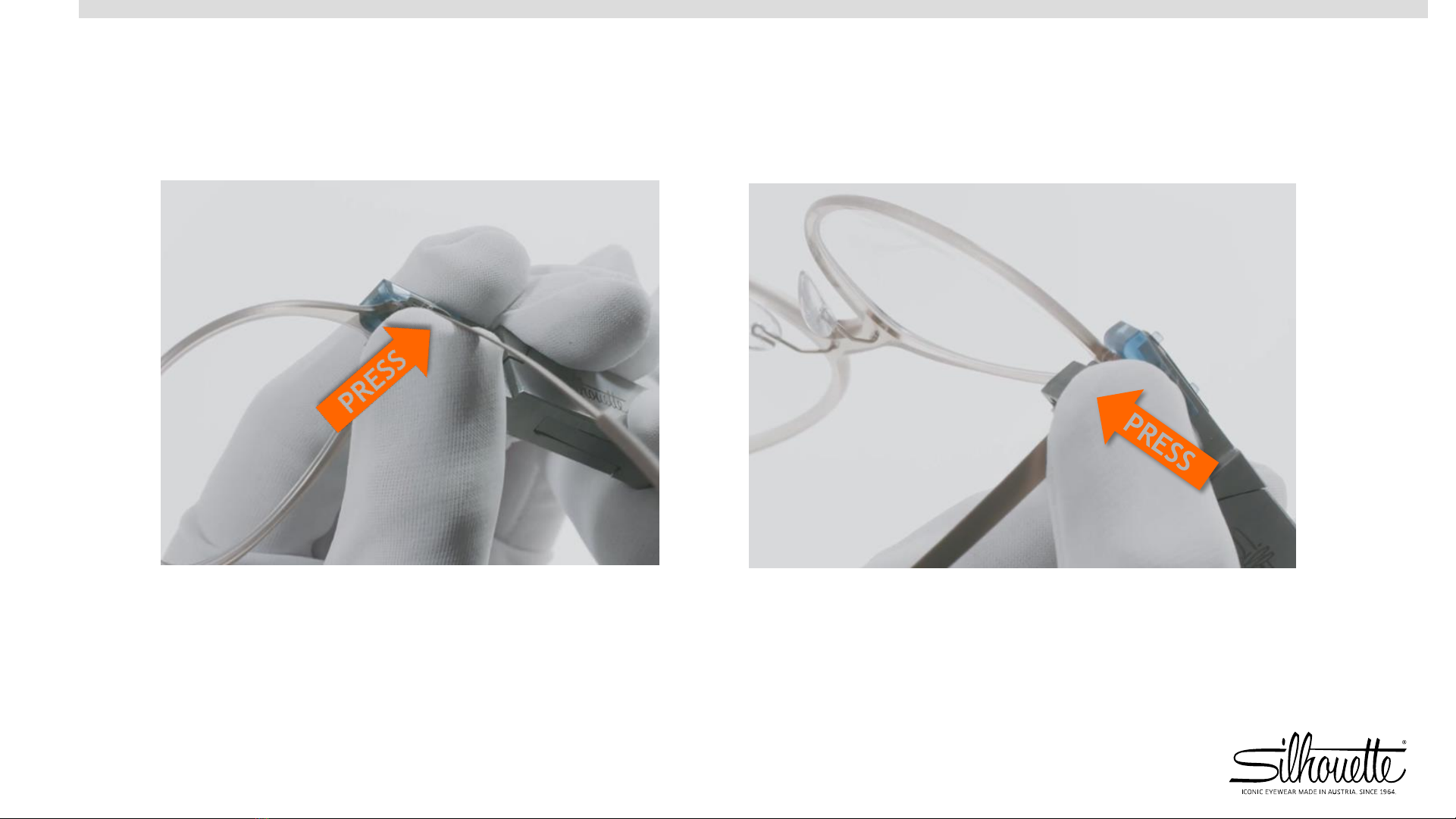

Infinity View | Temple Side Pressure Adjustment

Hold the BLS temple fixation with the mounting pliers and press the temple end piece

with your finger outward to open or inward with to close.
