Silvan Selecta TR13-1 Manuale utente

Instruction Manual

MANTR13-1 REV C 28/03/19

TROLLEY SPRAYER 13L

TR13-1

Warning! Prior to using the sprayer all operators must read and fully understand the

contents of this instruction manual, all safety information fitted to the sprayer and

any other manual for associated equipment.

Warning! Never allow an inadequately trained person to install or operate the sprayer.

Warning! Do not spray flammable liquids.

Warning! Refer to the chemical manufacturer’s label for correct use and safe handling

instructions of chemicals before filling or using the sprayer. Always wear the

recommended safety clothing and equipment when handling chemicals and

operating the sprayer. Ensure that all operators and associated personnel are

familiar with the legal regulations and codes of practice that apply to the safe use,

storage and disposal of spray chemicals.

Warning! Exercise care to ensure proper stability when carrying or operating in hilly and

uneven terrain, particularly if the ground is wet or loose. Wear non-slip shoes.

Warning! Before carrying out maintenance work, wash the sprayer thoroughly to remove

all toxic chemicals that may contaminate the sprayer. Wear appropriate safety

clothing and equipment when carrying out maintenance. Do not clear blocked

nozzles by blowing out with your mouth.

Warning! Never point the spray gun at any person or any part of the human body.

Warning! Dispose of empty chemical containers and chemical residues in accordance with

the instructions supplied by the chemical manufacturer.

Safety Instructions

Before attempting to operate or install the sprayer carefully read and take

note of the following safety warnings.

Failure to comply with these warnings may result in serious injury or

death.

GENERAL:

This trolley sprayer has been designed and manufactured primarily for applying agricultural

and horticultural herbicides and insecticides to plants. It may also be used for cleaners and

other products compatible with Viton seals.

TANK:

13L blow moulded translucent polyethylene tank, U.V. stabilised and impact resistant with

calibrated fill mark moulded into the tank. Safety pressure release valve fitted. Nominal

capacity 13 Litres.

SPRAY LANCE:

Trigger jet assembly with 500mm long telescopic lance extendable to 900 mm supplied with

adjustable nozzle

TROLLEY:

2-wheel Trolley, Adjustable handle length, 150mm diameter wheels

FILTRATION:

Filter in spray lance handle.

DIMENSIONS:

Length: 340 mm

Width : 300 mm

Height: 900 mm

Weight (dry): 3.79 kg

Specifications

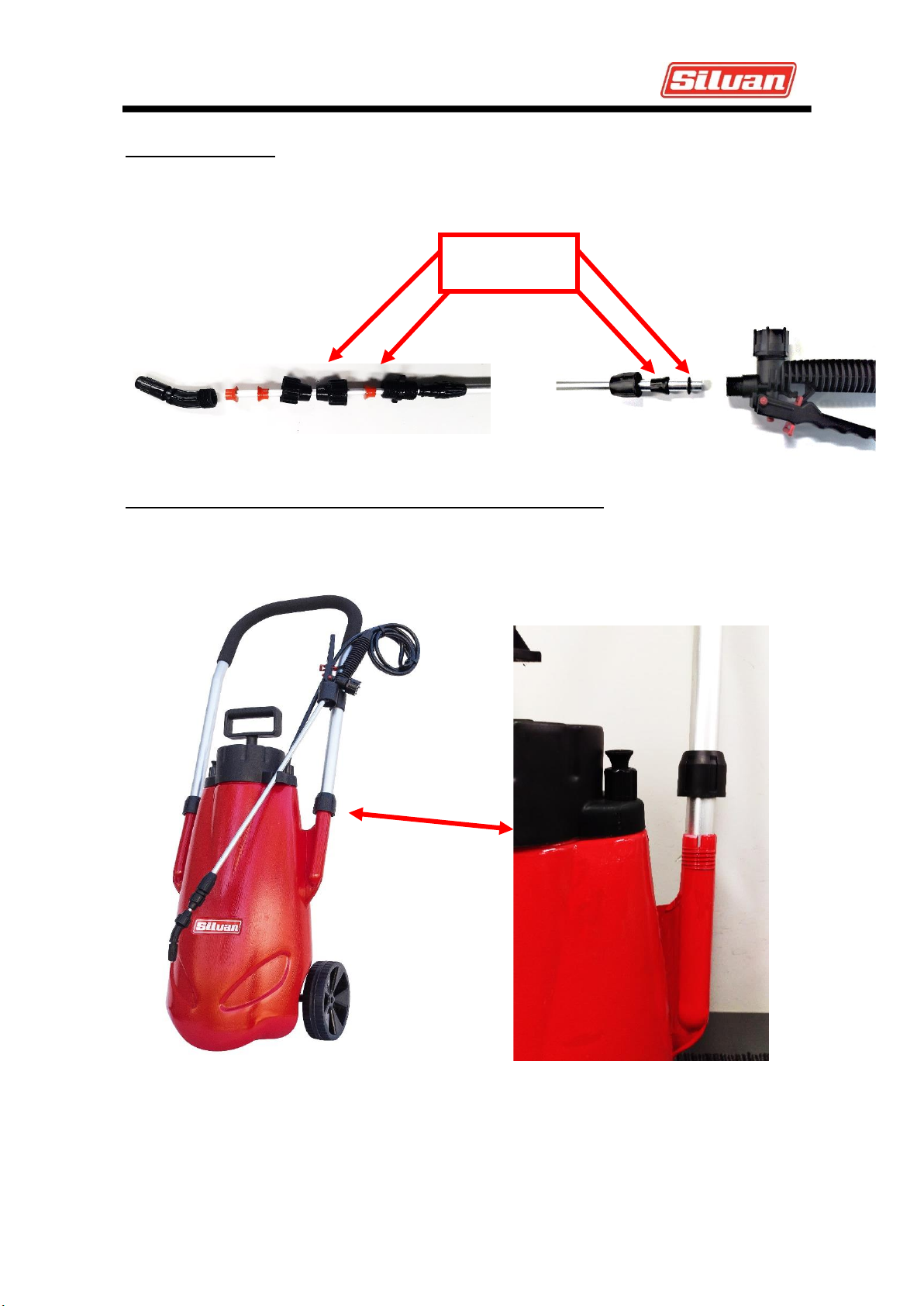

GUN ASSEMBLY:

Fit the spray lance to the gun ensuring the rubber seal is fitted. Fit the 45-degree elbow and

nozzle to the tip of the lance again ensuring the seal is in place.

FIT THE TROLLEY HANDLES AND ADJUST THE HEIGHT:

The handle length can be adjusted by loosening the nut shown in the diagram, adjusting

the length and retightening.

Installation

SEAL

POSITION

FILLING THE TANK AND ADDING CHEMICAL:

Warning: Before using the sprayer for the first time or adding chemical check the

operation and function of the sprayer with clean water.

Check that the filter is clean, and all fittings, hoses and gun connections are tight.

Partly fill the sprayer before adding chemical. Always use clean water to prevent blockages

and ensure chemical function is not inhibited.

Add the chemical according to the directions on the chemical container following all safety

and protective equipment recommendations.

Do not use wet powders or chemicals that must remain suspended in solution and require

agitation. Only use chemicals or dyes that fully dissolve.

Do not use a sprayer that has been used to spray herbicides for insecticides or nutrients

unless the sprayer has been thoroughly cleaned including neutralising the herbicide

according to the manufactured directions if required.

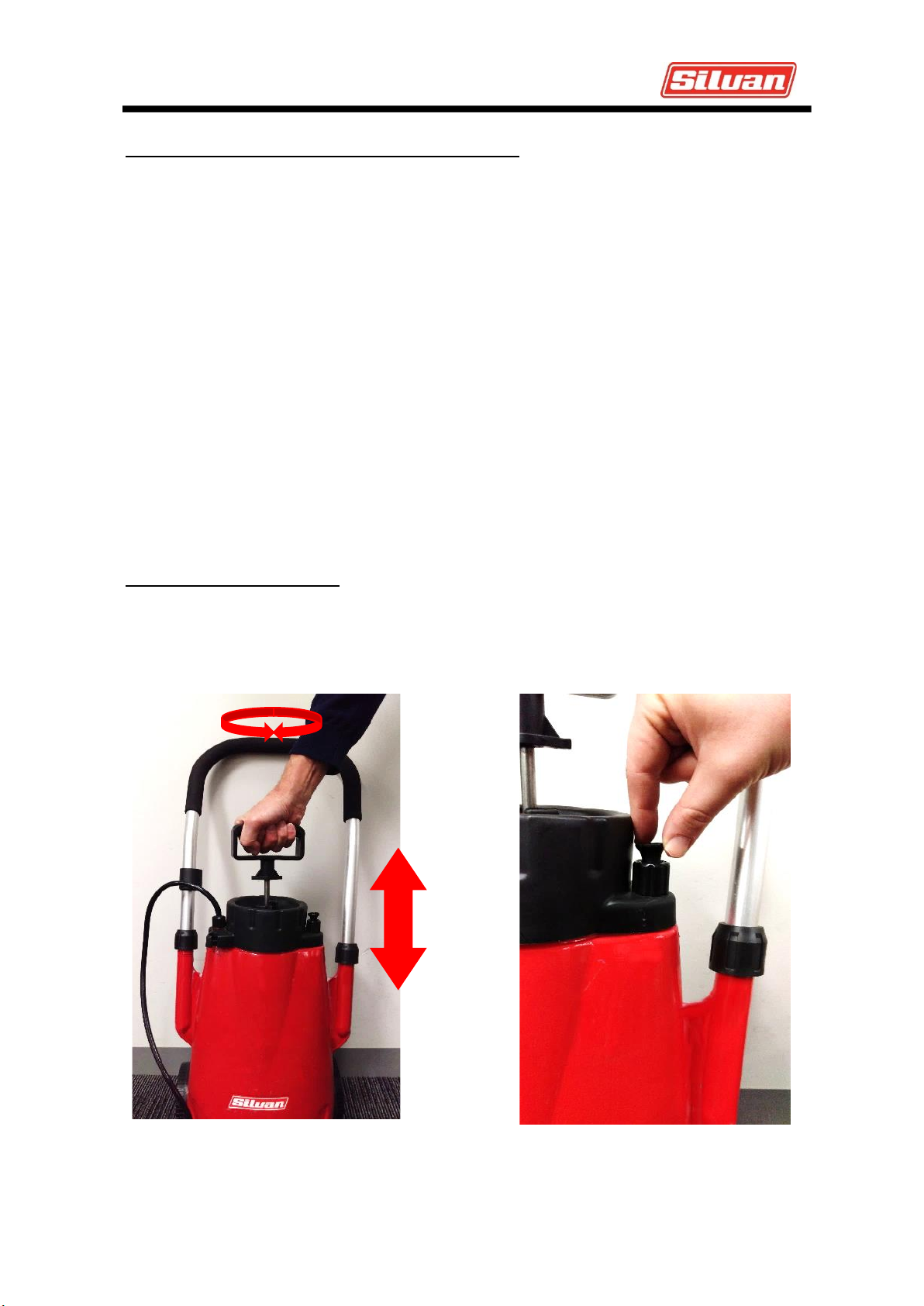

OPERATING THE PUMP:

The tank is pressurised by manually pumping the handle up and down. A pressure safety

valve prevents over pressurisation. After use always release the air pressure inside the tank

using the pressure safety valve, particularly in hot weather.

Operation

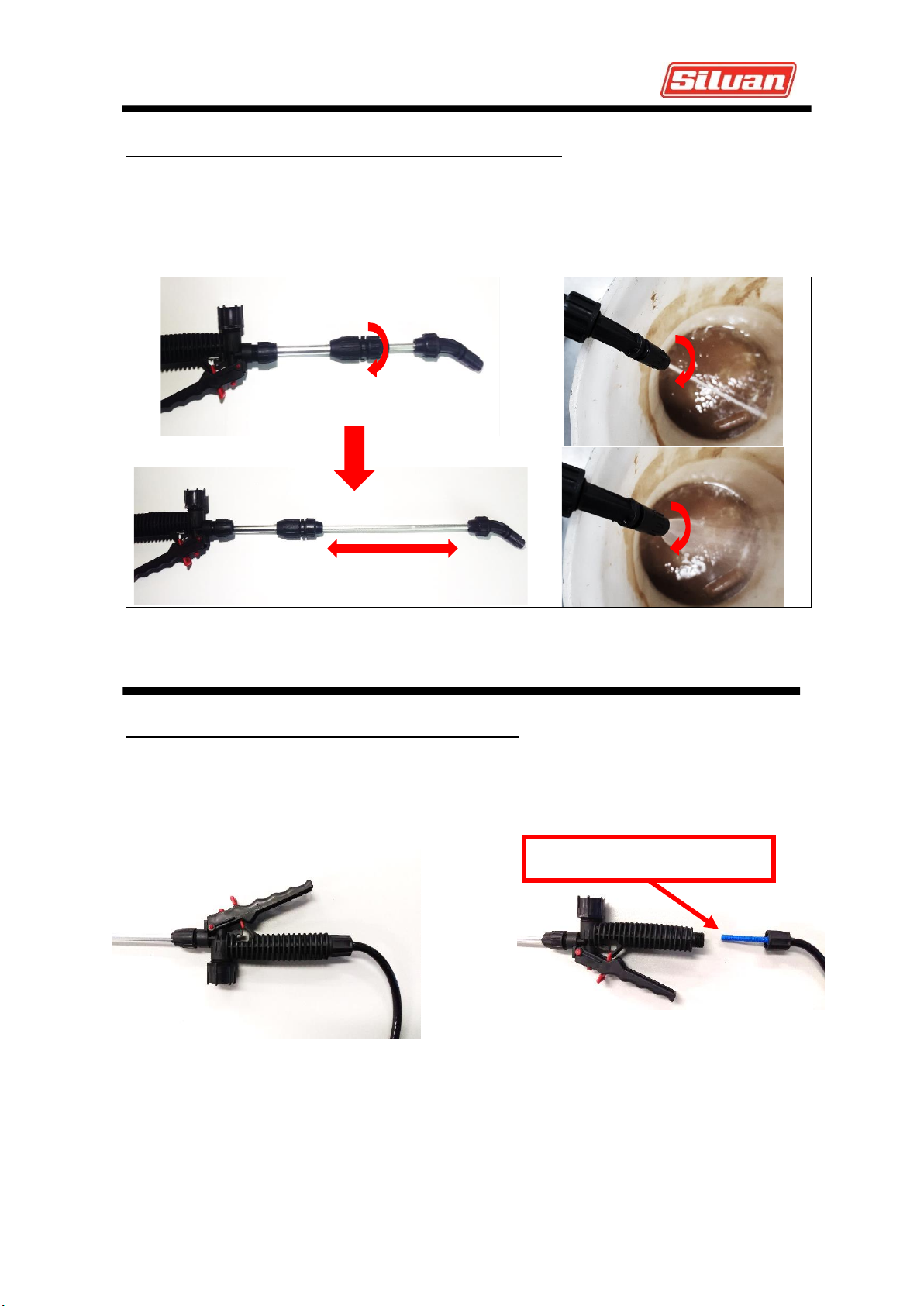

ADJUSTING THE SPRAY LANCE AND THE NOZZLE:

The spray lance can be adjusted by loosening the nut as shown below, extending the lance

to the desired length, and retightening. The nozzle can be adjusted by loosening the nozzle

as shown below, loosening and tightening the nozzle for desired spray stream (single stream

or cone stream).

CLEANING THE FILTER IN THE GUN HANDLE:

Use clean water and rinse out the sprayer after use to avoid the filter becoming clogged.

The filter is fitted inside the handle of the sprayer. Unscrew the hose connection to the gun

and withdraw the filter.

Operation (cont.)

Service & Maintenance

FILTER INSIDE GUN HANDLE

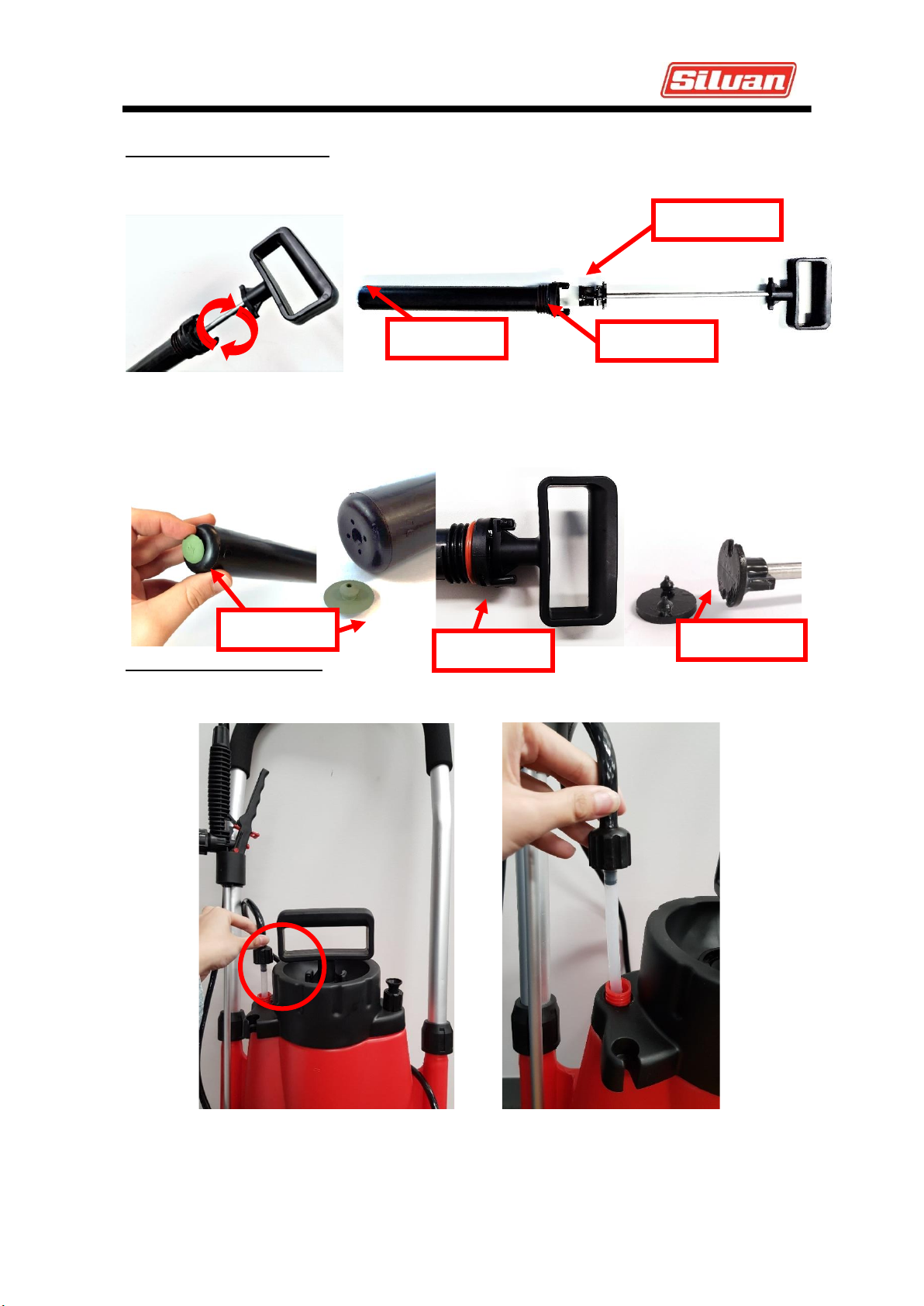

SERVICING THE PUMP:

To access all O-rings and seals the pump will need to be opened. Top of pump will twist

open then Piston can slide out.

Inspect under the diaphragm for dirt or debris and clean. Remove diaphragm and clear;

replace if damaged. Check pump seal is clean and lubricated (Vaseline/Petroleum Jelly).

SERVICING THE HOSE:

Inspect the pipe that attaches to the hose, check that it is still attached.

Service & Maintenance (cont.)

O-Ring

Diaphragm

Pump Seal

Diaphragm

Pump Seal

O-Ring

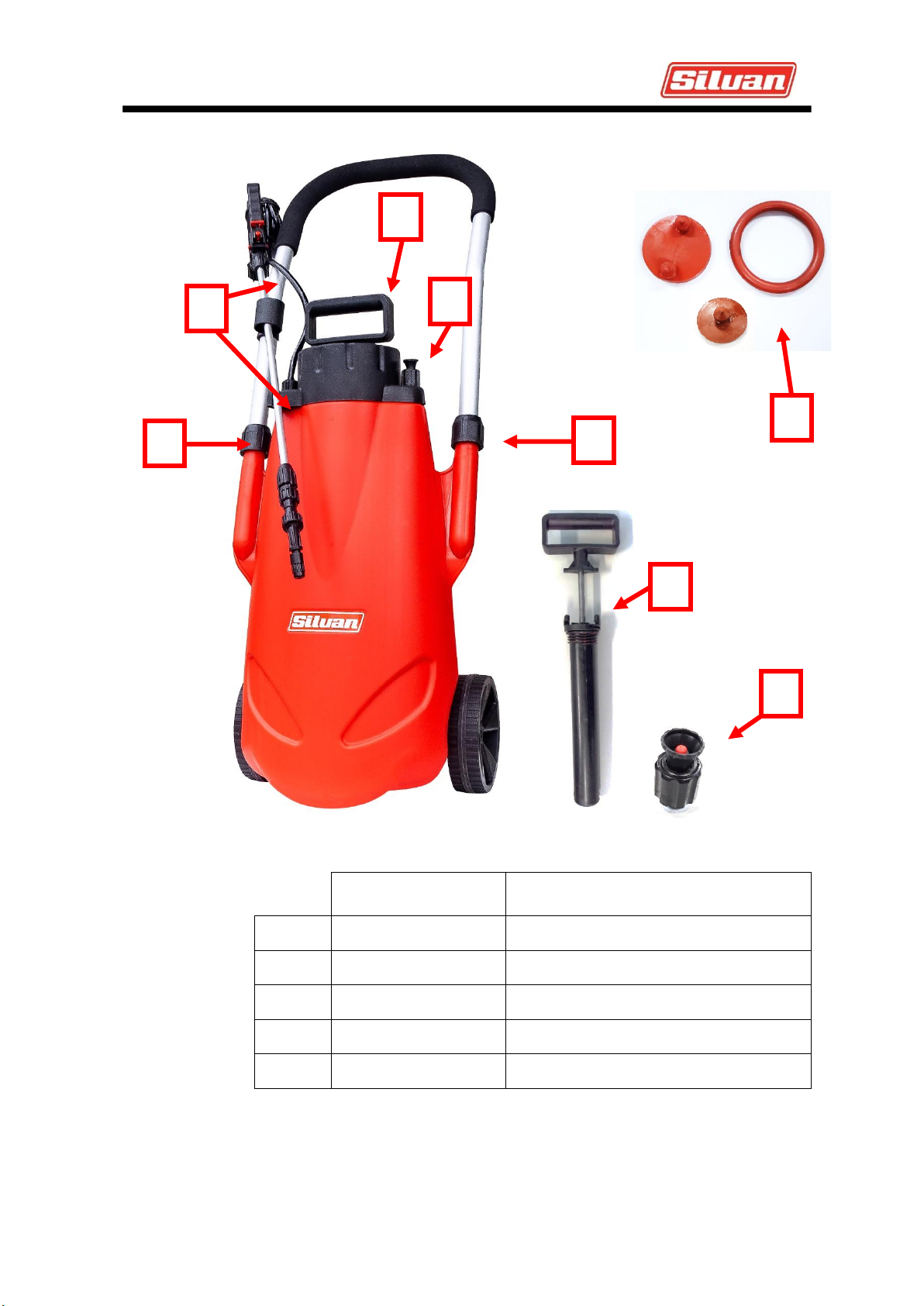

Part Number

Description

382-097

Extendable Lance Only

TR13-23

Handle Lock Nut Suit TR13-1

TR13-21

Pump Assembly Suit TR13-1

TR13-22

Seal Service Kit Suit TR13-1

TR13-24

Safety Release Valve Suit TR13-1

Spare Parts

TROUBLESHOOTING GUIDE

Problem

Solution

No or limited pressure inside the

tank.

•Air Leak:

•Check pump assembly is screwed in tight. Check for

dirt or damage of sealing gasket, replace if necessary.

•Check safety air release valve is tightly fitted, not

damaged or making “hiss” noise. Remove, clean then

refit.

•Check Spray hose connection, where hose exits tank

is tightly fitted and connection not making “hiss”

noise

•Pump will not pump:

•Check diaphragm on end of pump is clean, remove

and wash under clean water or replace if damaged

•Check O-Ring on piston is clean and lubricated or

replace if necessary.

There is pressure inside tank but

limited or no flow from the nozzle

•Unscrew the spray gun from the hose to access the filter

inside the gun handle to clean.

•The nozzle is blocked. Unscrew the black coloured nozzle

from the end of the gun and clean all parts.

The sprayer sprays air without

water

•The suction tube inside the tank has become loose. Refit.

Lance filter blocked

•Clean filter with water only

Troubleshoot

FOR SERVICE SUPPORT PH 1300745826 (AUST) OR 0508 745826 (N.Z)

[email protected]

www.silvan.com/support

VICTORIA (HEAD OFFICE)

68 Atlantic Drive, Keysborough,

3173, Victoria, Australia

Telephone: +61 (03) 9215 2700

Facsimile: +61 (03) 9215 2701

www.silvan.com.au

NEW ZEALAND

22 Sunshine Avenue

Te Rapa, Hamilton, 2001 New Zealand

Telephone: +64 (07) 8496 033

Fax: +64 (07) 8496070

www.silvannz.co.nz

SILVAN AUSTRALIA PTY. LTD.

ABN 48 099 851 144
