Specifications Subject to Change Without Notice.
1600 Xenium Lane North, Minneapolis, MN 55441-3787
Phone (763) 923-2441
Technical Manual
and
Replacement Parts List
Horizontal Bottle Coolers
MODELS
SKBC50
SKBC65
SKBC95
1
TECHNICAL MANUAL
SILVER KING PREPARATION TABLES
MODELS SKBC50, SKBC65, SKBC95
Thank you for purchasing Silver King food service equipment. Our goal is to provide our customers with the most reliable
equipment in the industry today. Please read this manual and the accompanying warranty information before operating your new
Silver King unit. Be sure to complete and mail the warranty card within 10 days of purchase to validate your warranty.
INSPECT FOR DAMAGE AND UNCRATE
Upon delivery of your new Silver King unit, uncrate at once to inspect for possible freight damage following the instructions printed
on the exterior of the container. Report any damages to the carrier responsible for transportation and promptly present a claim for
any evidence of mishandling. Save all packaging materials if a claim is filed.
INSTALLATION
The exterior of the cabinet has been protected by a plastic covering during manufacturing and shipping. This covering can be
readily stripped before installation. After removing this covering, wash the interior and exterior surfaces using a warm, mild soapy
water solution and a sponge or cloth, rinse with clean water and dry.
Location
When locating your new bottle cooler, convenience and accessibility are important considerations, but the following installation
guidelines must be followed:
•Always avoid placing the bottle cooler adjacent to an oven, heating element or hot air source that would affect the operation
of the unit.
•For proper ventilation the bottle cooler can be installed tight on the sides and back with the rear bumpers installed.
•The top and front must be unobstructed.
•The unit must be level or tilted backwards slightly.
•If the unit is not on legs or casters it should be sealed to the floor with an NSF approved sealant to prevent water from getting
under the unit.
Dividers
The bottle cooler comes with dividers to aid in separating stock. The spacing of the dividers is adjustable to suit various needs.
The ends of the dividers fit into the mounting brackets on the front and rear of the liner. An additional hold-down bracket mounted to
the top front mounting bracket holds them in place. This bracket must be removed using a Phillips screwdriver in order to install or
adjust the spacers.
Electrical Connections
Be sure to check the data plate, located on the liner of the cabinet, for required voltage prior to connecting the unit to power. The
specifications on the data plate supersede any future discussion.
The standard refrigerator is equipped with an eight (8) foot power cord that requires a 115 Volt, 60 Cycle, 1 Phase properly
grounded electrical receptacle. The power cord comes with a 3-prong plug for grounding purposes. Any attempt to cut off the
grounding spike or to connect to an ungrounded adapter plug will void the warranty, terminate the manufacturers responsibility and
could result in serious injury.
The circuit must be protected with a 15 or 20 ampere fuse or breaker. The unit must be isolated on a circuit and not plugged into an
extension cord.
2
Initial start up
After satisfying the installation requirements, the bottle cooler is ready to start. The Compressor will start when the power cord is
connected to the required power source. If the Compressor does not start when the unit is initially plugged in, check to make sure
that the Temperature Control is not in the "off" position. Allow the unit to run for two hours before loading it with product. When
loading the unit with product, take care not to block the airflow in the cabinet as this would affect the unit’s performance.
Temperature Control
The Temperature Control is located on the back wall of the cabinet liner and is factory set to maintain an average cabinet
temperature of approximately 36 to 40 Deg F.. To obtain colder temperatures turn the Temperature Control stem clockwise and
vice versa. Allow the unit a minimum of one hour to respond to a control setting adjustment.
Defrost
Your Silver King bottle cooler is an automatic defrost unit and no additional plumbing is required. Automatic defrosting is
accomplished when frost buildup on the Evaporator Coil is cleared during Compressor "off" cycles. Defrost water is collected in a
pan located in the compressor compartment where it is evaporated into the room air. It is important that the unit be installed level to
allow proper drainage of the defrost water.
MAINTENANCE
Preventative maintenance is minimal although these few steps are very important to continued operation and maximizing the life of
the appliance.
Cabinet Surfaces
The interior and exterior surfaces should be cleaned periodically with a solution of warm water and mild soap, rinsed and wiped dry
with a soft cloth. A good stainless steel cleaner can also be used on the stainless steel surfaces. Should a surface become
stained, do not attempt to clean with an abrasive cleanser or scouring pad. Use a soft cleanser and rub with the grain of the metal
to avoid scratching the surface. Do not use chlorinated cleaners. Always rinse well and dry after cleaning. To help remove odors,
the interior surfaces of the unit should be periodically cleaned with a solution of baking soda and warm water.
Condenser
Periodically the Condenser must be cleared of dust. The Condenser is located behind the front grill on the cabinet. To clean the
Condenser simply remove the front grill and brush or vacuum the exposed condenser fins. This will need to be done regularly to
maintain proper performance and increase the life of the unit.
Drain Pan
The Drain Pan is located under the front grill and can be removed by pulling is out the front of the unit. Depending on local
conditions the Drain Pan may need to be periodically emptied and cleaned.
MODEL SERIAL NO. DATE INSTALLED
3
4
ITEM
NUMBER DESCRIPTION PART NUMBER
SKBC50
PART NUMBER
SKBC65
PART NUMBER
SKBC95
GRILL, FRONT (BLACK) 29000 29000 29000
GRILL, FRONT (STAINLESS) 29985 29985 29985
GRILL, REAR (BLACK) 29410 29410 29410
GRILL, REAR (STAINLESS) 29731 29731 29731
3 CONDENSER COVER 29686 29686 29686
4 CONDENSER COIL 26530 26530 26531
5 CONDENSER FAN MOTOR 115V 23921 23921 23921
6 CONDENSER FAN BLADE 30613 30613 30613
7 CONDENSER FAN MOTOR BRACKET 41450 41450 41450
8 COMPRESSOR KIT (W/ ELECTRICALS & DRIER) 115V 10343-41 10343-41 10343-41
9 COMPRESSOR ELEC. KIT (RELAY/OVERLOAD/CAPACITOR) 115V 10344-41 10344-41 10344-41
10 DRIER 22677 22677 22677
11 CONDENSATE DRAIN PAN 29457 29457 29457
12 POWER CORD 115V 43263 43263 43263
13 EVAPORATOR COIL 26532 26745 26533
14 HEAT EXCHANGER (NOT SHOWN) 29794 29794 29794
15 EVAPORATOR FAN MOTOR BRACKET 24494 24494 24494
16 EVAPORATOR FAN MOTOR 115V 21251-2 21251-2 21251-2
17 EVAPORATOR FAN BLADE 99196 99196 99196
18 EVAPORATOR FAN GUARD 41473 41473 41473
19 TEMPERATURE CONTROL 20889 20889 20889
20 DOOR GUIDE 29463 29463 29463
21 AIR DEFLECTOR 29012 29564 30829
22 CENTER MULLION 29003 30827 30828
23 DOOR 10335-26 10335-27 10335-27
24 DOOR HANDLE 28788 28788 28788
25 SCREW HANDLE 29456 29456 29456
BOTTLE CAP DEFLECTOR (BLACK) 43675 43675 43675
BOTTLE CAP DEFLECTOR (STAINLESS) 29468 29468 29468
27 BOTTLE CAP OPENER 99972 99972 99972
BOTTLE CAP CATCHER (BLACK) 43674 43674 43674
BOTTLE CAP CATCHER (STAINLESS) 29986 29986 29986
29 SHOULDER SCREW - CAP CATCHER 30432 30432 30432
30 DIVIDER 28734 28734 28734
31 BUMPER 23927 23927 23927
32 LATCH / STRIKE ASSY 30640 30640 30640
1
2
28
26

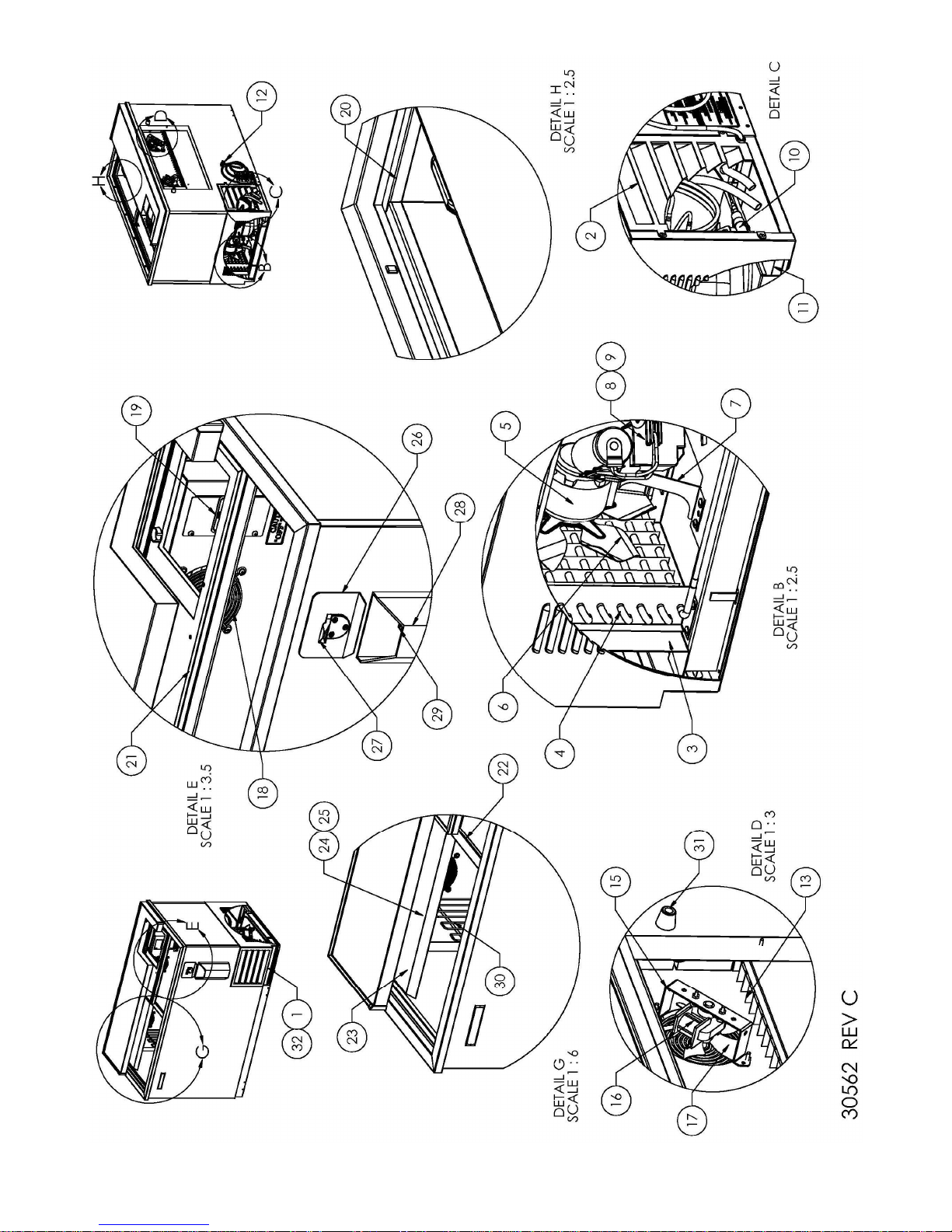

REPLACEMENT PARTS LIST – MODELS SKBC50, SKBC65, SKBC95
FOR EQUIPMENT WITH SERIAL NUMBERS STARTING WITH ‘S’ ONLY
WHEN ORDERING REPLACEMENT PARTS, PLEASE PROVIDE MODEL AND SERIAL NUMBERS
5
FORM NO. 29470 REV F
