- 1 -
Read these operating instructions carefully before using the appliance for
the first time and preserve this booklet for later reference. Pass this booklet
on to whoever might acquire the appliance at a future date.
INDEX PAGE
Intended Use 2
Items supplied 2
Technical data 3
Safety instructions 3
The appliance parts 5
Taking the appliance into use 6
Maintenance 10
Cleaning and Care 10
Disposal 11
CE Conformity 12
Importer 12
Warranty and Service 13
LB3C.indb 1LB3C.indb 1 05.08.2009 17:16:58 Uhr05.08.2009 17:16:58 Uhr
- 2 -
Intended Use
This appliance serves as a radio doorbell system for wireless
visitor signalisation and thus makes possible the operation of
a door bell without wiring. The appliance is intended for
domestic use only, not for commercial or industrial applications.
No warranty is provided for damages resulting from improper
use of the appliance!
Items supplied
1 Receiver
1 Sender
2 1.5 V Batteries, Type "AA/Mignon/LR6"
1 12 V Battery, Type 23A
1 Stand for the receiver
2 Screws for fixing the sender on to the assembly plate
5 Nameplates
2 Wallplugs with screws for sender assembly
1 Wallplug with a screw for receiver suspension
1 Operating manual
LB3C.indb 2LB3C.indb 2 05.08.2009 17:16:58 Uhr05.08.2009 17:16:58 Uhr
- 3 -
Technical data
Power supply
Receiver: 2 x 1.5V Type "AA/Mignon/LR6"
Sender: 1 x 12V Type 23A
Transmission frequency: 433 MHz
Range: 100 mtrs (Free-space range)
Ring-tone volume: min. 73dB(A) in 1 m (on max. setting)
Safety instructions
Do not permit children to handle electrical appliances•
without supervision, as they cannot correctly assess the
possible dangers of injury.
Check the appliance and all parts for visible damages.•
If the appliance is damaged, arrange for it to be checked
by Customer Services.
NEVER open the appliance. There are no user-serviceable•
elements inside.
Risk of accidents and injury!
This appliance is not intended for use by individuals (including•
children) with restricted physical, physiological or intellectual
abilities or deficiences in experience and/or knowledge
unless they are supervised by a person responsible for their
safety or receive from this person instruction in how the appli-
ance is to be used. Children should be supervised to ensure
that they do not play with the appliance.
LB3C.indb 3LB3C.indb 3 05.08.2009 17:16:58 Uhr05.08.2009 17:16:58 Uhr
- 4 -
Keep batteries well away from children. Children can put bat-•
teries into their mouths and swallow them. If a battery is swal-
lowed, medical assistance must be sought IMMEDIATELY.
For the handling of batteries please observe the following:•
Risk of explosion!
Do not throw batteries into a fire.•
Do not recharge the batteries.•
Never open batteries, never solder or weld batteries.•
The risk of explosions and injuries exists!
Regularly check the condition of the batteries. Leaking•
batteries can cause damage to the appliance.
If you do not intend to use the appliance for an extended•
period, remove the batteries.
Damage on the appliance
Avoid the simultaneous usage of batteries of varying•
types resp. capacities.
Do not use any aggressive chemical substances for•
cleaning.
NEVER submerse the appliance in water. Wipe it only•
with a slightly damp cloth.
Protect the receiver against moisture. Use it only in dry•
rooms, do not use it when it is raining outdoors or when
close to liquids.
Ensure that, when the receiver is in use, it cannot become•
wet or moist and that it cannot be damaged.
LB3C.indb 4LB3C.indb 4 05.08.2009 17:16:59 Uhr05.08.2009 17:16:59 Uhr
- 5 -

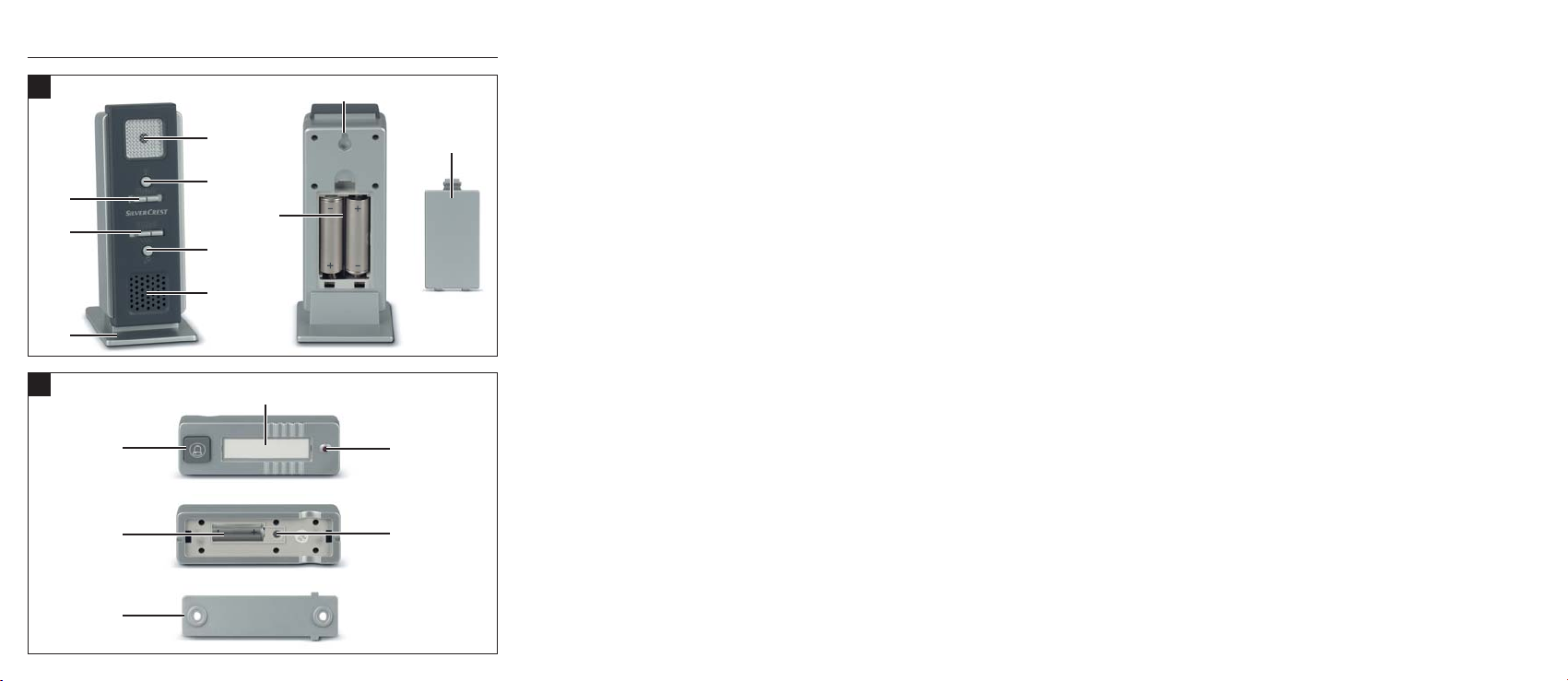

The appliance parts
Receiver (Fig. A)
qSignal indicator
wSynchronisation button, Receiver
eButton for melody selection
rSpeaker
tStand
yVolume regulator
uSignal type switch (optical/acoustic)
iBattery compartment - receiver
oLoop for suspension of the receiver
aBattery compartment cover - receiver
Sender (Fig. B)
sBell button
dNameplate
fIndicator for signal confirmation
gBattery compartment - sender
hSynchronisation button - sender
jAssembly plate - sender
LB3C.indb 5LB3C.indb 5 05.08.2009 17:16:59 Uhr05.08.2009 17:16:59 Uhr
- 6 -
Taking the appliance into use
Take the appliance out of the carton and remove all packaging
materials.
Inserting the batteries in the receiver
Open the battery compartment>ion the rear of the
appliance.
Insert 2 x 1.5V batteries of the type "AA/Mignon/LR6">
as per the insertion markings shown in the battery com-
partment i.
Replace the battery compartment cover>a.
The appliance now switches automatically into the syn->
chronisation mode. Press the synchronisation button on
the receiver wto provisionally leave this mode.
Inserting the battery in the sender
Remove the assembly plate>jfrom the sender.
Insert a 12 V battery, Type 23A as per the insertion>
markings shown in the battery compartment g.
Pay attention to correct poling of the batteries, otherwise the>
appliance will not function and could even be damaged.
Should the performance of the appliance diminish or fall
away completely, it means the batteries are exhausted.
The used batteries should then be changed for new ones>
of the same type.
LB3C.indb 6LB3C.indb 6 05.08.2009 17:16:59 Uhr05.08.2009 17:16:59 Uhr
- 7 -
Take note that, after changing the batteries, the
appliance MUST be synchronised once again.
Selecting the signal type
The receiver can indicate the reception of a door-ring signal
either optically, acoustically or optically and acoustically. To
select, bring the signal type switch uinto the desired position:
- only acoustic ring indications, the selected melody
sounds,
- only optical ring indications, the signal indicator blinks,
- optical and acoustic ring indications.
Adjusting the signal sound volume
To select the desired signal sound level bring the volume
regulator yinto the required position:
- Lower volume level
- Medium volume level
- Higher volume level.
Selecting the call melody
There are 16 different call melodies stored in the appliance.
Repeatedly press the button for melody selection>e.
When the desired melody sounds, stop the selection.>
The appliance will utilise the last melody it played as the
call melody.
LB3C.indb 7LB3C.indb 7 05.08.2009 17:16:59 Uhr05.08.2009 17:16:59 Uhr
- 8 -
Synchronising the sender and receiver
The sender and receiver in this doorbell system can commu-
nicate with each other over a number of different frequen-
cies. Therefore, several doorbell systems can be operated
within the appliance range without them disturbing each
other. The precondition for this is that the sender and receiv-
er within a system are working on the same frequency. For
this, you must synchronise the appliances as follows:
Press the synchronisation button on the receiver>w.
The red signal indicator now glows.
Now press the synchronisation button on the sender>h.
The indicator fon the sender blinks a few times, then it
goes out.
Now press the bell button>s.
If the synchronisation has been a success, the receiver notifies
you of the programmed call signal. The appliances then con-
clude the synchronisation mode. Should the receiver not
react as described, repeat the synchronisation.
The sender shows, with a brief glowing of the indicator f
when being activated, the transmission of the signal to
the receiver.
LB3C.indb 8LB3C.indb 8 05.08.2009 17:16:59 Uhr05.08.2009 17:16:59 Uhr
