Under-Cabinet Radio

Operating manual

Under-Cabinet Radio

KH 2396

- 1 -

INDEX PAGE

Intended Use 2

Items supplied 2

Technical data 2

Safety instructions 3

The appliance components 6

Setting up the appliance 6

Fixing the kitchen radio beneath

a wall cabinet 7

Setting up the kitchen radio 7

The settings menu 8

Radio operation 12

Non-functionality 14

Cleaning 14

Disposal 14

CE Conformity 15

Importer 15

Warranty and Service 15

Read the operating instructions carefully before using the

appliance for the rst time and preserve this booklet for

later reference. Pass this booklet on to whoever might acquire

the appliance at a future date.

- 2 -

Intended Use

This Kitchen Radio is intended for use either free-standing or

for assembly beneath a wall cabinet. The kitchen radio is

intended exclusively for the reception of FM radio stations as

well as for alarm wake up by signal tone or radio.

This Kitchen Radio is not intended for utilisation in commer-

cial or industrial applications. No warranty/liability will be

assumed for damage resulting from improper use or from

unauthorised reconstruction of the device!

Items supplied

1 Kitchen radio KH 2396

1 Mounting plate

4 Screws

2 Batteries type AAA/Micro

1 Operating manual

Technical data

Power supply: 220 - 240 V~, 50 Hz

Power consumption:

Operation: 5 Watt

Standby: Max. 2 Watt

Output level: 1 Watt at 10% THD

Frequency range UKW (FM) 87.5 – 108 MHz

Operating temperature: +5 ~ +35°C

Humidity: 5 ~ 90 %

(No condensation)

Dimensions

(W x H x D): 21,8 x 12 x 5,1 cm

Weight: 575 g

Protection class: II /

Backup batteries 2 x 1.5 V Type AAA/Micro

The technical features of this appliance enable an adjustable

reception capability that exceeds the permitted frequency

range of 87,5 - 108 MHz. In some countries, dierent

national regulations may apply to the assigned radio frequency

ranges. Please note that information received outside of the

assigned radio frequency ranges may not be utilised, passed

on to third parties or otherwise misused.

- 3 -

Safety instructions

This appliance is not intended for use by individuals •

(including children) with restricted physical, physiological

or intellectual abilities or deciencies in experience

and/or knowledge unless they are supervised by a person

responsible for their safety or receive from this person

instruction in how the appliance is to be used. Children

should be supervised to ensure that they do not play

with the appliance.

Always remove the power plug before cleaning the

•

appliance.

Check the appliance and all parts for visible damages.

•

The safety concept can work only if the appliance is in a

faultless condition.

The power plug must always be easily accessible, so

•

that in the event of an emergency the appliance can

be quickly disconnected from the mains power supply.

Risk of electrical shocks.

Connect the appliance only to correctly installed and •

earthed mains power sockets. Ensure that the rating of

the local power supply tallies completely with the details

given on the rating plate of the appliance.

Arrange for Customer Services to repair or replace

•

connecting cables and/or appliances that are not

functioning properly or have been damaged.

NEVER submerse the appliance in water. Wipe it only

•

with a slightly damp cloth.

Do not expose the appliance to rain and never use it in

•

a humid or wet environment.

Always take hold of the power cable by the plug.

•

Do not pull on the cable itself and never touch the power

cable with wet hands, this could result in either a short

circuit or you receiving an electric shock.

Do not place the appliance, furniture or anything else

•

on the power cable and ensure that it does not become

clamped.

NEVER make a knot in the power cable and do NOT

•

bind it together with other cables. The power cable

should be positioned so that no one can step on or trip

over it.

Ensure that the power cable does not become wet dur-

•

ing operation.

- 4 -

You are not permitted to open the appliance housing or •

repair the appliance. If the housing is opened, you run

the risk of receiving a potentially fatal electric shock and

the warranty lapses.

Protect the appliance against drip and spray water.

•

Do not place any water-lled vessels (e.g. ower vases)

on or near the appliance.

 Riskofre!

Do not use the appliance near hot surfaces.•

Do not place the appliance in locations that are subject •

to direct sunlight. Otherwise, it may overheat and become

irreparably damaged.

Do not locate the kitchen radio directly above hotplates.

•

The kitchen radio may be damaged. There is a danger

of re!

Never leave the appliance unattended while it is being

•

used.

Never cover the ventilation slots of the appliance while

•

it is on.

Do not place open re sources, such as candles, on or

•

near the appliance.

 Riskofpersonalinjury!

Keep the power cable and appliance away from chil-•

dren. Children frequently underestimate the dangers of

electrical appliances.

Provide a stable location for the appliance.

•

Do not operate the appliance if it has sustained a fall or •

is damaged.

Arrange for the appliance to be checked and/or repaired

•

by qualied technicians.

Keep batteries well away from children. Children can

•

put batteries into their mouths and swallow them.

If a battery is swallowed medical assistance must be

•

sought immediately.

Note:

Some aggressive furniture nishes can have a destructive •

inuence on the appliance's rubber pads. If necessary,

place the appliance on a nonslip pad.

 Thunderstorms!

Equipment connected to a power supply can be damaged •

during a thunderstorm. You should therefore always

remove the plug from the power socket when there is

a storm.

- 5 -

Notice regarding separation from mains-power

The ON/OFF switch does not completely disconnect the

appliance from the power network. Additionally, the

appliance consumes power when in standby-mode.

To completely separate the appliance from mains power,

the power plug MUST be removed from the mains power

socket.

Notice regarding electrical power surges (EFT /

electrical fast transient) and electrostatic

discharges:

In a case of malfunction due to an electrical fast transient

(power surge) and/or electrostatic discharge, the appliance

must be returned to default settings in order to re-establish

normal operation. Possibly the power supply must be

separated and then reconnected. The batteries (if present)

must be removed and then reinserted.

Information regarding the handling of batteries

The appliance uses batteries for memory conservation.

For the handling of batteries please observe the following:

Riskofexplosion!

Do not throw batteries into a re. Do not recharge the •

batteries.

Never open batteries, never solder or weld batteries.

•

The risk of explosions and injuries exists!

Regularly check the condition of the batteries. Leaking

•

batteries can cause damage to the appliance.

If you do not intend to use the appliance for an extended

•

period, remove the batteries.

Should the batteries leak, put on a pair of protective

•

gloves and clean the battery compartment and terminals

with a dry cloth.

 Important!

No liability/warranty will be considered for damage

to the Kitchen Radio caused by the eects of moisture,

water penetration or overheating!

- 6 -

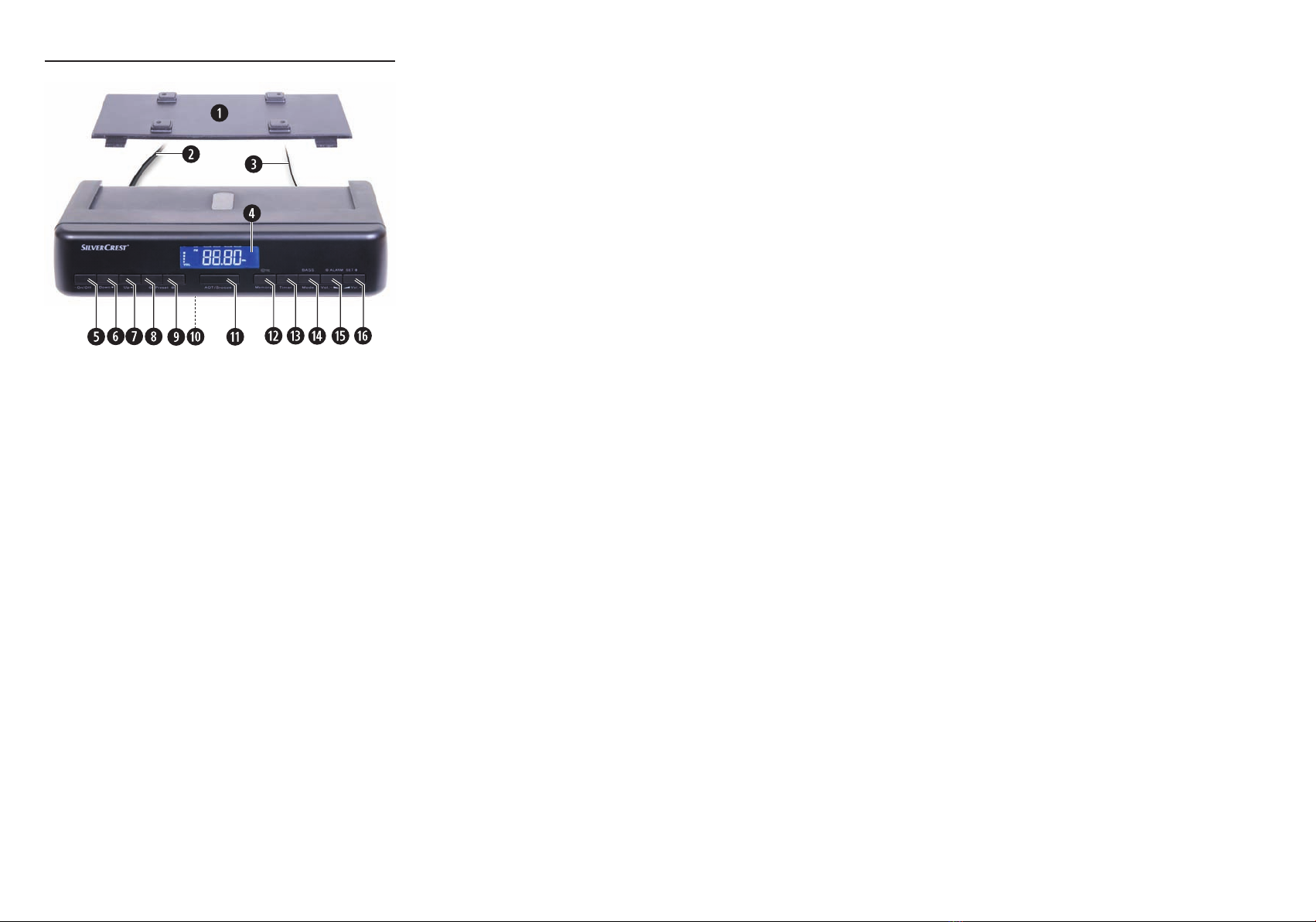

The appliance components

q Mounting plate/Baseplate

w Power cable

e Wire aerial

r Display

t ON/OFF - On/o switch, radio function

yDOWN - Selection button down

uUP- Selection button up

i PRESET — - for the selection of memory slots

o PRESET + - for the selection of memory slots

a Battery compartment

s A.O.T./SNOOZE - control for the timer switch o /

snooze button

d MEMORY/ - Save button/button lock

f TIMER - control for the timer programming

g MODE/BASS - activates the super bass function

switches to display options

h VOL. — - Volume decrease

ALARM SET q - alarm function 1 control

j VOL. + - Volume increase

ALARM SET w - alarm function 2 control

Setting up the appliance

First take all appliance components from the packaging and

remove all packing foil and tape.

Inserting the back-up batteries

The back-up batteries ensure that the time, date and alarm

time setting are not lost in the event of a power cut. For this

you require two 1.5 V batteries of the type AAA/Micro.

1. Open the lid of the battery compartment aon the under-

side of the kitchen radio.

2. Insert the batteries. Make sure the polarities are correct.

Otherwise, the memory receipt will not function and dam-

age may be caused to the appliance.

3. Close the lid of the battery compartment a.

The lid must audibly engage.

Note:

The back-up batteries must be checked at least once

per year and, if necessary, exchanged for new ones.

- 7 -

Fixing the kitchen radio beneath a wall cabinet

Caution:

The following described procedures must only be car-

ried out by persons with corresponding experience

since if they are carried out incorrectly it can lead to

device damage and/or cupboard surface damage.

With the supplied mounting plate q you can x the kitchen

radio below, for example, a kitchen wall cabinet:

1. Determine a suitable location for the kitchen radio.

2. Press the two retaining levers on the back of the appliance

down. Push the mounting plate q back and remove it.

3. Place the mounting plate qagainst the installation loca-

tion. Allow 4,5 cm space to the front edges.

This way the kitchen radio will later t ush.

4. Mark the four points for the drillholes with a pencil.

5. Using a spike, make a small depression at the marking

points. Firmly secure the mounting plate q with the sup-

plied screws.

6. Hold the kitchen radio slanted, with the two recesses

in the retaining lugs on the mounting plate q. Press the

kitchen radio upwards until it noticeably engages.

Disassembly

To disassemble the kitchen radio, press the two retaining

•

levers at the rear of the appliance downwards. Then pull

the radio out to the front and remove it.

Unscrew the screws and remove the assembly plate

• q.

Setting up the kitchen radio

Do not set the kitchen radio up without the mounting plate q.

Otherwise the speakers are covered and the sound is scarcely

audible.

To t the kitchen radio with the supplied mounting plate q:

1. Simultaneously press the two retaining levers on the back

of the appliance down. Push the mounting plate q back

and remove it.

2. Push the two retainer lugs on the mounting plate qinto

the recesses on the lower rear side of the kitchen radio.

3. Firmly press the front part of the mounting plate q down

until you hear it engage. You can now set up the radio.

- 8 -

Providing mains power

Insert the plug into a mains power socket. The display • r

is illuminated, the time begins to run but the radio is

switched o (Automatic mode).

The settings menu

Setting the time

The radio must be o to set the time.

1. In automatic mode press the button BASS/MODE g

once. The time blinks.

2.Press the buttons UP/DOWNu/y, to set the time of

day in minute intervals. Press and hold the keys to change

the time in quick succession.

3.Press the button MODE/BASS g again to save the time

of day and move to the date settings.

If, during the settings, you do not press a button within 15

seconds the device saves the setting and returns to the auto-

matic mode.

Setting the date

1.In automatic mode press the button MODE/BASS g twice.

In the display rappears “01.01.10“ and the date indicator

blinks.

2.Press the buttons UP/DOWNu/y, to set the date

in daily intervals. Press and hold the keys to change the

date in quick succession.

3.Press the button MODE/BASS g again to save the date

and to move to the display brightness setting.

Setting the display brightness

1. In automatic mode press the button MODE/BASS g

three times. In the display rappears “L“ (low) and

shows the lowest of the two brightness levels.

2.Press the button UP h to switch to the brighter illumination

level “H” (high). Press the button DOWNyto switch

back to the lower brightness level.

3.Press the button MODE/BASS g again to save the dis-

play brightness setting and to move to the remind function

settings.

Setting the remind function

You can programme a date, which the device will remind

you of when it arrives.

1.In automatic mode press the button MODE/BASS gfour

times. The display r shows, alternatively, a date and the

SDA indicator for the remind date.

Altri manuali per KH 2396

Indice

Altri manuali Silvercrest Radiosveglia

Silvercrest

Silvercrest KH 2289 Manuale utente

Silvercrest

Silvercrest KH 2187 Manuale utente

Silvercrest

Silvercrest SCUR 3 A1 Scheda informativa del prodotto

Silvercrest

Silvercrest SRWK 800 A1 Manuale utente

Silvercrest

Silvercrest KH 2189 Manuale utente

Silvercrest

Silvercrest KH 2239 Manuale utente

Silvercrest

Silvercrest KH 2420 Manuale utente

Silvercrest

Silvercrest SUR 1 A1 Manuale utente

Silvercrest

Silvercrest SUR 1 A1 Manuale utente

Silvercrest

Silvercrest SRWK 800 A1 Manuale utente

Silvercrest

Silvercrest SRD 250 A2 Manuale utente

Silvercrest

Silvercrest SRD 250 A1 Manuale utente

Silvercrest

Silvercrest HG00708A Manuale utente

Silvercrest

Silvercrest SUR 1 A1 Manuale utente

Silvercrest

Silvercrest SUR 1 A1 Manuale utente

Silvercrest

Silvercrest KH 2254 Manuale utente

Silvercrest

Silvercrest KH 2217 Manuale utente

Silvercrest

Silvercrest SRD 250 A2 Manuale utente

Silvercrest

Silvercrest KH 2190 Manuale utente

Silvercrest

Silvercrest KH 2296 Manuale utente

Silvercrest

Silvercrest KH 2281 Manuale utente

Silvercrest

Silvercrest KH 2188 Manuale utente

Silvercrest

Silvercrest KH 2398 Manuale utente

Silvercrest

Silvercrest KH 2187 Manuale utente

Manuali Radiosveglia popolari di altre marche

Denver

Denver CRQ-105 Manuale utente

Audiovox

Audiovox CE90 Manuale utente

Sony

Sony Dream Machine ICF-C763L Manuale utente

Sanyo

Sanyo DMP-P6 Manuale utente

RCA

RCA RPC100 Manuale utente

Yamaha

Yamaha ISX-80 Manuale utente

Pyle

Pyle PLMR20W Manuale utente

Blaupunkt

Blaupunkt CR7BK Manuale utente

Philips

Philips AJ3180 Manuale utente

HoMedics

HoMedics SS-5500-2EU Manuale utente

RCA

RCA RC66i Manuale utente

Versaudio

Versaudio Vers Manuale utente

SOUNDMASTER

SOUNDMASTER UR8100 Manuale utente

Audiovox

Audiovox CE90 Manuale utente

Jensen Audio

Jensen Audio JCR-222 - AM/FM Projection Alarm Clock Radio Manuale utente

Roberts

Roberts ChronoDAB Manuale utente

AEG

AEG MRC 4132 BT Manuale utente

Tokai

Tokai TC-155 Manuale utente
