Silvercrest Mp10 Manuale utente

User instructions

Használati utasítás

hb_sc_10t-maus_hu-en_0703.qxp 08.03.2007 15:53 Uhr Seite 1

SilverCrest MP10 English

User instructions

Silvercrest MP10

Thank you for purchasing the high-quality SilverCrest MP10 optical 10-button

wireless scroll mouse. Please read through this instruction leaflet carefully and

follow the safety instructions.

English SilverCrest MP10

Important notes

Before using the device for the first time, please carefully read through the

following instructions and note all warnings, even if you are familiar with

handling electronic equipment. Store this manual in a safe place for future

reference. If you sell or give away the device, please ensure you handover

these instructions too.

Place the device on a firm, level surface and do not place any objects on the

device.

The device is not designed for use in rooms with a high temperature or air

humidity (e.g. bathrooms) or excessive dust.

Please ensure that:

- no direct heat sources (e.g. heaters) act on the device

- the device is not exposed to direct sunlight or strong artificial light

- contact with splashing and dripping water and aggressive liquids is avoided

and the device is not operated near water, in particular the device must

never be submerged;

- there are no naked flames or fire sources (e.g. burning candles) on or next

to the device;

- no foreign bodies penetrate;

- the device is not exposed to excessive impacts and vibrations

Maintenance and care

Clean the device with a clean, dry cloth only. Maintenance work is necessary if

the device has been damaged, if liquid or objects have got inside the housing,

the device has been exposed to rain or moisture or if it is not working properly

or has been dropped. All maintenance work must be carried out by trained,

qualified personnel only.

SilverCrest MP10 English

Children

Electrical devices must be kept out of reach of children. Never allow children

to use electrical devices without supervision. Children are not always able to

correctly recognise possible dangers. Rechargeable batteries and small parts

can be extremely dangerous if swallowed. Store rechargeable batteries out of

reach of small children. If a rechargeable battery has been swallowed, you

must seek medical assistance immediately. Keep packaging films, foils and

sheeting out of reach of children too. Risk of suffocation.

Rechargeable batteries

Warning: The rechargeable batteries (type AA 1.2 V) can explode if they are

not handled properly. Never dismantle them, do not change their polarization

and under no circumstances whatsoever should you ever throw the

rechargeable batteries into an open fire. Keep them out of reach of children

and dispose of them in an environmentally friendly way.

Risk of explosion if the rechargeable batteries are incorrectly replaced.

Replace with the same type or types recommended by the manufacturer.

Actively think about protecting the environment. Used batteries do not belong

in domestic waste. They must be submitted to a collection service for waste

batteries.

If you use normal batteries instead of rechargeable batteries the MP 10

wireless mouse must not be placed in the charger.

Radio interface

Switch off the wireless mouse if you are on an aeroplane, in a hospital,

operating theatre or near an electronic medical system. The radio waves

transmitted can disrupt the function of sensitive equipment. Keep the device at

least 20cm away from a pacemaker as otherwise proper function of the

pacemaker can be disrupted by radio waves. The transmitted radio waves can

cause interference noises in hearing aids. If the radio components are

switched on, keep the device away from flammable gases and potentially

explosive atmospheres (e.g. paint shop), as the transmitted radio waves can

trigger an explosion or fire.

The range of radio waves depends on environmental and ambient conditions.

English SilverCrest MP10

The devices in the set have been tested and approved with

respect to compliance with the basic requirements and other

relevant regulations of the EMC Directive 89/336/EEC, the

Directive for low voltage electrical equipment 73/23/EEC and

the R&TTE Directive 99/5/EC.

Devices marked with this symbol are subject to the European

Directive 2002/96/EC. All waste electrical and electronic

equipment must be disposed of separately from normal

domestic waste in officially provided collection points. By

properly disposing of old equipment you avoid environmental

damage and a risk to your own personal health. Further information on proper

disposal of the old device according to the regulations is available from your

local authority, the waste disposal services authority or the shop where you

purchased the product.

Package contents

Please use this list to check the packaging contents are complete:

- MP10 wireless mouse

- Charger unit with integrated receiver

- 2 rechargeable batteries, type AA 1.2V

- User instructions

System requirements

- Operating system: Microsoft®Windows®2000/XP

- At least one free USB port

SilverCrest MP10 English

Technical Specifications

- Cordless, optical 10 button mouse

- 800 dpi resolution

- Radio frequency: 27.045 MHz

- Rechargeable batteries: 2x AA 1.2V

- Range: approx 1m

First steps

Insert the rechargeable batteries

Insert the rechargeable batteries type AA supplied with correct polarisation

(note and match + and – symbols) in the wireless mouse (see figure below).

Overview

Fig.: Wireless mouse with

rechargeable battery

compartment cover open

1 Contacts for charging the rechargeable batteries in the

charger unit

2 Optical sensor

3 Synchronizer button

4 Rechargeable battery compartment (open)

The rechargeable batteries must be fully charged first in order to use their full

capacity.

English SilverCrest MP10

The buttons' functions

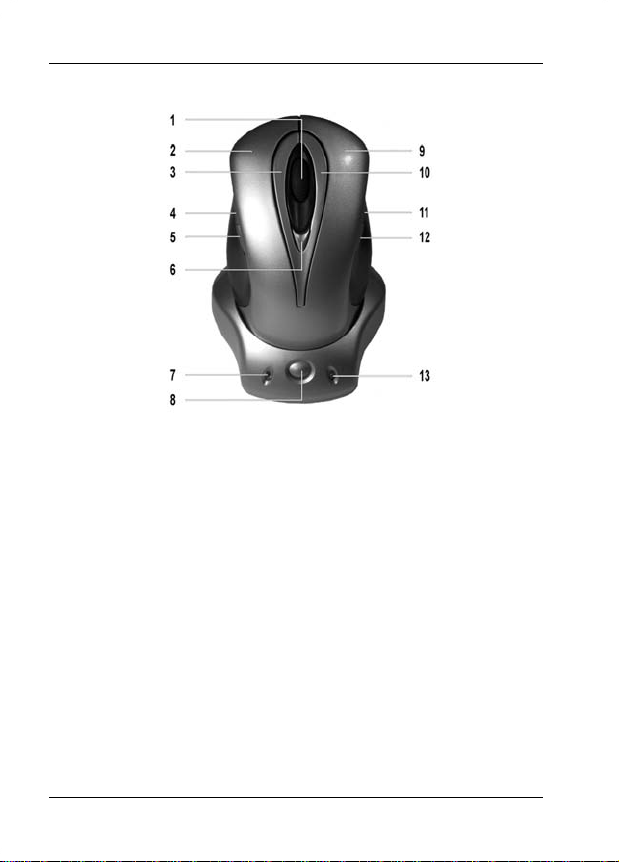

Fig.: Wireless mouse in the

charger unit

1 Middle mouse button and scroll wheel

2 Left-hand mouse button

3 Starts the standard eMail program (e.g. Outlook)

4 Page back (Internet)

5 Page forwards (Internet)

6 Switch between active applications

7 Receiver indicator light

8 Synchronizer button

9 Right-hand mouse button

10 Starts the standard browser (e.g. Internet Explorer)

11 Display browser favourites

12 Display My Computer

13 Charge indicator light

SilverCrest MP10 English

Installing the hardware

After you have inserted the rechargeable batteries the optical sensor (2) on

the underside of the wireless mouse lights up.

1. Plug the USB connector of the charger unit into a USB port on your

switched on computer. The operating system automatically recognises the

new hardware and installs the required drivers.

2. During this short, one-off, procedure a message appears first "New

hardware found", followed by the message "The new hardware has been

installed and can now be used." After you have connected the USB the

receiver indicator light (7) on the charger unit lights up.

The wireless mouse is connected to the charger unit by means of radio

transmissions. The radio channel must be synchronized the first time you use

it. The wireless mouse and charger unit must be maximum 50cm apart for this

procedure.

3. Please press the synchronizer button (8) on the charger unit to start one-

off and automatic radio synchronization between the charger unit and the

wireless mouse. The receiver indicator light (7) flashes quickly.

4. Then press the synchronizer button (3) on the wireless mouse within 20

seconds. The receiver indicator light (7) on the charger unit soon

continues to flash with a fast rhythm. When the synchronization is finished

the receiver indicator light (7) flashes with a slower rhythm.

Synchronization is finished.

If the mouse is now used the receiver indicator light (7) flashes quickly. If not,

please repeat steps 3 to 4.

If you remove or replace the rechargeable batteries you must repeat the

synchronization. Do this by following steps 3 to 4.

English SilverCrest MP10

Switching the wireless mouse on and off

You can switch the wireless mouse on and off using the synchronizer button

(3) on the underside of the mouse. To switch off the mouse: press the

synchronizer button and briefly keep it pressed until the optical sensor (2)

briefly flashes. Press the synchronizer button once to switch the mouse back

on. Renewed radio synchronization is not necessary after switching back on.

Energy saver mode

The wireless mouse is equipped with an energy saver mode to spare the

rechargeable batteries. If you do not use the mouse for several minutes it

automatically switches itself off. Then press any button on the wireless mouse

to switch it back on.

Charging the rechargeable batteries

To recharge the rechargeable batteries: insert the wireless mouse with the

inserted rechargeable batteries in the charger unit (see figure on page 6). The

charge indicator light (13) lights up during the charging process and goes out

when the charging process is finished.

The operating voltage required for charging is supplied via your computer's

USB connection. Depending on your computer model, the operating voltage at

the USB connection is switched off when the computer is switched off. You

can only charge the wireless mouse's rechargeable batteries if the computer is

switched on. Optionally, you can use an external, active USB distributor (hub),

to charge the wireless mouse even if the computer is switched off (not

included in the scope of supply).
