Silvercrest SHSS 12 B2 Manuale utente

IAN 100116

RECHARGEABLE HAND-HELD AND UPRIGHT VACUUM

CLEANER SHSS 12 B2

RECHARGEABLE HAND-HELD AND

UPRIGHT VACUUM CLEANER

Operating instructions

AKKU-HAND- UND

-BODENSTAUBSAUGER

Bedienungsanleitung

GB/IE Operating instructions Page 1

DE/AT/CH Bedienungsanleitung Seite 11

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of

the device.

Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen

Funktionen des Gerätes vertraut.

A B C

SHSS 12 B2

Contents

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Appliance description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Before ﬁrst use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Charging the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Assembly/disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Connecting the hand element to the handle/removal from handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using the hand element with the handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Using the hand element . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Cleaning and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Emptying the dirt container . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Cleaning the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Cleaning the rotary brush. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Warranty and service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Disposal of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Disposal of (rechargeable) batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Importer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

IB_100116_SHSS12B2_LB6.indb 1 19.09.14 14:02

2SHSS 12 B2

RECHARGEABLE HAND-HELD

AND UPRIGHT VACUUM

CLEANER SHSS 12 B2

Introduction

Congratulations on the purchase of your new

appliance.

You have selected a high-quality product.

The operating instructions are part of this product.

They contain important information on safety, usage

and disposal. Before using the product, familiarise

yourself with all handling and safety guidelines.

Use the product only as described and for the range

of applications speciﬁed. Please also pass these

operating instructions on to any future owner(s).

Intended use

This appliance has been designed exclusively for

vacuum cleaning dry surfaces and dry residues.

This appliance is intended solely for use in private

homes. Do not vacuum people or animals with this

appliance. Any other usage of or modiﬁcation to

the appliance is deemed to be improper usage

and carries the risk of serious personal injury. The

manufacturer accepts no liability for damages that

result from improper use of the appliance or are

caused by the incorrect operation of it.

The appliance is not intended for commercial use.

Package contents

Handheld vacuum cleaner

Brush nozzle

Crevice tool

Extension handle with ﬂoor nozzle

Cradle (with charging socket)

Charger

Operating instructions

Check the delivery contents for completeness

immediately after unpacking.

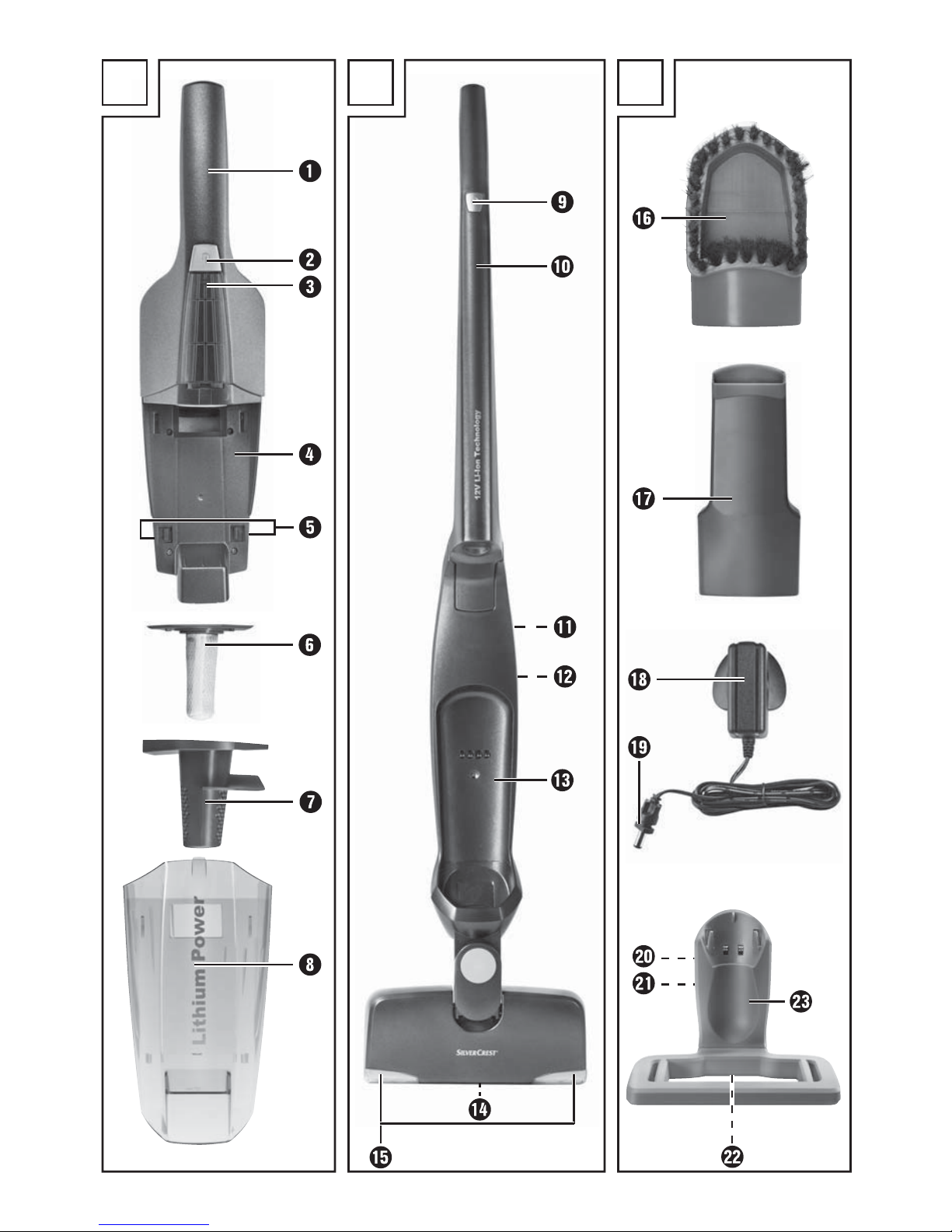

Appliance description

Figure A:

1Grip, hand element

2On/Oﬀ switch

3 Charge indicator lamp

4Hand element

5Buttons

6Dust ﬁlter

7Coarse ﬁlter

8Dirt container

Figure B:

9 On/Oﬀ switch

0Grip

q"Grip" release

w"Hand element" release

eHand element recess

rRotary brush

tLED lamp

Figure C:

zBrush nozzle

uCrevice tool

iCharger

oCharger barrel jack

pHolder for brush nozzle

aHolder for crevice tool

sCharging socket

dCradle (with charging socket)

IB_100116_SHSS12B2_LB6.indb 2 19.09.14 14:02

SHSS 12 B2

Technical data

Charger

Input: 100–240 V ~50/60 Hz 300 mA Max.

Output: 13.5 V 500 mA

Type designation: SHSS 12 B2-2

Protection class: II /

Floor nozzle

Nominal power: 5 W

Protection class: III /

Input voltage: 10.8 V 1800 mAh

Appliance

Input voltage/current: 13.5 V 500 mA

Nominal power: 75 W

Protection class: III /

Batteries: 10.8 V/1800 mAh Li-ion battery

Battery Pack: 3 cells each of 3.6 V

Operating time with full battery charge

(depending on ﬂoor covering): approx. 15 min.

Charging time with empty battery: 5–6 hours

Safety guidelines

DANGER – ELECTRIC SHOCK!

► Do not charge or use the appliance outdoors.

► Never use the handheld vacuum cleaner if the cable, plug or casing are

damaged.

► To avoid risks, arrange for damaged power cables and/or plugs to be

replaced as soon as possible by a qualiﬁed specialist or by our Customer

Services.

► Arrange for repairs to be carried out only by specialist workshops. Under

no circumstances should you open the appliance yourself. Repairs that are

not carried out by a specialist workshop could lead to physical injuries.

► Before charging the appliance, make sure that the mains voltage corresponds

to the voltage indicated in the technical data for the charger.

► Never touch the mains adapter/charger or the appliance with wet or damp

hands.

► Do not use the mains adapter/charger with an extension cable; connect

the mains adapter directly to a power socket.

IB_100116_SHSS12B2_LB6.indb 3 19.09.14 14:02

4SHSS 12 B2

WARNING! RISK OF INJURY!

► Do not change any accessories while the appliance is switched on.

► Do not use the handheld vacuum cleaner for vacuuming up water or other

liquids.

► Do not use the handheld vacuum cleaner for vacuuming up sharp objects

or glass shards.

► Never vacuum up burning matches, glowing ashes or cigarette butts.

► Do not use the handheld vacuum cleaner for vacuuming up chemical

products, stone dust, gypsum, cement or similar particles.

► This appliance is not suitable for use with inﬂammable and explosive

substances or chemical and aggressive liquids.

► Always store the appliance indoors. To prevent accidents, keep the appli-

ance in a dry location when not in use.

► Under extreme conditions, leaks in the battery cells may occur. In the event

that battery ﬂuid comes into contact with skin or eyes, the aﬀected area

must be rinsed oﬀ with water immediately. Contact a physician.

► This appliance may be used by children aged 8 years and above and by

persons with limited physical, sensory or mental capabilities or lack of ex-

perience and knowledge, provided that they are under supervision or have

been told how to use the appliance safely and are aware of the potential

risks. Children must not use the appliance as a plaything. Cleaning and

user maintenance tasks may not be carried out by children unless they are

supervised.

IB_100116_SHSS12B2_LB6.indb 4 19.09.14 14:02

SHSS 12 B2

WARNING! RISK OF INJURY!

► Use only accessories recommended by the manufacturer.

► The mains adapter may not be used for other purposes.

► Always grip the power plug to disconnect the appliance from the power

supply.

► Always be sure to keep the handheld vacuum cleaner away from heating

elements, ovens or other heated appliances and surfaces.

► Always make certain that the ventilation slits are not obstructed. A blocked

ventilation circuit can result in overheating and damage to the appliance.

► Take special care when using the handheld vacuum cleaner on stairs.

► This product contains rechargeable batteries. Do not throw the appliance

into a ﬁre and do not subject it to high temperatures. There is a risk of

explosion!

► Always remove the ﬂoor nozzle from the handle before cleaning the rotary

brush to avoid accidental starting of the rotary brush.

ATTENTION! MATERIAL DAMAGE!

► Do not use the handheld vacuum cleaner without the dust ﬁlter inserted.

► Do not use the mains adapter for a diﬀerent product and do not attempt

to charge this appliance with a diﬀerent charger. Use only the charger

supplied with this appliance.

► Never charge non-rechargeable batteries!

IB_100116_SHSS12B2_LB6.indb 5 19.09.14 14:02

6SHSS 12 B2

Before ﬁrst use

NOTE

► This appliance is supplied with non-charged

batteries. The batteries must be charged for

6 hours before the ﬁrst use.

■ Remove all packaging materials as well as foils

and stickers

Charging the appliance

NOTE

► Ensure that the appliance is switched oﬀ

before starting to charge the batteries.

■ To charge the appliance, connect the charger i

to a mains socket and insert the barrel jack o

into the charging socket son the cradle d.

Feed the cable through the cable channel on the

charging socket s, so that the cradle dis not

resting on the cable.

■ Place the handle with the attached hand element

4onto the cradle d.

The red control lamp 3illuminates.

When the appliance is fully charged, the indicator

light 3illuminates green.

Assembly/disassembly

Connecting the hand element to the

handle/removal from handle

Fig. 1 Fig. 2

■ To connect the hand element 4to the handle,

push the tip of the hand element 4into the

opening in the hand element recess e.

■ Then press the grip 1of the hand element 4

into the handle so that the hand element 4

clicks ﬁrmly into position (Fig. 1).

■ To remove the hand element 4from the handle,

press the "Hand element" release w.

■ Then pull the hand element 4upwards and

forwards out of the hand element recess e

(Fig. 2).

IB_100116_SHSS12B2_LB6.indb 6 19.09.14 14:02

SHSS 12 B2

Operation

ATTENTION! MATERIAL DAMAGE!

► The suction opening must always be open and

unblocked. Blockages lead to overheating and

damage to the motor.

► Do not vacuum shag pile carpet with the ﬂoor

nozzle. The rotary brush rcan get caught in

the carpet and block!

NOTE

► Make certain that the dust ﬁlter 6and the

coarse ﬁlter 7are always inserted before

using the appliance.

► As soon as the suction power of the appliance

begins to diminish noticeably, connect the

appliance to the charger i.

Using the hand element with the

handle

1) Insert the hand element 4into the hand

element recess eas described in the chapter

"Assembly/disassembly".

2) Fold out the grip 0by pressing the "Grip"

release qand at the same time pulling the

grip 0upwards.

3) Switch on the appliance using the on/oﬀ

switch 9. The LED lamp ton the ﬂoor nozzle

will illuminate and the rotary brush rstarts

turning.

4) Guide the ﬂoor nozzle over the area to be

vacuumed. Hold the grip 0so that the ﬂoor

nozzle moves smoothly over the ﬂoor.

5) Press the on/oﬀ switch 9when you have

ﬁnished vacuuming. The rotary brush rstops

and the LED lamp tgoes out.

Using the hand element

1) Remove the hand element 4from the hand

element recess eas described in the chapter

"Assembly/disassembly".

2) If required, attach the crevice tool uor the

brush nozzle z.

3) Set the on/oﬀ switch 2to start vacuuming the

desired areas.

4) When you have ﬁnished vacuuming, press the

on/oﬀ switch 2again.

Cleaning and care

WARNING! RISK OF INJURY!

► Always disconnect the charger i from the

mains socket and remove the barrel jack o

from the charging socket son the cradle d

before cleaning the cradle d.

► Always remove the hand element 4from the

hand element recess eon the handle before

cleaning the hand element 4, the handle or

the rotary brush r.

To achieve the best results, empty the dirt container

8and clean the dust ﬁlter 6after every use.

ATTENTION! MATERIAL DAMAGE!

► Do not use abrasive or aggressive cleaning

materials. These could damage the surface

of the appliance!

NOTE

► The LED lamp tis maintenance-free.

The LEDs cannot be changed.

IB_100116_SHSS12B2_LB6.indb 7 19.09.14 14:02

Altri manuali per SHSS 12 B2

Indice

Lingue:

Altri manuali Silvercrest Aspirapolvere

Silvercrest

Silvercrest SHSS 18 B1 Manuale utente

Silvercrest

Silvercrest SHAZB 29.6 B2 Manuale utente

Silvercrest

Silvercrest SFR 3.7 B2 Manuale utente

Silvercrest

Silvercrest SMS 300 A1 Scheda informativa del prodotto

Silvercrest

Silvercrest HS 12.0 B2 BL Manuale utente

Silvercrest

Silvercrest SAS 7.4 LI B2 Manuale utente

Silvercrest

Silvercrest SAS 7.4 LI C1 Manuale utente

Silvercrest

Silvercrest SAS 7.4 LI C1 Manuale utente

Silvercrest

Silvercrest 290428 Manuale utente

Silvercrest

Silvercrest SAS 7.4 LI C2 Manuale utente

Silvercrest

Silvercrest SSRA1 Manuale utente

Silvercrest

Silvercrest SAS 7.2 A1 Manuale utente

Silvercrest

Silvercrest 42774 Manuale utente

Silvercrest

Silvercrest SAS 7.4 LI D3 Come usare

Silvercrest

Silvercrest SHD 7.4 A1 Manuale utente

Silvercrest

Silvercrest SAS 7.4 LI C2 Manuale utente

Silvercrest

Silvercrest SAS 7.4 LI B3 Manuale utente

Silvercrest

Silvercrest SHSS 28 A1 Come usare

Silvercrest

Silvercrest SSR 3000 A1 Manuale utente

Silvercrest

Silvercrest SHS 12.0 A1 Manuale utente

Silvercrest

Silvercrest IAN 106317 Manuale utente

Silvercrest

Silvercrest SBS 1400 A1 Manuale utente

Silvercrest

Silvercrest HS 12.0 B2 Manuale utente

Silvercrest

Silvercrest 384214 2107 Manuale utente

Manuali Aspirapolvere popolari di altre marche

Bissell

Bissell LittleGreen Proheat 1425 Series Manuale utente

Panasonic

Panasonic MC-YL637S147-AE Manuale utente

NEFF

NEFF N17XH10 0 Series Manuale utente

LG A9 Series Manuale utente

Oreck

Oreck Cordless Captura BK51700 Series Manuale utente

Kogan

Kogan KAVACROBVWA Manuale utente

Kränzle

Kränzle VENTOS 50 ID Guida utente

EVVO

EVVO Ai35 Manuale utente

DeWalt

DeWalt DWH200D Manuale utente

Pontec

Pontec Pondomatic Vacuum Cleaner Manuale utente

Cleanmaxx

Cleanmaxx PC-P007E Manuale utente

Exido

Exido 240-114 Manuale utente

RIDGID

RIDGID WD1685AU0 Manuale utente

Ezviz

Ezviz RE4P Manuale utente

STG global

STG global TANVAC HDV3000 Manuale utente

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuale utente

Factory

Factory M3340 Manuale utente

Shop-Vac

Shop-Vac VN92 SERIES Manuale utente
