SilverStone Nitrogon NT07-775 Manuale utente

NT07 - 775

Superior low-profile thermal solution for Intel 45nm Core 2 Duo

45nmDual core

NT07 - 775

Introduction

Special Feature

The Nitrogon NT07-775 is a CPU cooler designed for slim profile systems

utilizing 45nm Intel Core 2 Duo processors. With an overall height of only

37mm, its compact dimension consists of fast heat-absorbing copper

center and radiant styled aluminum fins for quick heat dissipation.

Equipped with a custom designed small hub, 9-bladed 90mm fan, the

Nitrogon NT07-775 has unusually high thermal performance for a cooler of

its size while being low noise. For small enclosures such as the ultra-thin

SilverStone LC19 and ML02 chassis or other special applications requiring

the use of LGA775 CPUs, the NT07-775 is a perfect solution.

Support Intel LGA775 45nm Core 2 Duo processors

Designed for low profile systems at only 37mm tall

Large, custom 90mm fan for excellent cooling and low noise

Copper center and base with extruded aluminum fins

Easy to install

45nmDual core

Specifications

Model

Material

Application

Cooling fan

Fan blade size

Fan speed

Max air pressure

Max airflow

Noise

Thermal Resistance

Net Weight

Dimension w/fan

SST-NT07-775

Copper center, Extruded aluminum fins

Intel Socket775 45 nm :

Core 2 DUO E8000/E7000 series

Pentium Dual-Core E5000 series

Celeron D 400 Celeron E1000 series

90mm cooling fan

90 x 90 x 16mm

1200~1800rpm ± 10%

0.5~1.58mmH2O

12~23CFM

15~23dBA

0.35( C/W)

310g

93mm (W) x 36.5mm (H) x 93mm (D)

NT07 - 775

Installation Guide

45nmDual core

Apply the included heatsink compound on you CPU evenly

Verteilen Sie die mitgelieferte Wärmeleitpaste gleichmäßig auf der CPU.

Appliquez de la pate thermique incluse sur votre processeur régulièrement

Inserte la estructura de refrigeración incluida en su CPU haciendo presión de forma igual en todos sus puntos

Applicare il dissipatore di calore sul CPU in maniera uniforme

Равномерно нанесите на ЦП прилагаемый термосостав.

付属のヒートシンクコンパウンドをCPUに均等に塗ります。

동봉된 히트싱크 콤파운드를 장착하려는 CPU에 고루 바릅니다.

請將散熱膏均勻地塗抹在您的CPU上

NT07 - 775

Installation Guide

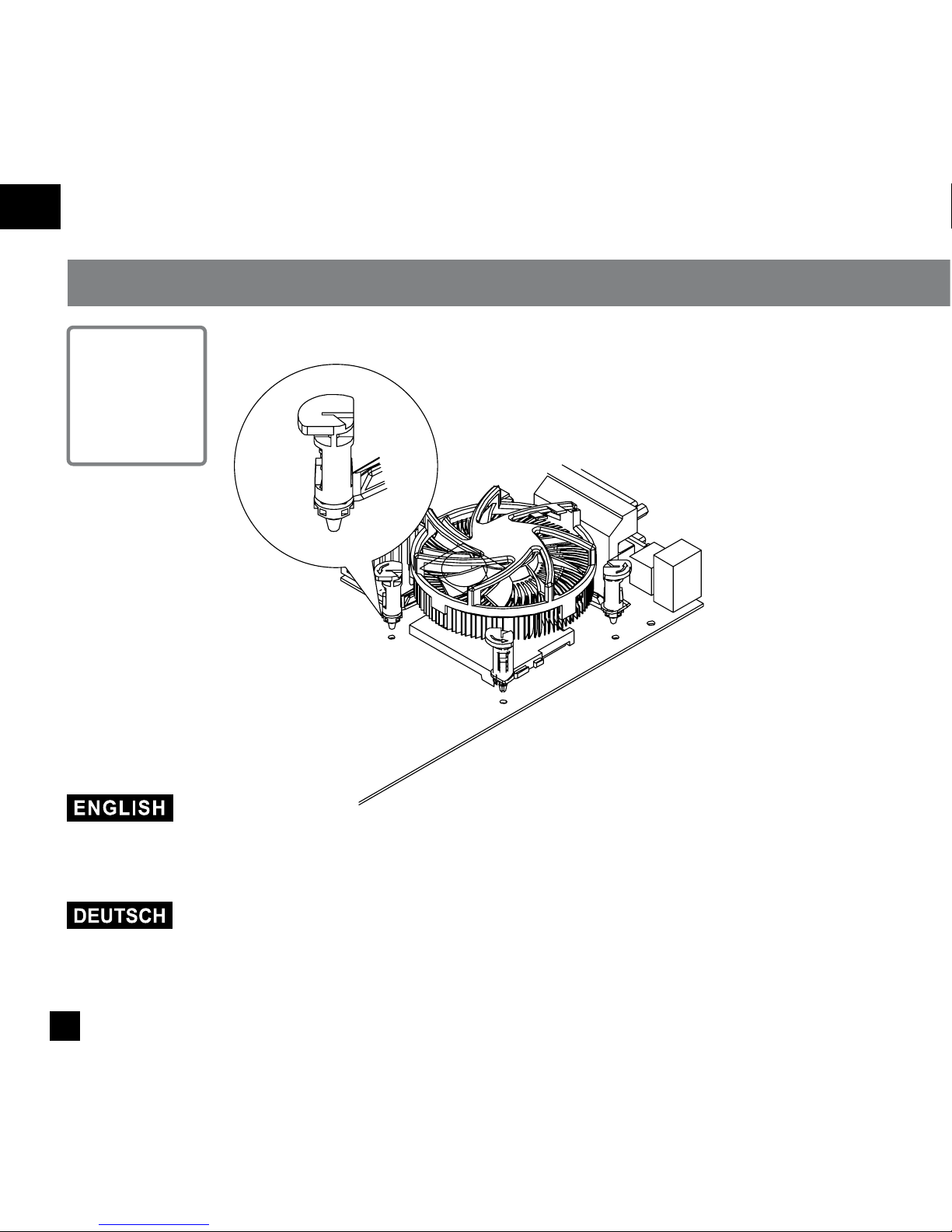

Place the NT07-775 cooler on top of the installed CPU, and align the four fasteners with the holes

on the motherboard.

(Make sure each fastener is oriented as shown, with the arrow directed outward.)

Setzen Sie den NT07-775-Kühler auf die installierte CPU auf, achten Sie darauf, dass die vier

Halter über den Aussparungen im Motherboard sitzen.

(Achten Sie darauf, dass die Halter wie in derAbbildung ausgerichtet sind – der Pfeil zeigt nach außen.)

45nmDual core

ISitúe el disipador NT07-775 sobre la CPU instalada y alinee los cuatro cierres con los agujeros de la placa

base. (Asegúrese de que cada cierre se oriente de la forma que se muestra, con la flecha hacia el exterior).

Placez le NT07-775 par-dessus le processeur installé, et alignez les 4 fixations rapides avec les

trous de la carte mère. (Vérifiez bien que chaque fixation rapide est orientée comme montré,

avec la flèche dirigée vers l’extérieur.)

Posizionare il cooler NT07-775 sul CPU installato ed allineare i quattro ganci con i fori della scheda madre

(assicurasri che ciascun gancio sia orientate come mostrato, con la freccia diretta verso l’esterno).

Поместите кулер NT07-775 на верхнюю часть установленного ЦП, выровняйте четыре зажима

исоответствующие отверстия материнской платы. (Убедитесь, что зажимы ориентированы так,

как показано на рисунке, т.е. стрелка направлена наружу.)

NT07-775クーラーをインストールされたCPUの上に置き、マザーボードの4つの穴に4個のファスナーを合わせます。

（各ファスナーは図のように矢印を外向きにしてください。）

NT07-775를 장착된 CPU 위에 위치하고, 4개의 고정 핀을 메인보드의 구멍에 정렬합니다.

( 반드시 고정핀이 그림과 같이 화살표 방향이 바깥쪽으로 위치하도록 합니다. )

將NT07-775 散熱器置於已安裝CPU上方，並將四個散熱器螺絲對準主機板上的孔位

（請確認每個散熱器螺絲的方向與附圖上的箭頭方向一致）

NT07 - 775

Installation Guide

45nmDual core

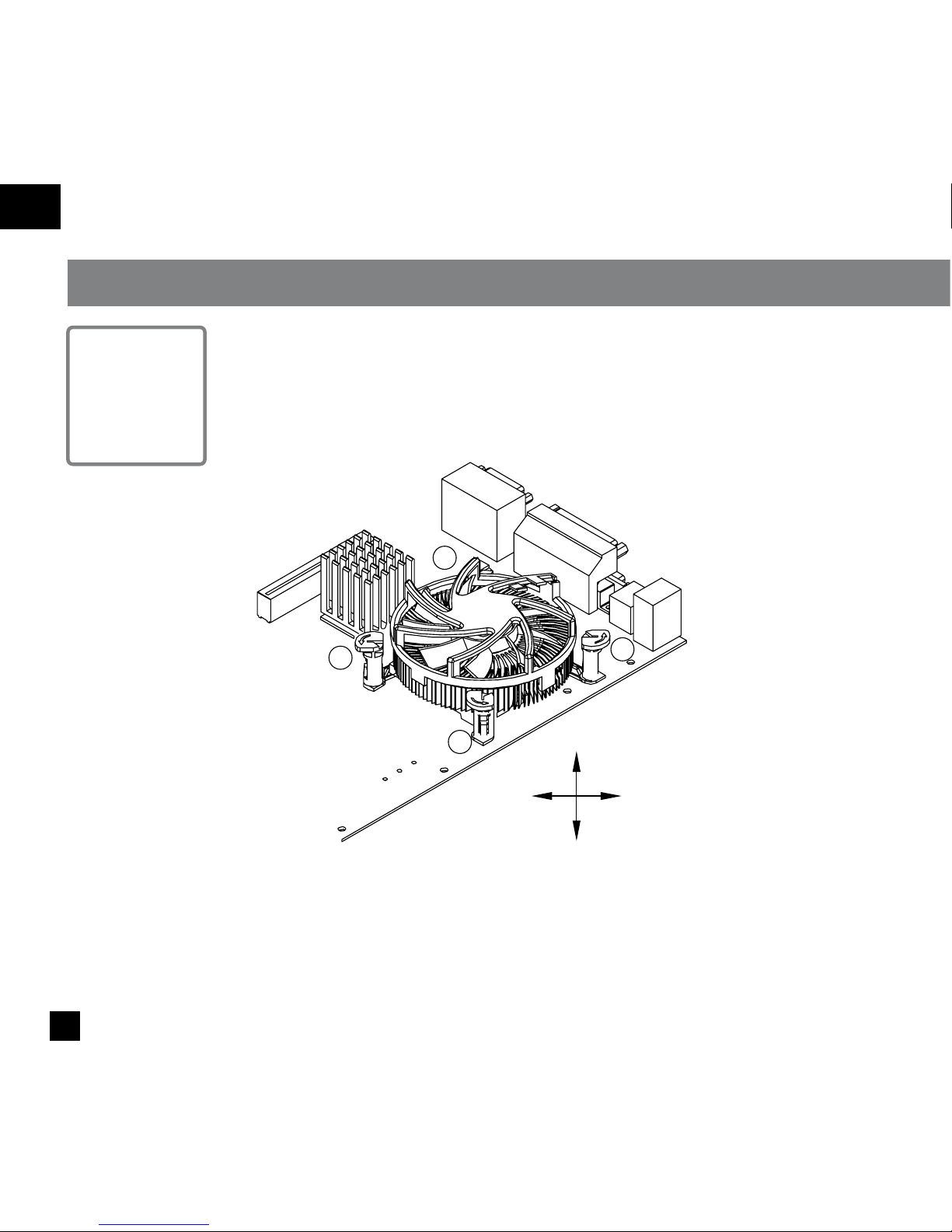

Press and hook up two fasteners of A at a time and then the other two of B fix the CPU cooler in place.

Zum Fixieren der CPU drücken Sie zunächst die beiden Halter A gleichzeitig hinab, anschließend

drücken Sie die beiden Halter B ebenfalls gleichzeitig hinab.

Appuyez et crochetez les deux fixations rapides A en même temps et ensuite les deux autres

fixations rapides B du dissipateur du processeur.

Presione y enganche hasta dos cierres A a la vez y luego los otros dos B para situar el disipador

de CPU en su lugar.

Premere e agganciare contemporaneamente due ganci di A e poi gli altri ganci di B per fissare il

cooler del CPU

Нажмите одновременно изацепите два зажима A, азатем два зажима B, тем самым

зафиксировав кулер ЦП.

図のようにAの方向の2個のファスナーを同時に押して固定し、他方のBのファスナー2個も固定して、

CPUクーラーを所定の位置に取り付けます。

A의 두개의 고정핀을 한개씩 눌러 끼운 후, B쪽도 동일하게 끼워 쿨러가 자리를 잡도록 합니다.

請依圖示下壓與鎖上位置A的散熱器螺絲，再下壓與鎖上位置B的散熱器螺絲

NT07 - 775

Installation Guide
