Simac PastaMatic MX700 Manuale utente

Simac PastaMatic MX700

Contents:

Assembly Instructions

How to Use the PastaMatic

Troubleshooting Tips

Extruding Discs

Parts & Service

Manuals

The Simac PastaMatic MX700 electric pasta maker makes approximately 1-1½ Lbs of pasta. It

comes with 6 extruding discs, a specially sized and marked liquid measuring cup, and a special

wrench for changing discs.

To get good results, it is important to follow all the instructions and measure ingredients

accurately. The dough will seem different from that which is kneaded by hand, and it is essential

to know this difference.

For basic pasta, you will need flour, plus water or whole eggs. Start with bleached, all purpose

flour. Humidity can affect its volume, so use a scale to measure the flour accurately. With some

practice, you can experiment with other types of flour after you become familiar with how the

dough should feel when it is ready to be extruded. You will also need a flour sifter, timer, and

possibly measuring spoons.

For other types of flour, the right consistency of the dough is crucial for proper extrusion and to

avoid damaging the machine. This consistency differs from that used with manual pasta makers,

so we recommend that you start with the basic pasta recipe indicated below, using all purpose

flour. You can then use the desired flour and adjust its consistency accordingly during kneading.

For a full recipe, plan on using a 10 qt stock pot, filled with 8 qts of water. Add 2 tablespoons

of salt when boiling and before adding pasta. You can also add a tablespoon of oil, if you wish,

to keep pasta strands from sticking to each other. Add the pasta to the boiling water and start

checking for doneness after 30 seconds. Tubular and thicker pasta takes longer.

Use it freshly made, for best taste. For use within a few hours, flour and wrap it airtight in plastic

wrap and store in the refrigerator. To store it for later use, place it in an airtight container,

flouring generously and layering to prevent sticking, and put it in the freezer. It will take longer

to cook pasta that is stored.

Specifications:

UL Listed, 120 VoltsAC, 60 Hz, 2.3 Amps, Max 230 Watts

Limited continued use: 20 minutes

Equipped with automatic safety device with off switch

Weighs 15.6 Lbs

9.75" x 9.75" x 10.25" high

11" deep with Ring Nut in place

Made in Italy

Simac and PastaMatic are Registered Trademarks

Warranty:

The PastaMatic MX700 is covered by a one year Limited Warranty covering defects in materials or workmanship. Within the warranty period,

DeLonghi will repair or replace such defectives at no other cost than shipping it to a service center. Complete details are on the warranty card

included with the machine.

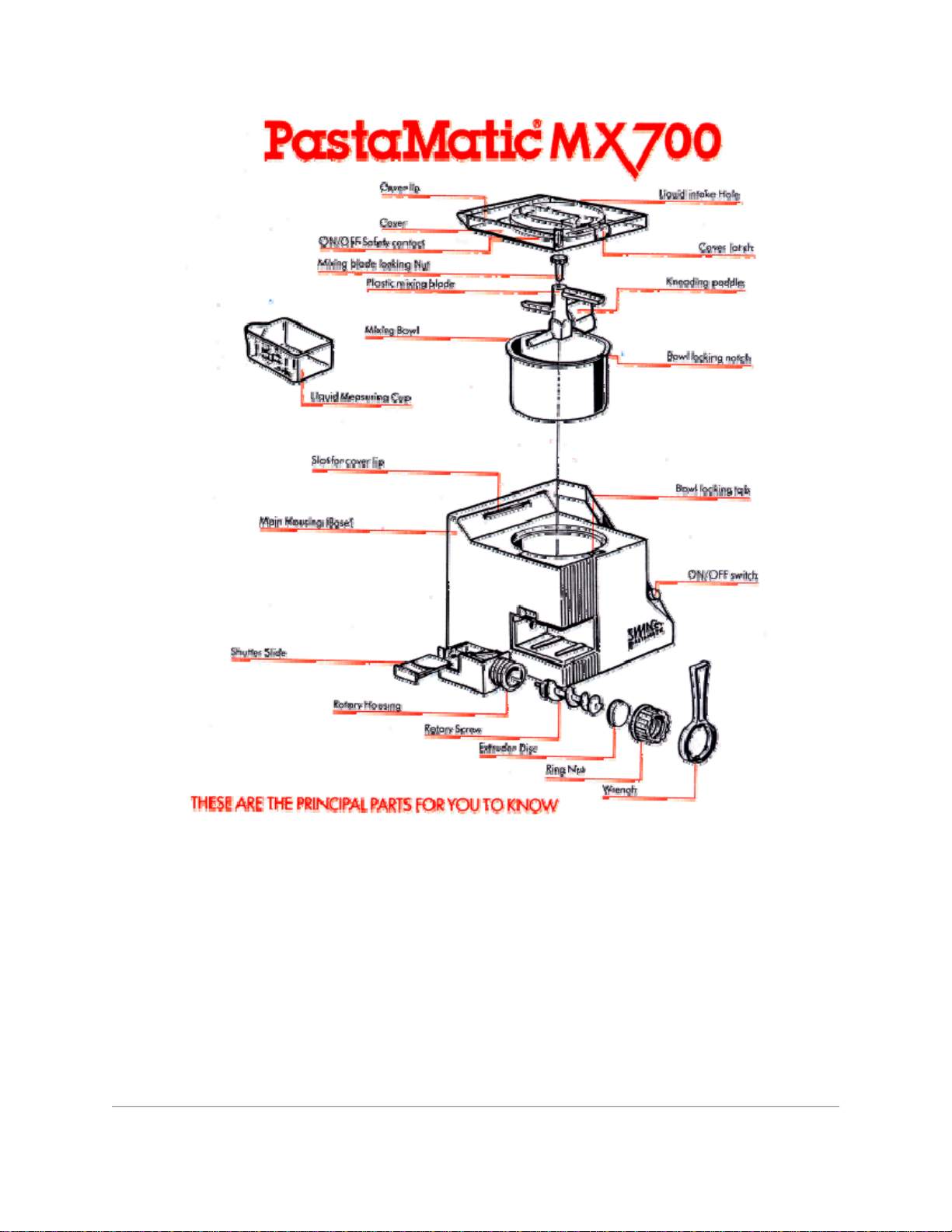

Assembly Instructions

Here you will learn to assemble (and disassemble) the machine

properly.

· Step 1.

Place the base on a clean, dry surface near an electrical outlet, with the

logo facing you.

Slide the rotary housing all the way into the open side of the base,

ridged side down and rectangular opening facing up.

· Step 2.

Insert the rotary screw, metal end first, all the way into the rotary

housing.

It will be necessary to rotate the screw for it to fit in completely. The

end of the screw should be flush with the end of the rotary housing.

· Step 3.

Grasp the shutter slide, and firmly push it all the way into the slot over

the rotary housing. It will click in place.

· Make sure slide is fully in place before adding any ingredients.

Look down inside the bowl to make sure the slide completely covers

the opening in the bottom of the bowl. The slide must remain clos

securely in place during the mixing cycle to avoid ingredients from

entering the rotary housing prematurely, clogging and possibly

damaging it.

· Step 4.

Insert the bowl onto the base, matching the notch on the top edge of the

bowl with the tab of the opening located towards the front of the base,

and pressing down firmly.

· Step 5.

Fit the blade, kneading foot down, over the central metal shaft

extending up through the bowl.

Rotate it until it sits firmly down on the bottom.

· Step 6.

Place the locking nut on top of the blade shaft and turn it clockwise

until it is firmly in place.

Your machine is now assembled and ready to work.

To operate the Pastamatic:

· The bowl must be firmly in place;

· The bowl cover lip must be inserted in the slot in back;

· The latch must be securely locked in the front.

Recipe Needs:

1 lb bleached all

purpose flour

4 eggs or water

Measuring spoons

Flour sifter

Timer

Scale

How to Use the PastaMatic

These instructions will help you to make about 1½ Lb of pasta. You can

make about ¾ Lb of pasta by using half the ingredients and measures

on the cup provide

Read through all the instructions before starting.

Extruder discs, liquid measuring cup and electric cord are stored in the

compartment located at the rear of the unit.

See above for more details on assembling the PastaMatic.

· Step 1.

Check to be sure the main switch is turned "OFF." (When it sticks out,

it is "OFF;" when it is pushed in, it is "ON.")

Be sure the bowl is empty of all accessories.

Push the Shutter Slide all the way into the slot.

· Step 2.

Put the bowl in place by inserting it into the main housing with the

Bowl's Locking Tab fitted to the Bowl Locking Notch, toward the front

of the PastaMatic.

· Step 3.

Put the cover in place by first fitting the Cover Lip into the Slot toward

the rear of the top. Push in the Cover Latch and press down to lock the

cover.

Plug the electric cord into a grounded 3-prong outlet and push the

ON/OFF switch to turn it ON.

If it does not turn on, remove and replace both the cover and the bowl,

making sure they are positioned correctly.

· Step 4.

Now that you know the unit is working properly, unlatch the cover and

remove it.

Make sure the slide is fully in place before adding any ingredients.

Check from above the bowl to make sure the space at the bottom is

fully covered by the closed Shutter Slide. If it is not fully closed, flour

and other ingredients can clog and permanently damage the PastaMa

tic.

· Step 5.

Measure One Pound of flour, preferably using a scale for greater

accuracy and more consistent results. (1 Lb of flour is approximately

3.25 cups dry measure, and 3.75 cups when sifted; humidity and grade

of flour can affect this measure. Do yourself a favor and buy a scale.)

Place the flour into the mixing bowl.

Put the cover in place and lock it shut.

Turn the PastaMatic ON.

· Step 6.

Use either water OR whole eggs.

Fill to the 1 Lb line on the cup. Be precise with your measurements.

The left side shows the Water measurements and the right side shows

the Whole Eggs measurement. The 1 Lb and ½ Lb markings refer to the

amount of flour being used.

· Step 7.

Slowly pour the eggs OR water through the liquid intake hole in the lid.

Begin to time the kneading process.

· Step 8.

Allow the dough to knead for 3 minutes, then unlatch the cover,

remove it, and check the consistency of the dough.

The consistency is correct when the dough looks like walnut-size lumps

that are moist, but not sticky.

The dough is too dry if feels floury in small granules. To correct, add 1

teaspoon of water. Close the cover and let knead for 3 more minutes.

You can't overknead the dough.

The dough is too wet when it feels sticky in large, smooth balls. To

correct, add 3 tablespoons of flour. Close the cover and let knead for 3

more minutes. You can't overknead the dough.

· Step 9.

Unlatch the cover, remove it, and check the consistency of the dough. If

it feels too wet or too dry, repeat Step 8 above.

You are ready to begin the extrusion process when the dough looks like

walnut-sized lumps that are moist, but not sticky.

Turn the PastaMatic OFF by pressing the ON/OFF switch so that the

button sticks out. Replace and lock the cover.

· Step 10.

Pull out the Slide, then turn the PastaMatic ON.

It will take about one minute for dough to start coming out of the open

end of the Rotary Housing.

Let the machine run until a couple of the larger sized lumps begin to

come out.

Turn the machine OFF by pressing the ON/OFF switch so that the

button sticks out.

Replace the lumps of dough into the Mixing Bowl, and replace and lock

the cover.

· Step 11.

Choose a disc, immerse it for a second in warm water and set it in place

on the end of the Rotary Housing.

Some discs have three tabs on the back, that must line up with the

notches on the Rotary Housing.

Screw the Ring Nut in place over the disc, for a fit snug.

· Step 12.

Turn the machine ON by pressing the ON/OFF button.

It will take about 2 minutes for extruded pasta to emerge from the disc.

Remove the first 2 or 3 inches of pasta and place it back into the

Mixing

The pasta should now extrude smoothly.

Cut to the desired length.

Bowl.

· Step 13.

When all the dough is out of the Mixing Bowl and very little is

extruding, stop the machine.

Turn the PastaMatic OFF by pressing the ON/OFF switch so that the

button sticks out.

Remove the Ring Nut using the Wrench, and remove the disc.

Turn the PastaMatic ON by pressing the ON/OFF switch, and let the

remaining dough extrude from the open Rotary Housing. Keep hands

away from this area.

· Step 14.

Disassemble the machine, remove excess dough, and leave the parts to

dry completely. You can let them dry overnight.

Rap the disc sharply against the counter and the dough will fall right

out.

Wash the disc and other parts completely. All removable parts are top-

rack dishwasher safe.

Dry parts thoroughly, reassemble, and store.

WHAT TO DO IF...

Troubleshooting Hints

...pasta sticks t

as it comes out of the

machine

ogether

This may happen more likely if the strands are thin, but the real reason

is because the dough was too wet before the extrusion.

Lightly oil or flour your hands and run the pasta through to coat it as it

comes out of the machine.

Remember to check the dough next time, for proper consistency, before

you begin to extrude.

...strands aren't all

the same length Hold strands out as they extrude, or the bottom strands will be shorter

than the upper strands.

...strands are raggedy

along the edges This should improve somewhat as the dough extrudes and the disc gets

warmer.

It will only affect the first 20 or so inches or pasta.

Cut the strands that are raggedy and put them back in the Mixing Bowl.

...dough revolves

around blade and

isn't pushed out by

kneading foot;

strands come out

gummy and stick to

each other

This dough is too wet.

Replace the Shutter Slide and remove the disc.

Add a little more flour and knead until proper consistency, for 3 to 5 or

more minutes more.

Then remove the Shutter Slide, attach the disc and continue the

extrusion process.

...cover pops open a

stops the mach nd

ine Push the dough down into the Mixing Bowl, or remove some of the

dough so that it won't rise all the way up the bowl to the cover as it

kneads.

You can add the dough back later.

...dough is almost

used up and what

remains won't go

through

Stop the machine, remove the cover and break the remaining dough

into pieces small enough to fit into the hole at the bottom of the bo

Dough should now come through the disc.

This can happen if the dough was too wet before the extrusion.

Remember to check the dough the next time, for proper consistency,

before you begin to extrude.

wl.

...flour sprinkles out

of shutter slide

opening while pasta is

extruding

Don't pull the Shutter Slide out completely.

You can leave it in part way as long as it doesn't block the dough from

dropping into the Rotary Housing chamber.

...you want a quick

way to clean the parts

after making the

dough

Let the pasta dry after disassembling the housing and discs.

Just tap each piece on a hard surface, and the dried pasta will fall right

off.

...dough sticks in deep

slots of some discs

and is hard to flake

away to clean

Put disc in freezer for 10 minutes, tap on a hard surface and clean up

with a nut pick, if necessary.

The frozen dough should come off easily.

...you don't want to

cook the pasta right

away

Wrap it airtight in plastic wrap and refrigerate if storing for only several

hours.

Or, the dough can be wrapped airtight in plastic wrap, aluminum foil or

airtight container, and frozen until you want to use it.

...these hints don't

answer your question Re-read the directions, then contact the distributor, listed at the bottom

of this page.

The model and serial numbers of your PastaMatic are on a label either

on the back or on the bottom of the unit.

Altri manuali per PastaMatic MX700

Indice

Altri manuali Simac Macchina per la pasta

Simac

Simac PastaMatic MX700 Manuale utente

Manuali Macchina per la pasta popolari di altre marche

Emeril Lagasse

Emeril Lagasse Pasta & Beyond Manuale utente

Imperia

Imperia PASTA PRESTO NSP Manuale

DAY

DAY 74048 Manuale utente

Marcato

Marcato Ampia Wellness Scheda tecnica

Philips

Philips HR2354/12 Manuale utente

Electrolux

Electrolux Electric Pasta Cookers 700XP Manuale utente

Keating Of Chicago

Keating Of Chicago Custom Pasta Gas System 0107 Manuale utente

Viante

Viante CUC-26PM Manuale utente

Emeril Lagasse

Emeril Lagasse Pasta & Beyond PM-01 Manuale utente

Omcan

Omcan PM-IT-0080 Manuale utente

KitchenAid

KitchenAid KSMPEXTA Manuale utente

Weston

Weston 01-0201 Manuale utente

Baron

Baron M90CPM/G400 Manuale di programmazione

Westmark

Westmark 6130 2260 Manuale utente

ohmex

ohmex PAS 2200 Manuale utente

Electrolux

Electrolux 900XP Manuale utente

Garland

Garland PASTA MAGIC Manuale utente

Philips

Philips HR2375 Manuale utente
