Simoco MWRSM Manuale utente

Simoco Wireless Solutions Simoco Wireless Solutions

Field House,

Uttoxeter Old Road,

Derby.

DE1 1NH.

Tel: +44 (0) 1332 375500

Fax: +44 (0) 1332 375501

www.simocowirelesssolutions.com

1270 Ferntree Gully Road,

Scoresby Victoria,

3179

Australia.

Tel: +61 (0)3 9730 3999

Fax: +61 (0)3 9730 3988

www.simocowirelesssolutions.com



MOBILE WIRELESS REMOTE SPEAKER MIC (MWRSM)

USER GUIDE



ISSUE 1.1

Document Number: TNM-U-E-0180

Unrestricted

Date: September 2019



This page has been intentionally left blank.

Doc Number: TNM-U-E-0180 ISSUE 1.1 Page 2

DOCUMENT HISTORY

This section provides you with details about the changes that are in each version of

this document.



Ver No Comments Technical

Author Reviewer Approver

1.0 Initial Issue   

1.1

Addition

information added

for use with SDM600

& 700 & re-branded

as SWS

Mark Preston  

    

RELATED DOCUMENTS 3

LIST OF FIGURES 6

1 PERSONAL SAFETY 8

1.1. SAFETY PRECAUTIONS 8

2 EQUIPMENT SAFETY 9

INSTALLATION AND MAINTENANCE 9

3 PREFACE 10

4 IMPORTANT 12

5 WARNINGS 13

5.1. RADIO FREQUENCY RADIATION 13

5.2. Radio Frequency Interference 13

5.3. Potentially Explosive Atmospheres 14

5.4. Battery Replacement 14

5.5. Antenna Replacement 15

5.6. Charging your MWRSM 15

5.7. Cleaning your MWRSM 15

5.8. Connectors and Press Buttons 15

5.9. Acceptable Temperature Extremes 16

5.10. Driving Safely 16

5.11. Air Bag Equipped Vehicles 16

5.12. Carrying and handling MWRSM 16

6 WEARING THE MWRSM 18

6.1. Standard clip 18

6.2. Velcro® mount clip 18

7 OPERATIONAL DESCRIPTION 19

8 BASIC OPERATION 20

8.1. Power On & Off 20

8.2. Volume Control 20

8.3. Transmitting/Receiving 20

8.4. Out of Range Indication 20

8.5. Talk Permit tone 20

8.6. Charging Confirmation Tone 21

8.7. Earpiece Operation 21

8.8. Emergency 21

8.9. Stealth Mode 21

9 MULTIPLE UNIT OPERATION 22

10 MOTORCYCLE OPERATION 23

11 HEADSET OPERATION 24

11.1. Accessory Mic Boost 24

12 COVERT OPERATION 25

13 TECHNICAL NOTES 26

Doc Number: TNM-U-E-0180 ISSUE 1.1 Page 4

13.1. BATTERY CHARGING 26

13.2. REPLACING THE BATTERY PACK 27

13.3. RE-PAIRING 27

13.4. AUDIO ADJUSTMENTS 28

14 ANTENNAS 29

15 INSTALLATION & CONNECTIONS 30

15.1. Interface cable for SRM9000 series: 30

15.2. Interface cable for SDM600 series: 32

15.3. Interface cable for SDM700 series: 33

16 SPECIFICATIONS 36

17 TYPE ACCEPTANCE 37

SIMOCO SUPPORT 38

Doc Number: TNM-U-E-0180 ISSUE 1.1 Page 5

LIST OF FIGURES

Figure 1: How the Wireless Mic Works. 19

Figure 2: X10DR- SRM9000 Interface cable. 30

Figure 3: X10DR- SDM600 Interface cable. 32

Figure 4: X10DR- SBM700 Interface cable. 33

Doc Number: TNM-U-E-0180 ISSUE 1.1 Page 6

LIST OF TABLES

Table 1: Battery Charging. 26

Table 2: How to re-pair the wireless speaker mic. 28

Table 3: Transmit and receive audio levels. 28

Table 4: Mobile wireless speaker Mic specifications. 36

Doc Number: TNM-U-E-0180 ISSUE 1.1 Page 7

1 PERSONAL SAFETY

1.1. SAFETY PRECAUTIONS

This product is designed to radiate low levels of radio energy in accordance with global

government approved regulatory standards. It features Adaptive Power Output.



APO automatically adjusts the RF power output in accordance with signal required.



This features limits and reduces extraneous radiated radio energy. This also helps

minimize battery consumption and extends battery shift life.



Do not touch the antenna when operational. Keep Mobile Microphone antenna 25mm

(1”) or more away from your face and body to ensure exposure levels remain at or

below the maximum levels.



Keep your body at least 20cm/8” from external antennas connected to the Mobile

cradle charger unit.

Doc Number: TNM-U-E-0180 ISSUE 1.1 Page 8

2 EQUIPMENT SAFETY

INSTALLATION AND MAINTENANCE

The Mobile Wireless Remote Speaker Mic (MWRSM) should only be installed and

maintained by qualified personnel.



Doc Number: TNM-U-E-0180 ISSUE 1.1 Page 9

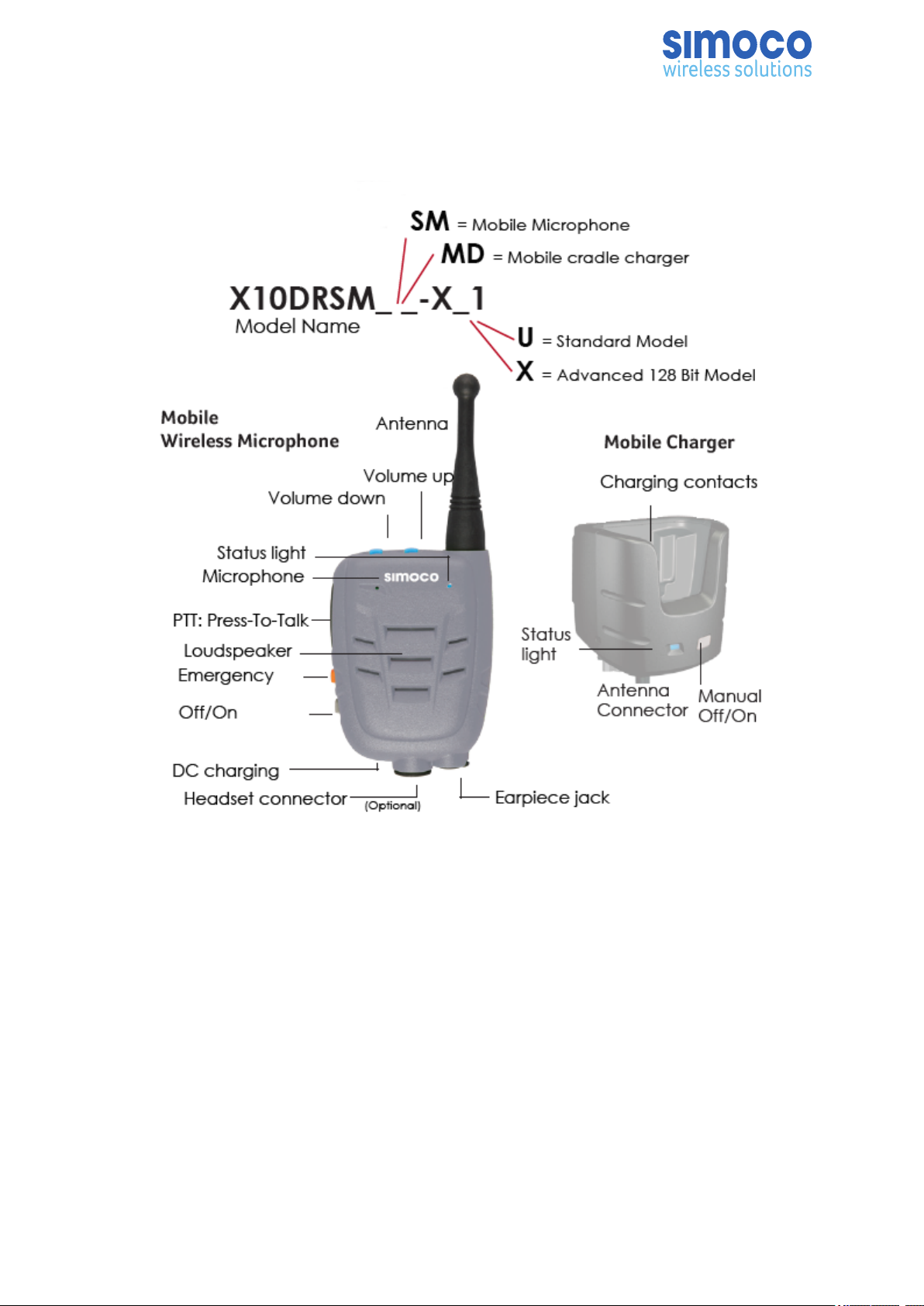

3 PREFACE



Volume up: adjusts speaker audio louder.



Volume down: adjusts speaker audio softer minimum setting.



Microphone: talk in a normal strength voice about 3cm from mic.



PTT: press to talk 3 quick beeps when pressed. When out of range the unit will sound a

slow beeping tone alert.



Emergency: A quick beep sounds when pressed and then triggers host radio’s

emergency function. Hold down button as per mobile radio’s emergency button

operating instructions or as advised by your supplier When out of range the unit will

sound a slow beeping tone alert when the button is pressed. Off/On: hold for about 5

Doc Number: TNM-U-E-0180 ISSUE 1.1 Page 10
