Simple BT32XIS Manuale utente
User Manual
BT32XIS
ABOUT THIS PRODUCT
Features
BT32XIS is a Bluetooth adapter that plugs into any standard AUX
jack. This compact little device packs a powerful punch. Just plug
it into your AUX port and sync it with your phone’s Bluetooth. It
takes less than 60 seconds. Now you can enjoy music streaming
from Spotify, Pandora, Google Play, YouTube Red, iTunes, or
whatever else you’re using.
• Compatible with any standard 3.5mm AUX input (in your car or
stereo system) and any device with Bluetooth
• Wireless music streaming
• Control your music’s playback wirelessly
• Pair once, and you’re good to go
• Up to 7 hours of battery life
• Includes in-vehicle charger through 12V socket
BT32XIS IS FOR STREAMING HANDS-FREE MEDIA
AND CALLING FROM YOUR PHONE THROUGH
YOUR CAR’S SPEAKERS.
2
BOX CONTENTS
Be careful when removing all items from the packaging tray.
Take care not to tug or pull on cables.
12V Plug (B)
Control Button Module (A)
Plug into your car’s 12V socket
(cig plug) for charging Control
Button Module (A) or your smart
devices (charging cables not
included)
Plug into your car’s AUX port
after initial charging
3
12V Plug (B) Control Button Module (A)
INSTALLATION SETUP
NOTE: Make sure you are parked in a safe spot before installation or
whenever you are pairing a device. NEVER WHILE DRIVING.
Option 1 - With a USB Cable
Plug the micro-USB end of the enclosed BT32XIS charging
cable into the BT32XIS (A). Plug the USB end of the BT32XIS
charging cable into a power source. When connected to a
USB power source, the icon will glow red while charging.
After charging you BT32XIS, plug the Bluetooth adapter into
your car’s AUX port.
Turn on BT32XIS by pushing and holding the Bluetooth
button for 3 seconds. icon should begin blinking blue.
Power is now on, and you are now in pairing mode.
CHARGING GUIDE - THERE ARE 2 OPTIONS
PAIRING GUIDE
4
CHARGING TAKES ABOUT 2 HOURS, AND CONTROLLER WILL
NOT WORK WHILE DEVICE IS CHARGING.
Step 2
Step 1
Option 2 - In Your Car
Plug (A) control module into (B) 12V Plug, then insert into
your car’s 12v socket (cig plug)
Step 1
5

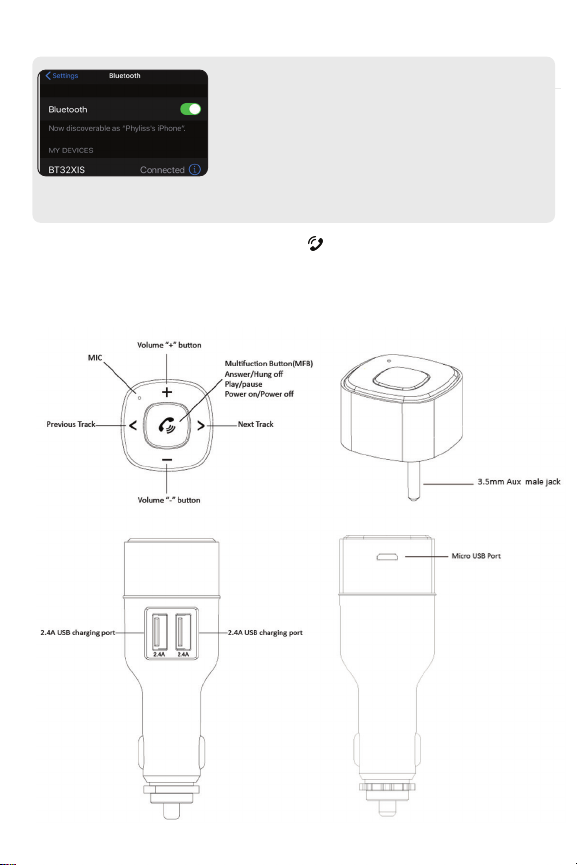

Bluetooth Module Controls
After charging your BT32XIS, unplug Bluetooth Adapter (A)
from the USB cable. Make sure the Bluetooth operation on
your phone is turned on.
Open the Bluetooth menu on your smartphone, and scan
for available Bluetooth devices. Find “BT32XIS” from the list,
and select “Connect”.
Step 2
Control buon
When a successful connection has been established, LED light will change to a solid blue light
Select the AUX input source on your radio to enjoy your
music.
Plug BT32XIS Bluetooth Adapter (A) into the vehicle’s AUX
port.
On your device, access your music/media player of choice.
Adjust the volume using your device and radio volume.
Step 1
Step 2
Step 3
Button Description
Press main control button to play
Press main control button to pause
Press “FORWARD” button to skip track
Press “BACK” button to go back to beginning of track
Double click to go back to previous track
6
HOW TO PLAY YOUR PHONE’S AUDIO
>
<
Select the AUX input source on your radio to stream your
calls through your car’s speakers.
To save battery life while not in use, press the control button
(A) for 3 seconds to turn o BT32XIS.
Push control button (A) once.
On your device, make your calls or hold control button
(A) and make calls via voice recognition (see next page).
To Answer/End Calls
To Make Calls, Set Your Car to AUX
To Make Calls
How to Power O BT32XIS
7
HOW TO SEND/RECEIVE CALLS
8
LED OPERATION GUIDE
Button Description
Pairing mode Flashing blue light
Paired Steady blue light
Low battery Flashing red light
Charging Steady red light
Full battery No light
Push control button (A) and hold to activate.
To Use Siri or Google Now
HOW TO USE VOICE RECOGNITION
ABOUT AUTO CONNECT
ABOUT POWER SAVE MODE
BT32XIS will auto connect after the rst pairing.
BT32XIS will auto shut-o after 10 minutes of non-use.
CHARGING YOUR BT32XIS AND SMARTPHONE
9

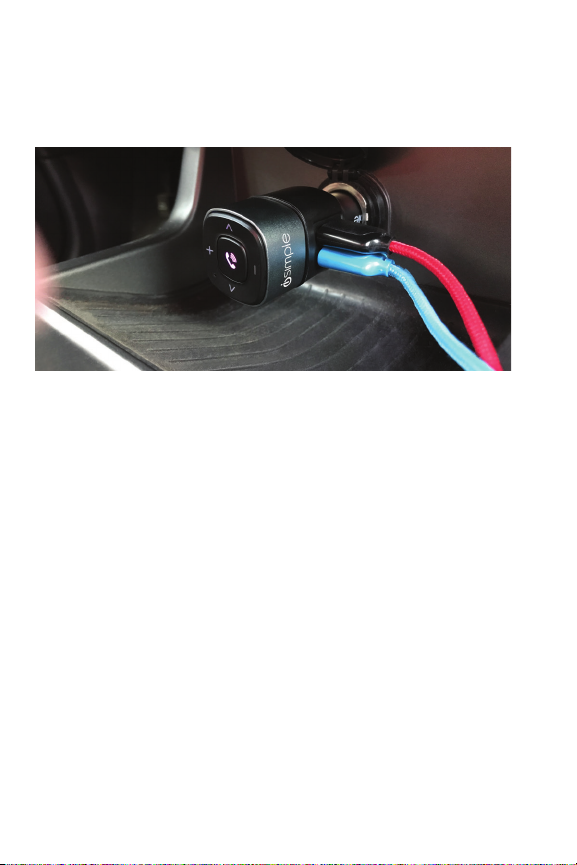

When 12v plug (B) is insterted into your car’s 12v socket, you can charge up to two smartphones/
tablets at the same time, Charging cables not included.
The BT32XIS module when not in use can be charged by simply inserting into the 12v plug and then
plugging into the car’s 12V socket (see above photo).
10
Power on Press and hold for 3
seconds until ashing and
prompting you with “Power
on”
Power off Press and hold for 3
seconds until prompt
“Power off”
Play/Pause music Press once during music
playing
Answer call Press once when there is
incoming call
End call Press once during call
Redial call Press twice while on
standby
Reject call Press and hold for 2
seconds when there is an
incoming call
Adjust the volume Press and hold “+” button:
increase volume
Press and hold “-” button:
decrease volume
Choose music Press “<“ button: play the
previous song
Press “>” button: play the
next song
Switch phone calls
between BT32XIS and
Phone
Press and hold for 2
seconds during
conversation
QUICK GUIDE
