Simplicity 2442 Guida all'installazione

Attachment

Illustrated

Parts List

Rev. 03/2008

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

. No. Descri

tion

Attachment

1692150 Catcher, Clean Sweep Twin, 34"

1730792

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Adapter, Blade & Tube Group ............................................................................................................................. 4

Cover & Bag Group - Twin ................................................................................................................................... 6

Hitch Group .......................................................................................................................................................... 8

Adapter, Blade & Tube Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

984490

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1692150 - Catcher

TP 400-2442-01-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Adapter, Blade & Tube Group

Footnotes

NUT, Hex Washer Assembly, Hex, #10-321 1928919SM 4 EXHAUST SHIELD, Front2 1713286ASM 1 SCREW, Truss Head, 10-32 x 1/23 1930531SM 4 EXHAUST SHIELD, Rear4 1713287ASM 1 TUBE, Transfer5 1703769SM 1 CAPSCREW, Hex Head, 5/16-18 x 3/46 1960122SM 1 WASHER, Flat, 5/167 1919326SM 1 LATCH, Tube8 1704603SM 1 WASHER, Flat, 5/169 1960185SM 1 NUT, Flange Lock, 5/16-1810 1935048SM 1 CAPSCREW, Hex Head, 5/16-18 x 3/411 1960371SM 3 WASHER, Special12 1704341SM 1 LOCKNUT, Hex, 5/16-1813 1919438SM 3 ADAPTER14 1709135SM 1 BRACKET, Attachment15 1704355ASM 1 NUT, Centerlock, 5/16-1816 1928698SM 1 WING NUT ASSEMBLY 5/1617 1679163SM 1 NUT, Hex Flange, 5/16-1818 1927557SM 1 CUP19 1679164ASM 1 NUT, Hex, 5/16-1820 1917372SM 3 LOCKWASHER, 5/1621 1917356SM 3 SPACER22 1674669SM 2 CARRIAGE BOLT, 5/16-18 x 2-1/423 1960273SM 1 CARRIAGE BOLT, 5/16-18 x 1-3/424 1931338SM 2 BAFFLE25 1709112A 1 CARRIAGE BOLT, 5/16-18 x 5/826 1931332SM 1 ADAPTER, Blade, High Lift27 1705010SM 1 BLADE, High Lift28 1706739ASM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1692150 - Catcher

TP 400-2442-01-AT-SMA

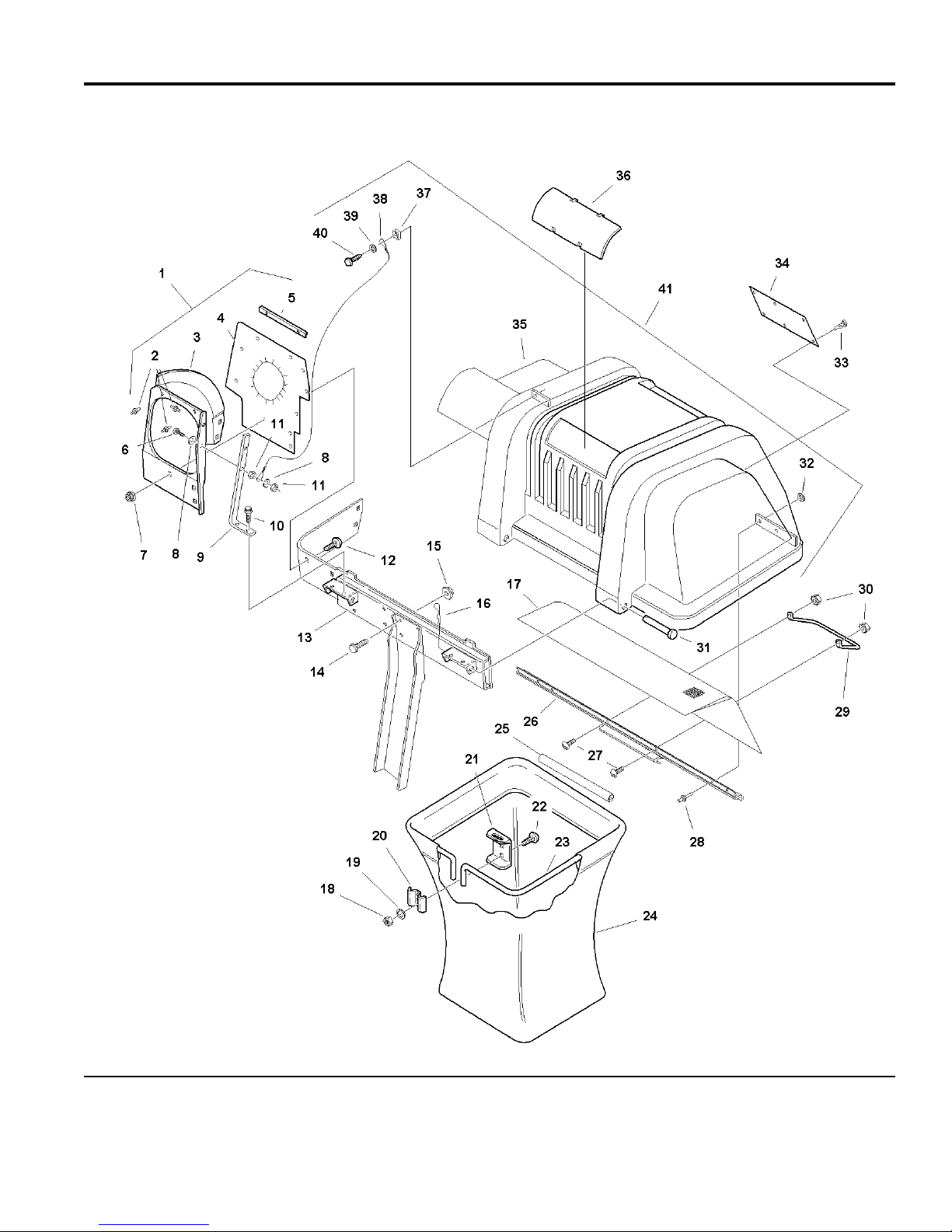

Cover & Bag Group - Twin

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

983952

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1692150 - Catcher

TP 400-2442-01-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Cover & Bag Group - Twin

Footnotes

TUBE ASSEMBLY Support (Incl. Ref. Nos. 2, 3, 4, 5, 6, 8, 9 & 11)1 1704615SM 1 RIVET, Pop2 1960381SM 7 SUPPORT, Tube3 1704075SM 1 SEAL, Cover4 1704135SM 1 BRACKET, Seal5 1704508SM 3 SCREW, Round Head, #8-32 x 7/86 1960399SM 1 LOCKNUT, Flange, 1/4-207 1930642SM 5 WASHER8 1960096SM 2 STRAP, Tube Support9 1704507SM 1 SCREW, Taptite, 1/4-20 x 3/810 1929000SM 2 NUT, Hex, Lock, #8-3211 1960077SM 2 CARRIAGE BOLT, 1/4-20 x 5/812 1960252SM 5 CROSS ASSEMBLY13 1727129ASM 1 CROSS ASSEMBLY13 1727129ASM 1 CAPSCREW, Hex Head, 3/8-16 x 7/814 1921966SM 4 NUT, Hex, Whizlock, 3/8-1615 1928352SM 4 CLIP, Hairpin16 1960221SM 2 SCREEN17 1703700SM 1 NUT, Hex, 5/16-1818 1917372SM 4 LOCKWASHER, 5/1619 1917356SM 4 CLAMP20 1672023ASM 2 HANGER21 1703807ASM 2 CARRIAGE BOLT, 5/16-18 x 3/422 1931333SM 4 HOOP, Bag23 1703855ASM 2 BAG, Grass24 1703764SM 2 TUBE CLIP, Grass Bag25 1675707SM 2 SEAL, Clip26 1704057SM 1 SCREW, Truss Head, #10-32 x 1/227 1930531SM 2 RIVET, Pop28 1675043SM 4 HANDLE, Latch29 1703853SM 1 NUT, Hex, #10-3230 1928919SM 2 PIN, Round Head31 2860367SM 2 WASHER32 1910531SM 4 CLIP, Canoe33 1667248SM 6 DECAL, Safety34 1732820SM 1 COVER35 1704056SM 1 WINDOW36 1704180SM 2 NUT, Speed37 1933886SM 1 CABLE, Double Loop38 1705876SM 1 WASHER, 1/439 1921319SM 1 SCREW, Self-tapping, #10-12 x 5/840 1960400SM 1 COVER ASSEMBLY (Incl. Ref. Nos. 17, 26, 28, 32, 37, 38, 39 & 40)41 1704056SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1692150 - Catcher

TP 400-2442-01-AT-SMA

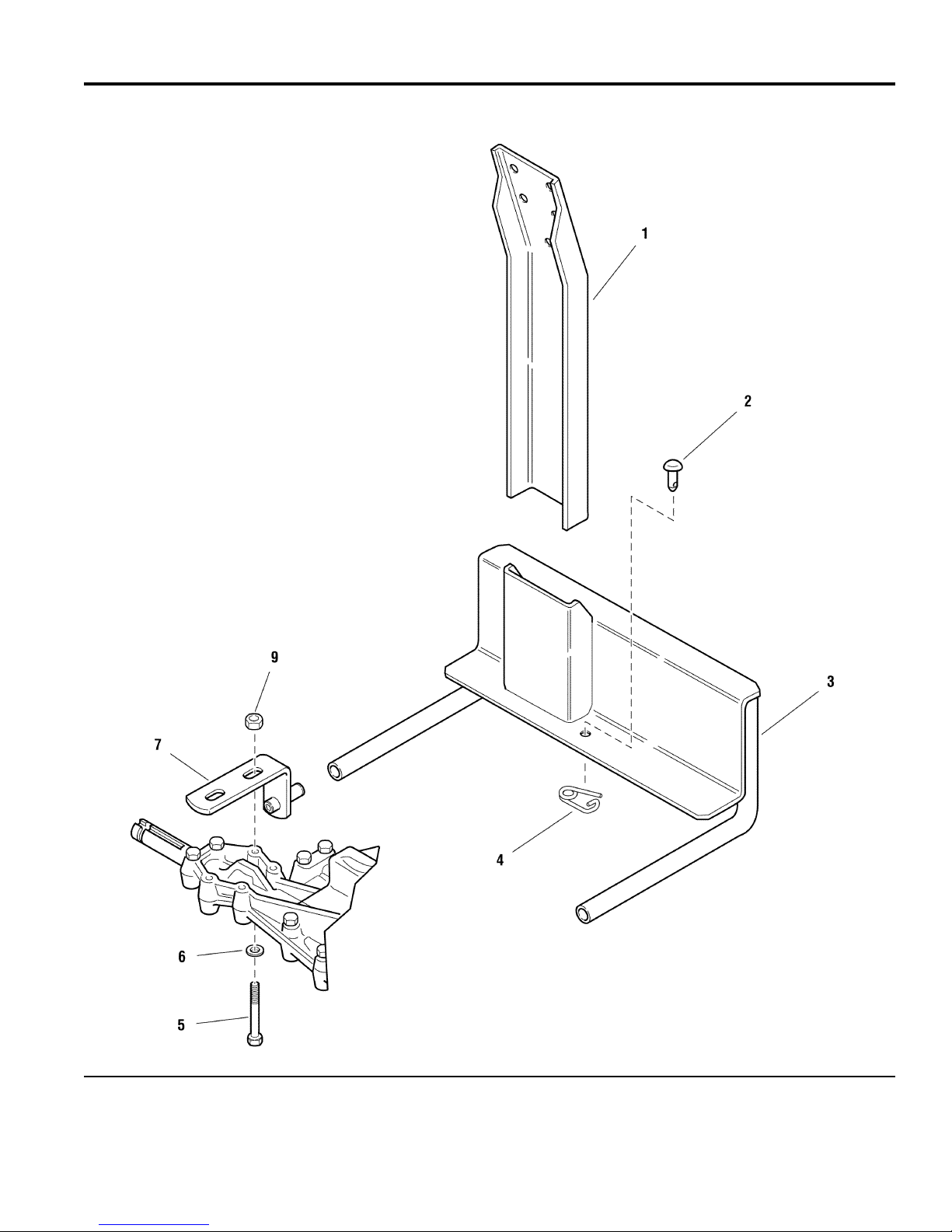

Hitch Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

984491

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1692150 - Catcher

TP 400-2442-01-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Hitch Group

Footnotes

SUPPORT, Catcher1 1709111ASM 1 PIN, Round Head, Drilled2 2102004SM 1 SUPPORT ASSEMBLY3 1709022ASM 1 CLIP, Pin, Safety4 2176012SM 1 CAPSCREW, Hex Head, 5/16-18 x 35 1960590SM 4 WASHER, Plain 5/166 1919326SM 8 ANCHOR ASSEMBLY, Older Models7 1709026ASM 2 ANCHOR ASSEMBLY, Newer Models7 1726975ASM 2 NUT, Hex Flange Two-Way Lock 5/16-189 1935048SM 4

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1692150 - Catcher

TP 400-2442-01-AT-SMA
