Simplicity 1694920 Guida all'installazione

Attachment

Illustrated

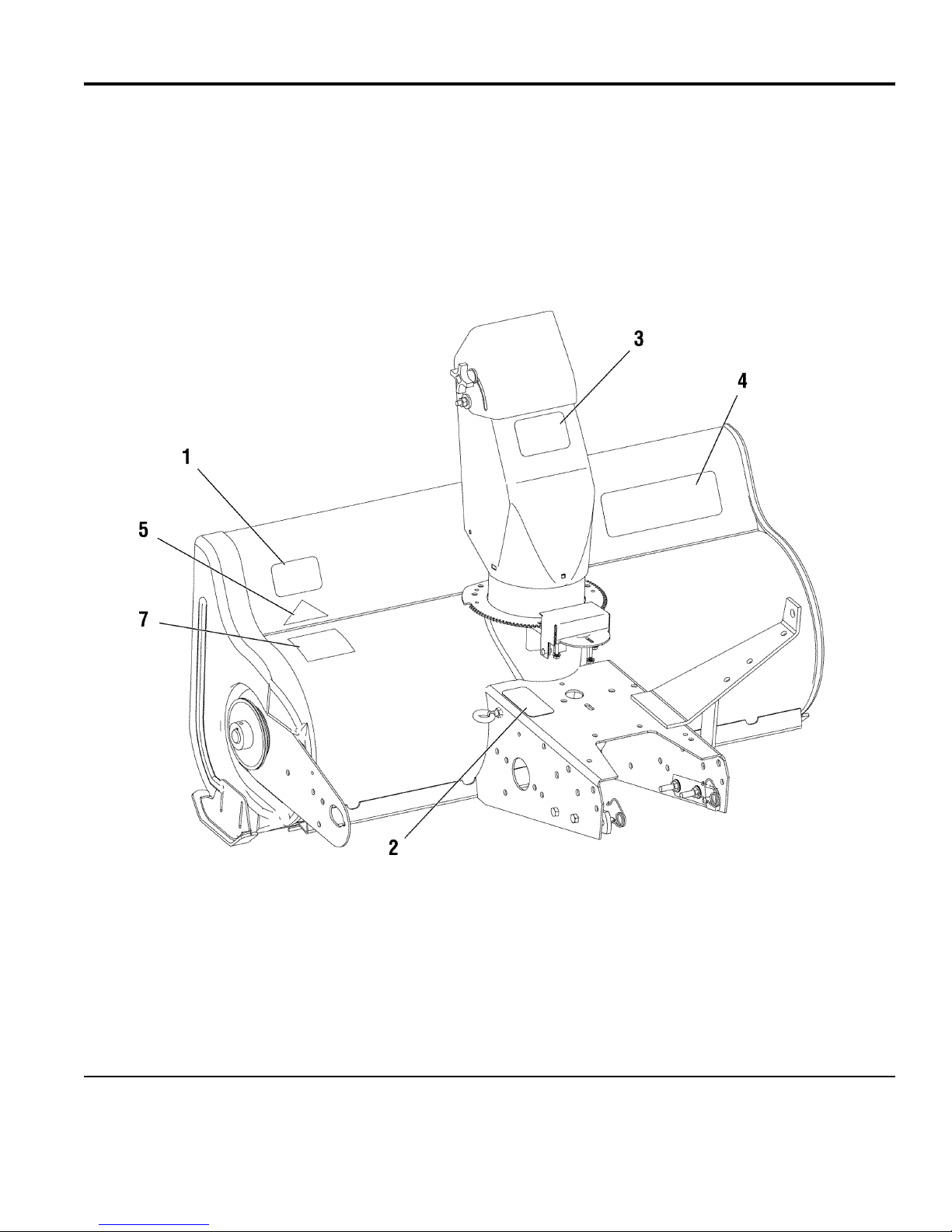

Parts List

Rev. 10/2007

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

. No. Descri

tion

Attachment

1694920 42" Snowthrower

1734822

Part No.:

Table Of Content

Torque Specification Chart ..................................................................... Inside Back Cover

PRODUCT COMPONENTS PAGES

Body & Rotor Group ............................................................................................................................................. 4

Drive & Hitch Group ............................................................................................................................................. 6

Drive Group .......................................................................................................................................................... 8

Miscellaneous Group ........................................................................................................................................... 10

Spout Group ......................................................................................................................................................... 12

Body & Rotor Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987374

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694920 - 42" Snowthrower

TP 400-4543-01-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Body & Rotor Group

Footnotes

BODY & FRAME ASSEMBLY, 42"1 1732806ASM 1 CAPSCREW, Hex Head, 5/16 - 18 x 5/8, G54 1925205SM 4 DEFLECTOR5 2106774ASM 1 CAPSCREW, Hex Head, 5/16 - 18 x 3/4, G56 1921332SM 8 FLANGE, Bearing7 2172278ASM 4 BOLT, Carriage, .38 - 16 x 3/48 1960711SM 4 SKID ASSEMBLY, with Wear Strip9 1713424ASM 2 NUT, Hex ESNA Flange, .38 - 1611 1960687SM 4 BEARING12 1733105SM 2 ROTOR ASSEMBLY, 42"13 1721840ASM 1 KEY14 2151040SM 1 PLATE, Side15 1676632ASM 1 SPROCKET, Rotor18 2106653SM 1 TURNBUCKLE, 5/16 - 19 x 9-1/419 1733145SM 1 SPRING, Extension20 1675232SM 1 CLIP, Spring21 1732992ASM 1 NUT, Hex Centerlock, 5/16 - 1827 1923362SM 2 BLADE, Scraper, 42"31 2106746ASM 1 NUT, Hex Centerlock, 1/4 - 2032 1923358SM 8 CAPSCREW, Hex Head33 1921959SM 8 WASHER, 5/1634 1919326SM 2 SCREW, Set, 5/16 - 18 x 1/239 1928721SM 1 NUT, Hex Whiz Lock Flange, 5/16 - 1850 1931277SM 10 HARNESS, Wiring Spout Rotate, 42" (Not Shown)51 1733262SM 1 HARNESS, Wiring Motor/Trailer, 42" (Not Shown)52 1733276SM 1 SWITCH, Electric Lift Rocker53 1724210SM 1 CLIP, Wire54 2172434SM 4 TIE, Self Locking55 2825094SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694920 - 42" Snowthrower

TP 400-4543-01-AT-SMA

Drive & Hitch Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987402

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694920 - 42" Snowthrower

TP 400-4543-01-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Drive & Hitch Group

Footnotes

BRACE1 1733050ASM 3 FRONT CROSS RAIL2 1732629ASM 1 ARM3 1731341ASM 2 PULLEY, Idler4 2171247SM 2 SIDE PLATE5 1732507ASM 1 SIDE PLATE6 1732508ASM 1 SPACER7 1667812SM 4 PULLEY ASSEMBLY8 1666287SM 1 SPACER9 1713791SM 3 STOP BELT10 2162115SM 2 WASHER, Plain11 1922755SM 7 WIREFORM, Lock12 1732562SM 1 NUT, Whizlock13 1928352SM 23 V-BELT14 1724507SM 1 BOLT, 3/8 - 16 x 2-1/415 1922130SM 7 BOLT, 3/8 - 16 x 1-1/416 1922605SM 17 SPACER17 1666294SM 1 SPRING, Tension18 1716853SM 1 HANDLE BRACKET19 1733010ASM 1 SPACER20 1733068SM 1 LOCK, Lift21 1722112SM 1 ROD, Latch22 1733018SM 1 PIVOT/SPACER23 1733031SM 1 BOLT, 5/16 - 18 x 1-1/424 1921977SM 2 QUANDRANT LIFT25 1721581SM 1 WASHER26 1924356SM 5 NUT, 5/1627 1917372SM 2 LOCKWASHER, 5/1628 1917356SM 2 HANDLE WELDMENT29 1733061ASM 1 ROD, Lift30 1733088SM 1 CLIP, Safety31 2176012SM 2 COLLAR32 1729258SM 1 GUIDE, Rod Assembly33 1723115SM 1 GRIP, Lift Handle34 1722291SM 1 BUTTON35 1723124SM 1 NUT, Push36 1960674SM 1 SPRING37 1723321SM 1 SCREW, Set38 1928721SM 1 BOLT, 3/8 - 16 x 1-1/240 1921969SM 1 REFLECTOR, Red41 1701600SM 2 SHAFT42 1732420SM 1 PIN43 1918196SM 1 ROD, Latch44 1731414SM 1 PIN, Cotter45 1918452SM 1

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694920 - 42" Snowthrower

TP 400-4543-01-AT-SMA

Drive Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987375

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694920 - 42" Snowthrower

TP 400-4543-01-AT-SMA

PART NO. DESCRIPTIONREF NO QTY.

Drive Group

Footnotes

SCREW, Set Square Head, 16 - 18 x 5/8, G81 1930540SM 2 PULLEY, 7 O.D. 3/4 x 7/8 with Hub2 2171248SM 1 SCREW, Hex Whiz Lock Flange, 3/8 - 16 x 13 1934654SM 3 CAPSCREW, Hex Head, 5/16 - 18 x 1-3/44 1922127SM 2 CLAMP, Housing, 1-1/4 DIA Shaft5 1666145ASM 2 WASHER6 1729259SM 4 HOUSING ASSEMBLY, with Bearings8 1650955SM 1 FITTING, Grease9 2821133SM 1 LOCKNUT, Flange10 1928352SM 7 LOCKWASHER, 5/1611 1917356SM 2 NUT, Hex, 5/16 - 1812 1917372SM 2 KEY, Woodruff, 3/16 x 3/413 2805123SM 1 SHAFT & SPROCKET ASSEMBLY, Snow14 2106757SM 1 SPACER15 1669105ASM 2 CHAIN, Guard16 1676738ASM 1 CHAIN, Auger Drive, #40, 32" Long, 64 Pitch17 2171242SM 1 CAPSCREW, .38 - 13 x 319 1913709SM 2

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694920 - 42" Snowthrower

TP 400-4543-01-AT-SMA

Miscellaneous Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

987379

The above parts group applies to the following Mfg. Nos.:

Briggs and Stratton Yard Power Products Group

1694920 - 42" Snowthrower

TP 400-4543-01-AT-SMA
