Parts Manual

Rev. 09/2002

TP 400-2307-03-LW-S

LARGE FRAME

SNOWTHROWERS

(MODELS 860, 970 & 1180)

MODEL 860 SNOWTHROWERS

Mfg. No. Description

1693650 860M, 8HP Snowthrower

1693651 860M, 8HP Snowthrower (Export)

1693763 860M, 8HP Snowthrower

1693775 860M, 8HP Snowthrower (Export)

1693984 860M, 8HP Snowthrower

1693985 860M, 8HP Snowthrower (Export)

1694242 860E, 8HP Snowthrower

MODEL 860DLX SNOWTHROWERS

Mfg. No. Description

1693652 860DLX, 8HP Snowthrower

1693653 860DLX, 8HP Snowthrower (Export)

1694241 860DLXE, 8HP Snowthrower

MODEL 970 SNOWTHROWERS

Mfg. No. Description

1693654 970M, 9HP Snowthrower

1693655 970M, 9HP Snowthrower (Export)

1694243 970E, 9HP Snowthrower

MODEL 1180 SNOWTHROWERS

Mfg. No. Description

1693656 1180M, 11HP Snowthrower

1693657 1180M, 11HP Snowthrower (Export)

1694244 1180E, 11HP Snowthrower

TP 400-2307-03-LW-S

Table of Contents

SNOWTHROWER COMPONENTS PAGES

Handles and Controls Group ....................................2

Engine &Frame Group - 8HP,Manual Start .........14

Engine &Frame Group - 8HP,Manual Start .........16

Engine &Frame Group - 8HP,Manual Start .........20

Engine &Frame Group - 8HP,Electric Start .........22

Engine &Frame Group - 8HP,Electric Start .........24

Engine &Frame Group - 9HP,Manual Start .........28

Engine &Frame Group - 9HP,Electric Start .........32

Engine &Frame Group - 11HP,Manual Start .......36

Engine &Frame Group - 11HP,Electric Start .......40

Auger and Impeller Group - 24”..............................44

Auger and Impeller Group - 28”..............................46

Auger and Impeller Group - 32”..............................48

Auger Housing and Chute Group - 24”....................50

Auger Housing and Chute Group - 28”....................52

Auger Housing and Chute Group - 32”....................54

Traction Drive Group...............................................56

Decals Group - 860.................................................68

Decals Group - 860DLX, 970 & 1180 ........................70

Wheels and Tires Group - 860 ................................72

Wheels and Tires Group - 860DLX & 970..................74

Wheels and Tires Group - 1180 & 1390 ..............................76

Headlight Group......................................................78

REFERENCE INFORMATION

Torque Specification Chart..............Inside Back Cover

TP 400-2307-03-LW-S

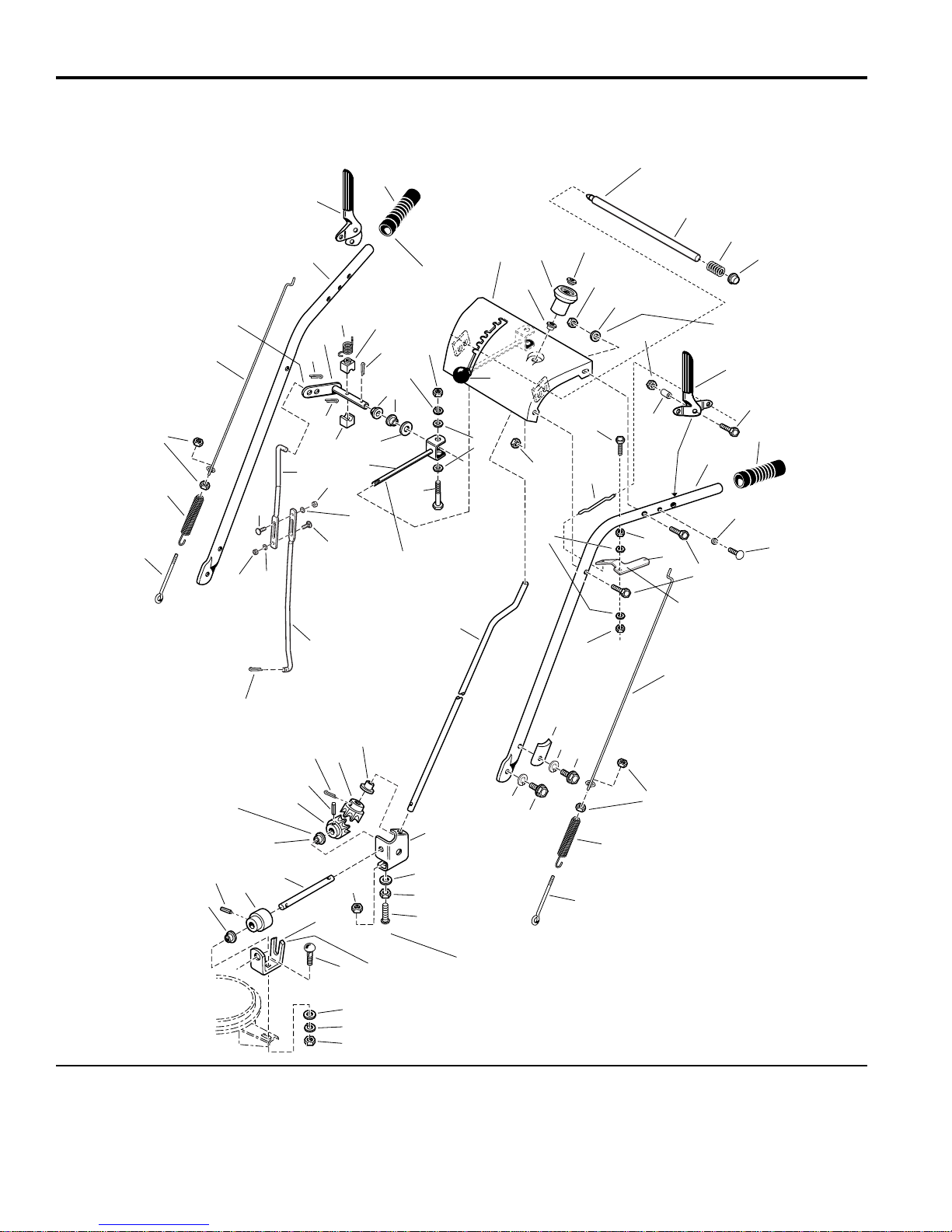

Handles and Controls Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985771

The holes in the frame for Ref. 27 are

slotted so the gear support (Ref. 42) can

be positioned to ensure the inside surface

of the gear support is tight against the

hub of the front gear (Ref. 44).

Mount bushings (Ref. 43)

with flange on inside of

brackets, 3 places.

Ref. 12 required on

slotted holes only.

Slot towards

rear of unit.

Shift rod assembly (Ref. 38)

must pivot freely on

pivot blocks, (Ref. 33).

Apply adheasive to

secure grips.

8910

2020

22 23

32 33

48 49

The above parts group applies to the following Mfg. Nos.:

1693650 860M, 8HP Manual Start

1693651 860M, 8HP Manual Start (Export)

1693763 860M, 8HP Manual Start

1693775 860M, 8HP Manual Start (Export)

TP 400-2307-03-LW-S

Handles and Controls Group

1 1668525 1 CLUTCH ROD, Lower, RH

2 1669323 1 SPRING, Extension

3 1916621 4 NUT, Hex, #10-24 RH

4 1715659 2 CLUTCH ROD, Traction & Auger Drive

5 1721564 1 HANDLE, RH

6 1715103 1 LEVER, Auger Clutch, RH

7 1676954 2 GRIP, Black Vinyl, for 1" Tube

8 1722627 1 DASHBOARD & SUPPORT ASSEMBLY

9 1714084 1 KNOB, Chute Control Spinner

10 1960093 1 PUSH NUT, 3/8

11 1919438 4 NUT, Hex Lock, 5/16-18

12 1919326 1 WASHER, Flat 5/16

13 1715104 1 LEVER, Traction Drive Clutch, LH

14 1923358 2 NUT, Hex, Centerlock, 1/4-20

15 1715655 2 SPACER, Large

16 1721563 1 HANDLE, LH

17 1922837 2 CAPSCREW, Hex Head, 1/4-20 x 1-1/2

18 1715654 2 SPACER, Small

19 1960556 2 SCREW, Taptite, Pan Head, Torx, 1/4-20 x 3/4

20 1921221 4 CAPSCREW, Hex Head, 5/16-18 x 1-1/2

21 1720452 2 CLAMP, Tube, Saddle

22 1917356 5 LOCKWASHER

23 1922127 2 CAPSCREW, Hex Head, 5/16-18 x 1 3/4

24 1921332 2 CAPSCREW, Hex Head, 5/16-18 x 3/4

25 1918447 3 PIN, Cotter

26 1666255 1 ROD, Shift-Lower

27 1960252 3 CARRIAGE BOLT, 1/4-20 X 5/8

28 1916964 3 LOCKWASHER, 1/4

29 1916622 3 NUT, Hex Head, 1/4-20

30 1720238 1 ROD, Shift-Upper

31 1720240 1 ROD & ARM ASSEMBLY, Pivot

32 1715123 1 SPRING, Torsion

33 1668524 2 BLOCK, Pivot

34 1918452 2 PIN, Cotter

35 1668185 2 BUSHING

36 1924361 1 WASHER

37 1921319 2 WASHER, Flat 1/4

38 1668523 1 ROD & CLEVIS ASSEMBLY

39 1921159 1 CAPSCREW, Hex Head, 1/4-20 x 2-1/4

40 8021050 1 KNOB, Internal Thread, 3/8-16

41 1715658 1 ROD, Chute Control

42 1718793 1 SUPPORT, Gear

43 1667588 4 BUSHING, Nylon

44 1718593 2 GEAR, Steel, Universal

45 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4

46 1919326 1 WASHER, Flat 5/16

47 1611911 1 BRACKET, Worm Support

48 1668186 1 WORM, Chute

49 1668187 1 ROD, Chute, Worm

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693650 860M, 8HP Manual Start

1693651 860M, 8HP Manual Start (Export)

1693763 860M, 8HP Manual Start

1693775 860M, 8HP Manual Start (Export)

TP 400-2307-03-LW-S

Handles and Controls Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985771

The above parts group applies to the following Mfg. Nos.:

1693650 860M, 8HP Manual Start

1693651 860M, 8HP Manual Start (Export)

1693763 860M, 8HP Manual Start

1693775 860M, 8HP Manual Start (Export)

The holes in the frame for Ref. 27 are

slotted so the gear support (Ref. 42) can

be positioned to ensure the inside surface

of the gear support is tight against the

hub of the front gear (Ref. 44).

Mount bushings (Ref. 43)

with flange on inside of

brackets, 3 places.

Ref. 12 required on

slotted holes only.

Slot towards

rear of unit.

Shift rod assembly (Ref. 38)

must pivot freely on

pivot blocks, (Ref. 33).

Apply adheasive to

secure grips.

8910

2020

22 23

32 33

48 49

TP 400-2307-03-LW-S

Handles and Controls Group

50 916168 2 PIN, Spring

51 1960294 2 NUT, Hex Flange, 1/4-20

52 1960518 2 PUSH NUT, Bolt Retainer 1/4

53 1668526 1 CLUTCH ROD, Lower, LH

54 1707452 1 SPRING, Clutch Rod

55 1917372 1 NUT, Hex, 5/16-18

REF NO. PART NO. QTY. DESCRIPTION

Footnotes:

The above parts group applies to the following Mfg. Nos.:

1693650 860M, 8HP Manual Start

1693651 860M, 8HP Manual Start (Export)

1693763 860M, 8HP Manual Start

1693775 860M, 8HP Manual Start (Export)

TP 400-2307-03-LW-S

Handles and Controls Group

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

985916

The above parts group applies to the following Mfg. Nos.:

1693984 860M, 8HP Manual Start

1693985 860M, 8HP Manual Start (Export)

1694242 860E, 8HP Electric Start

The holes in the frame for Ref. 40 are

slotted so the gear support (Ref. 37) can

be positioned to ensure the inside surface

of the gear support is tight against the

hub of the front gear (Ref. 49).

Mount bushings (Ref. 9)

with flange on inside of

brackets, 3 places.

Ref. 13 required on

slotted holes only.

Slot towards

rear of unit.

Shift rod assembly (Ref. 57)

must pivot freely on

pivot blocks, (Ref. 58).

Apply adhesive to

secure grips.

Insert shift rod (Ref. 55)

into outter hole of Ref. 61.

Must pivot freely

on capscrew (Ref 22).

Apply lubricant as required.

Must slide freely in

dash assembly (Ref 8).

Apply lubricant as required.

810 11

2028

31 32

62 58

59 38

47 48

1624
