Simplicity Symmetry Manuale utente

(The chances are you’re

never going to read me)

Owner’s Manual

all models

www.simplicityvac.com

IMPORTANT SAFETY INSTRUCTIONS .............................................................. 2

Polarization instructions .................................................................................. 3

Description of the vacuum .............................................................................. 4

Before using your Symmetry for the first time ................................................ 6

Operation

Unwinding the power cord .............................................................................. 7

Turning vacuum on / off ................................................................................. 8

Vacuuming carpet ........................................................................................... 9

Vacuuming hard surfaces ............................................................................... 9

Carpet height adjustment ............................................................................... 9

Vacuuming under furniture .............................................................................. 10

Carrying the vacuum ...................................................................................... 11

Attachment Cleaning

Wand cleaning ................................................................................................ 12

Cleaning tools ................................................................................................. 13

Adjusting the suction power ........................................................................... 14

Optional cleaning tools ................................................................................... 15

Connecting attachment hose .......................................................................... 16

Maintenance and Care

When to change the vacuum bag/Full bag indicator light .............................. 17

Replacing the vacuum bag ............................................................................ 18

When to change the filters .............................................................................. 19

Replacing the filters ........................................................................................ 19

Removing and reinstalling bottom plate ......................................................... 21

Replacing the agitator belt ............................................................................ 22

Lifetime belt protection warranty ...................................................................... 23

Replacing the headlight bulb ......................................................................... 24

Edge cleaning ................................................................................................ 24

Annual checkup reminder ............................................................................... 24

Problem Solving Guide

Unclogging nozzle and hose .......................................................................... 25

Thermal motor protection ................................................................................ 26

Jammed brushroll ............................................................................................ 26

Trouble shooting .............................................................................................. 27

How to contact your Authorized Retailer ........................................................ 27

Visit Simplicity online ....................................................................................... 27

Warranty ................................................................................................................. 28

Contents

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed,

including the following:

READ ALL INSTRUCTIONS BEFORE

USING THIS APPLIANCE

The manufacturer cannot accept responsibility for damage

caused when the appliance is not used according to the

instructions, or for uses other than those for which it

was intended.

To reduce the risk of fire, electric shock or injury:

• Do not leave appliance when plugged in.

Unplug from outlet when not in use and

before servicing.

• WARNING: ELECTRIC SHOCK COULD

OCCUR IF USED OUTDOORS OR ON

WET SURFACES.

• Do not allow to be used as a toy. Close

attention is necessary when used by or

near children.

• Use only as described in this manual.

Use only manufacturer’s recommended

attachments.

• Do not use with damaged cord or plug. If

appliance is not working as it should, has

been dropped, damaged, left outdoors,

or dropped into water, return it to your

Authorized Retailer for service.

• Do not pull or carry by cord, use cord as

a handle, close a door on the cord, or pull

cord around sharp edges or corners. Do

not run appliance over cord. Keep cord

away from heated surfaces.

• Do not unplug by pulling on cord. To

unplug, grasp the plug, not the cord.

• Do not handle plug or appliance with

wet hands.

• Do not put any object into openings. Do

not use with any opening blocked; keep

free of dust, lint, hair and anything that

may reduce air ow.

• Keep hair, loose clothing, ngers and all

parts of body away from openings and

moving parts.

• Do not pick up anything that is burning or

smoking, such as cigarettes, matches or

hot ashes.

• Do not use without vacuum bag and/or

lters in place.

• Turn off all controls before unplugging.

• Use extra care when cleaning on stairs.

• Do not use to pick up ammable or

combustible liquids, such as gasoline, or

use in areas where they may be present.

• Do not attempt to service the unit while

appliance is plugged in.

SAVE THESE INSTRUCTIONS.

WARNING:

POWER CORD, 2-WIRE POLARIZED CORD

Household Models: SYME, SYMENT, SYMST, SYMDL,

SYMPBP, SYM, SYMUSA, SYMCLNT,

SYMCL, SYMS, SYMD, SYMPNT &

SYMP

To reduce the risk of electric shock, this product

is equipped with a polarized alternating current

line plug (a plug having one blade wider than the

other). This plug will fit into the power outlet only

one way. This is a safety feature. If you are unable to

insert the plug fully into the outlet, try reversing the

plug. If the plug should still fail to fit, contact a

qualified electrician to replace the obsolete outlet. Do

not defeat the safety purpose of the polarized plug.

Polarization Instructions

Grounding Instructions

Commercial Models: SYMCNT, SYMC & SYMCBP

This vacuum cleaner must be grounded. If it should malfunction or break down,

grounding provides a path of least resistance for electric current to reduce the risk of

electric shock. This vacuum cleaner is equipped with a cord having an equipment-

grounding conductor and grounding plug. The plug must be plugged into an

appropriate outlet that is properly installed and grounded in accordance with all local

codes and ordinances.

This vacuum cleaner is for use on a nominal 120-volt circuit and has a ground plug

(see illustration). Make sure the vacuum is connected to an outlet having the same

configuration as the plug. No adapter should be used with this vacuum.

Grounded

Outlet

Grounding

Grounded

Outlet Box

WARNING – Improper connection of

the equipment-grounding conductor

can result in the risk of electric shock.

Check with a qualified electrician or

service person if you are in doubt

as to whether the outlet is properly

grounded. Do not modify the plug

provided with the vacuum – if it will

not fit the outlet, have a proper outlet

installed by a qualified electrician.

Description of the Vacuum

1 Ergonomic handle

2 Main on / off power switch

(for models SYMDL, SYMPBP, SYM, SYMS, SYMD, SYMPNT, SYMP,

SYMCNT, SYMC & SYMCBP)

3 Power Cord

4 Carrying handle

5 Bag compartment cover (to replace vacuum bag)

6 Xenon headlight (for all models except SYMUSA, SYME & SYMENT)

7 Vacuum nozzle

8 Furniture guard

9 Carpet / Floor selector (for models SYMDL, SYMPBP, SYM, SYMUSA,

SYMPNT & SYMP)

10 Quick release cord hook

11 Ready Reach™tools

(for models SYME, SYMST, SYMDL, SYMPBP, SYM, SYMUSA, SYMCL,

SYMS, SYMD, SYMP, SYMC & SYMCBP)

12 Suction control dial

13 Combination dusting / upholstery brush

(for models SYME, SYMST, SYMDL, SYMPBP, SYM, SYMUSA, SYMCL,

SYMS, SYMD, SYMP, SYMC & SYMCBP)

14 Crevice tool

(for models SYME, SYMST, SYMDL, SYMPBP, SYM, SYMUSA, SYMCL,

SYMS, SYMD, SYMP, SYMC & SYMCBP)

15 Thermal reset button

16 Full bag / clog indicator

(for models SYMPBP, SYM, SYMD, SYMPNT, SYMP, SYMCNT, SYMC &

SYMCBP)

17 Main on / off power switch (for models SYME, SYMENT, SYMST, SYMCLNT,

SYMCL & SYMUSA)

18 Handle release pedal

19 Brushroll jam indicator (for models SYMPBP & SYMCBP)

Description of the Vacuum

Before Using your Symmetry for the First Time

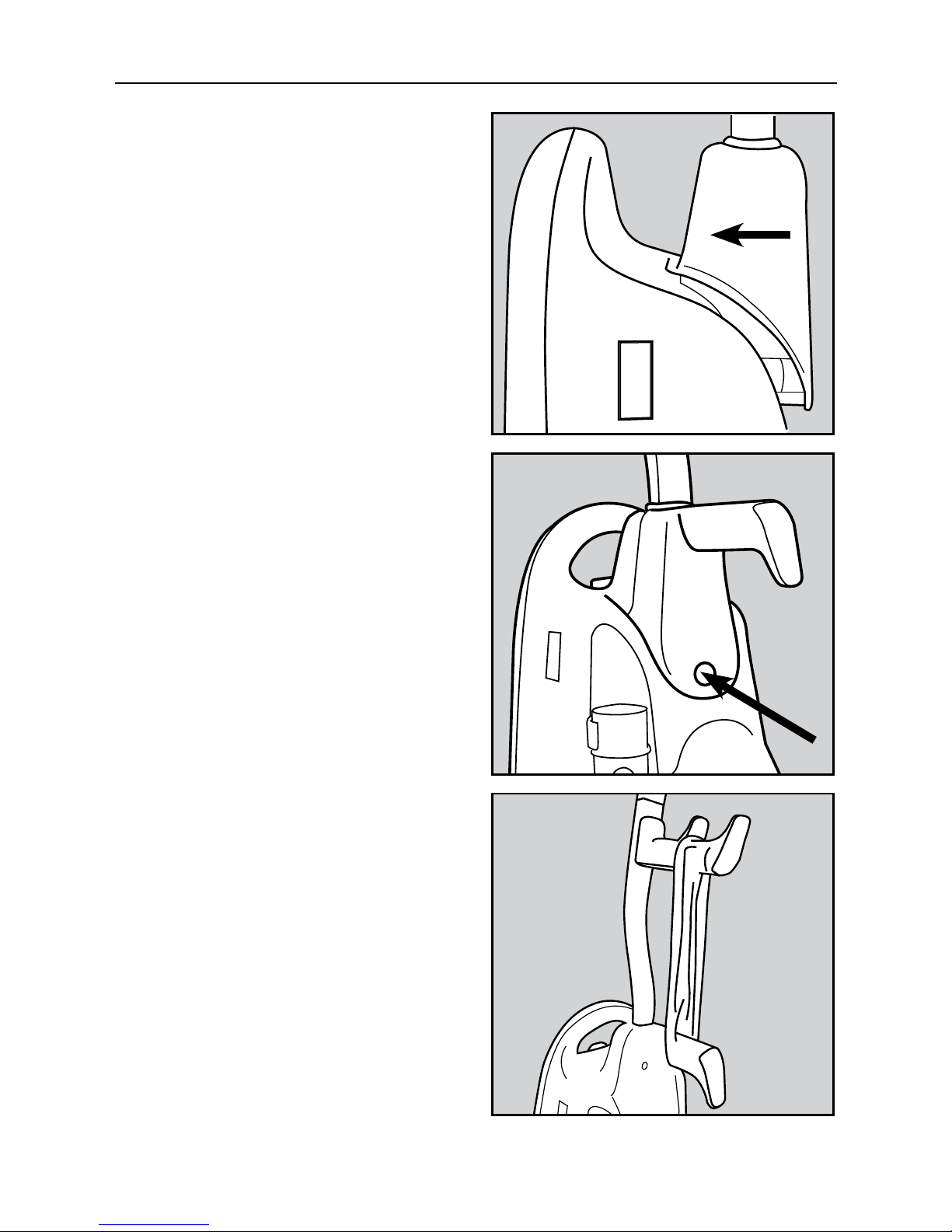

Attaching the handle to the vacuum

The vacuum cleaner and the handle are

packed separately.

• After first removing the handle screw,

position the handle behind the vacuum

cleaner and level with the top of the

unit. Hold the power cord down and

away from the vacuum while the handle

is being attached. Make sure that the

switch on the handle is positioned

toward the front of the vacuum cleaner.

• On the bottom of the handle are two

“T-shaped” rails that slide forward onto

two guides located on the top of the

vacuum cleaner. Line up the handle so

that the “T” rails will slide into the guides

and push the handle forward.

• Insert the handle screw and tighten

securely.

• Turn the upper cord storage hook to

the upright position and wind the power

cord around the cord storage hooks

when storing the vacuum cleaner.

Operation

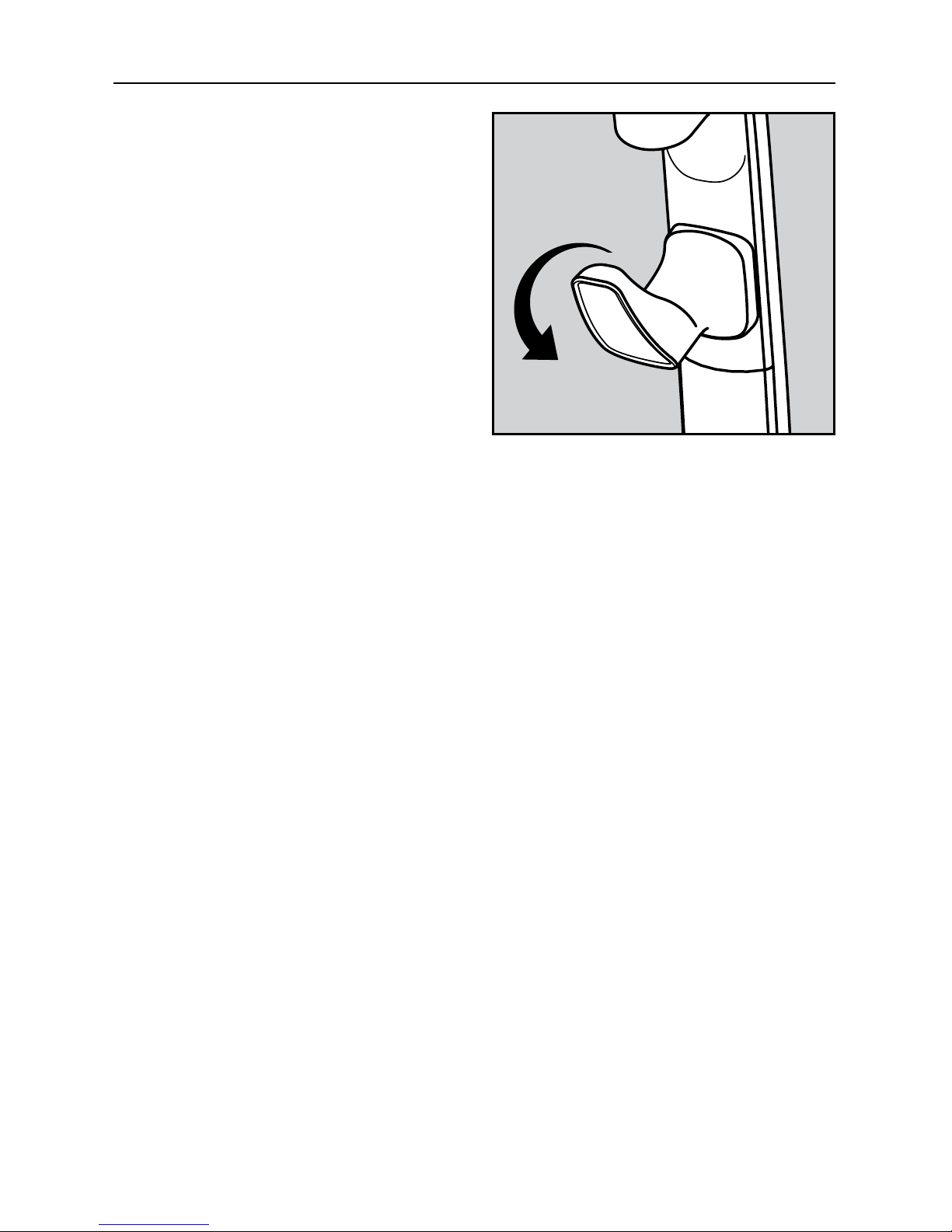

Unwinding the power cord

• The upper cord hook rotates to allow for

quick access to the power cord.

Operation

On / Off switch

Models: SYMDL, SYMPBP, SYM, SYMS,

SYMD, SYMPNT, SYMP, SYMCNT,

SYMC & SYMCBP

• To start the vacuum cleaner, ip the

“on / off” switch located on the handle

to the “on” position.

• To stop the vacuum cleaner, ip the “on /

off” switch to the “off” position.

• Turn the vacuum cleaner off before

unplugging from electrical outlet.

On / Off switch

Models: SYME, SYMENT, SYMST,

SYMUSA, SYMCLNT & SYMCL

• To start the vacuum cleaner, ip the

“on / off” switch located on the side of

the bag compartment to the “on” position

as indicated on the switch.

• To stop the vacuum cleaner, ip the

“on / off” switch to the “off” position

as indicated on the switch.

• Turn the vacuum cleaner off before

unplugging from electrical outlet.

Off
