EX1502K
1080p HDMI Extender
over single 150m/500ft. Category Cable with IR
and RS232 Control
----------2----------
Thank you for purchasing this product
For optimum performance and safety, please read these instructions
carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
----------3----------
Surge protection device recommended
The EX1502K contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order to
protect and extend the life of your equipment.
Caution

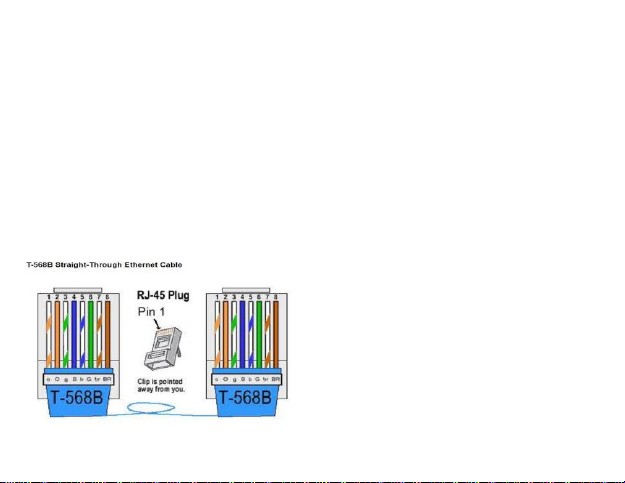

Use 568b direct connection termination
----------4----------
Table of Contents
Introduction
Features
Package Contents
Specifications
Operation Controls and Functions
Connection Diagram
Warranty
Contact Us
----------5----------
Introduction
The EX1502K is a 150 meter (500 ft.) HDMI of Category cable extender
with Two-Way IR and RS232 transmission.
Features
1. HDMI 1.4, HDCP 1.4 and DVI compliant
2. Supports video resolutions up to 1080p/60Hz./YUV4:4:4
3. HBR (High Bit Rate) Audio pass through
4. 150m (500ft.) on Category 6 cable
5. Power can be supplied via one power supply at either the TX
or RX device (24V 1A)
6. Two-Way IR
7. Bidirectional RS232 transmission
----------6----------
Package Contents
(1) HDMI Extender Transmitter
(1) HDMI Extender Receiver
(1) Wideband IR Emitter
(1) Wideband IR Receiver
(1) 24V/1A multi-voltage AC power supply
(1)User Manual
----------7----------
Specifications
HDMI Compliance
HDMI 1.4
HDCP Compliance
HDCP 1.4
Video Bandwidth
148.5 MHz
Video Resolutions
1080p/60Hz, YUV 4:4:4 / RGB 4:4:4
Color Space
RGB/YUV 4:2:2, 4:4:4
Color Depth
8 Bit
HDMI Audio Formats
LPCM, Dolby Digital, DTS 5.1, Dolby
Digital+, Dolby True HD, DTS-HD Master
Audio, Dolby Atmos, DTS-X
----------8----------
ESD Protection
Human Body Model - ±8Kv (Air Gap
Discharge) and ±4Kv (Contact discharge)
Inputs
TX: (1) HDMI Type A (19pin Female)
(1) IR Input (3.5mm)
(1) RS232 (Phoenix Connector)
RX: (1) HDBaseT (RJ-45)
(1) IR Input (3.5mm)
(1) RS232 (Phoenix Connector)
Outputs
TX; (1) HDBaseT (RJ-45)
(1) IR Output (3.5mm)
RX: (1) HDMI Type A (19pin Female)
(1) IR Output (3.5mm)
----------9----------
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
115mm(4.5”)x64.7mm(2.5”)x17mm(.67”)
Weight
406g (14.3 oz.)
Power Supply
Input AC 100-240V 50/60Hz.
Output DV 24V 1 Amp
Power Consumption
5.76W
Operation Temperature
32-104°F/0-40°C
Storage Temperature
-4-140°F/-20-60°C
Relative Humidity
20-90% RH (non-condensing)
----------10----------
Operation Controls and Functions
Transmitter

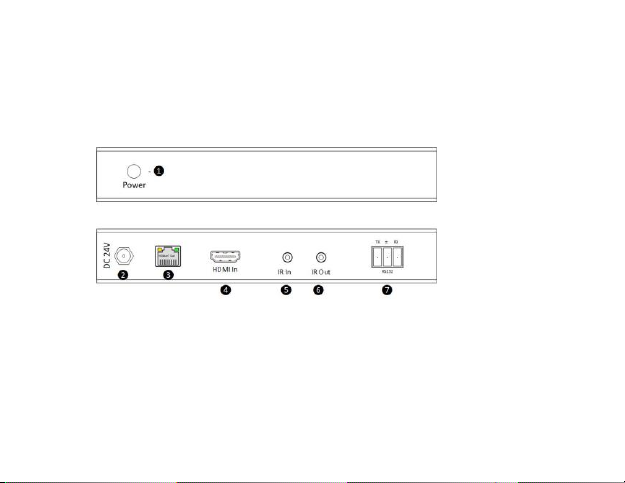

❶Power –System Power indicator
❷DC 24V –Connection for 24V/1A AC Power Supply
❸HDBaseT Out –UTP cable Connection for HDBaseT Transmission
❹HDMI In –HDMI Type A 19 pin signal input
