Simply Elegant 220-111 Manuale di istruzioni

Page 1 of 7www.simplyelegantproducts.com/rts-in

ASSEMBLY AND INSTALLATION INSTRUCTIONS

DOUBLE INSWING

220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)

RETRACTABLE SCREEN

FIG. 1ASTEP 1: REVIEW & CHECK

A) CONFIRM DOOR HEIGHT & WIDTH

You have purchased a DOUBLE Retractable Screen for an

INSWING door.

HEIGHT: This unit is available in two sizes: Retro and Full-Size.

Please make sure that the screen unit you have purchased

matches your door height.

WIDTH: This screen unit will ﬁt door widths of 6/0 (without

cutting) and 5/10 (Retro Only), 5/4 or 5/0 (with cutting).

If you need additional information on measurements, download

sizing document here: http://bit.ly/SEsizing.

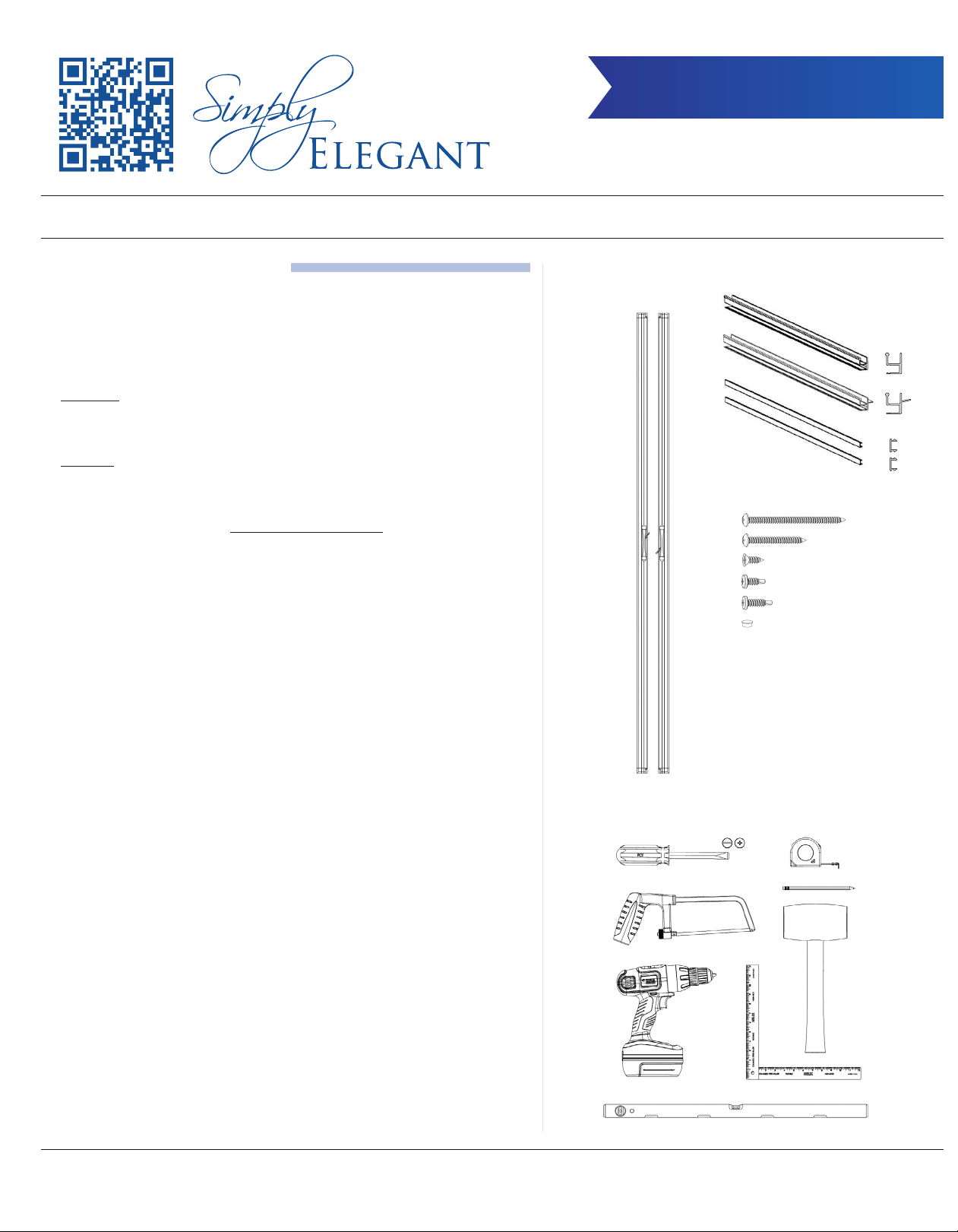

B) PART REVIEW

Verify that the following components are included in the box.

Parts are listed from left to right. See Figure 1A >

1. Screen Housing marked A and D (1)

2. Screen Housing marked B and C (1)

3. Header (top) Screen Track with locking hardware marked

A and B (1)

4. Sill (bottom) Screen Track with locking hardware marked

C and D (1)

5. Screen Track Covers (2)

6. Mounting Screws for corner and tracks

a. Four - #8 x 3” phillips head tapping screws

b. Five - #8 x 1-1/2” phillips head tapping screws

c. Four - #8 x 5/8” phillips head tapping screws

d. Five - #8 x 1/2” phillips head self-drilling screws

e. Four - #8 x 1” self-drilling screws

7. Screen Housing Circular Screw Covers (4)

C) TOOLS REQUIRED See Figure 1B >

• Level

• Square

• Tape Measure

• Drill

• Rubber Mallet

• Screwdriver: ﬂat head and

Phillips head

• Pencil

• Hacksaw

FIG. 1B

Page 2 of 7www.simplyelegantproducts.com/rts-in

ASSEMBLY AND INSTALLATION INSTRUCTIONS

DOUBLE INSWING

220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)

RETRACTABLE SCREEN

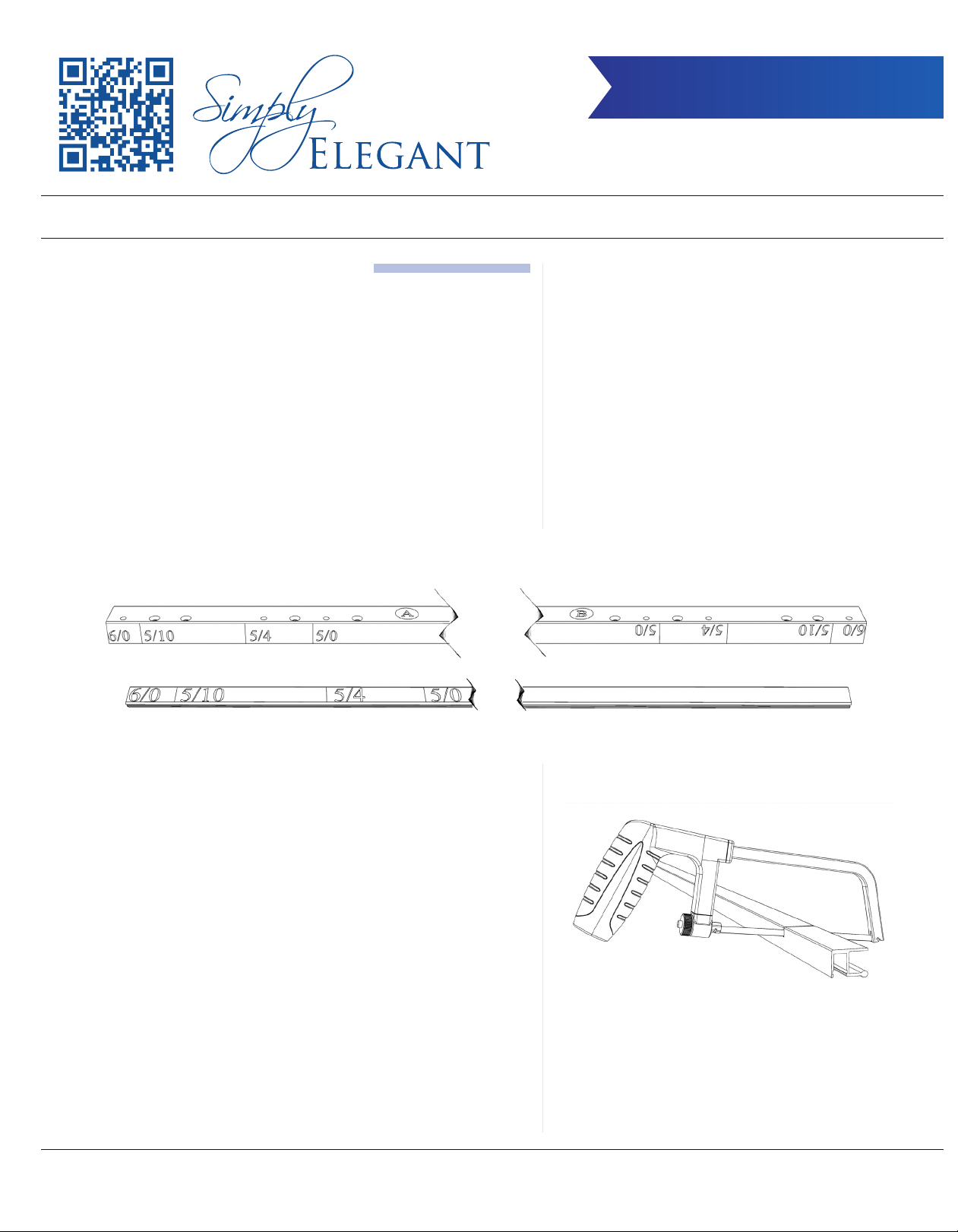

STEP 2: ASSEMBLY PREPARATIONS

Very important! Please examine the picture at right for additional

details. See Figure 2A >

Before proceeding to assembly, please look at the back of the

header and sill screen tracks (Items 3 & 4). There you will ﬁnd

the numbers 6/0, 5/10 (Retro only), 5/4 and 5/0 printed on

each end of the track. These numbers correspond to the door

unit size that the screen will ﬁt onto.

For 5/10 (Retro only), 5/4 or 5/0 doors, you will need to cut the

header and sill screen tracks on both ends (Items 3 & 4). The

header and sill screen track covers need to be cut on only one

end (Item 5). NOTE: The 6/0 size does not require cutting.

Using a hacksaw, saw the header screen track (marked A and

B) on the line - 5/10 (Retro only), 5/4 or 5/0 - that corresponds

to your door size. NOTE: the track must be cut on both sides.

Repeat for the sill screen track (marked C and D). See Figure

2B >

You will now need to cut the screen track covers (Item 5) to

match the NEW width of the header (Item 3) and sill screen

tracks (Item 4).

FIG. 2A

FIG. 2B

Page 3 of 7www.simplyelegantproducts.com/rts-in

ASSEMBLY AND INSTALLATION INSTRUCTIONS

DOUBLE INSWING

220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)

RETRACTABLE SCREEN

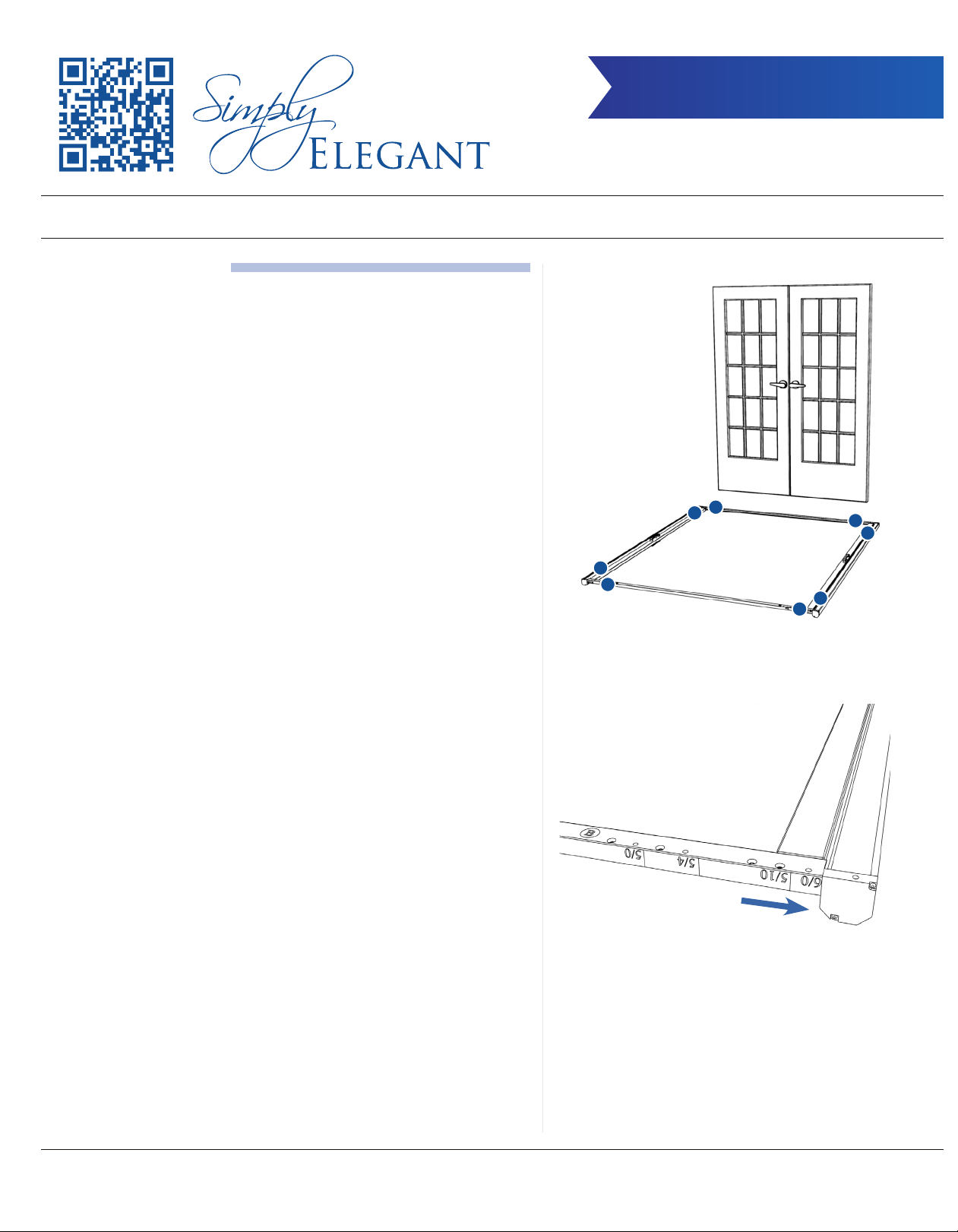

STEP 3: ASSEMBLY

Place all the items from the box on the ﬂoor in front of the patio

or single door where the single screen is to be installed (colored

stickers facing up).

The screen housings and tracks should line up with their

corresponding letters in a counter-clockwise fashion, as shown

at right: A to A, B to B, C to C, D to D.

Be sure to place corner D to D closest to the bottom, left corner

of your door (when facing your door from outside your home).

See Figure 3A >

Slide each screen track onto both the handle and housing slide

guides. It is very important that these lock in place correctly.

See Figure 3B >

Lock in counter-clockwise fashion as indicated below: A to A, B

to B, C to C and D to D. The screen frame unit is now assembled

and ready for locking the assembly together.

FIG. 3A

FIG. 3B

View from

outside home

Page 4 of 7www.simplyelegantproducts.com/rts-in

ASSEMBLY AND INSTALLATION INSTRUCTIONS

DOUBLE INSWING

220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)

RETRACTABLE SCREEN

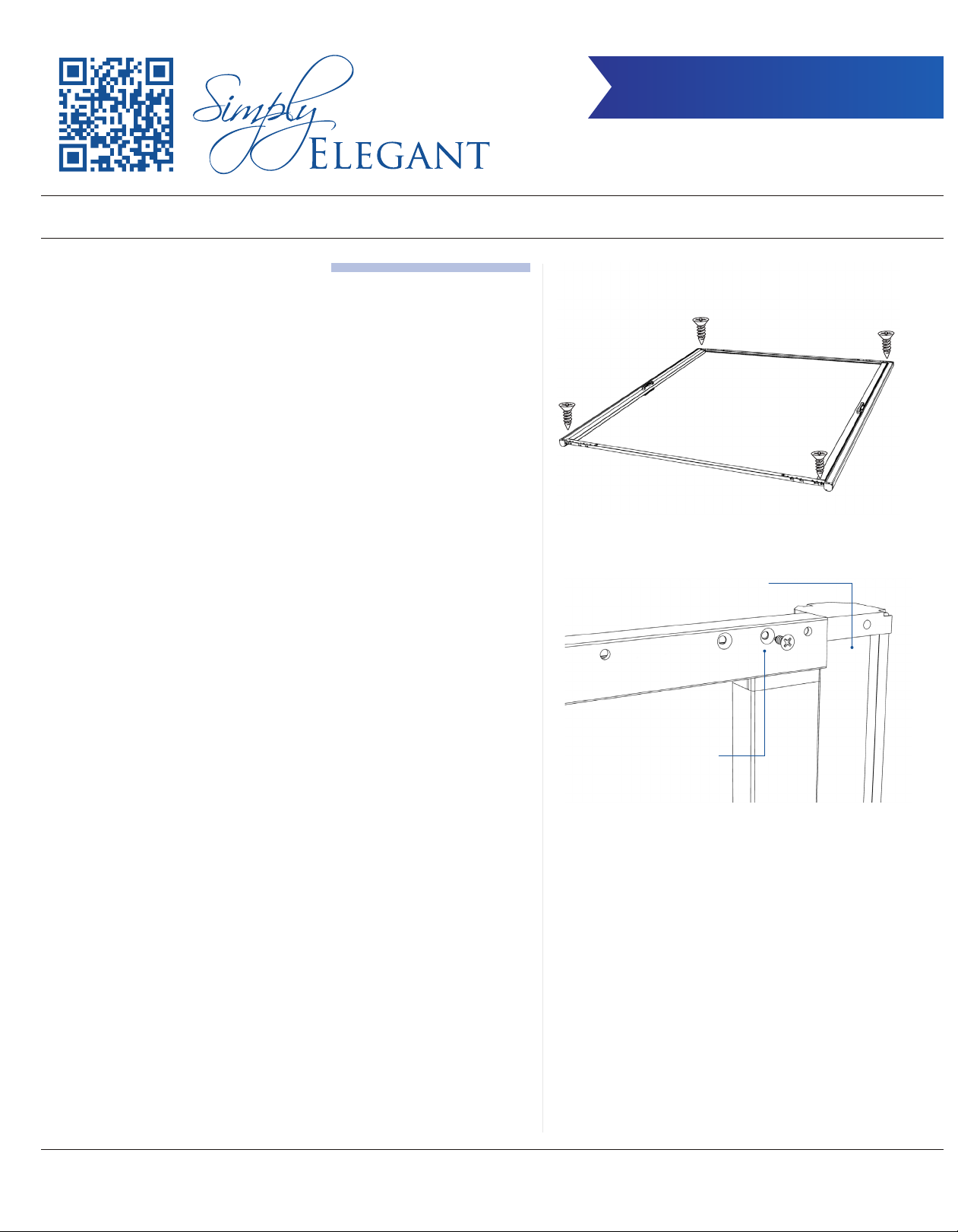

FIG. 3CSTEP 3: ASSEMBLY (continued)

TIGHTEN

We now need to tighten the assembled screen unit.

Using the four #8 x 5/8” phillips head tapping screws (Item 6c),

lock the screen housing arm to the screen track (Items 3 & 4)

by placing a screw in the second hole on the track from the end

for all four corners. See Figure 3C >

Screen Housing Arm

Second Hole

From The End

Page 5 of 7www.simplyelegantproducts.com/rts-in

ASSEMBLY AND INSTALLATION INSTRUCTIONS

DOUBLE INSWING

220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)

RETRACTABLE SCREEN

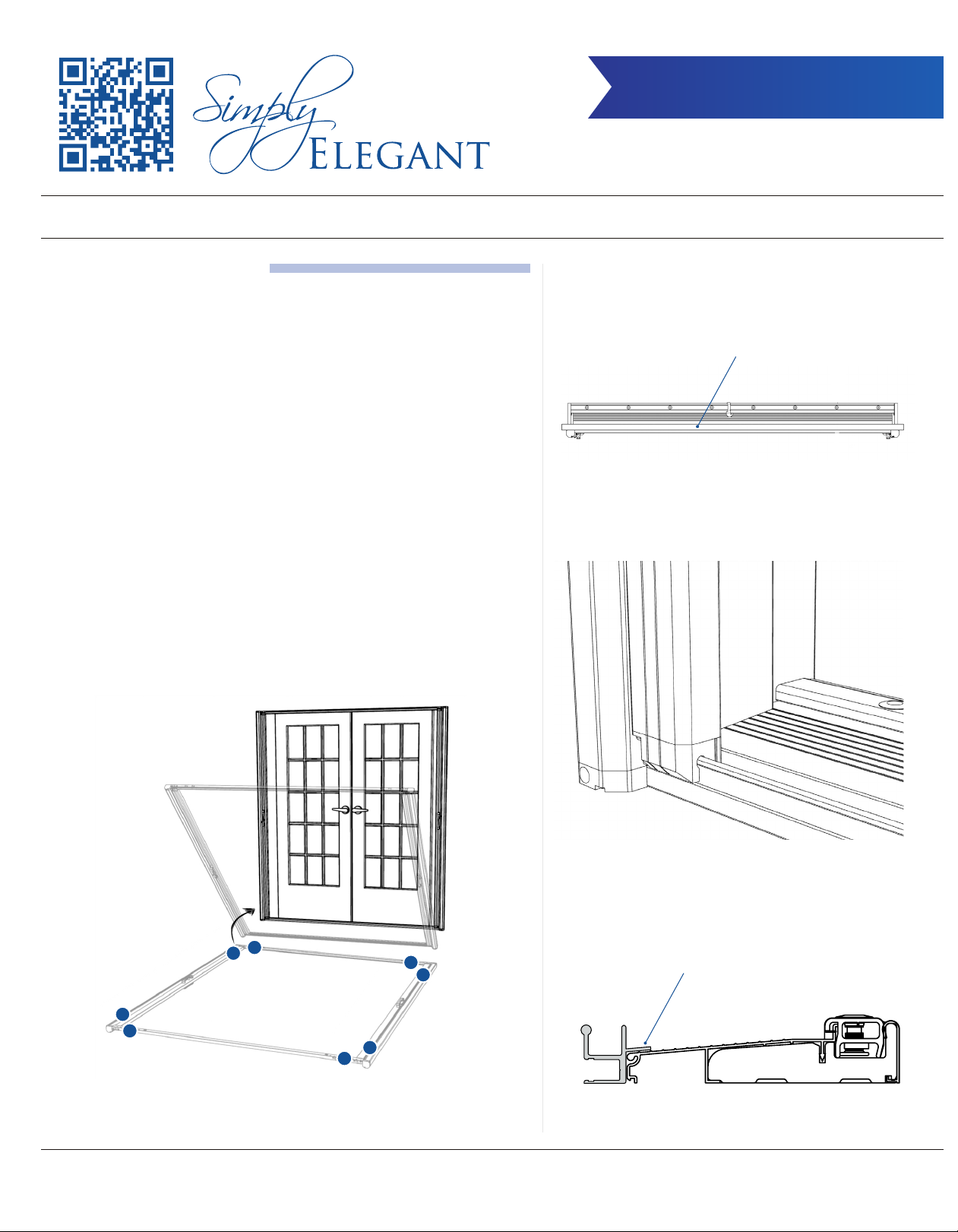

STEP 4: INSTALLATION

CONFIRM BRICKMOLD SURROUNDS DOOR

The screen unit will be mounted directly to the brickmold on

the outside of the door frame. If there is no brickmold outside

your door frame, you will need to purchase the Simply Elegant

Molding Kit (Part #: 100-110). This will ensure that the jamb, head

and sill are ﬂush so that the screen unit will operate smoothly.

See Figure 4A >

POSITION SCREEN

Now move the assembled screen unit up and center it on the

door unit. The sill track should be positioned with the ﬂange on

the back side of the sill track, resting on the outside sill edge.

NOTE: The inside edge of the sill screen track will be mounted

directly onto the sill. See Figure 4B >

Corner A-A should be at the top, left corner of your door unit

(when facing your door from outside your home).

See Figure 4C >

FIG. 4A

FIG. 4B

Ensure brickmold

completely surrounds door

Mount sill screen track

directly onto sill

FIG. 4C

View from

outside home

FIG. 4D

Page 6 of 7www.simplyelegantproducts.com/rts-in

ASSEMBLY AND INSTALLATION INSTRUCTIONS

DOUBLE INSWING

220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)

RETRACTABLE SCREEN

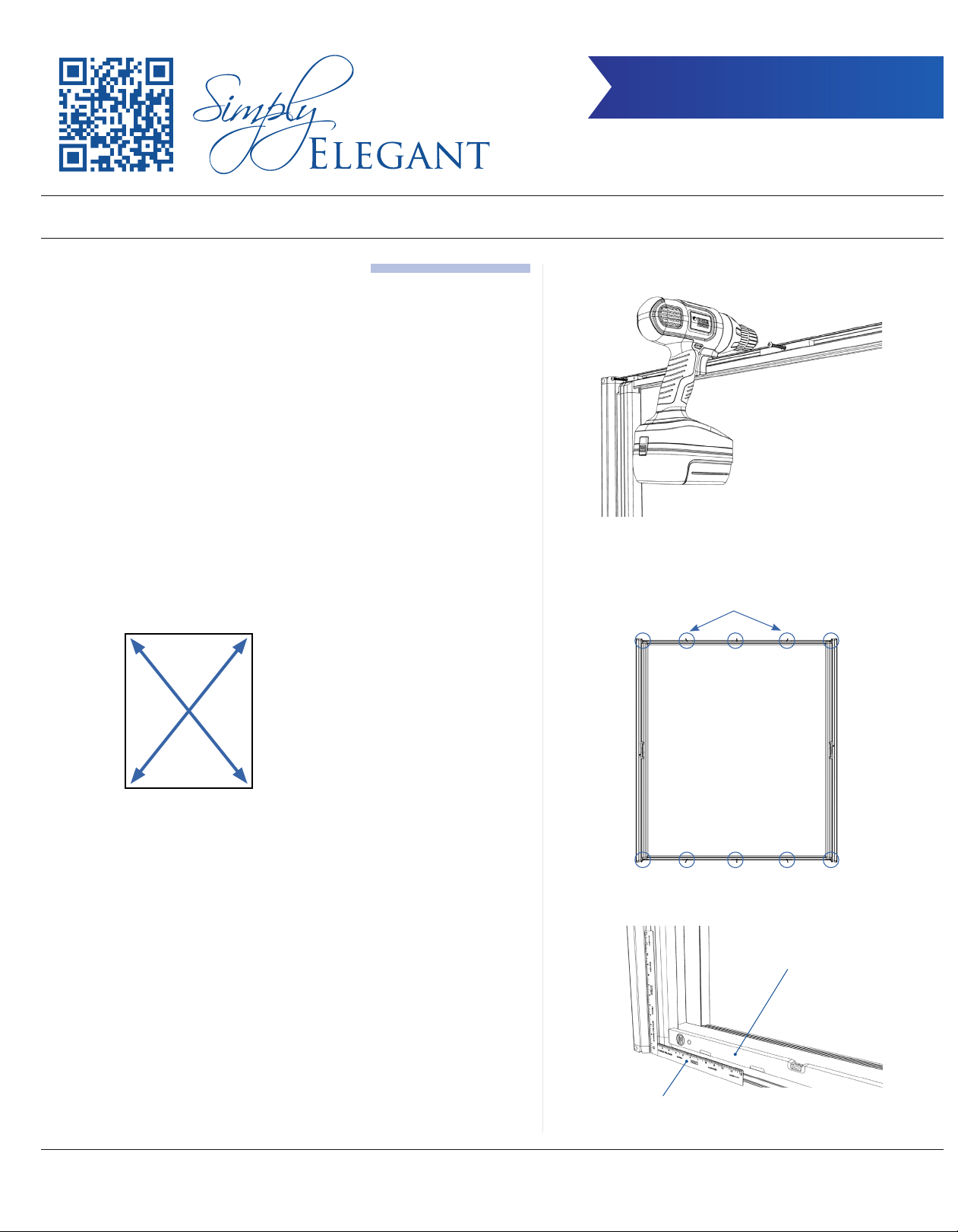

STEP 4: INSTALLATION (continued)

MOUNT HEAD TRACK TO DOOR FRAME

Position the screen frame on the door opening and make sure

the two screens meet up in the center correctly with the door.

Screw in only two of the ﬁve #8 X 1-1/2” screws (Item 6b) at the

header screen track (Item 3) because you may need to adjust

the position of the screen to make sure that the screen is square

and level by checking all four corners and sides. See Figures 4E

and 4F >

MOUNT SILL TRACK TO DOOR SILL

Once this is done, check again to make sure the screen is square

and level. See Figure 4G > (The diagonal distance on both sides

should be about the same; the dierence should be no greater

than 1/8”.)

Finally, test that the retractable screen opens and closes

smoothly and easily without twisting. If it is not square and level

or does not operate smoothly, it may need adjustments.

Once all adjustments have been made, screw the header screen

track (Items 3) to the door frame using the three remaining #8

x 1-1/2” screws (Item 6b).

Next screw in ﬁve #8 x 1/2” self-drilling screws (Item 6d) along

the front of the sill screen track (Item 4).

Lastly, screw four #8 x 1” self-drilling screws (Item 6e) into the

sill. See Figures 4F and 4D (page 5) >

A B The dierence between

distances A and B should be

no greater than 1/8”.

FIG. 4E

FIG. 4G

SQUARE

LEVEL

Header Screen Track

(Screws: Item 6b)

Sill Screen Track

(Screws: Item 6d)

Screw in ﬁrst two

screws

FIG. 4F

Page 7 of 7www.simplyelegantproducts.com/rts-in

ASSEMBLY AND INSTALLATION INSTRUCTIONS

DOUBLE INSWING

220-111 (Retro) / 220-112 (Full-Size) / 220-116 (8/0)

RETRACTABLE SCREEN

FIG. 4K

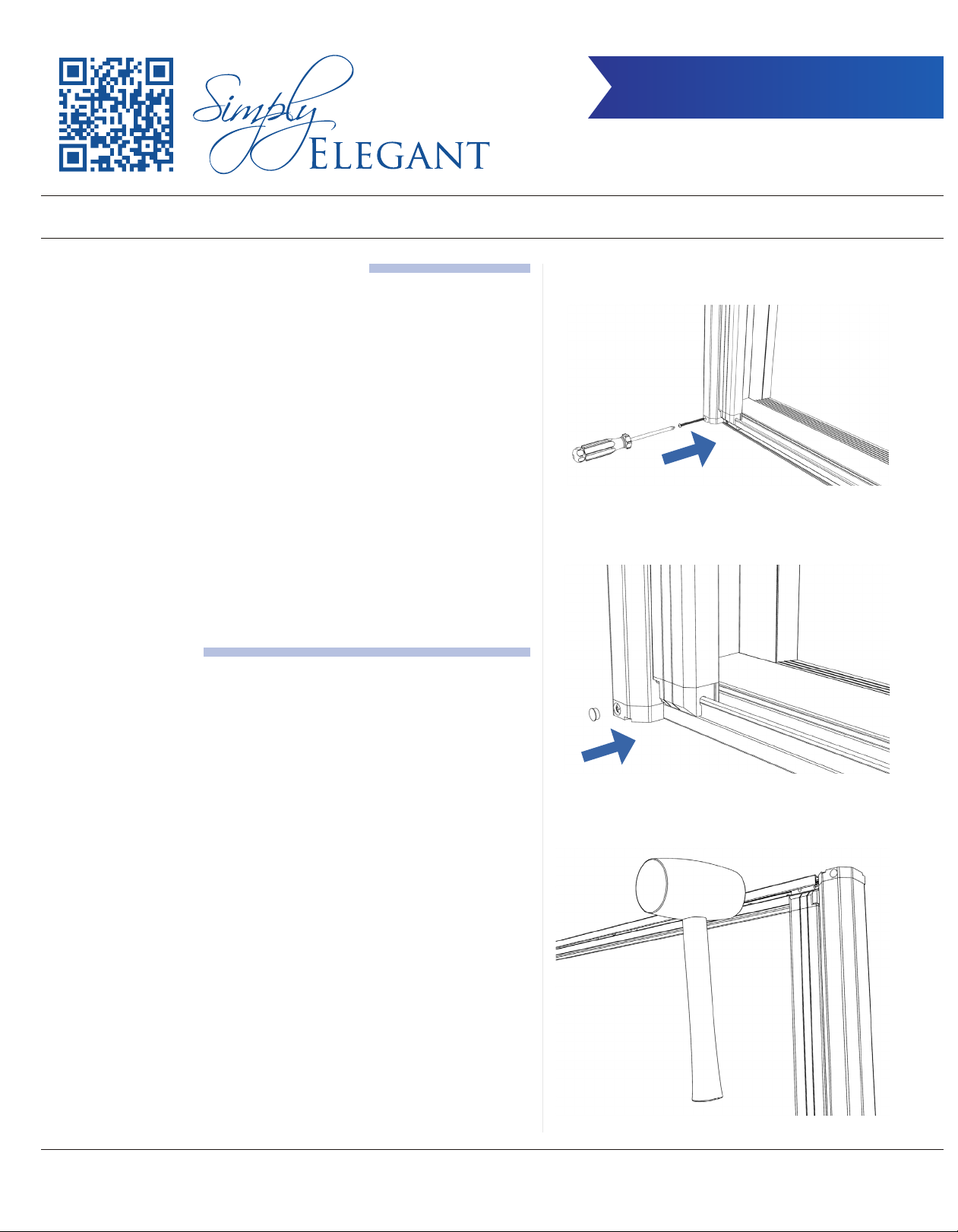

STEP 4: INSTALLATION (continued)

INSERT REMAINING SCREWS

Finish by screwing the screen housing at each corner with the

four #8 x 3” screws (Item 6a). See Figure 4H > Cover these

screws with four screw covers (Item 7). See Figure 4J >

SNAP IN SCREEN TRACK

Now snap in the screen track covers to the front sides of both

screen tracks. Use a mallet to lightly tap these in place. See

Figure 4K >

YOUR RETRACTABLE SCREEN

INSTALLATION IS NOW COMPLETE!

MAINTENANCE

For continued high performance, check from time to time

to make sure the bottom track is clear of debris. In addition,

occasionally apply a dry silicone spray to the top and bottom

tracks to ensure smooth screen operation.

FIG. 4H

FIG. 4J
