NSS evo3 | QuickStart Guide - EN

NSS evo3

Quick Start Guide

Front panel

No. Description

1 Touch screen.

2Pages/Home key - press to open the Home page for page selection and setup

options.

WheelKey - user conﬁgurable key, refer to Operator manual.

Default without autopilot in system: Short press toggles between panels on split screen.

Long press maximizes active panel on split screen.

Default with autopilot in system: Short press opens autopilot controller and places

autopilot in standby mode. Long press toggles between panels on split screen.

4Menu key - press to display the active panel’s menu.

5Rotary knob - turn to zoom or scroll the menu, press to select an option.

6Enter key - press to select an option or save settings.

7Exit key - press to exit a dialog, return to previous menu level, and clear cursor from

panel.

8MOB keys - press simultaneously the Enter and Exit keys to create a MOB (Man Over

Board) at the vessel’s position.

9Arrow keys - press to activate cursor or to move cursor.

Menu operation: press to navigate through menu items and to adjust a value.

10 Mark key - press to place waypoint at vessel position, or at cursor position when cursor

is active.

Power key - press and hold to turn the unit ON/OFF. Press once to display the System

control dialog, additional presses will toggle through 3 default dimming levels.

12 Card reader door

NSS evo3 | QuickStart Guide - EN

System Control dialog

Used for quick access to system settings.

Activate the dialog by pressing the Power key, or by swiping from the top of the screen.

¼Note: The content of the System Control dialog depends on connected equipment

and active panel.

Home page

Activate the Home page by pressing the Home key.

23 4

71. Application buttons

2. Tools

3. Favorites

4. Close button

5. Man Over Board (MOB)

button

6. Power button

7. Settings button

Application pages

Activate an application page:

•Tap the application button (full page panel), or

•tap a favorites button, or

•press and hold an application button to select a predeﬁned split page.

321

1. Status panel

2. Application panel

3. Instrument bar

| 3

NSS evo3 | QuickStart Guide - EN

Adjust panel size

You can adjust the panel sizes in a split page.

1. Tap the adjust split button in the System Control dialog to show the resize icon

2. Drag the resize icon to set preferred panel size

3. Save the changes by tapping the screen.

Edit a favorite page

Enter the Favorites edit mode:

•Tap the Edit icon, or

•press and hold a favorite button.

Edit favorite page

Delete favorite page

Add new favorite page

Edit an existing favorite page or conﬁgure a new page by dragging panel icons into or

out from the preview area.

Save the changes by tapping the Save button.

NSS evo3 | QuickStart Guide - EN

Instruments bar

Tap the Instrument bar button in the System Control dialog to turn

the bar on/oﬀ.

To edit the content of the Instrument bar:

1. Tap the Instrument bar to make it active

2. Select the edit option from the menu

3. Tap the item you want to change

4. Select the information you want to display in the Instrument bar

5. Save the changes by selecting the save option in the menu.

Charts

• Zoom the chart by using spread or pinch

gestures, by using the zoom buttons (A), or by

turning the Rotary knob.

• Move the view in any direction by panning the

chart.

• Display information about a chart item by tapping

the item.

Waypoints

¼Note: With cursor inactive, the waypoint will be placed at vessel’s position. With

cursor active, the waypoint will be placed at selected cursor position.

To create a waypoint:

• Press the Mark key to instantly add a waypoint.

• Press the Rotary knob, or use the new waypoint option in the menu to

open a New waypoint dialog.

| 5

NSS evo3 | QuickStart Guide - EN

Route

To create a route:

1. Tap the screen or use the arrow keys to activate cursor

mode

2. Select the new route option in the menu

3. Tap the chart to position the ﬁrst routepoint. Alternatively, use the arrow keys to posi-

tion the routepoint, then press the Rotary knob to conﬁrm the position.

4. Repeat point 3 to position additional routepoints

5. Save the route by selecting the save option from the menu.

Navigating

To navigate to cursor position:

1. Tap the screen or use the arrow keys to position the cursor

2. Select the goto cursor option in the menu.

To navigate a predeﬁned route:

• Tap the route to make it active, then select the goto

route option in the menu, or

• select the route from the Routes dialog, then

select the goto option in the dialog.

Overlay

Add a radar, weather, SonarChart Live (Navionics’ charts only), or StructureScan overlay

on the chart by selecting the option in the menu.

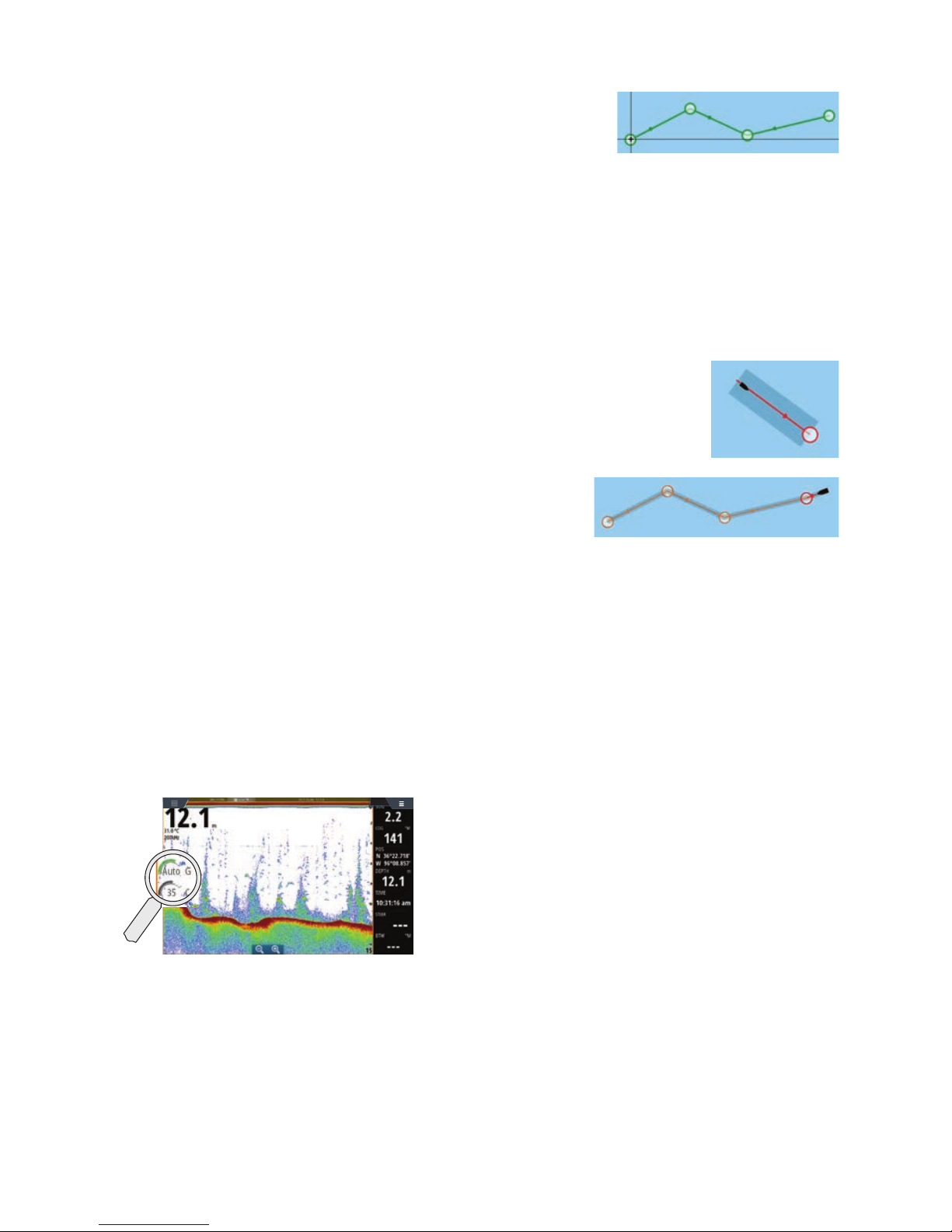

Echosounder

• Zoom the image by tapping the zoom

buttons (A) or by turning the Rotary knob.

• View echosounder history by panning the

image.

• Adjust gain and color from the slide bar,

displayed by tapping the gain or color icon

(B), or by pressing the Rotary knob.

• Toggle auto gain on/oﬀ from the menu, or by

pressing and holding the Rotary knob.

Toggle available echosounder frequencies from the menu. Available options depend on

type of transducers connected to the system.

NSS evo3 | QuickStart Guide - EN

Single

frequency

transducers

50 kHz Lower resolution images. Best performance in deep water

83 kHz Greater water coverage

200 kHz High resolution images and better target separation in

shallow water

Chirp

transducers

Low

CHIRP Lower resolution images. Best performance in deep water

Medium

CHIRP

Better depth penetration than High CHIRP, but with

minimal loss of target deﬁnition

High

CHIRP

High resolution images and better target separation in

shallow water

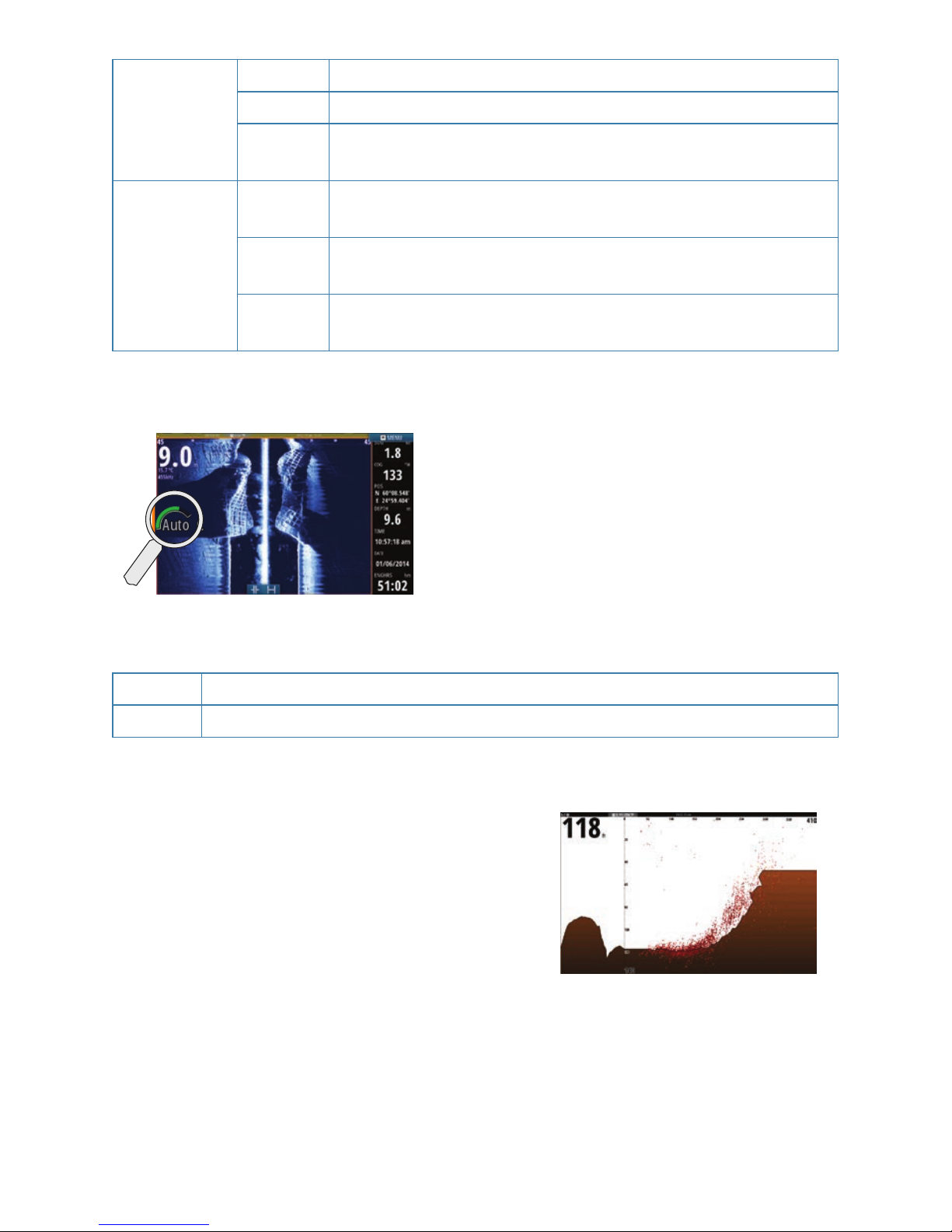

StructureScan

• Select Downscan or Sidescan view from the

• Zoom the image by tapping the screen

to position the cursor, then tap the zoom

buttons (A) or turn the Rotary knob

• Adjust contrast manually from the slide bar,

displayed by tapping the Contrast icon (B), or

by pressing the Rotary knob

Toggle between available StructureScan frequencies from the menu.

455 kHz Excellent resolution and greater range than 800 kHz

800 kHz Better deﬁnition than 455 kHz at shallower depths

ForwardScan

• Adjust depth, range and noise rejection from

the menu.

• Start recording ForwardScan logs from the

menu.

• Use the heading extension to monitor

ForwardScan on the chart panel. Heading

extension colors are based on the ForwardScan

alarm values.

| 7

NSS evo3 | QuickStart Guide - EN

Autopilot

You can activate the autopilot from any panel.

1. Press the Autopilot tile in the Instrument bar or the WheelKey when this is conﬁgured

for Autopilot control

2. Select the autopilot mode in the Autopilot pop-up

SStandby

Autopilot is passive. Used when manually steering at the helm

FU Follow-up Manual steering. The rudder angle is set by the Rotary knob

or by another FU unit

NFU Non-Follow-up

Manual steering. The rudder movement is controlled by

the Port and Starboard buttons in the Pilot pop-up, or by

another NFU unit

AAuto Automatic steering, maintaining the set heading

NDNoDrift Automatic steering, keeping the vessel on a straight bearing

line by compensating for drift

NNavigation Automatic steering, navigating the vessel to a speciﬁc

waypoint or through a route using GPS data

WWind * Automatic steering, maintaining the set wind angle

WNWind

navigation *

Automatic steering, navigating the vessel to a speciﬁc

waypoint or through a route using both wind and GPS data

* Only available if the boat type is set to Sailboat.

¼Note: You switch the autopilot to Standby mode from any automatic mode by a

short press on the WheelKey conﬁgured for Autopilot control.

Adjust set heading / course / wind angle

Adjust set heading (Auto mode), set wind angle (Wind mode) and

set course (NoDrift mode):

•Tap the Port or Starboard button in the autopilot pop-up, or

•turn the Rotary knob.

NSS evo3 | QuickStart Guide - EN

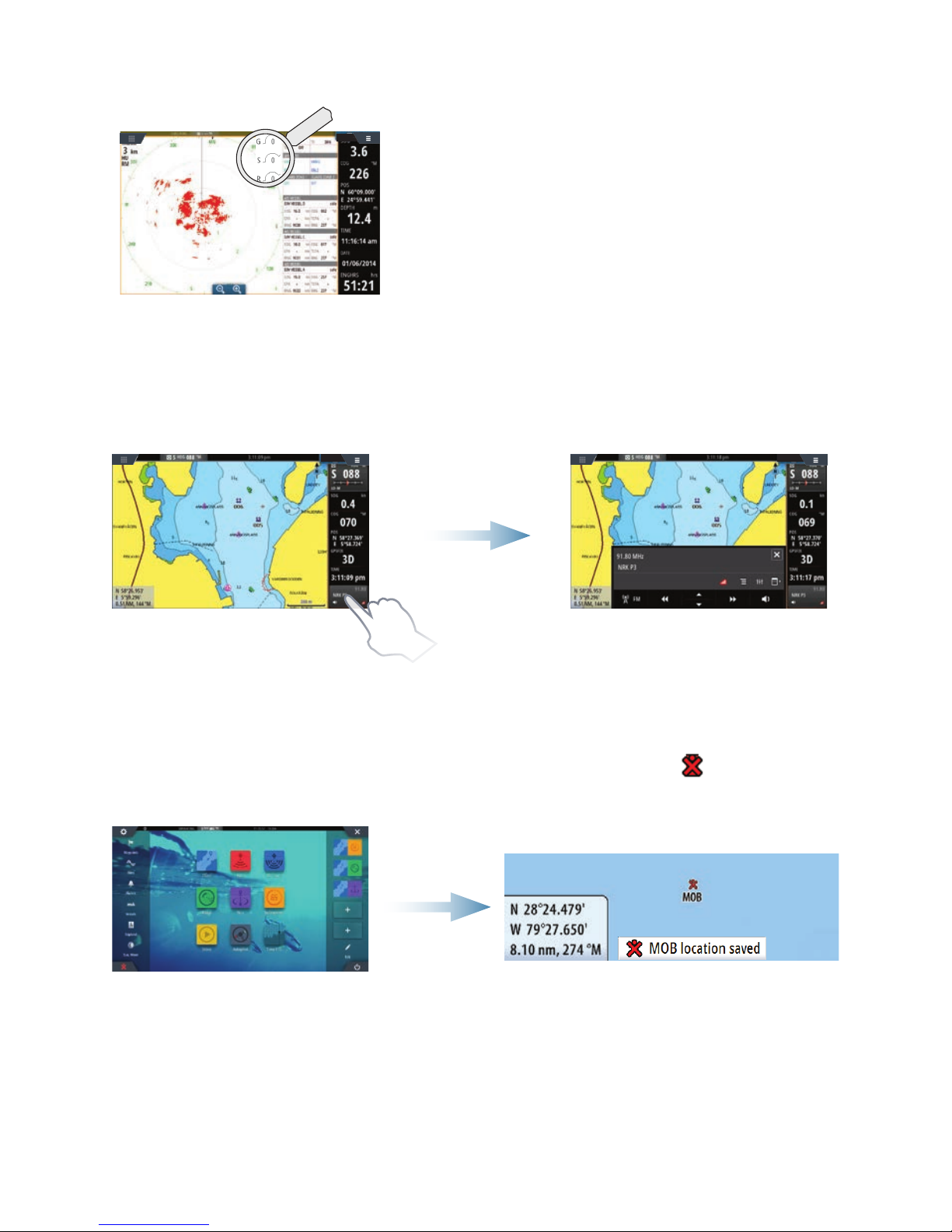

Radar

B•Turn the radar transmitting on/oﬀ from the

menu.

•Set the range by using the zoom icons (A) or

by turning the Rotary knob.

•Adjust gain, sea clutter and rain clutter settings

from the slide bar, displayed by tapping the

settings icons (B), or by pressing the Rotary

knob.

Audio

Activate the Audio overlay by tapping the Audio tile in the Instrument bar.

Positioning a MOB mark

Save a Man Over Board (MOB) mark at vessel position by tapping the button on the

Home page or by simultaneously pressing the Enter and Exit keys from the keypad.
