Default OpenWheel Functions
This is a default profile that can be easily loaded into SimHub as we will explain in the following
steps.

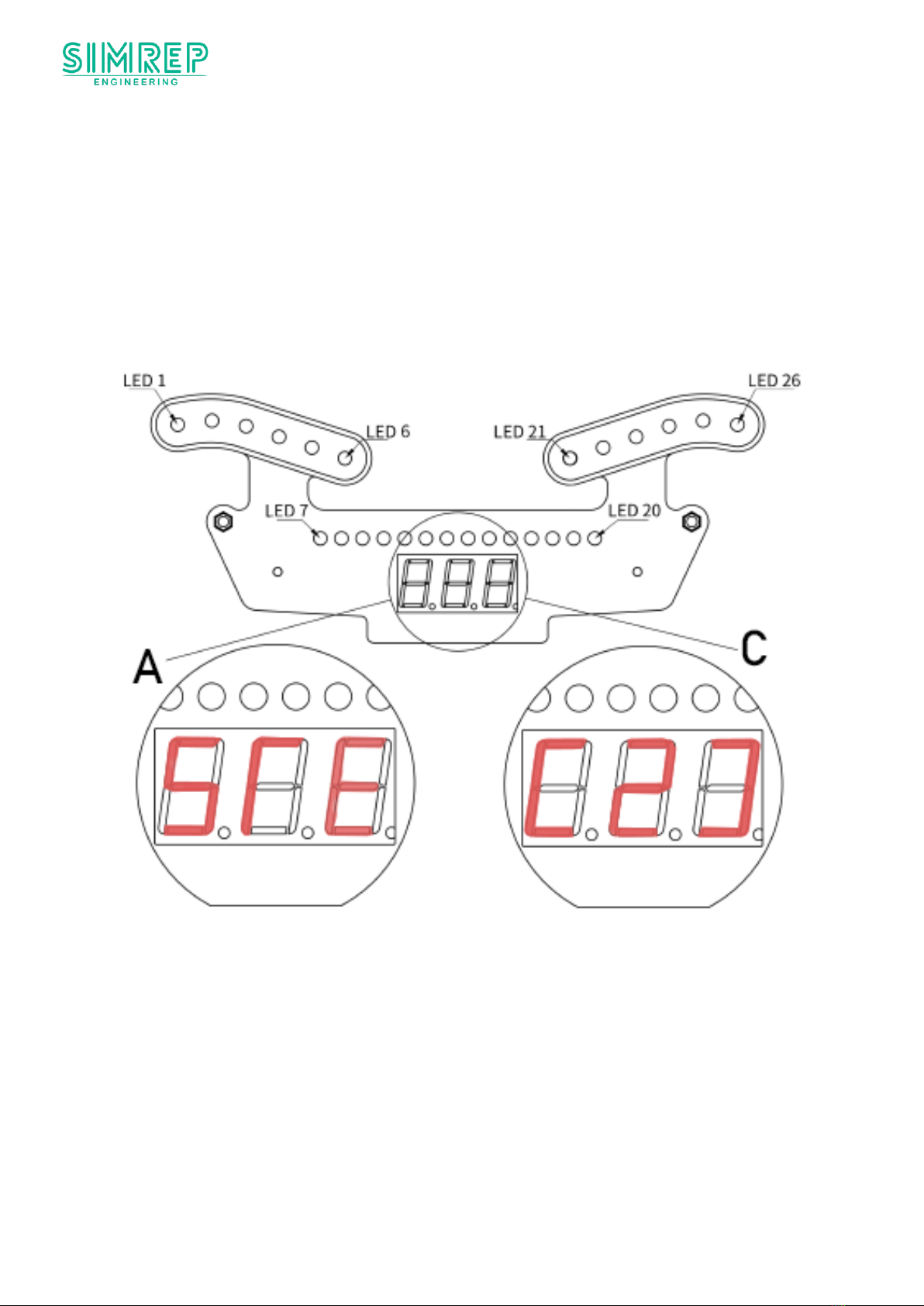

Matrix functions
•View A - IDLE no game is running, SimRep Engineering (SRE) logo.
•View B -Speed indicator, this is the default view in game.
•View C -Gear indicator, this is always displayed between brackets ([]).
•View D -Lab indicator, this will first display ‘LAB’ and then following the current lab number.
Left ear functions (LED 1 to 6)
•LED 1. Car left (White blinking)
•LED 2. DRS activated (Green blinking)
LED 2. DRS available (Orange static)
•LED 3. Fuel (Green 100%, orange 50%, red blink 15%>)
•LED 4. All flags
•LED 5. All flags
•LED 6. Session delta minus
Right ear functions (LED 21 to 26)
•LED 21. Delta all-time (Green delta +, red delta -)
•LED 22. All flags
•LED 23. All flags
•LED 24. Fuel (Green 100%, orange 50%, red blink 15%>)
•LED 25. DRS activated (Green blinking)
LED 25. DRS available (Orange static)
•LED 26. Car right (White blink)
Main led functions (7 to 20)
•RPM and PIT limiter display
Flags indication
LED 4, 5, 22 and 23 display the flags, which are displayed as followed:
•Green flag on (Fast blinking green)
•Yellow flag on (Slow blinking yellow)
•Blue flag on (Slow blinking blue)
•Black flag on (Fast blinking white)
•White flag on (Blink white every 5 seconds)
