Sinclair ASH-09AF Guida rapida

AIR CONDITIONING

Internet: http://www.sinclair-eu.com

E-mail: info@sinclair-eu.com

WALLMOUNTED SPLIT AIR CONDITIONER SINCLAIR

OPERTIONAL MANUAL

ASH-09AF, ASH-12AF

FLAT SERIE

Before operation please carfully read this manual.

Ｃｏｎｔｅｎｔｓ

Structure and Function

Important Advice 2

Specificate Model and Technical Data ５

Name and Function of Every Button of Wireless Remote Control 6

Operation Guide 8

Install Note Items 9

Install of Indoor Unit 12

Install of Outdoor Unit 14

Trial Run 17

Repair and Maintenance 18

When the unit cannot run normally 19

KFR-20GW/NaA512

Structure Principle and Usage

Install Part

Repair

Maintenance

and

Structure Principle and Usage

Structure and Function

◆

ＰａｎｅｌＦｉｌｔｅｒ

Air out

ｃｏｖｅｒｐｌａｔｅ

Ｄｒａｉｎａｇｅｈｏｓｅ

Power plug

Wireless remote control

Ａｉｒｉｎ

Front grill of air outlet vent

：

Heat

Air out

Outdoor

unit

Ｗｉｒｅｃｏｎｎｅｃｔｉｏｎ

ｕｎｉｔ

Ｉｎｄｏｏｒ

Ａｉｒｉｎ

:Cool/Dry

:Run

:Auto

Connection pipe and wire

Important Advance (Read the follwoing items carefully before using the unit)

Insert power plug firm enough

shock or fire.

For loose insert may cause electric

Don't plug out power plug

when unit is operating.

occur.

Or electric shock or fire may

Don't damage wire or use the

wire that is not appointed.

Or electric shock or fire may

occur.

Don't share socket with other

appliances or use prelonged hose.

occur.

Or electric shock or fire may

Don't operate unit with wet

hand for electric shock may occur.

vents, or damage may occur.

Don't let cooled air blows body

directly for too long, and don't

set indoor temp. too low for it is

If abnormal phenomenon occurs

(like burning odor etc.), cut off

power supply first, then contact

Gree Service Center. If abnormal

continues, the unit may be damaged

and cause electric shock or fire.

Don't repair the unit yourself

for incorrect repair may cause

electric shock or fire. So, contact

Gree Service Center to have

ＷＡＲＮＩＮＧ

Don't insert finger or stick-

like thing into air inlet and outlet

Danger

Structure Principle and Usage

not good for health.

Cut off power

unit repaired.

★Earthing: Earth must be

reliable! Earth wire should be

connected on special earth settings．

connected by perfessional personnel

Don't connect earth wire onto gas

pipe, water pipe, blowing pipe or

★Plug out power plug when the

unit will not be used for a long time.

★Cut off power when cleaning

the unit. Otherwise, electric shock

or damage may occur.

Otherwise, fire may be caused

★Don't plug out the plug by

pulling the power hose.

for over heat of wire.

★Don't let the unit blows to

monoxide poisoning may occur for

heater or cooker directly. Or carbon

incomplete burn.

★Chemical sprayer must be

placed 1m away from both indoor

and outdoor unit to prevent fire

without repair, unit may fall down

★Note if install chassis is

damaged. If the chassis is damaged

and cause injury.

things may fall down and cause

★Don't stand or put things on

the outdoor unit. For people or

injury.

★Don't block the air inlet or outlet

vent of both indoor and outdoor unit.

It would cause low performance

or stop of unit.

If there is no such settings, have it

place where perfessiona personnel

Structure Principle and Usage

considers it unrealiable.

or explosionor explosion

４

50Hz~230V

Proper set temp. can save electricity.

Indoor temperature should be set properly

When the unit is running, adjust up and down adjusting plate

●Adjust airflow and direction properly

by wireless remote control can adjust vertical direction of

air, hold the adjust plate that control left and rignt direction

can adjust horizontal flow direction of air.

●Don't blow pets or plants directly for it is not

good for them.

Left and right adjust plate

When the unit is running, don't open windows

or doors of the room for long time.

It would lower performance of the unit.

Temp. dif of

indoor and outdoors

Don't pour water on the unit or wash it by water

for malfunction or electric shock may occur.

Power hose of this unit adopts X type connection, don't

cut off or damage it and signal control wire. If power

hose or signal wire is damaged, please have them

changed by trained maintainer.

The unit allow voltage fluctuation of ２３０±１０％Ｖ，

too low of voltage may increase libration of

compressor that cause damage on cool system.

This unit cannot be used to dry clothes or refrigerate

and store foods etc..

Up and down adjust plate

Structure Principle and Usage

ＮＯＴＩＣＥ

should be５℃

Specificate Model and Technical Data

All above are tested according to standard ＧＢ／Ｔ７７２５－１９９６, cooling capacity, heating capacity and noise etc. are tested before leaving factory

If the data are changed, please refer the one offered on nameplate.

Model ASH-07AF ASH-09AF ASH-12AF

Function Cooling and Heating Cooling and Heating Cooling and Heating

Cooling Capacity（W）2000 2500 3500

Heating Capacity（W）2300 2700 3700

Rated Voltage 230V～

Rated Frequency 50Hz

Cooling/Heating Rated Power (W)

920/920 920/920 1440/1440

Cooling/Heating Rated Currency (A)

4/44/46.26/6.26

Air Flow（m３/h）450 450 500

Name of Refrigerant and Charge Amount

R410A1. 2kg R410A1.35kg R410A1.4kg

Noise (Indoor/Outdoor) dB（A）

38/52 38/53 40/54

Climate Type T1

Water-proof Level IP×4

Electric Shork Proof Protect Type

Weight (Indoor/Outdoor) (kg)

11/32 11/32 11/36

Outline Diameter (Indoor/Outdoor)

（W×H×D）（cm）

Indoor：101.5×29.0×15

Outdoor：84.8×54.0×32.0

Structure Principle and Usage

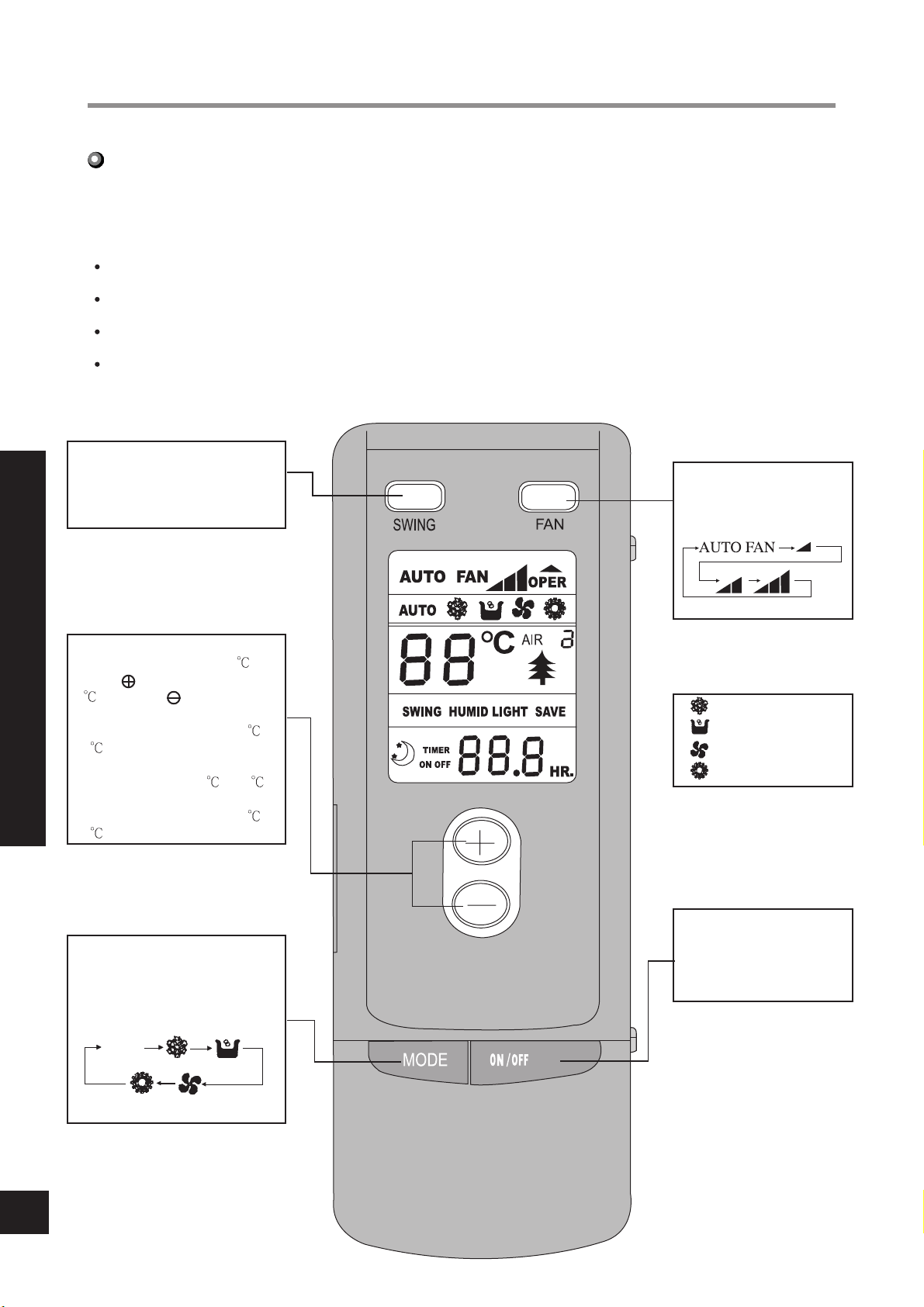

Remote control operation procedure

Name and Function-Remote control

Note:

Be sure that there are no obstructions between receiver and remote controller.

The remote control signal can be received at the distance of up to about 10m.

Don’t drop or throw the remote control.

Don’t let any liquid in the remote controller and put the remote controller di-

rectly under the sunlight or any place where is very hot.

SWING button

When it is pressed, the louvers

start to rotate automatically and

stop when repressed.

TEMP.button

SET TEMP. increases 1 by

pressing button once,and decreases

1by pressing button once.

At COOL mode operation, SET

TEMP. can be selected from 16 to

30 .

At DRY mode operation, SET TEMP.

can be selected from 16 to 30 .

At HEAT mode operation, SET

TEMP. can be selected from 16 to

30 .

MODE button

press this button to change the

operation mode in order of:

FAN button

Press this button to change

the fan speed of:

“ ” COOL mode

“ ” DRY mode

“ ” FAN mode

“ ” HEAT mode

ON/OFF button (1/0is

used in some models)

Press this button to turn on

or turn off the unit.

AUTO

REMOTE CONTROL OPERATION PROCEDURE

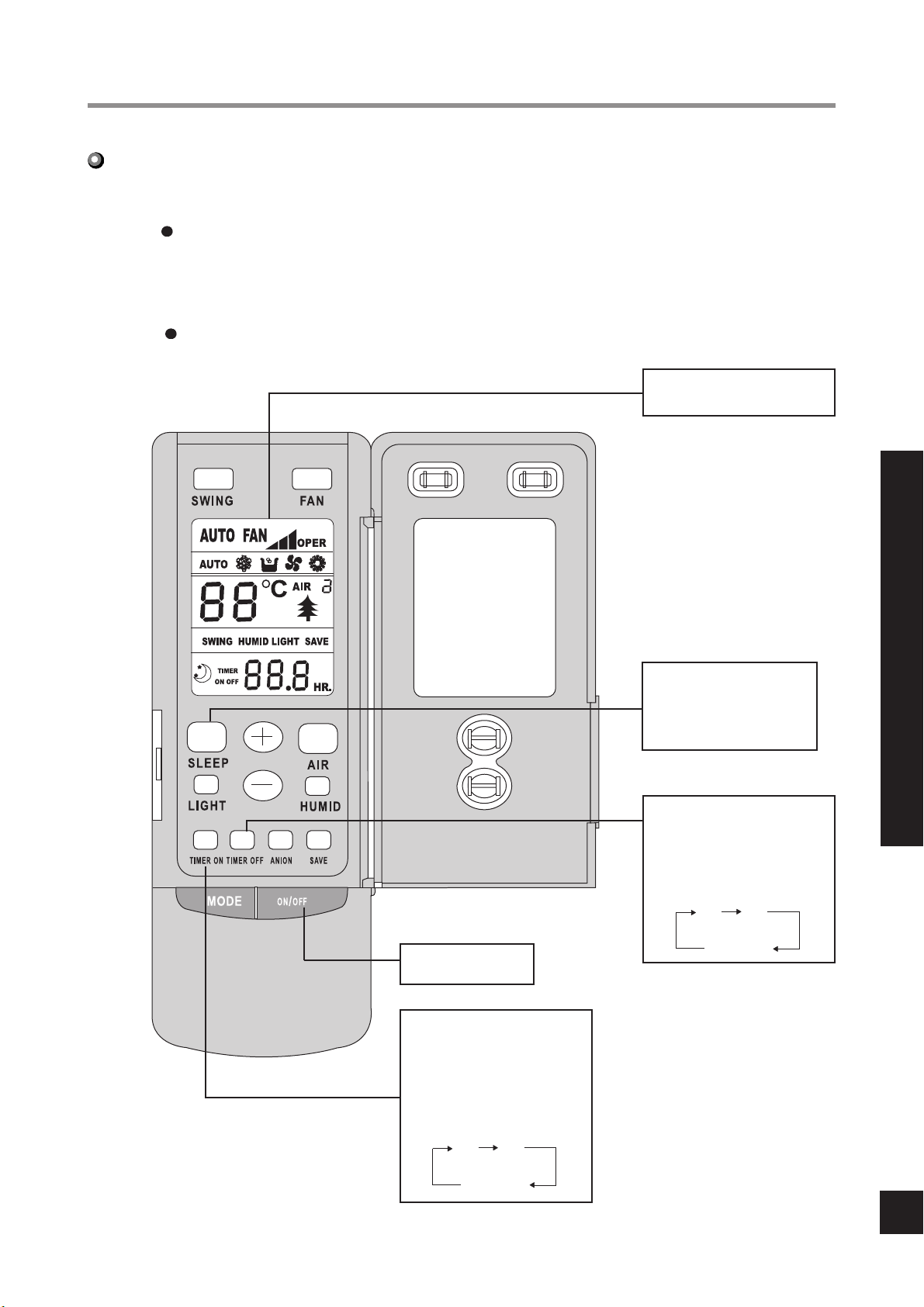

Name and Function-Remote control. (Remove the cover)

Note: This type of remote controller is a kind of new controller.

some buttons of the controller which are not available to thisAir condi-

tioner will not be described below.

Operate on unmentioned buttons would not impact on the normal use.

SLEEP button

Press this button to set

SLEEP operation.And stop

when repressed.

TIMER OFF button

At operating, press TIMER

OFF button, set OFF TIME

in range of 0 to 24 hour to

stop the unit automatically.

TIMER ON button

At stopping, press TIMER

ON button, set ON TIME in

range of 0 to 24 hour at the

interval of 0.5h to start the

unit automatically.

0 24h

Timer

cancellation

0 24h

Timer

cancellation

Liquid crystal displayer It

shows all set contents.

1/0 is used in some

models

REMOTE CONTROL OPERATION PROCEDURE

COOL mode operation procedure

According to difference between room temp. and set temp., microcomputer can control cooling on or

not.

If room temp. is higher than set temp., compressor runs at COOL mode.

If room temp. is lower than set temp., compressor stops and only indoor fan motor runs.

SET TEMP. should be in range of 16 to 30

4.Press FAN button, set

fan speed.

5.Press TEMP. but-

ton, set suitable SET

TEMP.

2.Press MODE button,

set operation

mode.

3.Press SWING button,

the louvers start to ro-

tate automatically, and

stop when repressed.

1.Plug in, press ON/OFF button

(1/0is used in some models),then

air conditioner is turned on.

REMOTE CONTROL OPERATION PROCEDURE
