SERVICE MANUAL
MS-H09AISW PT, MS-H12AISW PT
MULTI SYSTEM SERIES
SYMPHONY
2
1. Summary
Part Ⅰ: Technical Information

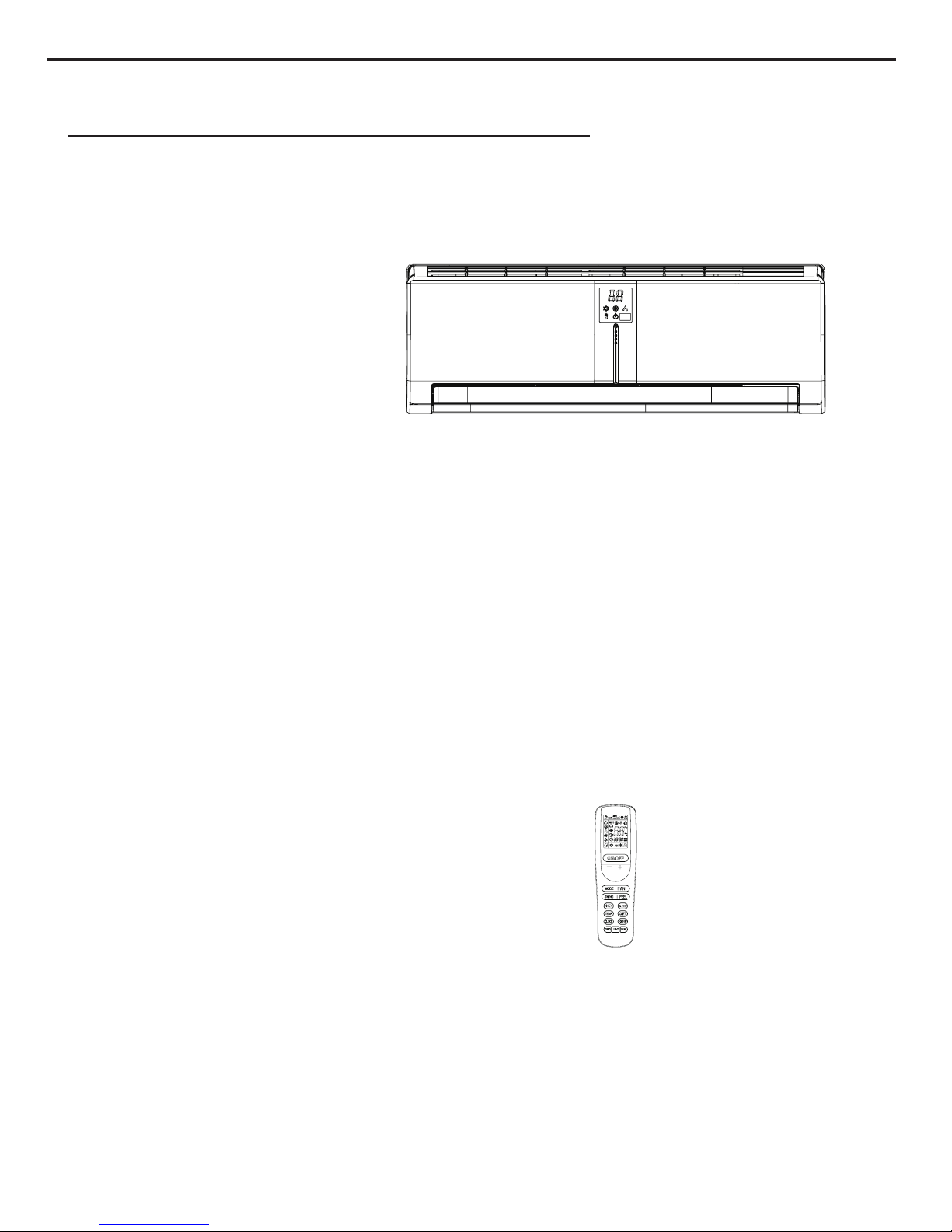

Indoor Unit
Remote Controller
MS-H09AISW PT
MS-H12AISW PT
YAA1FB1
3
The above data is subject to change without notice; please refer to the nameplate of the unit.
Model MS-H09AISW PT
Product Code
Rated Voltage V 220-240
Rated Frequency Hz 50
Phases 1
Min/Max Voltage V 198/264
Cooling Capacity KW 2.6
Heating Capacity KW 2.8
Air ow volume(max~min) m3/h 450/420/380/330/300/280/260
Dehumidifying Volume L/h 0.8
Fan Type Cross-ow
Fan Diameter-height mm Φ81X643
Cooling Fan Motor Speed(max~min) rpm 1350/1200/1100/1000/900/800/700
Heating Fan Motor Speed(max~min) rpm 1350/1250/1170/1090/1020/950/900
Fan Motor Power Output W 10
Fan motor Running Current A 0.13
Fan Motor Capacitor μF 1
Evaporator Material Aluminum Fin-copper Tube
Evaporator Pipe Diameter mm Φ7
Evaporator Number of Rows-Fin Pitch mm 2-1.5
Evaporator Length(L) X Height(H) X Width(W) mm 635X25.4X286
Fuse Current A 3.15
Sound Pressure Level (max~min) dB(A) 38/35/32/30/28/26/24
Sound Power Level (max~min) dB(A) 53/50/47/45/43/41/39
Dimension of Outline (WXHXD) mm 860X153X299
Dimension of Carton Box (LXWXH) mm 941X383X232
Dimension of Package (LXWXH) mm 944X386X247
Net Weight kg 9.5
Gross Weight kg 12.5
Liquid pipe mm Φ6
Gas Pipe(to indoor unit) mm Φ9.52
2. Specications
2.1 Specication Sheet
4
Model MS-H12AISW PT
Product Code
Rated Voltage V~ 220-240
Rated Frequency Hz 50
Phases 1
Min/Max Voltage V~ 198/264
Cooling Capacity KW 3.5
Heating Capacity KW 3.8
Air ow volume(max~min) m3/h 560/440/400/350/320/300/280
Dehumidifying Volume L/h 1.4
Fan Type Cross-ow
Fan Diameter-height mm Φ85X687
Cooling Fan Motor Speed(max~min) rpm 1350/1250/1150/1050/950/850/700
Heating Fan Motor Speed(max~min) rpm 1350/1270/1180/1100/1040/980/900
Fan Motor Power Output W 20
Fan motor Running Current A 0.2
Fan Motor Capacitor μF 1
Evaporator Material Aluminum Fin-copper Tube
Evaporator Pipe Diameter mm Φ7
Evaporator Number of Rows-Fin Pitch mm 2-1.4
Evaporator Length(L) X Height(H) X Width(W) mm 670X25.4X324
Fuse Current A 3.15
Sound Pressure Level (max~min) dB(A) 39/36/34/31/28/27/23
Sound Power Level (max~min) dB(A) 54/51/49/46/43/42/38
Dimension of Outline (WXHXD) mm 896X159X320
Dimension of Carton Box (LXWXH) mm 970X400X240
Dimension of Package (LXWXH) mm 973X403X255
Net Weight kg 11.5
Gross Weight kg 14.5
Liquid pipe mm Φ6
Gas Pipe(to indoor unit) mm Φ9.52
The above data is subject to change without notice; please refer to the nameplate of the unit.
5

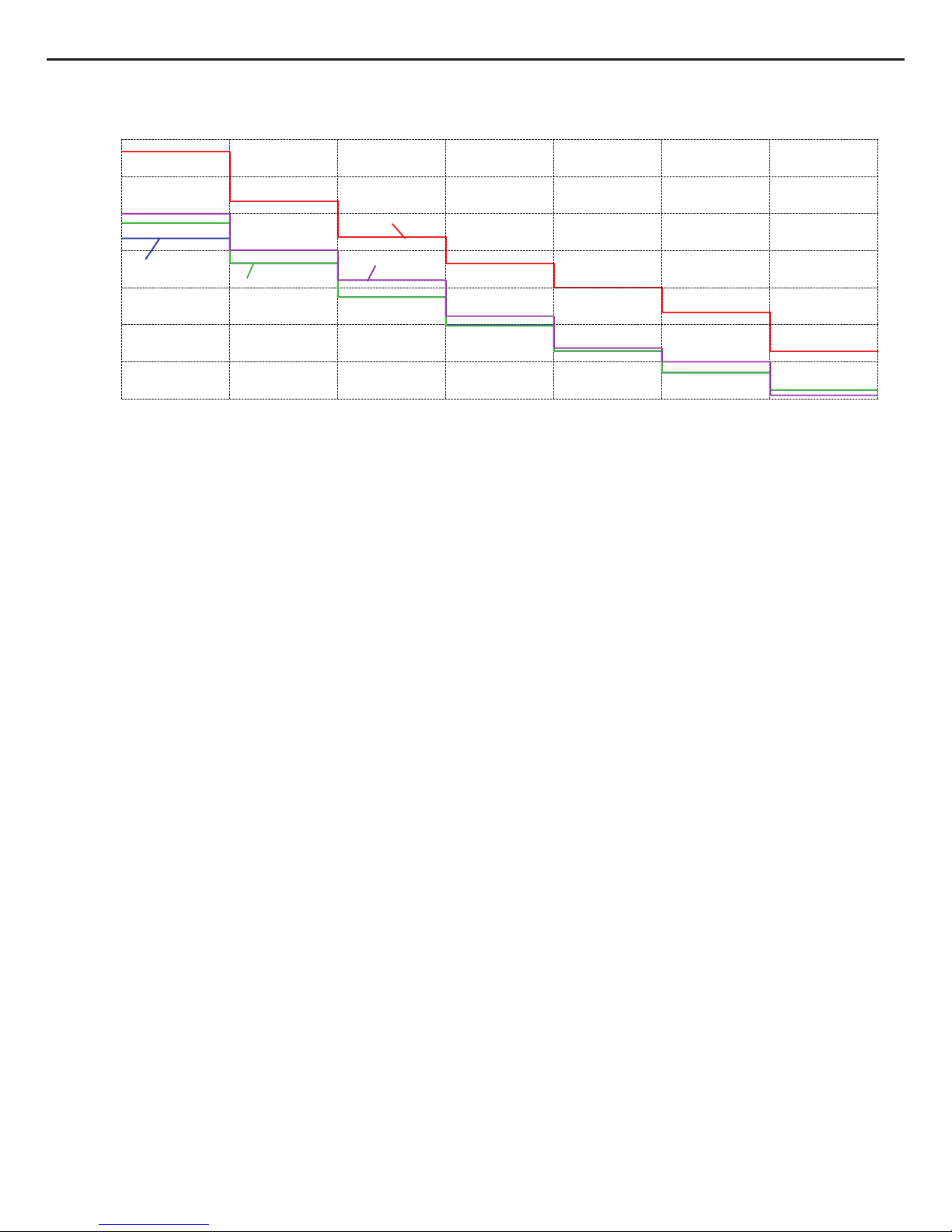

2.2 Noise Criteria Curve Tables for Both Models
High Middle High Middle
30
33
36
39
42
45
Super High Middle Low
12K
18K
Low Super Low
27
22
Noise/dB(A)
Indoor fan motor rotating speed
07K
09K
6
W
QR S
D
H
QRS
90 120
40
Φ55X2
90 67
Φ55X2
75

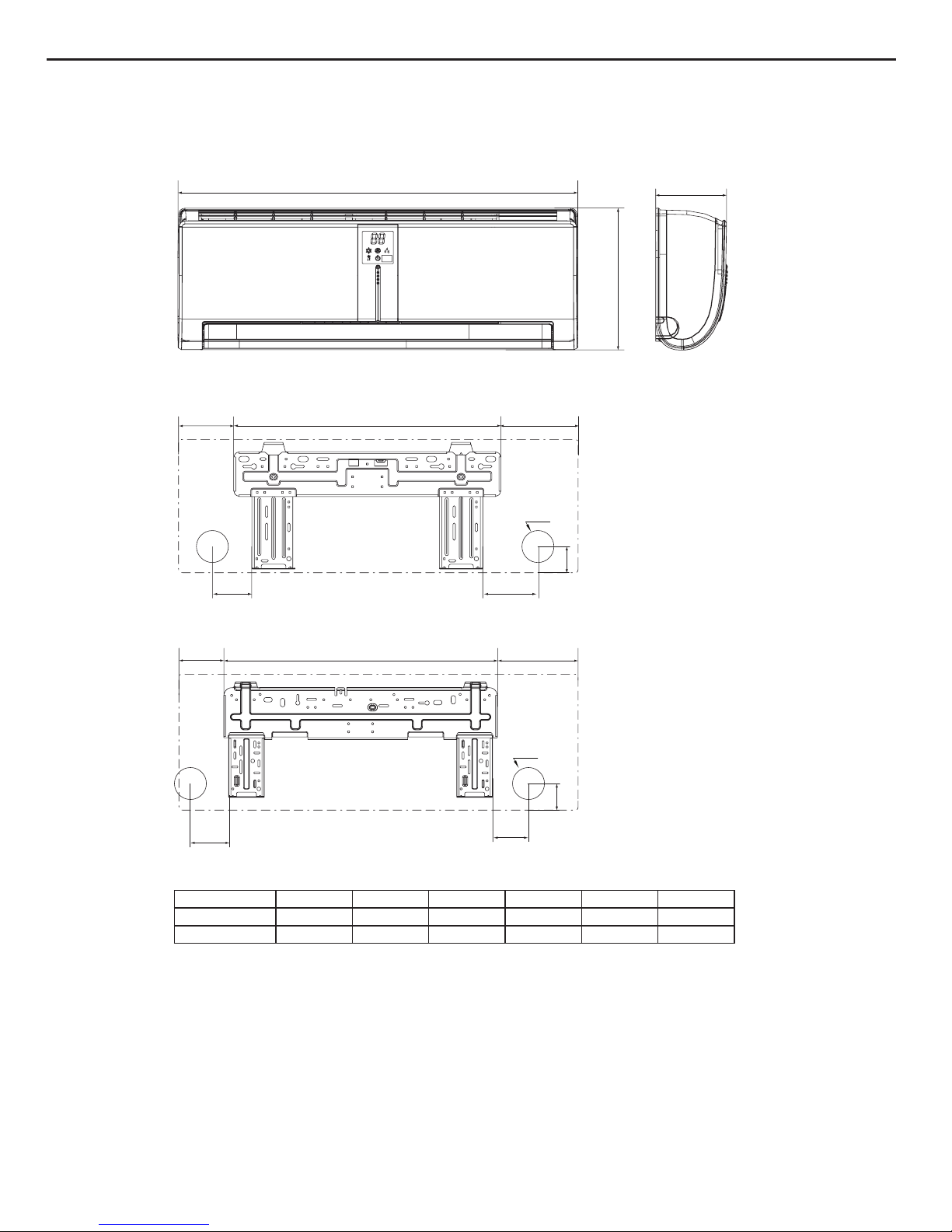

3. Outline Dimension Diagram
Unit: mm
07/09/12K
18K
Model W H D Q R S
09 860 299 153 118 542 200
12 896 320 159 64 542 290
7

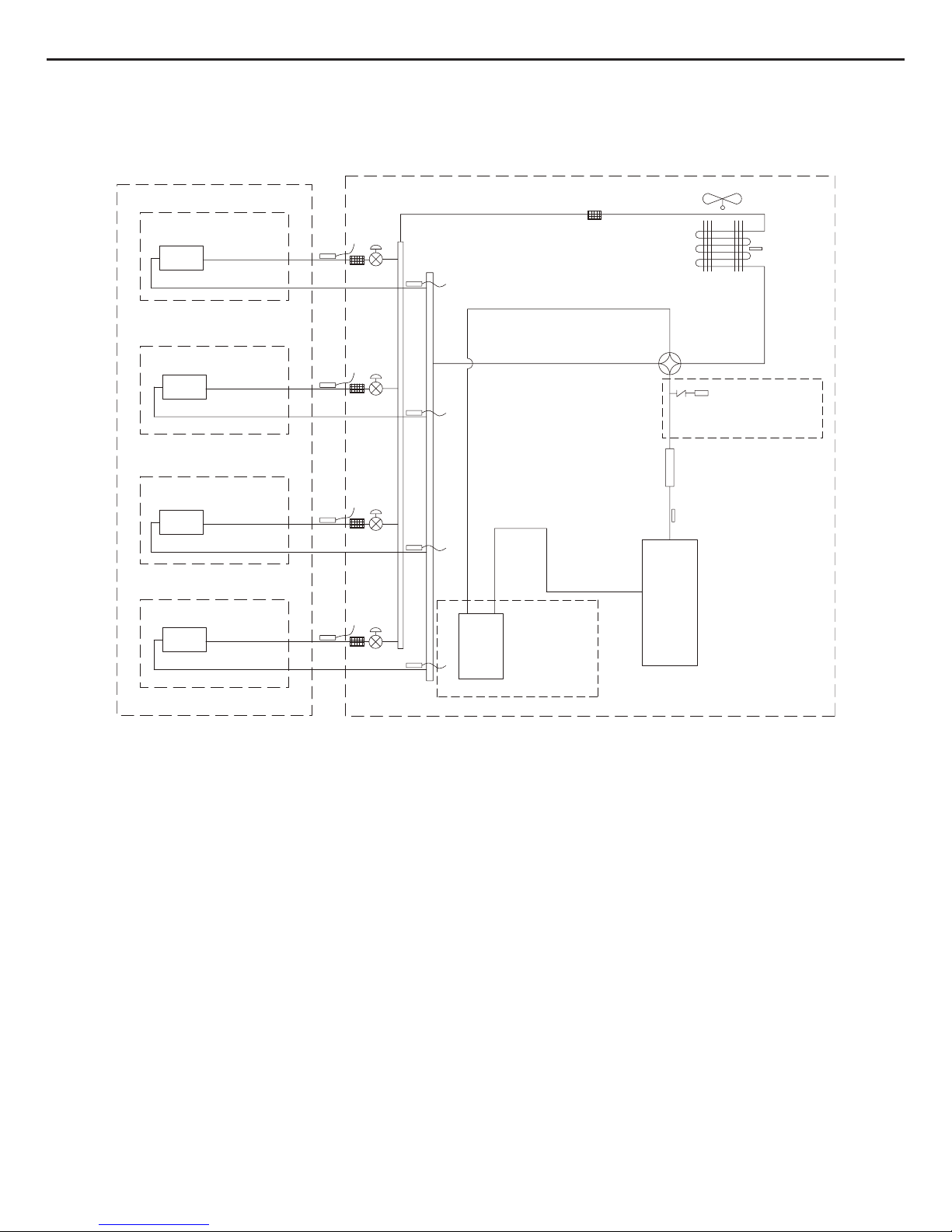

4. Refrigerant System Diagram
outdoor
indoor
D1
C1
B1
A1
filter
A heat exchanger
gas -liquid separator
inverter compressor
discharge silencer
discharge temperature
sensor
SP
4-way valve
outdoor heat exchanger
fan
high pressure switch
B heat exchanger
C heat exchanger
D heat exchanger
filter
filter
filter
filter
Note: Not available for 14K/18K
model
C2
C3
D3
D2
B3
B2
A2
A3
A1:A－unit electronic expansion valve B1:B-unit electronic expansion valve
C1:C-unit electronic expansion valve D1:D-unit electronic expansion valve
A2:A-unit gas pipe temperature sensor B2:B-unit gas pipe temperature sensor
C2:C-unit gas pipe temperature sensor D2:D-unit gas pipe temperature sensor
A3:A－unit liquid pipe temperature sensor B3:B-unit liquid pipe temperature sensor
C3:C-unit liquid pipe temperature sensor D3:D-unit liquid pipe temperature sensor
Note: Not available for 14K/18K model
8
5. Electrical Part

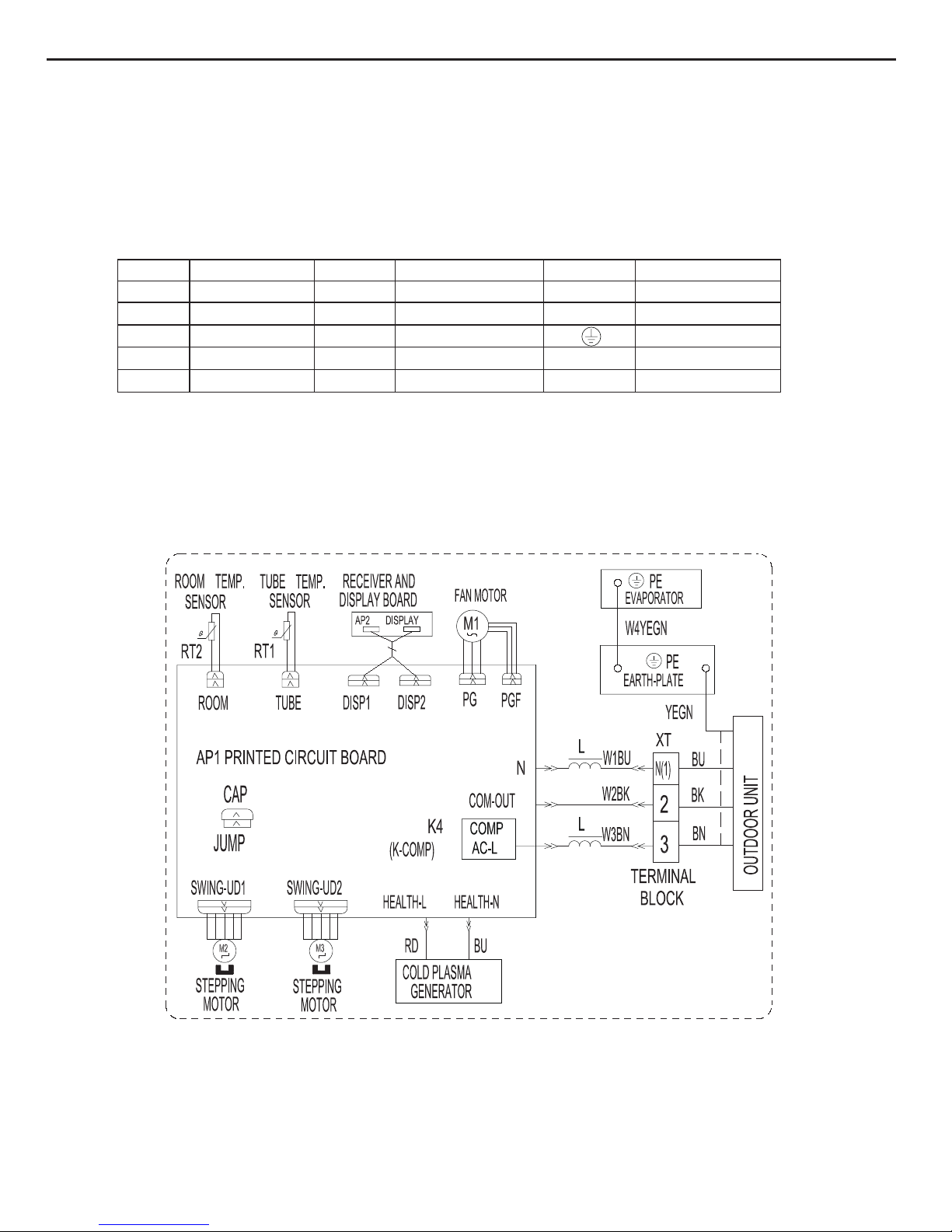

5.1 Wiring Diagram
● Indoor Unit
●Instruction
Symbol Symbol Color Symbol Symbol Color Symbol Name
WH White GN Green CAP Jumper cap
YE Yellow BN Brown COMP Compressor
RD Red BU Blue Grounding wire
YEGN Yellow/Green BK Black / /
VT Violet OG Orange / /
Note: Jumper cap is used to determine fan speed and the swing angle of horizontal lover for this model.
These wiring diagrams are subject to change without notice; please refer to the one supplied with the unit.
9
1
2345 6789 10
11
12
13
14
15
16
1718

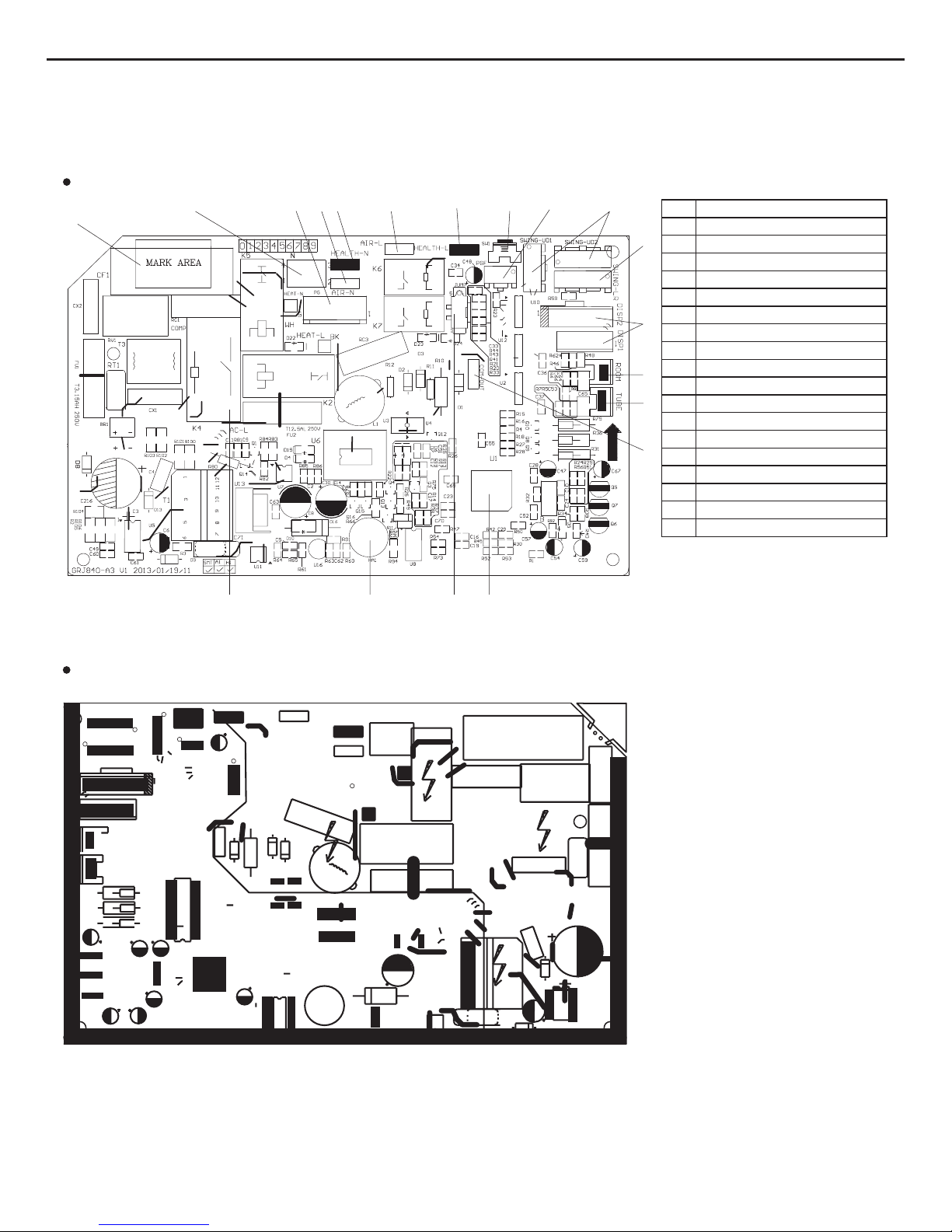

5.2 PCB Printed Diagram
1风机电容
2零线接口
3风机接口
4换气零线接口
5冷等离子零线接口
6换气火线接口
7冷等离子火线接口
8自动按键
9风机反馈接口
10 上下扫风接口
11 左右扫风接口
12 显示接口
13 环境感温包接口
14 管路感温包接口
15 通讯接口
16 主芯片
17 蜂鸣器
18 火线接口
19 跳线帽
TOP VIEW
BOTTOM VIEW
19
10
