Version1.1
1)This user manual is only for the interstellar AC char-
ger series products (SEA400/32Y-E-P) developed and
produced by Sinexcel, and provides comprehensive
guidance for new energy vehicle users to use and main-
tain this charging device.
2)This manual will provide detailed product informa-
tion and operating instructions for users. Users should
read the contents of the manual carefully before use this
product and ensure that you understand all the instruc-
tions. Please store this manual in a safe place for easy
installation, operation, and maintenance personnel to
obtain and use.
3)The contents, pictures, logos, symbols, etc. used in
this manual are all owned by Sinexcel. Without written
authorization, it is forbidden to disclose, excerpt and
copy part or all of the contents of this manual (including
materials and publications).
4)The contents of this manual will be adjusted, revised
and updated according to product upgrades. Users
please refer to the actual product purchased.
About the
document
3
Symbol
Description
Warning
If you do not obey the instruction it might cause injury
or death.
Danger
Risk of electrocution
Caution of fire
Note
A note gives more details to make easily use.
4
Symbol conventions
1. Safety
5
1.1 General safety instructions
●This product is an integrated charger that can charge electric vehicles in indoor and outdoor areas.
●Please use and save the product information and accessories that are shipped with the device properly.
●If the user has any problems or failures during use, please consult the manufacture directly. During the
warranty period, if you privately find a third party or non-professional person for maintenance, any security
consequences will be borne by the user.
●The installation environment of charging equipment should be far away from fire and other dangerous
sources.
1.2 Safety instructions for use
●Please read the user manual carefully before use, and strictly follow the steps.
●Without the permission of the manufacturer, it is strictly forbidden for the user to disassemble the product
and other improper operations. The undesirable consequences caused by improper operation shall be borne
by the user.
●Do touch the charging plug or the charging socket of the electric vehicle. Keep the charging plug in a dry
state. Do not touch the charging plug with water.
●Do not to use the charging device when the connector is damaged or the insulation is damaged.
●Ensure that nothing remains in the charging plug and the charging socket on the vehicle side.
●Lock the door correctly after installation or maintenance operations.
In these situations, do not use the EVSE and contact to the manufacturer immediately ：
●Damage on the enclosure
●Damage on the AC charger or connector
●Lighting hits the EVSE
●Accident or fire near the EVSE
●Water has entered the EVSE
If an emergency occurs during the operation
of this product, please press the emergency
button immediately. Do not use the emer-
gency button in non-emergency situations!
The emergency button is not a reset button so it is forbidden to press it in non-emergency situations.
After pressing it, the EVSE will stop charging immediately. If the emergency button is pressed by
mistake, please turn it gently in the direction of the arrow on the button to reset.
2. Description
2.1 General description

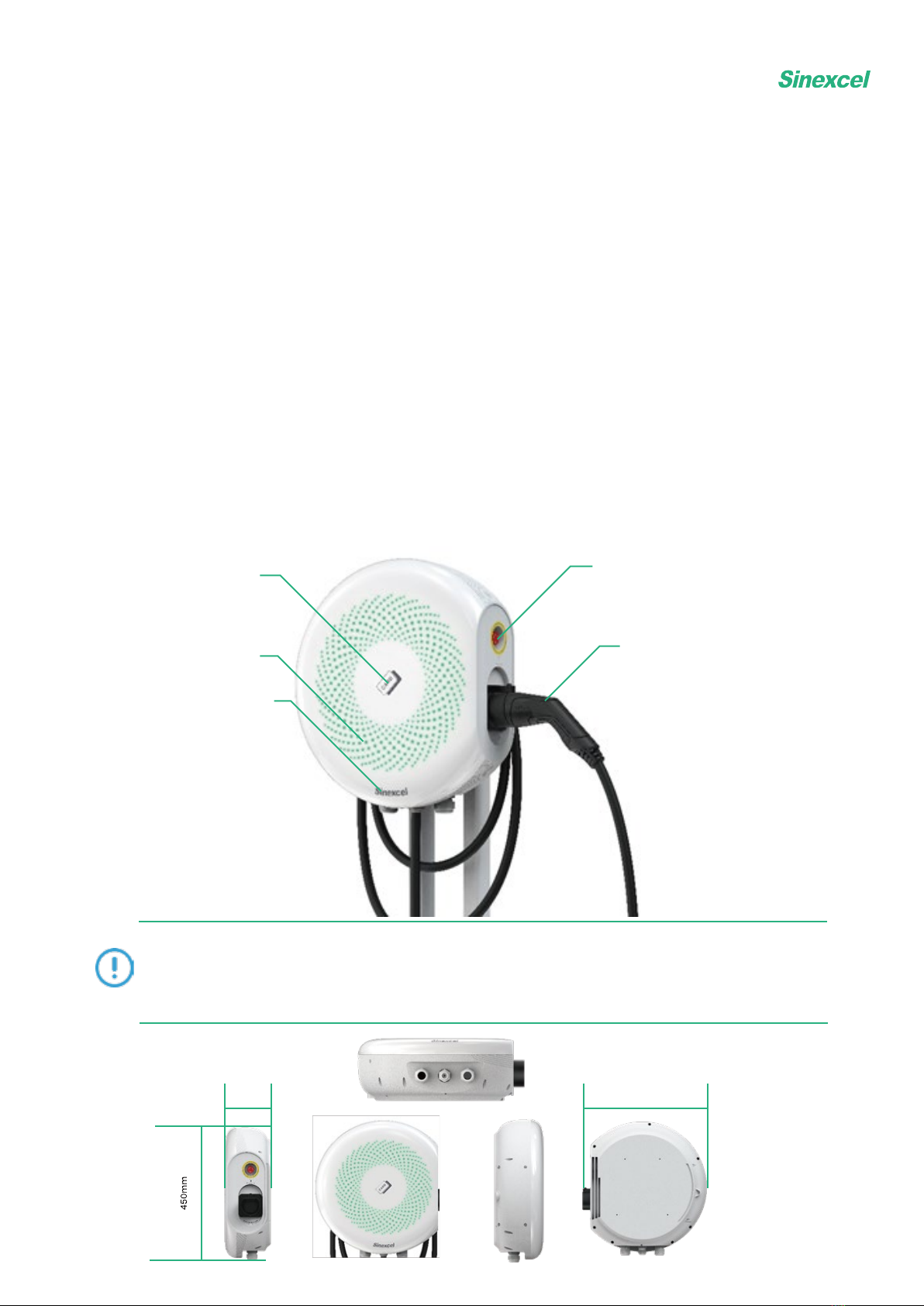

2.2.1 Overview of EVSE, outside
2.2 Overview
Interstellar is an AC charger supplies electricity to the EV. The product adopts DLM system and IMD
technology which makes strong charging performance and great product quality. It has multiple safety
protection functions and protection rating of IP65, suitable for indoor or outdoor use.
RFID area
logo
breathing light
emergency button
connector
6
162mm 406mm

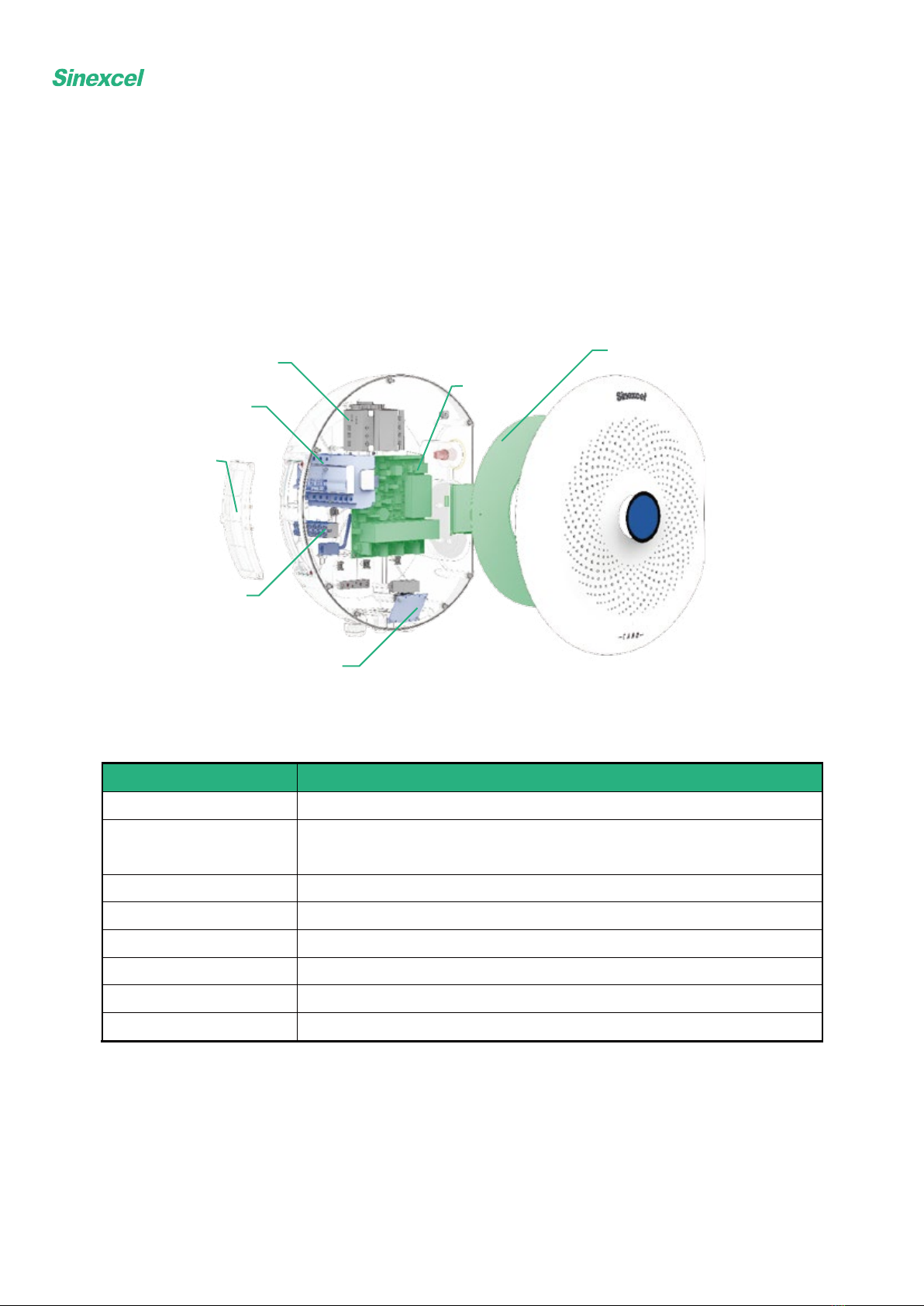

2.2.2 Overview of EVSE, inside
Light board
Mainboard
Terminal block
RFID reader
Smart meter(optional)
Circuit breaker
Maintenance
cover
7
Part
Function
Maintenance cover For maintenance and operation of on&off
Circuit breaker For short circuit protection,overload protection and leakage
protection
Smart meter For metering
Mainboard To control the EVSE
RFID reader To start or stop charging session with the RFID card
Light board To show the operation status of EVSE
Terminal block To connect the cable of alternating current
input
from grid
Display
To show the operation status and parameter of EVSE
2.2.3 Pedestal
2.3 Working principle
8
2.4 Specification
9
Interstellar (Residential Use)
Rated Power
7kW
22kW
Input/Output
Voltage
Single-Phase 230V
Dimensions
W406*H450*D162
W406*H450*D162
Weight
5KG
7.5KG
Input/Output
Current
32A
Frequency
50Hz
Connector
IEC Type 2
Cable Length
3m(5m optional)
Charging Status
Information
LED
Authorization
Plug and Charge
Metering
MID Meter(optional)
Installation
Floor-mounted/Wall-mounted
Protection Function
Over current protection,over/under voltage
protection,over temperature protection,lighting
protection,short circuit protection,etc.
Protection Rating
IP65 /IK10
Operation
Temperature
-30 ℃-55 ℃
Operation Altitude
<2000m
Relative Humidity
5%-95%
RCD
Type A+DC 6mA
EMC
Class B
Certification
CE/TR25/TUV Mark/RCM
Color
Black/White/Silver
Three-Phase 400V
Floor-mounted/Wall-mounted
10
Interstellar (Commercial Use)
Rated Power
7kW
22kW
Input/Output
Voltage
Single -Phase 230V Three-Phase 400V
Dimensions
W406*H450*D162
W406*H450*D162
Weight
5KG
7.5KG
Input/Output
Current
32A
Frequency
50Hz
Connector
IEC Type 2
Cable Length
3m(5m optional)
Charging Status
Information
LED/Display(optional)
Authorization
NFC/RFID/Plug and Charge/APP(optional)
Metering
MID Meter(optional)
Communication
Method
LAN/4G/Wifi(optional)
Communication
Protocol
OCPP1.6J(can be updated to 2.0)
Installation
Protection Function
Protection Rating
IP65/IK10
Operation
Temperature
-30 ℃-55 ℃
Operation Altitude
<2000m
Relative Humidity 5%-95%
RCD
TypeA+DC 6mA
EMC
Class B
Certification
CE/TR25/TUV Mark/RCM
Color Black/White/Silver
Over current protection,over/under voltage
protection,over temperature protection,lighting
protection,short circuit protection,etc.
Note 1 DC 6mA has an automatically initiated test function, which is performed each time when
the relay is closed and at intervals not exceeding at least once a day.
