Cover Stitch Wide

Cover Stitch Wide

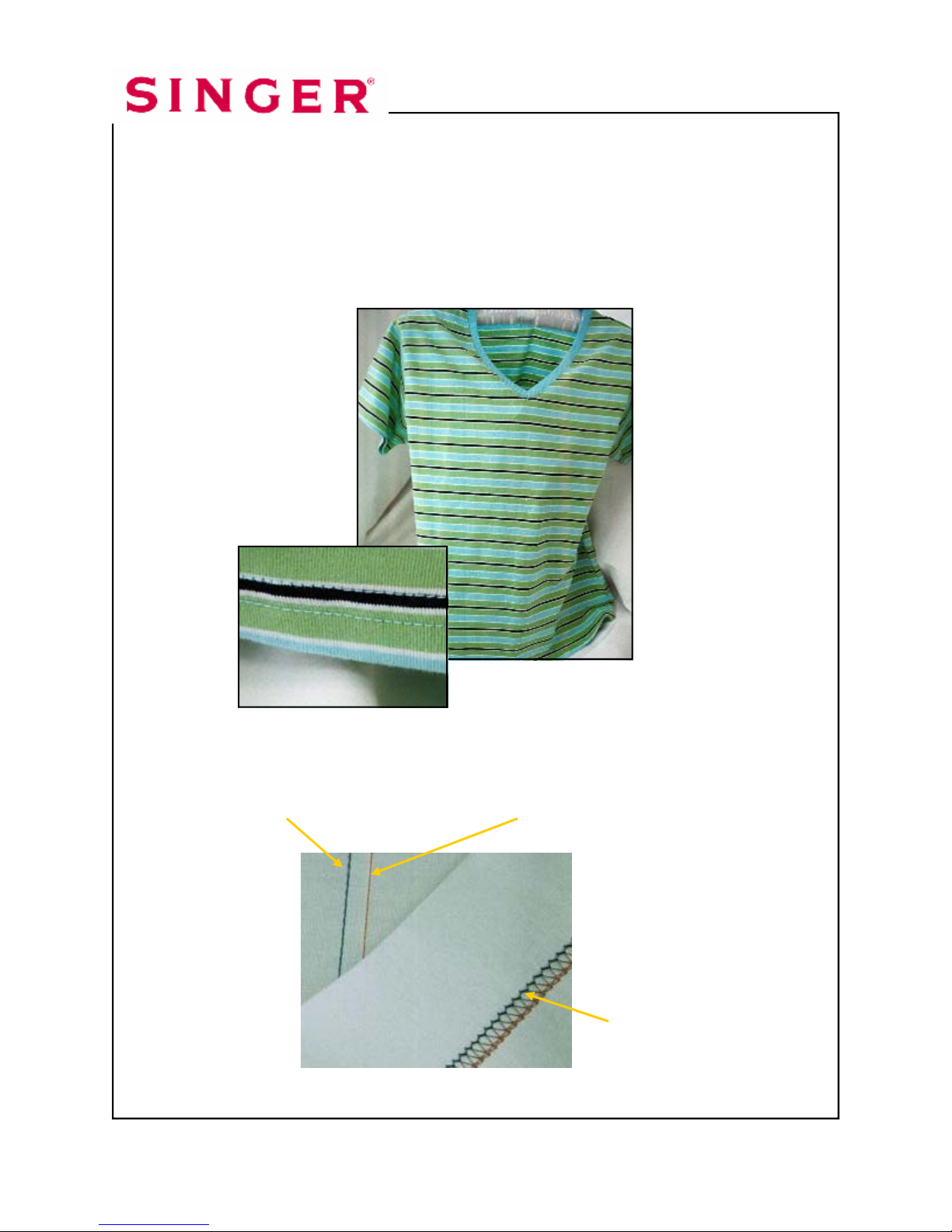

This professional Cover Hem stitch is a necessary requirement for today’s sewing.

The stitch is often seen in ready-to-wear garments. Two needles create parallel

rows of top stitching and one looper sew an edge finish on the underneath side.

Depending on which needle position is selected the width can be 5.6mm wide or

2.8 mm wide.

Left Cover Needle Thread Right Cover Needle Thread

Cover Stitch Looper Thread

Cover Stitch Wide page 1

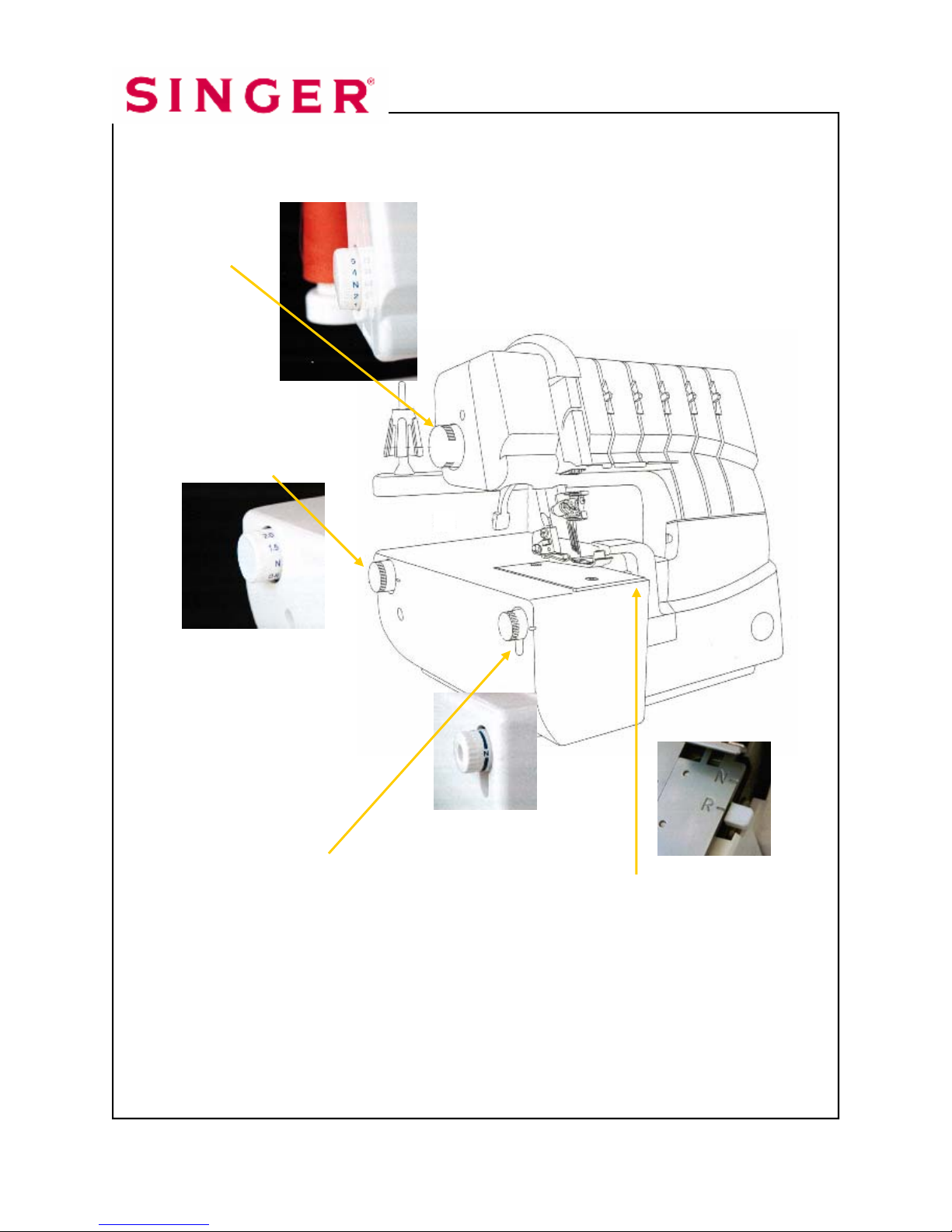

ATD:

Auto Tension Dial

“H”

Left Cover Stitch

Needle “C” (Orange)

Threaded

Middle Cover Stitch Nee-

dle “D”

Not Threaded

Right Cover Stitch

Needle “E” (Green)

Threaded

Upper Looper

Looper Disengaged

and Not Threaded

Lower Looper

Not Threaded

Chain Stitch Looper

(Brown)

Threaded

Upper Looper Clutch “C”

Upper Knife Non-working

Position

Seam Guide Plate Installed

Seam Width Dial “N”

Stitch Length Dial “N”

Presser Foot

Pressure

“N”

Differential Feed Dial “N”

Stitch Finger “R”

Overedge Left

Needle “A” (Orange)

Threaded

Overedge Right

Needle “B” (Blue)

Threaded

Spreader Not Used

Set at:

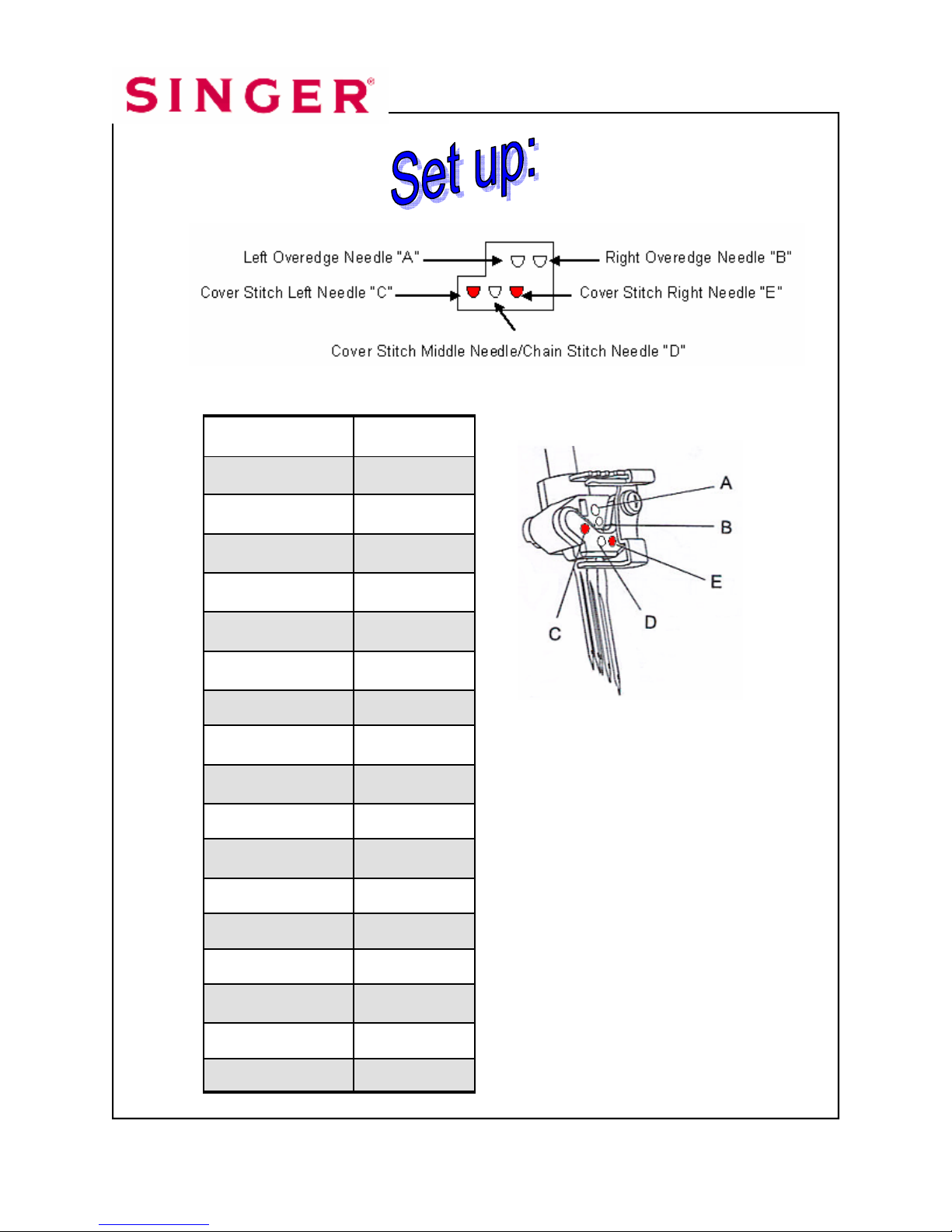

Needle:

Cover Stitch Wide page 2

Cover Stitch Wide

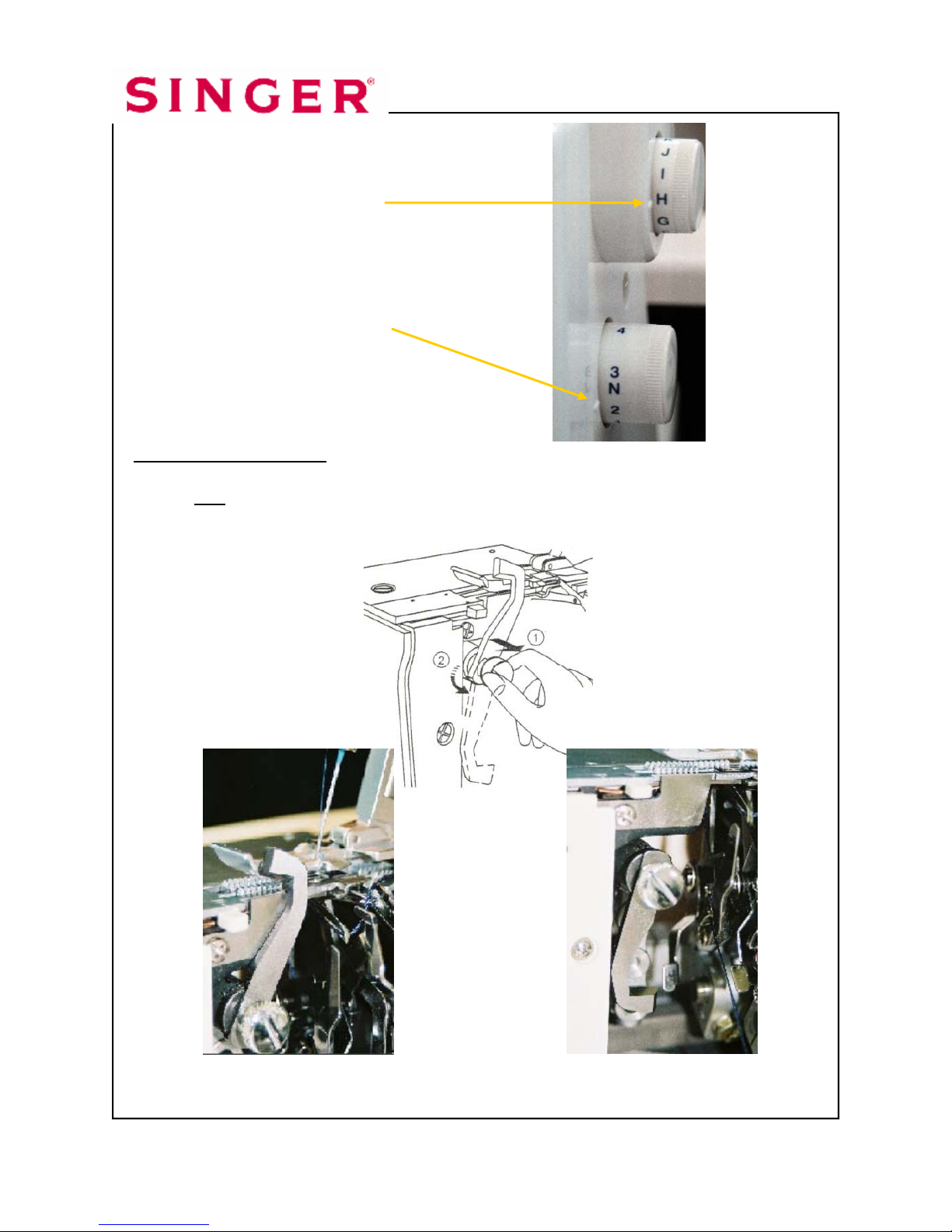

Turn Auto Tension Dial to “H”.

Turn Stitch Length Dial to “N”.

Disengage Upper Knife. The knife will not trim the fabric when it is disengaged.

1. Open Looper Cover.

2. Pull the movable knife holder (silver screw) to the right as far as it will go.

3. Turn the holder counter clockwise until the knife clicks into a lock

position.

Upper Knife Engaged Upper Knife Disengaged

Cover Hem Narrow page 3

Turn Presser Foot

Pressure Dial to “N”.

Turn Differential Feed

Dial to “N”.

Turn Seam Width Dial

to “N”.

 Set Stitch Finger to “R”.

Cover Stitch Wide page 4

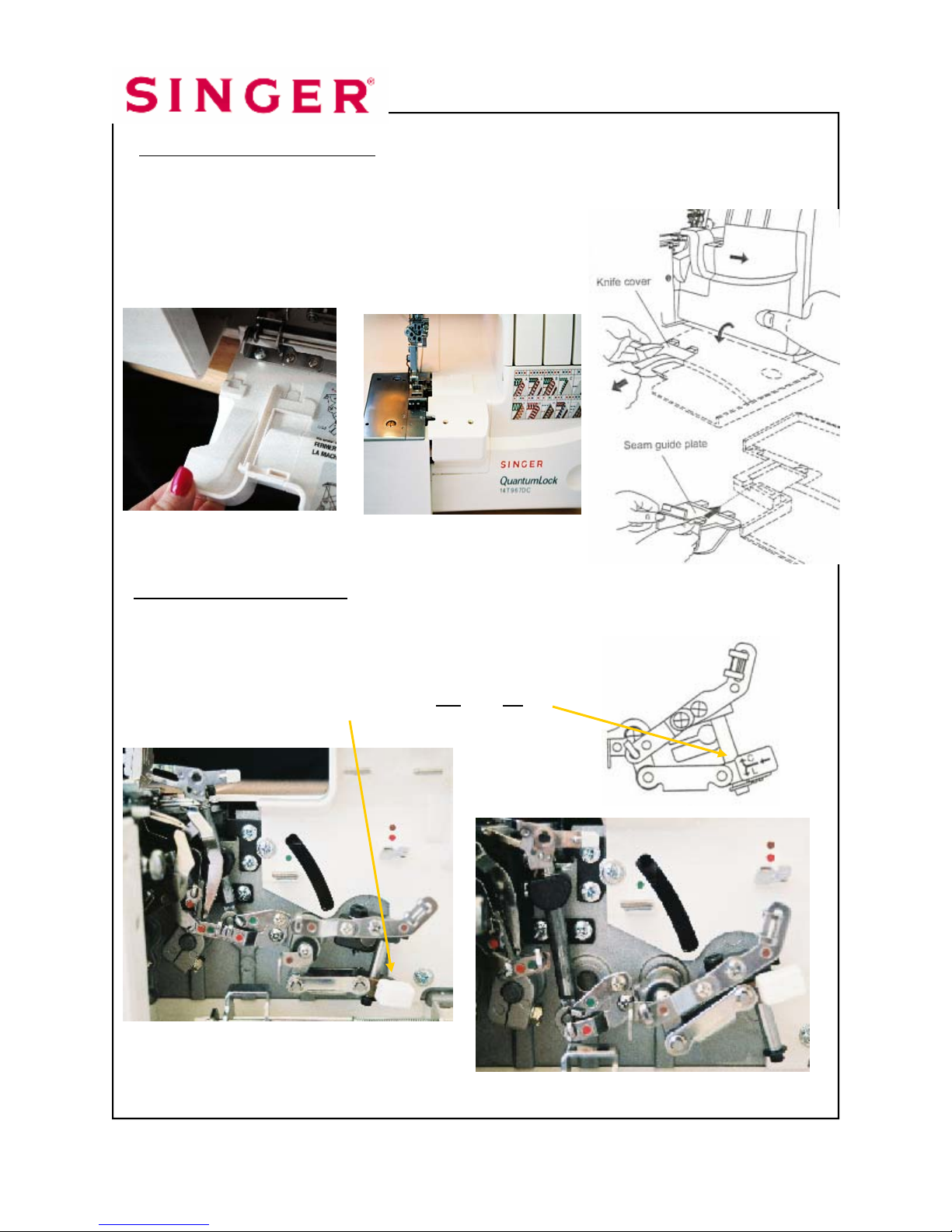

Install the Seam Guide Plate. The Seam Guide Plate provides a flat surface for the

fabric and seam guides. It can only be used when the knife and the lower looper are

disengaged. The Seam Guide Plate is used when sewing the Chainstitch, Cover

Stitch and the Triple Cover Stitch.

1. Open Looper Cover.

2. Remove Knife Cover by pulling it toward you.

3. Slide the Seam Guide Plate into place.

Disengage Upper Looper. By disengaging the Upper Looper the looper no longer

moves when sewing, it is nonoperative. If the looper was still engaged it would hit

the Seam Guide Plate.

1. Turn handwheel until the Upper Looper is in the

lowest position.

2. Push the clutch button to the left and up to

disengage.

Upper Looper Disengaged

Cover Stitch Wide page 5

Upper Looper Engaged

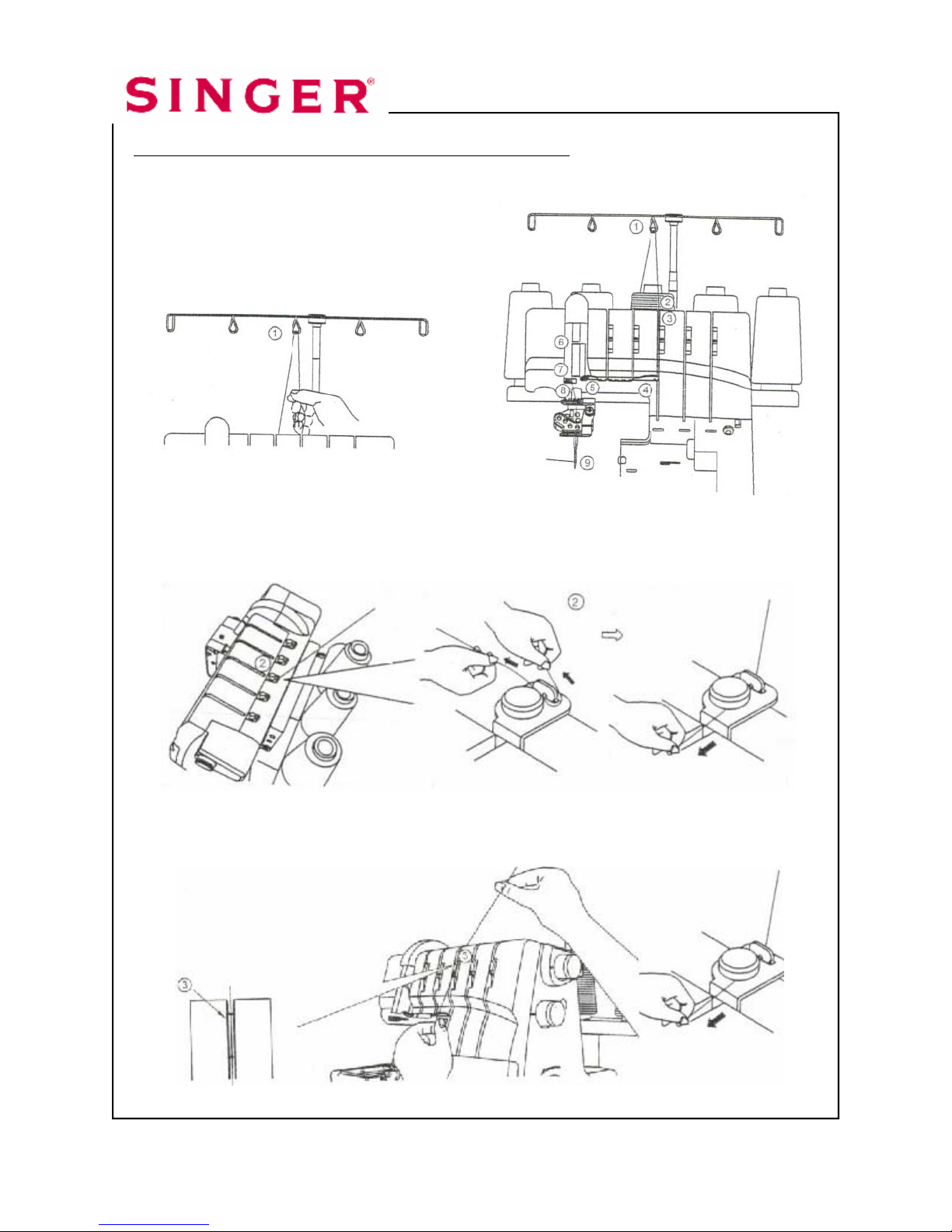

Thread Chainstitch Looper with a regular

overlock thread.

1. Raise the Presser Foot to release the

tension disks. Pass the thread from

the back to the front through the

thread guide .

2.Thread the top cover thread guide by pulling the thread towards the left until

it slips under the guide. Then pull thread along the right side of the button

as illustrated.

3. While holding the thread firmly, pull the thread between the tension disks.

Cover Stitch Wide page 6

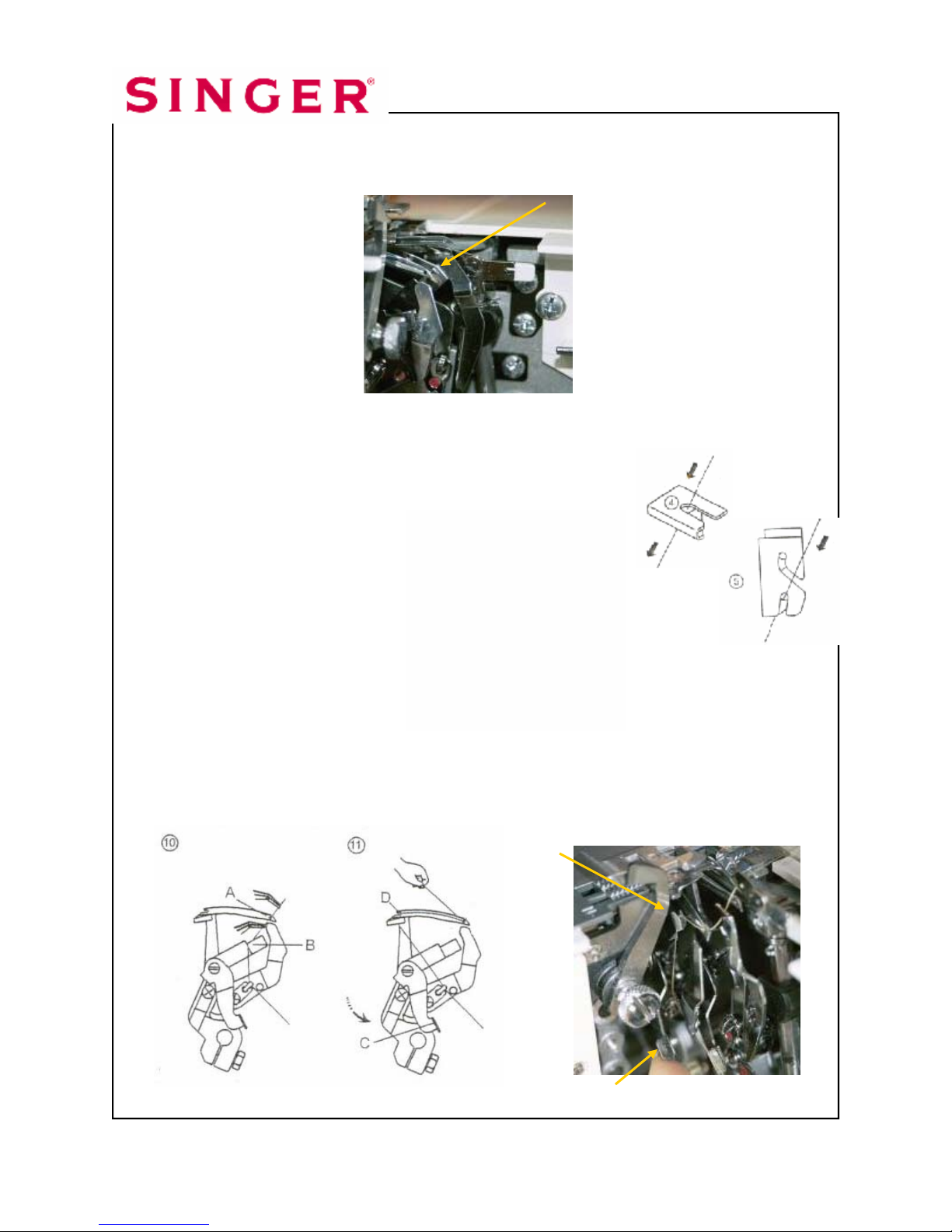

4. Turn the hand wheel toward you until the Chainstitch Looper extends out

10mm (approximately ½ inch) from the needle plate edge.

5. Thread the looper area of the machine following the brown color-coded

thread guides 4-11. Use the tweezers provided in the accessory case to

aid in threading the looper.

6. Place the thread through threading guide and .

7. Continue threading

guides , , and .

8. Thread the looper eye (A) from front to back. Pull about 4 inches of thread

through the looper. Position the thread into the V cutout (B) on the threader.

Firmly hold the thread tail with your left hand and pull threader lever (C) up

into place (D). Gently pull 5-6” of thread to the back of the machine.

Cover Stitch Wide page 7

“V” cutout

Threader Lever

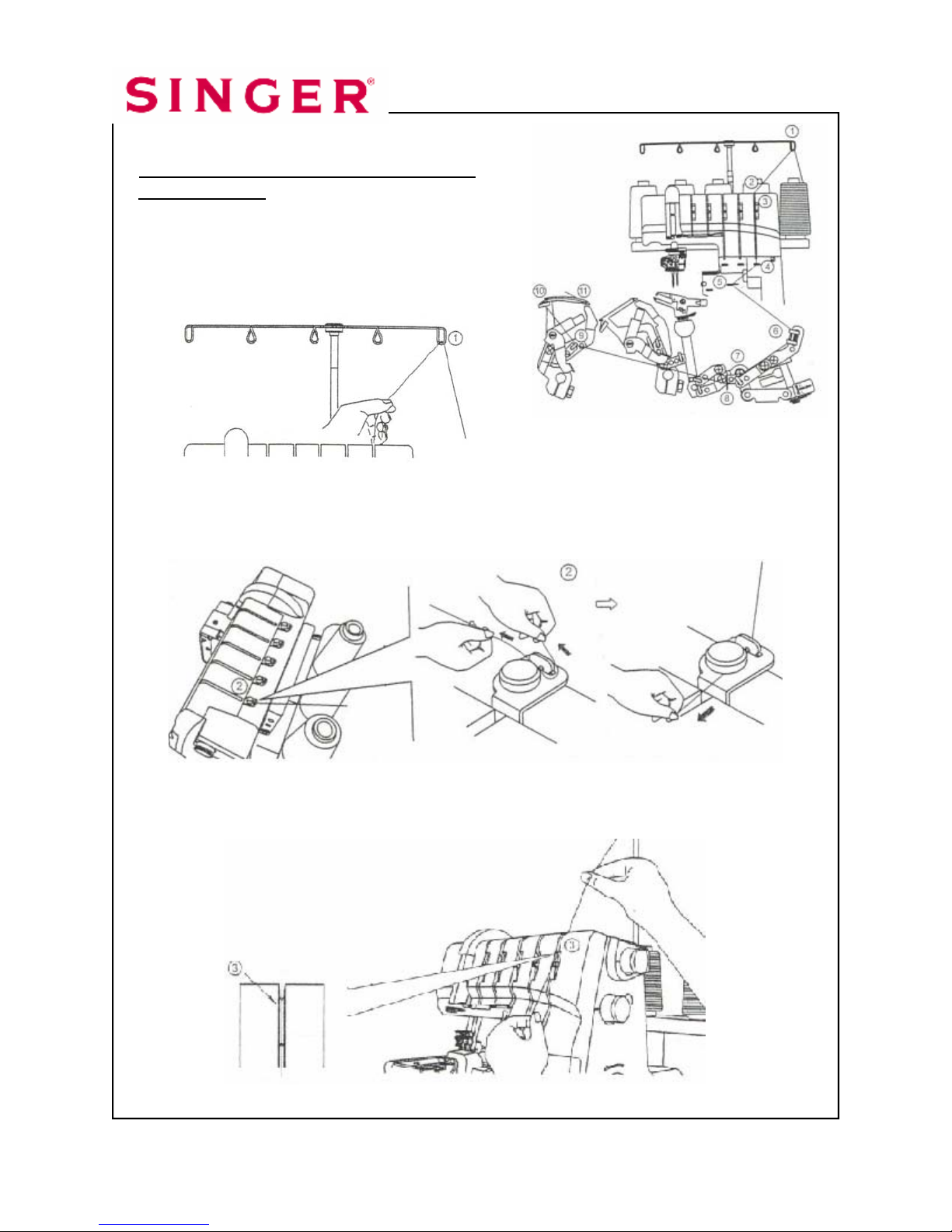

Thread Right Cover Stitch needle with regular thread.

1. Raise the Presser Foot to release the tension disks. Thread the

left needle as illustrated 1-9.

2. Pass thread from back to the front

through the thread guide .

3. Thread the top cover thread guide by pulling the thread towards the left until

it slips under the guide. Then pull the thread along the right side of the

button as illustrated.

4. While holding the thread firmly, pull the thread between the tension disks.

Cover Sitch Wide page 8

5. Continue to thread points 4-8. Slip the thread into the middle slot of the

thread guide . Go over the take up lever . Continue by slipping the

thread into the middle slot of the thread guides and .

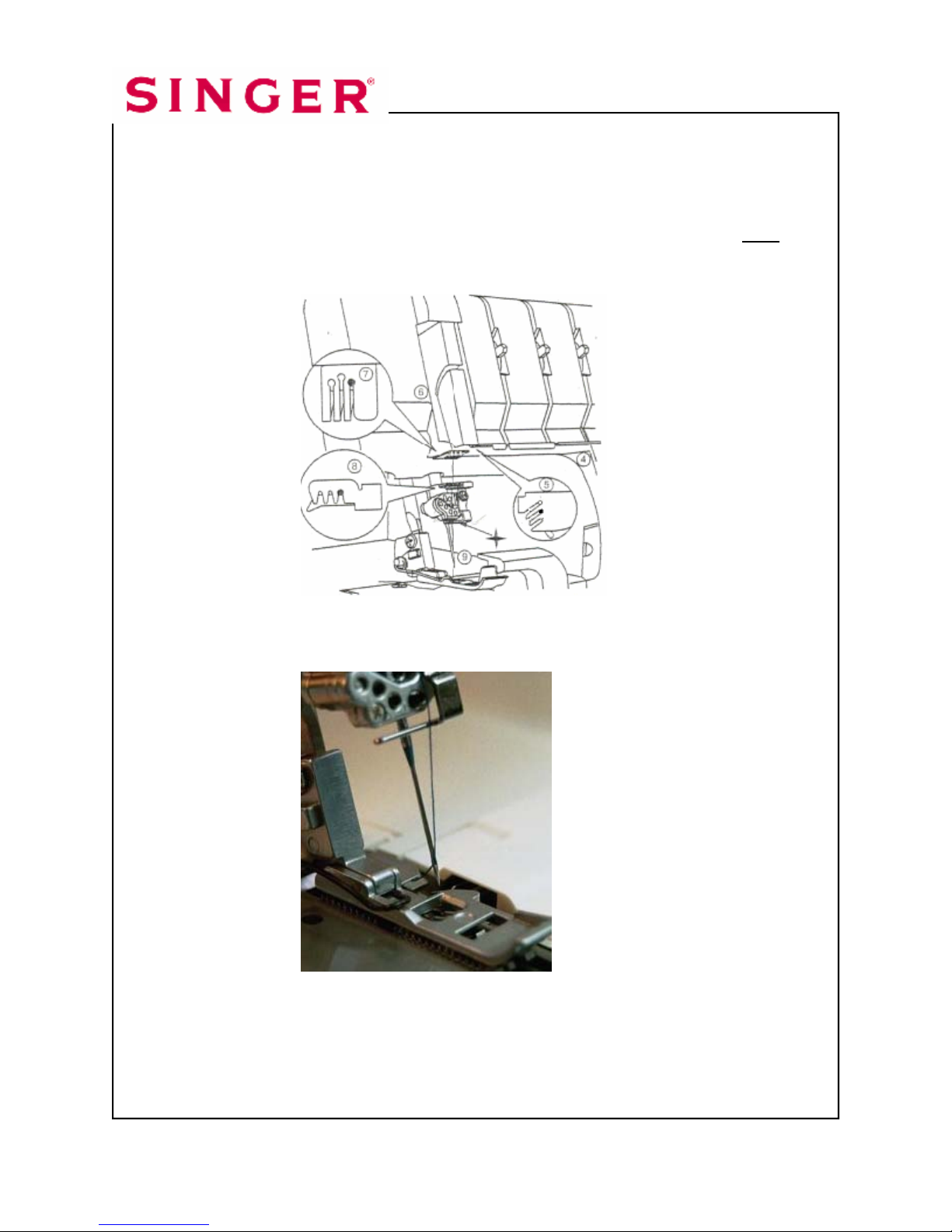

6. Before threading the eye of the needle, make sure the thread is in front of

the thread guide located on the bottom of the needle clamp.

7. Thread the eye of the Right Cover Stitch Needle .

8. Draw about 4 inches of the thread through the needle eye towards the back

of the machine.

9. Place the thread to the back, under the Presser Foot. Lower foot and sew.

Cover Stitch Wide page 9
