DETAILED THREADING GUIDE - Quantumlock® 14T967DC & 14T957DC

2 / 3 / 4 / 5 – THREAD SERGERS

TABLE OF CONTENTS

THREADING INFORMATION FOR A 4-THREAD ULTRA STRETCH MOCK SAFETY STITCH ........... 2

THREADIING INFORMATION FOR A NARROW 5-THREAD SAFETY STITCH....................................11

THREADING INFORMATION FOR A TRIPLE COVER STITCH.............................................................25

HOW TO DISENGAGE THE MOVABLE UPPER KNIFE .........................................................................46

HOW TO CONVERT THE UPPER (GREEN) LOOPER TO A SPREADER ............................................47

HOW TO DISENGAGE THE UPPER (GREEN) LOOPER.......................................................................48

THREADING INFORMATION FOR A 4-THREAD ULTRA

STRETCH MOCK SAFETY STITCH

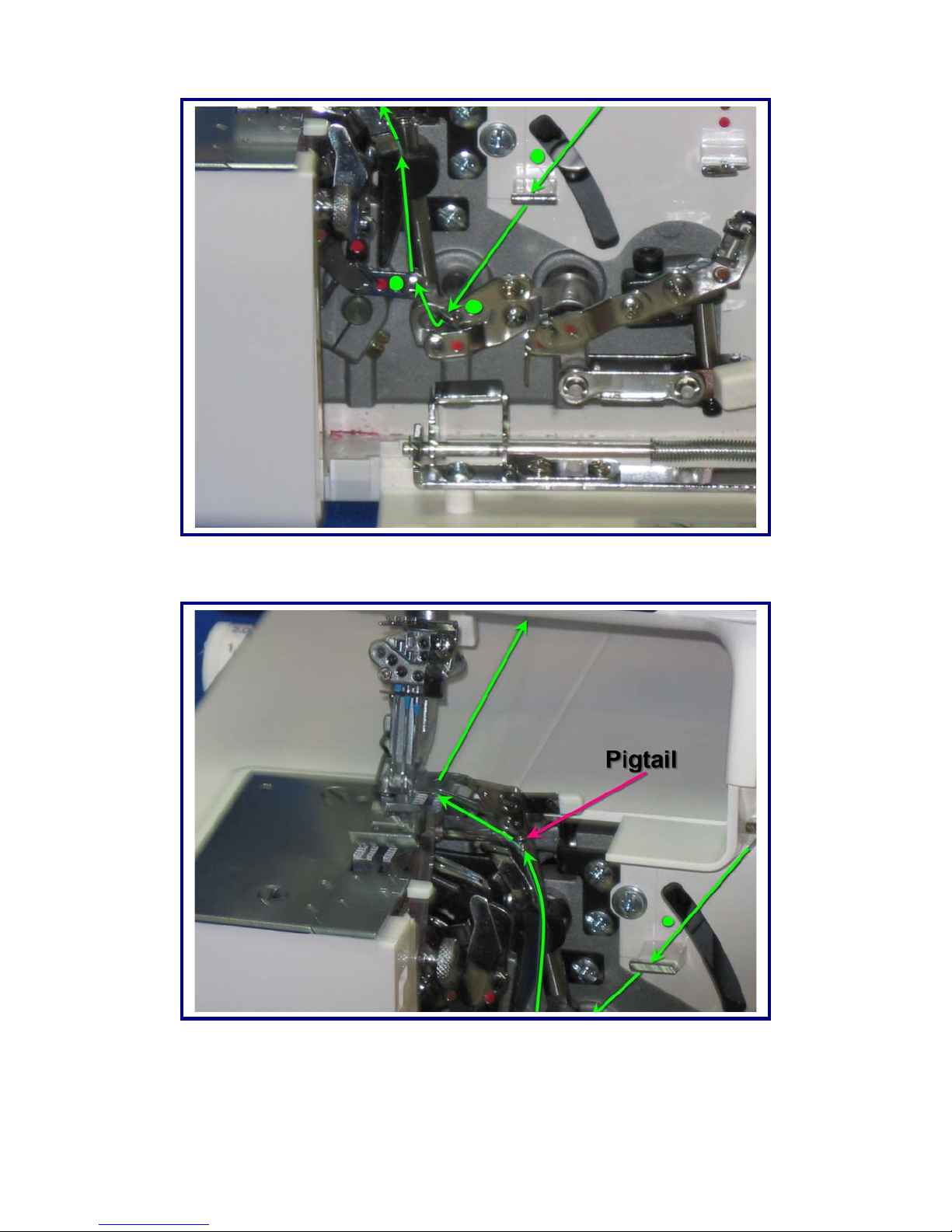

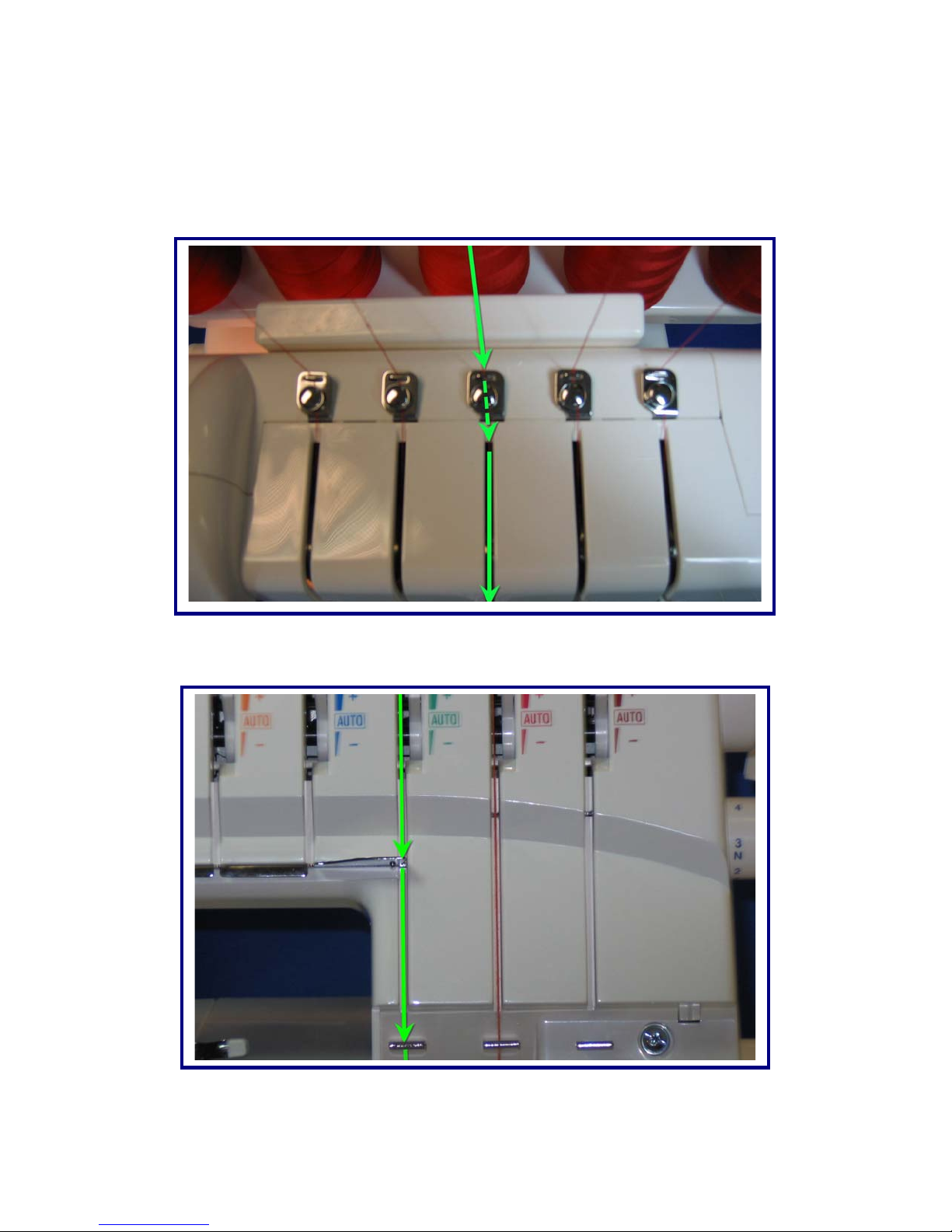

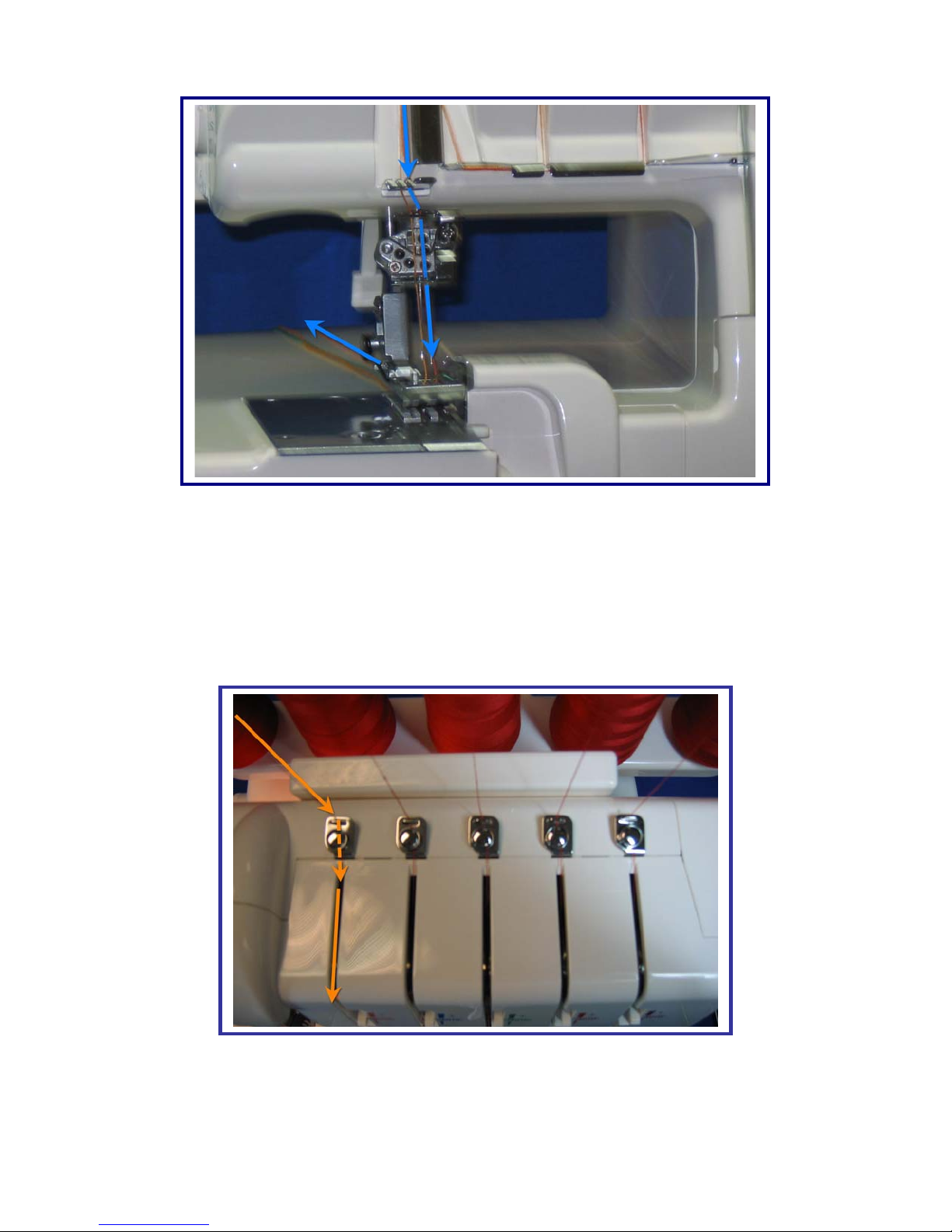

Threading the Green Upper Looper:

Top Cover Thread Guide.

Thread the top cover thread guide by slipping the thread under the guide from

right to left, and then pull the thread under the small round disk from the right

side.

Lay thread through Green tension disk, while holding the thread securely with

both hands. Next slip into guide directly below the tension from right to left.

Using tweezers slip the thread into the next three guides marked with small

green dots.

Thread the guide that looks like a little pigtail and then thread through the eye of

the looper as shown. Pull the thread tail to the back of the serger approximately

4 to 6 inches.

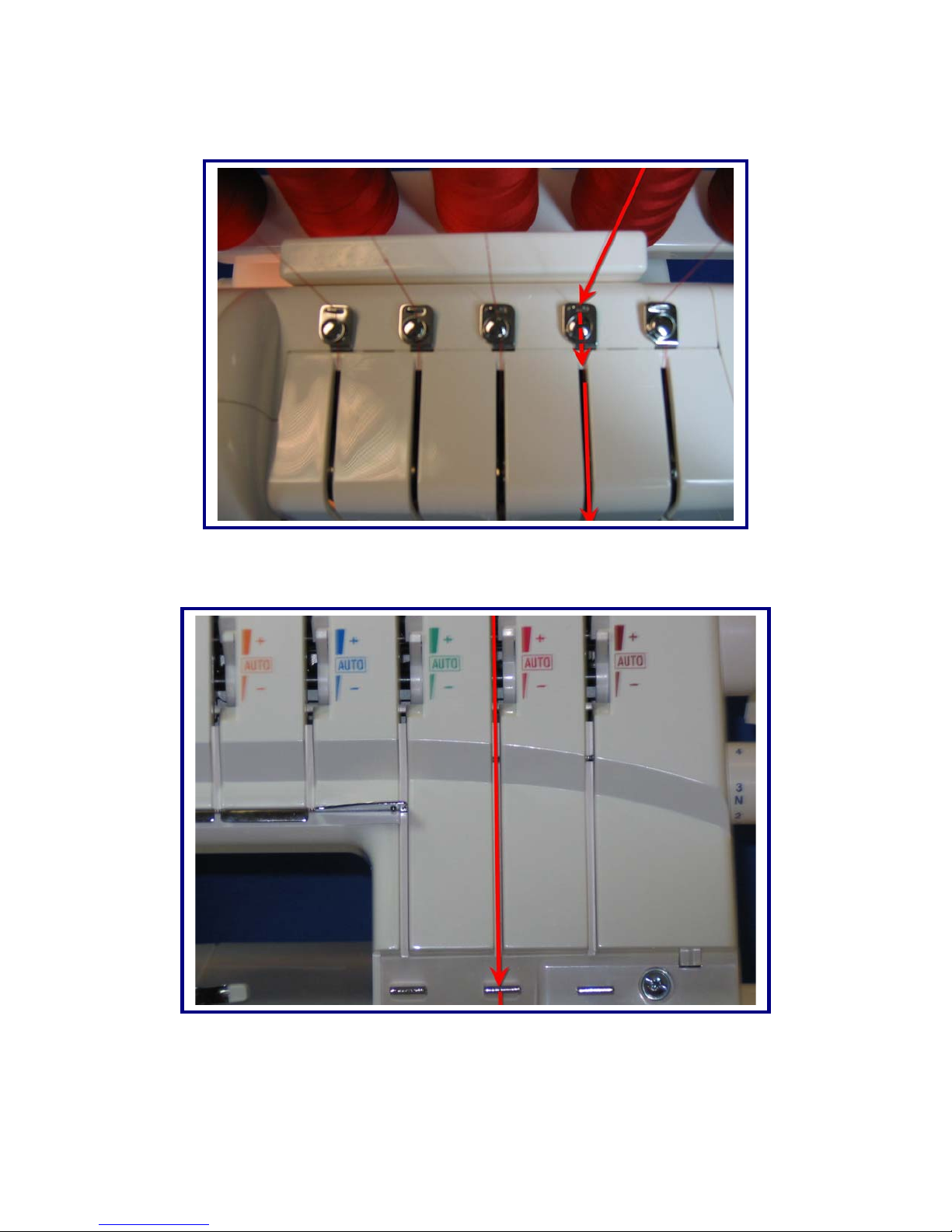

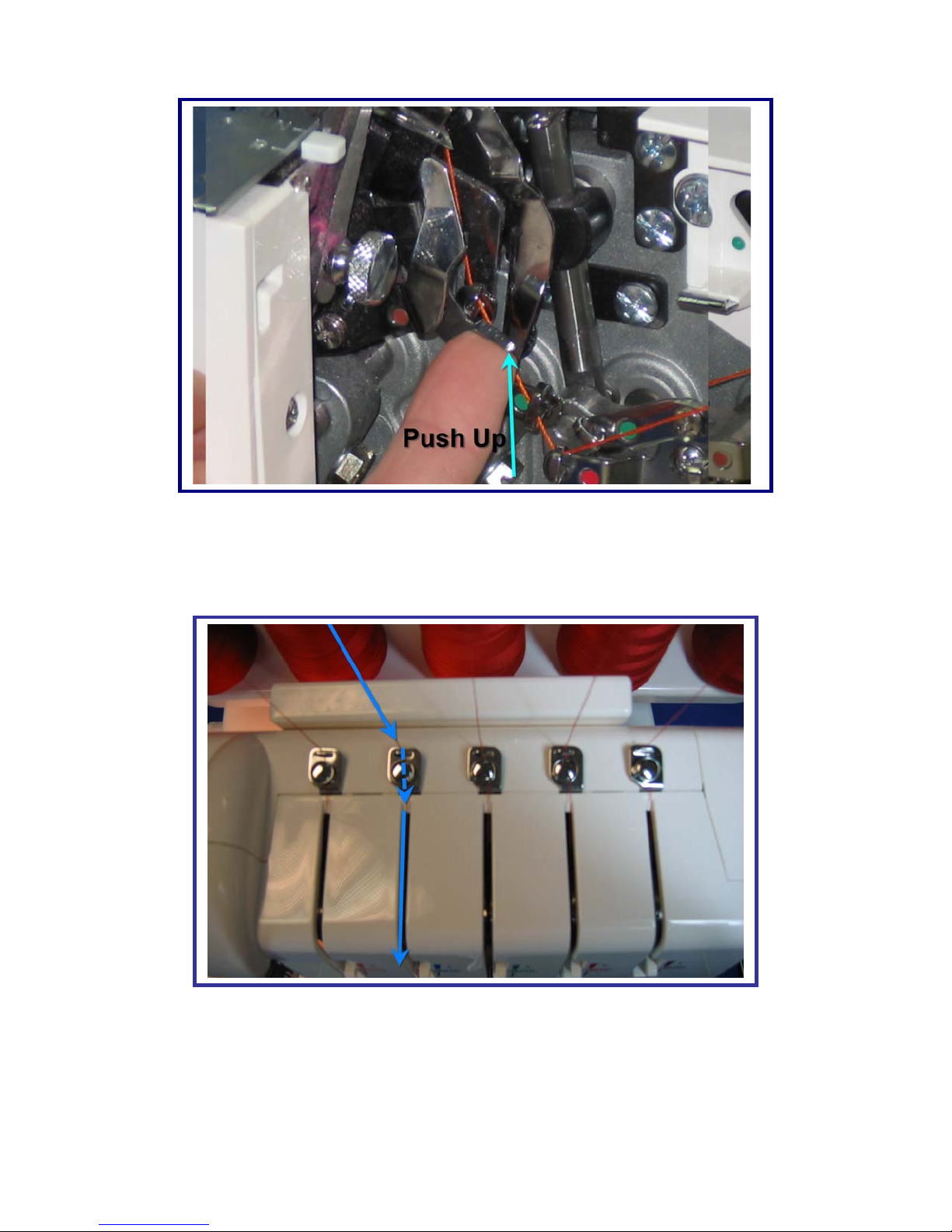

Thread Red Lower Looper:

Top Cover Thread Guide

Thread the top cover thread guide by slipping the thread under the guide from

right to left, and then pull the thread under the small round disk from the right

side.

Lay thread through Red tension disk while holding the thread securely with both

hands. Next slip into guide directly below the tension from right to left.

Tugging slightly on the thread tail at the back of the serger, push the threader

lever all the way up to hook thread into the eye at the back of the looper.

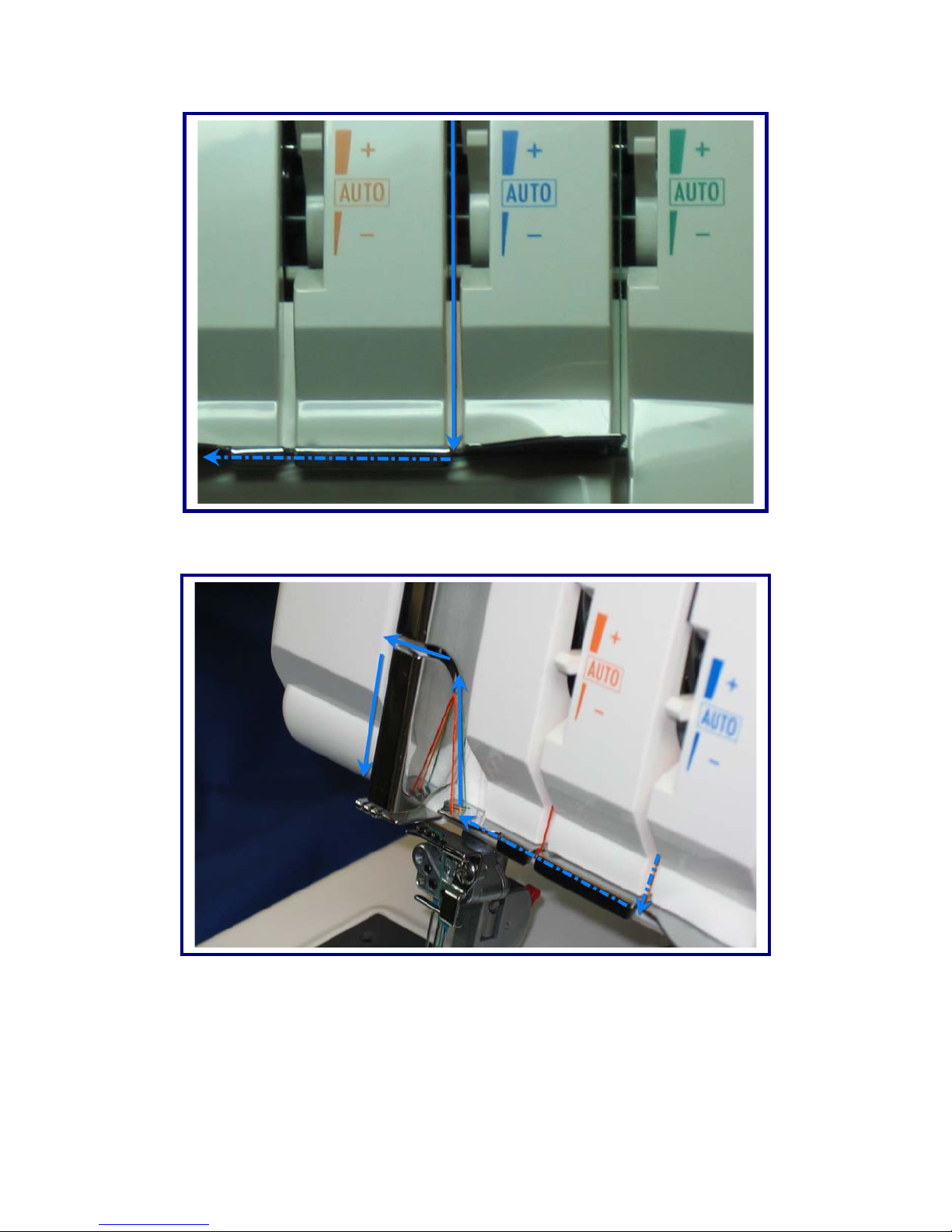

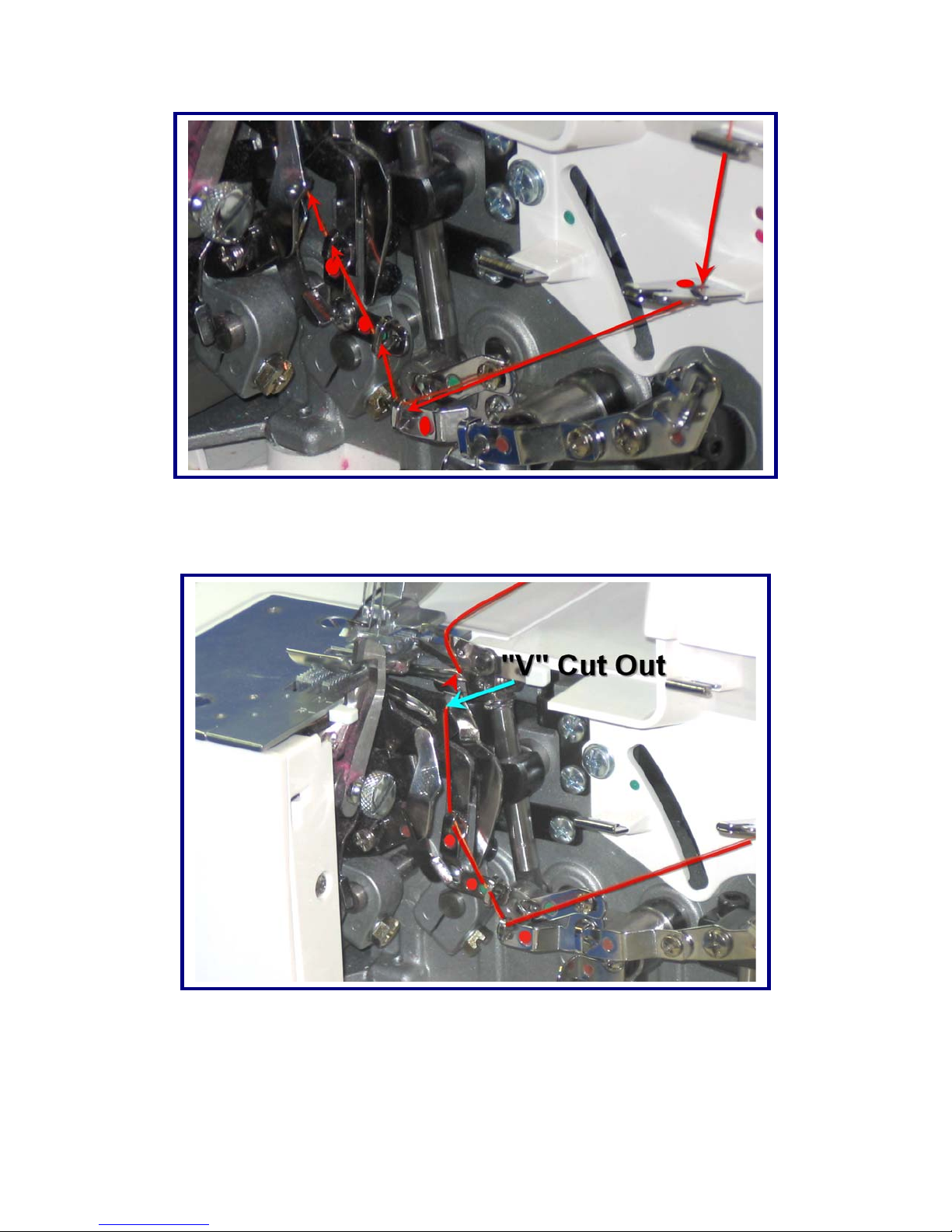

Threading Blue Overedge Stitch Needle:

Top Cover Thread Guide

Thread the top cover thread guide by slipping the thread under the guide from

right to left, and then pull the thread under the small round disk from the right

side.

Using tweezers slip the thread into the slot at the back of the thread guide, and

then into the next three guides marked with the small red dots.

Thread the eye of the looper as shown, making sure that the thread is positioned

in the “V” cutout in front of the looper. Pull the thread tail to the back of the

serger approximately 4 to 6 inches.

Lay thread through Blue tension disk while holding the thread securely with both

hands. Next slip into guide directly below the tension from right to left.

Slip the thread into the third slot closest to the back and then up and over the

take up lever slot.

Slip the thread into the third slot on the right next to the take-up lever, then into

the third slot on the right in the guides just above the needle clamp. Next slip

the thread behind the metal guide and then into the eye of the needle in B

position, and then under what looks like a bridge at the back of the foot. Pull

the thread tail to the back of the serger.

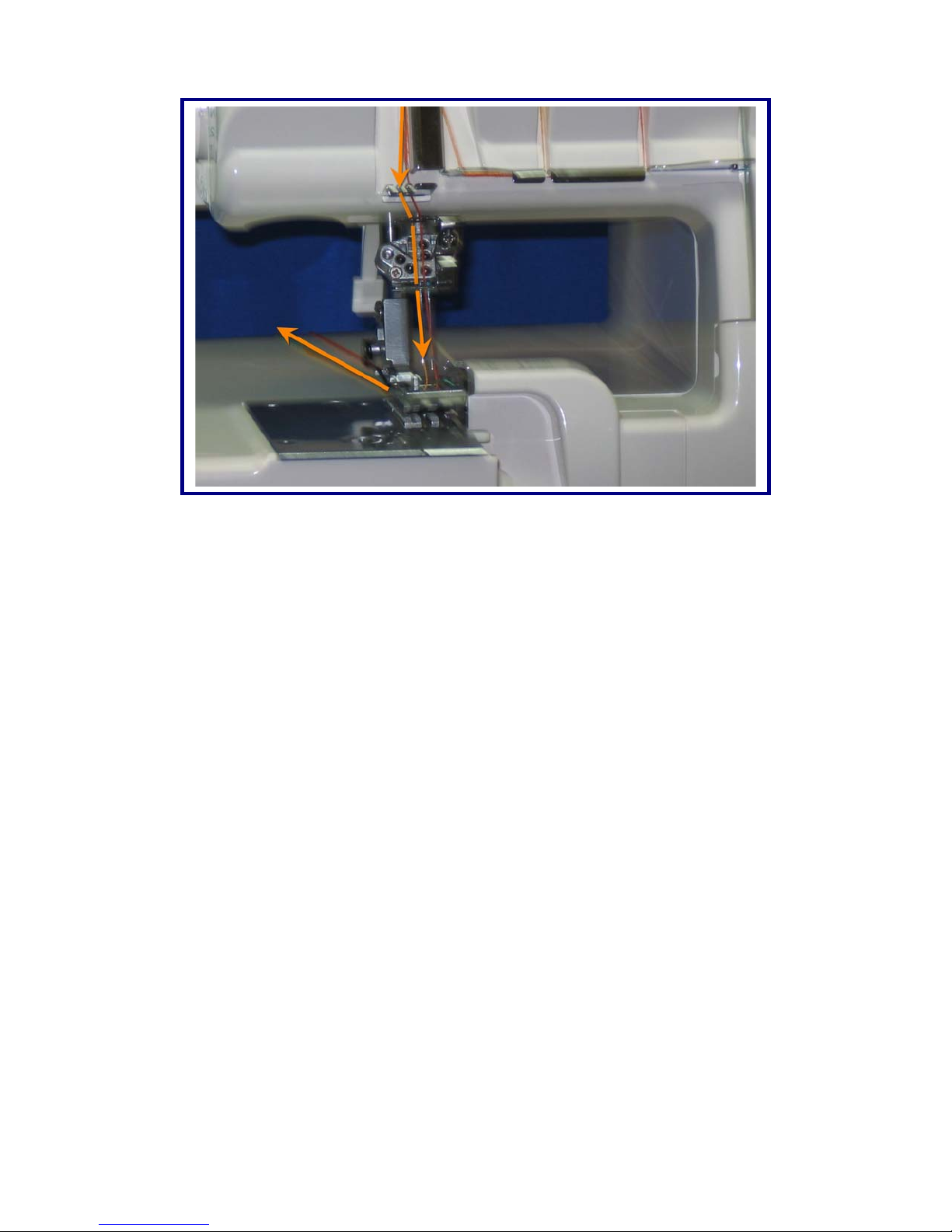

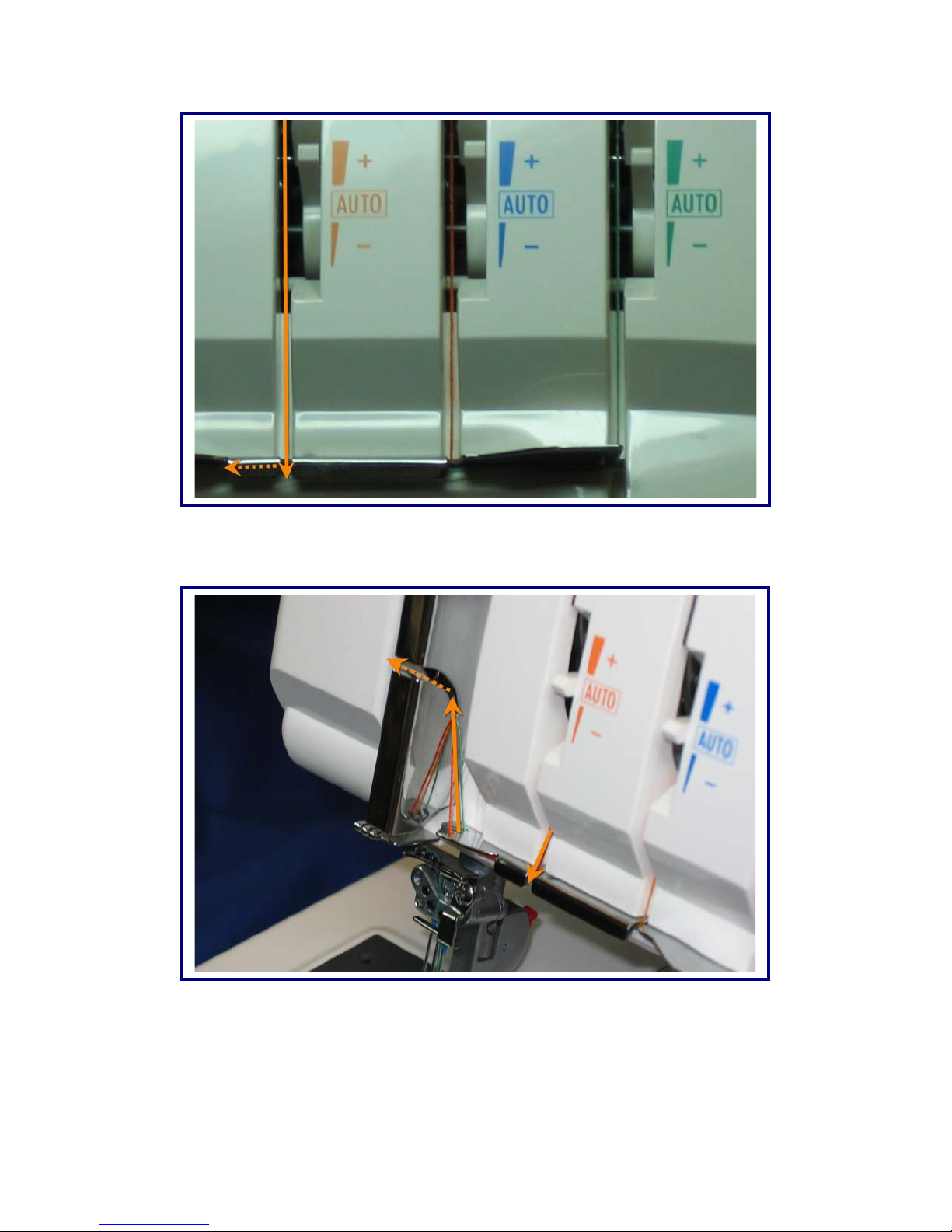

Threading Orange Overedge Stitch Needle:

Top Cover Thread Guide

Thread the top cover thread guide by slipping the thread under the guide from

right to left, and then pull the thread under the small round disk from the right

side.

Lay thread through Orange tension disk, while holding the thread securely with

both hands. Next slip into guide directly below the tension from right to left.

Slip the thread into the center slot and then up and over the take-up lever slot.

Slip the thread into the center slot next to the take-up lever, then into the center

slot in the guides just above the needle clamp. Next slip the thread behind the

metal guide and then into the eye of the needle in A position, and then under

what looks like a bridge at the back of the foot. Pull the thread tail to the back

of the serger.

THREAD TIPS FOR 4-THREAD ULTRA STRETCH SAFETY STITCH

• Be sure to follow the threading sequence outlined above.

• Make sure needles are set-up in positions A and B for the 4-thread Ultra

Stretch Safety Stitch. This is very well illustrated in your manual on page

15.

• When inserting the needle in positions A & B, loosening both needle

screws A and B will facilitate inserting and removing needles.

• The Brown Chain/Cover Stitch looper is not used for the 4-Thread Ultra

Stretch Safety Stitch.

• Always reset the tension dials by re-selecting the stitch after threading the

serger.
