Singer Serger 14J334 Manuale utente

BUYER'S MODEL NO. 14J334 FACTORY MODEL CA05561 ORIGINAL ISSUE March, 1999

PARTS LIST

FOR

SECTION

IMPORTANT:

WHEN ORDERING THE PARTS

ALWAYS CHECK THE SERIAL

NUMBER OF THE MACHINE.

FIRST DIGIT OF THE SERIAL

NUMBER MUST MATCH WITH THE

LAST DIGIT OF THE FACTORY

MODEL ABOVE.

REFER TO IMPORTANT NOTICE BELOW

SERGER MODEL 14J334

~~~~~~~

FIRST DIGIT

SERIAL NO.

14J334

CA05561

March, 1999

SERGER MODEL 14J334

57746

72806

79021

72780

72667

44066 67447

43389

67447

72788

77042

66474

67447

72788

72271

72641

66474

72622

73472

72638

72271

72641

72636

72637

77042

72636

72858

67447

72629

72679

72635

72634

72631

72623

66474

66725

72376

BUYER'S MODEL NO.

BUYER'S MODEL NAME

FACTORY MODEL

ORIGINAL ISSUE

DESCRIPTIONSECTION PAGE REVISION REMARKS

47181

67447

77042

68922

43389 THRUST WASHER

44066 SPRING PIN

47181 M4 PHILIPS SCREW

57746 TAPPING SCREW

66474 M5 SCREW

66725 M4 SCREW

67447 M5 SCREW

68922 WASHER

72271 BALL JOINT

72376 BALANCE CAM

72622 CRANK ROD

72623 ECCENTRIC CAM

72629 SLIDE BLOCK

72631 ECCENTRIC CAM

72634 CRANK ROD

72635 ECCENTRIC CAM

72636 CONNECTING ROD END

72637 ECCENTRIC CAM

72638 ECCENTRIC CAM

72641 LOOPER DRIVING ARM

72667 BELT PULLEY

72679 NYLON WASHER

72780 MAIN SHAFT

72788 M4 STUD SCREW

72806 M5 SCREW

72858 WASHER

73472 COLLAR

77042 M4 PHILIPS SCREW

79021 HAND WHEEL

SERIAL NO.

14J334

CA05561

March, 1999

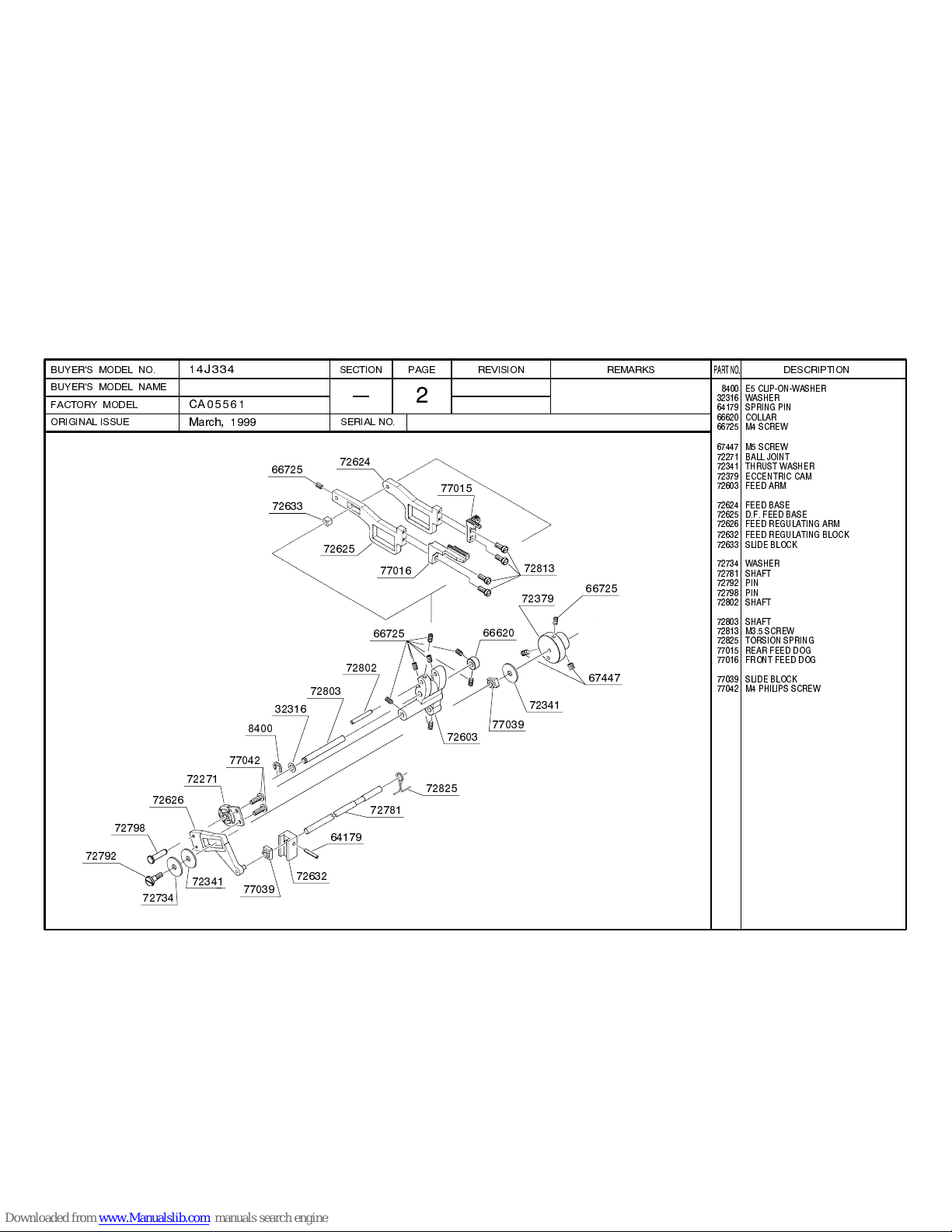

SERGER MODEL 14J334

72626

72341

72798

72271

77042

72792

72781

72825

72603

66725

72813

77039

66620

66725

72802

72803

32316

8400

64179

72632

77039

72633

66725 72624

72625

77016

77015

72734

72341

72379

67447

BUYER'S MODEL NO.

BUYER'S MODEL NAME

FACTORY MODEL

ORIGINAL ISSUE

DESCRIPTIONSECTION PAGE REVISION REMARKS

8400 E5 CLIP-ON-WASHER

32316 WASHER

64179 SPRING PIN

66620 COLLAR

66725 M4 SCREW

67447 M5 SCREW

72271 BALL JOINT

72341 THRUST WASHER

72379 ECCENTRIC CAM

72603 FEED ARM

72624 FEED BASE

72625 D.F. FEED BASE

72626 FEED REGULATING ARM

72632 FEED REGULATING BLOCK

72633 SLIDE BLOCK

72734 WASHER

72781 SHAFT

72792 PIN

72798 PIN

72802 SHAFT

72803 SHAFT

72813 M3.5 SCREW

72825 TORSION SPRING

77015 REAR FEED DOG

77016 FRONT FEED DOG

77039 SLIDE BLOCK

77042 M4 PHILIPS SCREW

SERIAL NO.

14J334

CA05561

March, 1999

SERGER MODEL 14J334

67447

66474

66725

44044

67444

43390

72612

72796

66725 67440

72779

72777

72270

67847

72337

72274

72855

66725

64204

72797

72751

66437

37910

1513

2206

67447

67455

72287

24133

72596

72750

72776

61221

72752

BUYER'S MODEL NO.

BUYER'S MODEL NAME

FACTORY MODEL

ORIGINAL ISSUE

DESCRIPTIONSECTION PAGE REVISION REMARKS

1513 E4 CLIP-ON-WASHER

2206 WASHER

24133 PIPE KNOCK PIN

37910 CLIP-ON-WASHER

43390 THRUST WASHER

44044 STUD

61221 M4 PHILIPS SCREW

64204 M4 PHILIPS SCREW

66437 BUSH

66474 M5 SCREW

66725 M4 SCREW

67440 CRANK-ROD ARM

67444 COLLAR

67447 M5 SCREW

67455 HOLDER

67847 #7 SCREW

72270 NEEDLE CLAMP

72274 M3 SCREW

72287 NEEDLE BAR CRANK

72337 THREAD GUIDE

72596 NEEDLE

72612 MAIN SHAFT ARM LEVER

72750 THREAD GUIDE

72751 OSCILLATING LEVER

72752 CONNECTING ARM

72776 THREAD GUIDE

72777 NEEDLE BAR

72779 UPPER SHAFT

72796 PIN

72797 CENTER PIN

72855 THREADER POSITIONER

SERIAL NO.

14J334

CA05561

March, 1999

SERGER MODEL 14J334

61221

77006

77017

63278

72643

72829

72326

72720

58220

72727

72849

8400

62215

79025

72807

72766

72717

74595

72728

72848

1513 72725

32316

77042

79024

BUYER'S MODEL NO.

BUYER'S MODEL NAME

FACTORY MODEL

ORIGINAL ISSUE

DESCRIPTIONSECTION PAGE REVISION REMARKS

1513 E4 CLIP-ON-WASHER

8400 E5 CLIP-ON-WASHER

32316 WASHER

58220 WASHER

61221 M4 PHILIPS SCREW

62215 M4 NUT

63278 PRESSER BAR

72326 WASHER

72643 PRESSER BAR GUIDE BLOCK

72717 BRACKET

72720 BRACKET

72725 GUIDE PLATE

72727 GUIDE PLATE

72728 TENSION RELEASE LEVER

72766 LIFTER

72807 M4 STUD SCREW

72829 COMPRESSION SPRING

72848 #4 STUD SCREW

72849 #7 PHILPS SCREW

74595 M5 SCREW

77006 PRESSER FOOT

77017 PRESSER FOOT HOLDER

77042 M4 PHILIPS SCREW

79024 PRESSER CONTROL KNOB

79025 PRESSER FOOT LIFTING LEVER

SERIAL NO.

14J334

CA05561

March, 1999

SERGER MODEL 14J334

1513

72882

72737

77042

66725

72714

1513 79056

72785

72730

1513

72885

61222

66725

72729

66620

67617

BUYER'S MODEL NO.

BUYER'S MODEL NAME

FACTORY MODEL

ORIGINAL ISSUE

DESCRIPTIONSECTION PAGE REVISION REMARKS

1513 E4 CLIP-ON-WASHER

61222 M4 PHILIPS SCREW

66620 COLLAR

66725 M4 SCREW

67617 WASHER

72714 STITCH LENGTH CONTROL CAM

72729 STITCH LENGTH CONTROL ARM

72730 CONNECTING PLATE

72737 LEAF SPRING

72785 SHAFT

72882 STOPPER

72885 STOPPER

77042 M4 PHILIPS SCREW

79056 STITCH LENGTH CONTROL DIAL

SERIAL NO.

14J334

CA05561

March, 1999

SERGER MODEL 14J334

1513

79031

72786

66725

72731

72686

72733

72837

66620

72735

72683

1520

72801

72736

66437

72644

66352

62215

72628

72799

2206

66725

1513

72805

72835

72836

66725

46293

66725

72800

72633

72804

72627

BUYER'S MODEL NO.

BUYER'S MODEL NAME

FACTORY MODEL

ORIGINAL ISSUE

DESCRIPTIONSECTION PAGE REVISION REMARKS

1513 E4 CLIP-ON-WASHER

1520 E3 CLIP-ON-WASHER

2206 WASHER

46293 CLIP-ON-WASHER

62215 M4 NUT

66352 M4 PHILIPS SCREW

66437 BUSH

66620 COLLAR

66725 M4 SCREW

72627 FEED CONTROL LOCKING ARM

72628 D.F. LINK

72633 SLIDE BLOCK

72644 SLIDE BLOCK

72683 D.F. ARM

72686 CONNECTING ROD

72731 D.F. ARM

(

)

72733 D.F. ARM

(

)

72735 D.F. ARM

(

)

72736 CONNECTING PLATE

72786 SHAFT

72799 PIN

72800 PIN

72801 SHAFT

72804 PIN

72805 SHAFT

72835 HOOK FOR SPRING

72836 EXTENSION SPRING

72837 TORSION SPRING

79031 D.F. DIAL

SERIAL NO.

14J334

CA05561

March, 1999

SERGER MODEL 14J334

63501

72815

66725

10963

72207

63173

72817

8400

66725

72759

79029

72883

72819

61224

72745

72704

77042

79026

72744

72392

67445

66725

77005

4844

72183

72191

72791

77073

4844

72183

72171

66725

72646

77044

72296

72258

66725

72261

1615

72838

72160

72645

67447

72165

72180

72187

66725 64653

72168

77042

77053

54251

72169

33223

BUYER'S MODEL NO.

BUYER'S MODEL NAME

FACTORY MODEL

ORIGINAL ISSUE

DESCRIPTIONSECTION PAGE REVISION REMARKS

63501

2744

62309

1615 WASHER

2744 WASHER

4844 WASHER

8400 E5 CLIP-ON-WASHER

10963 E6 CLIP-ON-WASHER

61224 M4 PHILIPS SCREW

62309 M3 SCREW

63173 PIN

63501 WASHER

64653 M3 SCREW

66725 M4 SCREW

67445 COLLAR

67447 M5 SCREW

72160 STUD

72165 KNIFE RELEASE KNOB

72168 COLLAR

72169 KNOB MOUNTING BRACKET

72171 LINK

(

)

72180 STUD

72183 M3.5 BOLT

72187 COMPRESSION SPRING

72191 STUD

72207 COMPRESSION SPRING

72258 DRIVING ARM

72261 SHAFT

72296 COMPRESSION SPRING

72392 SPRING PLATE

72645 LINK

72646 POSITIONER

72704 LOWER KNIFE HOLDER

72744 NEEDLE PLATE HOLDER

72745 LEAF SPRING

72759 LEVER

72791 M4 SCREW

72815 SHAFT

72817 SHAFT

72819 HEXAGONAL PIN

72838 STUD

77005 LOWER KNIFE

77042 M4 PHILIPS SCREW

77044 M3 PHILIPS SCREW

77053 M3 PHILIPS SCREW

77073 UPPER KNIFE

79026 CONTROL KNOB

79029 LOWER KNIFE COVER

SERIAL NO.

14J334

CA05561

March, 1999

SERGER MODEL 14J334

72738

72791

72784

77042

72746

72899

77042

72748

66725

72826 63264

72811

8400

32316

72763

72648

68380

72712

72762

33223

32949

63163

63514

67445

10963

66725

77056

72812

66725

63171

72711

BUYER'S MODEL NO.

BUYER'S MODEL NAME

FACTORY MODEL

ORIGINAL ISSUE

DESCRIPTIONSECTION PAGE REVISION REMARKS

10963 E6 CLIP-ON-WASHER

63163 KNIFE LEVER ASSEMBLY

63171 FIXING BASE

63264 M5 BOLT WITH WASHER

63514 STUD

66725 M4 SCREW

67445 COLLAR

72746 NEEDLE PLATE HOLDER

72748 NEEDLE RECEIVER

(

)

72791 M4 SCREW

72812 SHAFT

72899 NEEDLE PLATE

77042 M4 PHILIPS SCREW

77056 WASHER

SERIAL NO.

14J334

CA05561

March, 1999

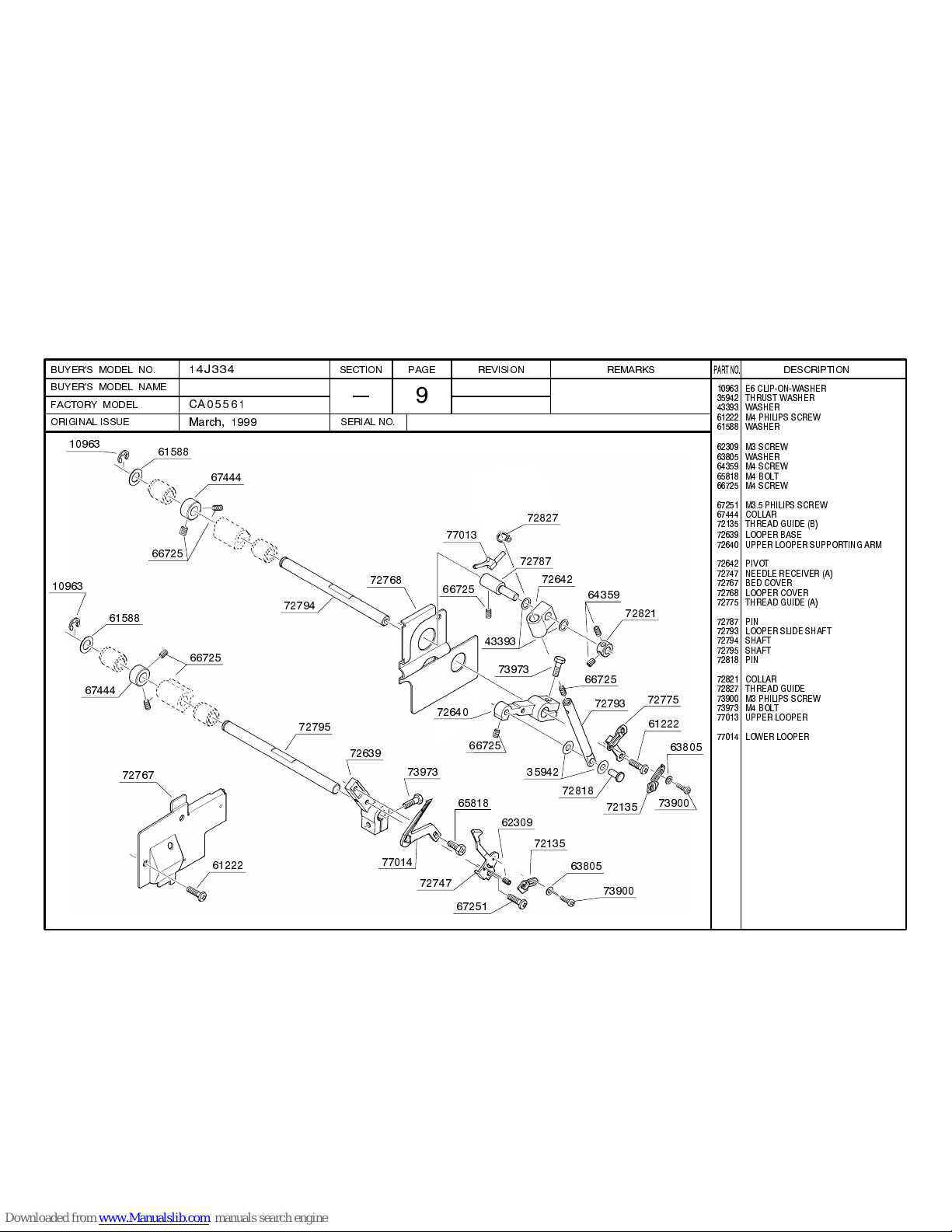

SERGER MODEL 14J334

66725

10963

61588

67444

72795

62309

63805

72135

65818

73973

72639

73900

67251

72747

77014

67444

61588

10963

66725

72794

72768

66725

73973

35942

72818

72135 73900

63805

61222

72775

72793

72821

64359

72642

72827

72705

53740

43393

66725

72787

77013

72767

61222

66725

BUYER'S MODEL NO.

BUYER'S MODEL NAME

FACTORY MODEL

ORIGINAL ISSUE

DESCRIPTIONSECTION PAGE REVISION REMARKS

72640

10963 E6 CLIP-ON-WASHER

35942 THRUST WASHER

43393 WASHER

61222 M4 PHILIPS SCREW

61588 WASHER

62309 M3 SCREW

63805 WASHER

64359 M4 SCREW

65818 M4 BOLT

66725 M4 SCREW

67251 M3.5 PHILIPS SCREW

67444 COLLAR

72135 THREAD GUIDE

(

)

72639 LOOPER BASE

72640 UPPER LOOPER SUPPORTING ARM

72642 PIVOT

72747 NEEDLE RECEIVER

(

)

72767 BED COVER

72768 LOOPER COVER

72775 THREAD GUIDE (A)

72787 PIN

72793 LOOPER SLIDE SHAFT

72794 SHAFT

72795 SHAFT

72818 PIN

72821 COLLAR

72827 THREAD GUIDE

73900 M3 PHILIPS SCREW

73973 M4 BOLT

77013 UPPER LOOPER

77014 LOWER LOOPER

Altri manuali per Serger 14J334

Altri manuali Singer Macchina da cucire

Singer

Singer 27 Manuale di installazione e funzionamento

Singer

Singer 231-34 Manuale di installazione e funzionamento

Singer

Singer 119W Series Guida rapida

Singer

Singer 412U UTT Manuale utente

Singer

Singer 35-1 Manuale utente

Singer

Singer 6180 Manuale utente

Singer

Singer M1000 Manuale utente

Singer

Singer 695B018SM Guida alla risoluzione dei problemi

Singer

Singer 151K1 Guida rapida

Singer

Singer Simple 3223 Manuale utente

Singer

Singer Simple 2263 Manuale utente

Singer

Singer 6038 Manuale utente

Singer

Singer 44-14 Manuale utente

Singer

Singer 5800 Series Manuale utente

Singer

Singer 400W4 Manuale utente

Singer

Singer 32-63 Manuale utente

Singer

Singer 15-91 Manuale utente

Singer

Singer SE300 Manuale utente

Singer

Singer 1375A1 Manuale utente

Singer

Singer 2623 Manuale utente

Singer

Singer 2802 - LIST OF PARTS SEWING MACHINE Manuale utente

Singer

Singer 140W1 Guida rapida

Singer

Singer Simple 2263 Manuale utente

Singer

Singer Confidence Quilter 7469Q Manuale del proprietario

Manuali Macchina da cucire popolari di altre marche

Riccar

Riccar RL634DE Manuale utente

Pfaff

Pfaff 3307-1 SERIES Manuale utente

Janome

Janome Quilt Maker Pro 18 VERSA Manuale utente

Siruba

Siruba C007JP Manuale utente

Husqvarna Viking

Husqvarna Viking Designer SE Manuale utente

IKEA

IKEA SY Manuale utente

Pfaff

Pfaff 571 Manuale utente

Brother

Brother BB370 Manuale utente

Pegasus

Pegasus WT100 Series Manuale utente

Reliable

Reliable 7100DB Manuale utente

Pfaff

Pfaff 937 Manuale utente

Pfaff

Pfaff 1471 E1 Manuale utente

Kenmore

Kenmore 16677 - Serger Sewing Machine Manuale utente

HIGHLEAD

HIGHLEAD GC2008-M Manuale utente

Brother

Brother BE-1204C Manuale utente

JUKI

JUKI MO-104 Manuale utente

Bernina

Bernina Quilting Frame Manuale utente

Brother

Brother 885-V14 Manuale utente
