C2000-A2-SMD4240-AF5
User Manual
Wi-Fi ⇋ 2AI + 4DI + 4DO
0-20mA / 16bit
Remote I/O Module — Wi-Fi I/O Module
SinoCon Co., Ltd.
Copyright Notice
©2000 - 2020 SinoCon Co., Ltd. All Rights Reserved.
Trademarks
The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in
this manual belong to their respective manufacturers.
Disclaimer
This document only provides information about KonNaD products. No license to any intellectual property
rights is granted by this document, including any intellectual property licenses, expressed or implied, or by
any means. SinoCon assumes no responsibility other than the liability stated by SinoCon in the terms and
conditions of sale of its products and SinoCon makes no warranties regarding the sale or use of KonNaD
products, including the suitability for the specific use of the products, and marketability, and SinoCon doesn't
guarantee that it won't infringe any patent, copyright or other intellectual property rights, etc.
Information in this document is subject to change without notice and does not represent a commitment on
the part of SinoCon.
Contact US
SinoCon Co., Ltd.
Address: 16th Floor, Tower A, Zhongyin Building, Caitian Road, Futian District, Shenzhen, China
Web: www.sinoconsys.com
Tel: +86 0755-88865168
C2000-A2-SMD4240-AF5 User Manual
3 / 12
SinoCon Co., Ltd. www.sinoconsys.com
C2000-A2-SMD4240-AF5 User Manual
4 / 12
SinoCon Co., Ltd. www.sinoconsys.com
1. Hardware Description
1.1. Specifications
Classification Parameter Specification
Ethernet Protocol Mode Support TCP Server/Client Mode
Max. No. of TCP Connections 6
Wireless
Parameters
Wireless Standard 802.11b/g/n
Networking Mode AP/STA
Communication Mode 2.4G WiFi
Antenna Connector Standard SMA female antenna interface,<br
/>characteristic impedance 50Ω
Downstream
Serial Port
Serial Standard RS485
No. of Ports 1
Connector Terminal block
Cascade
Connection/Transparent
Transmission
RS485 cascade connection
Baud Rate 1200~115200bps
Communication Distance 1200m
Analog Input AI Channels 2
Connector Terminal block
Acquisition Range 0-20mA
Acquisition Accuracy 1‰
Resolution 16 bit
Acquisition Characteristics Differential input
Acquisition Frequency 10Hz
C2000-A2-SMD4240-AF5 User Manual
5 / 12
SinoCon Co., Ltd. www.sinoconsys.com
Channel-to-Channel Isolation 350VDC
Input Impedance 150Ω
Digital Input DI Channels 4
DI Connector Terminal block
Input Type Dry contact
DI Mode Logic level & pulse count
Digital Filtering Time Interval 6 sample periods
Counter Frequency 1kHz
Logic Logic 0: Open ; Logic 1: Short 。
Digital Output DO Channels 4
DO Connector Terminal block
DO Type Form A
DO Mode Logic level & pulse
Contact Capacity 30V/1.6A
Power Input Voltage 9~27VDC
Current 80mA@12VDC
Other
Parameters
Support DNS ✓
Physical
Characteristics

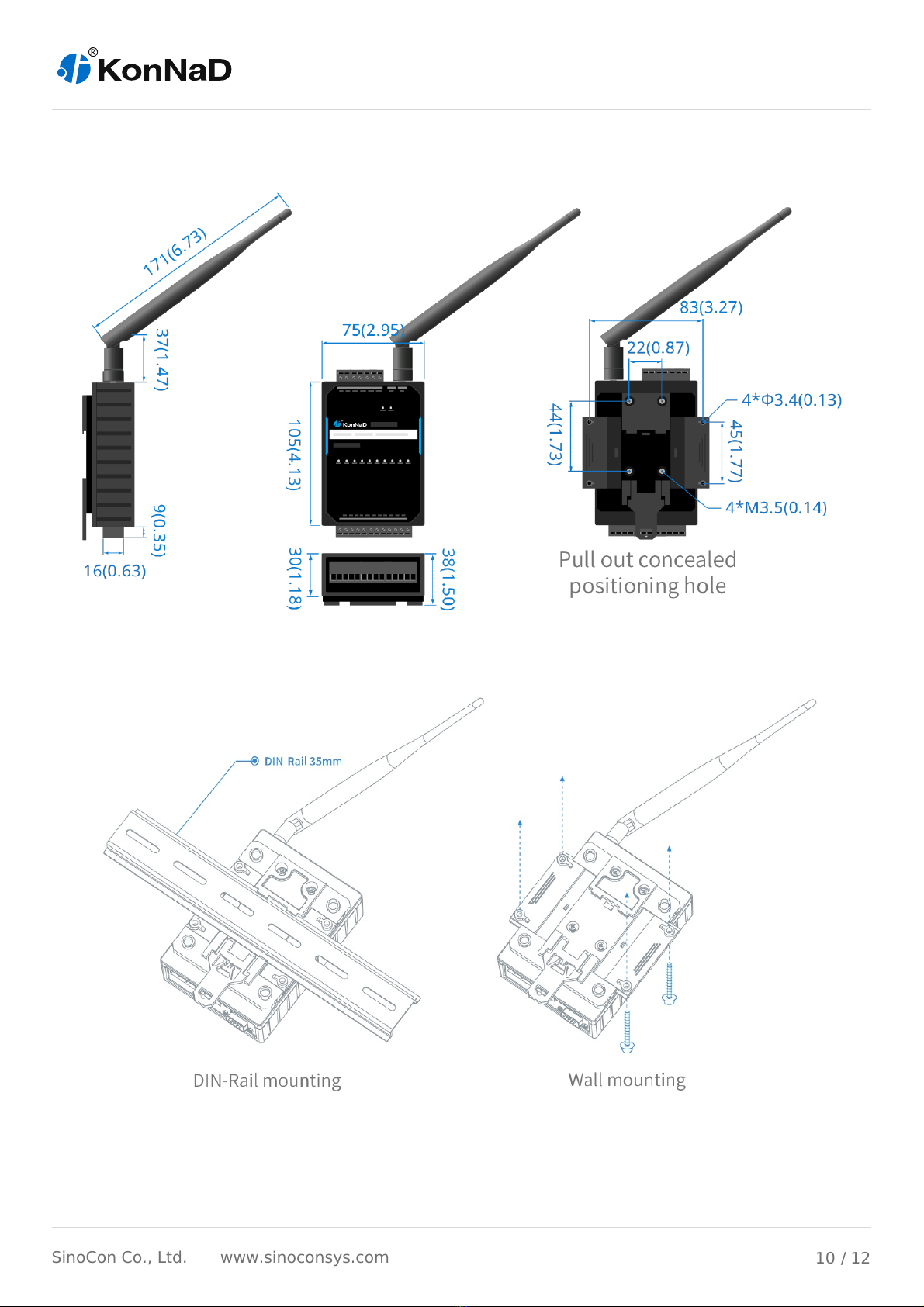

Dimensions 75*105*30mm+171*37mm
Installation Din-rail or wall
Environmental
Limits
Operating Temperature -40℃ ~ 85℃
Storage Temperature -60℃ ~ 125℃
Ambient Relative Humidity 5% ~ 95% RH, non-condensing
Classification Parameter Specification
C2000-A2-SMD4240-AF5 User Manual
6 / 12
SinoCon Co., Ltd. www.sinoconsys.com

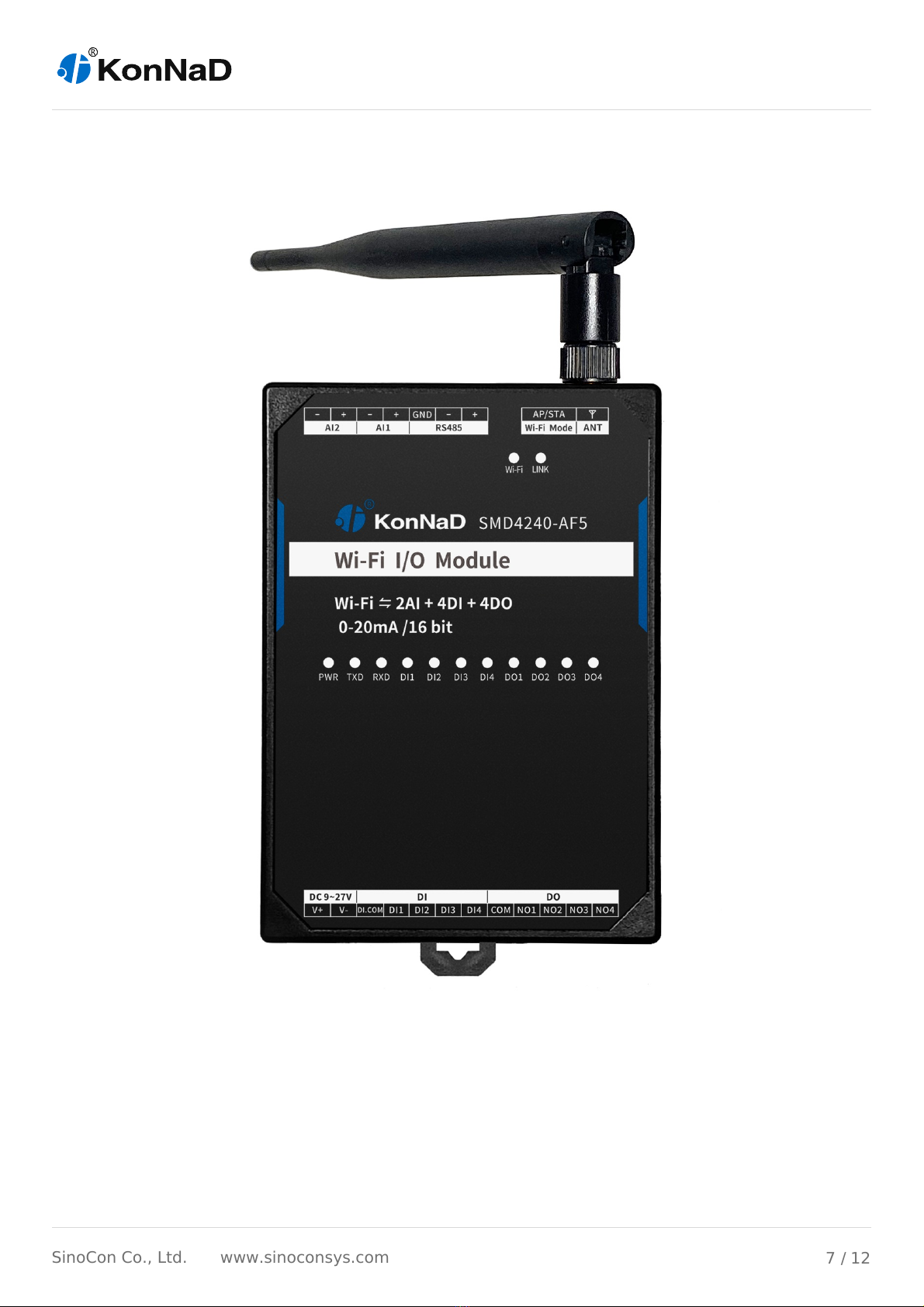

1.3. Indicators
Classification Indicator Description Meaning
Digital Input DIx Digital input
indicators (dry
contact)
Steady on：Short to GND
Off：Open
Digital Output DOx Digital input
indicators
Steady on：On
Off：Off
Downstream
Serial Port
RXD RS485 data
receive indicator
Steady on：RS485 line fault, please check if the
positive and negative poles of 485 line are
reversed
Flashing：RS485 receiving data
Off：RS485 no receiving data
TXD RS485 data
transmit
indicator
Flashing：RS485 transmitting data
Off：RS485 no transmitting data
Power PWR Power indicator Steady on：Normal power supply
Off：No power or abnormal power supply, please
check if the voltage range is 9~27VDC
Ethernet LINK TCP status
indicator
：
Wireless
Parameters
Wi-Fi Wi-Fi mode
indicator
Steady on：AP mode
Slow flashing：STA connecting
Fast flashing：STA connected
C2000-A2-SMD4240-AF5 User Manual
8 / 12
SinoCon Co., Ltd. www.sinoconsys.com
1.4. Port Description
Classification Port Description Recommended
wiring
Analog Input +、- Positive analog input, Negative analog input RVV 2*0.5
Digital Input DIx Digital input RVV 2*0.5
DI.COM Dry input common, not in common ground with the
power supply
RVV 2*0.5
Digital Output NO Digital output normally open RVV 2*1.0
COM Digital output common RVV 2*1.0
Upstream
Serial Port
+、-、
GND
RS485+, RS485-, GND（upstream）RVSP 2*0.5
Wireless
Parameters
AP/STA Short press to switch AP/STA and long press to
restore default settings
-
Power Input V+、V- Power supply input positive, power supply input
negative
RVV 2*1.0
C2000-A2-SMD4240-AF5 User Manual
9 / 12
SinoCon Co., Ltd. www.sinoconsys.com
