Sionyx OPSIN DNVM1 Manuale utente
QUICK START GUIDE
INCLUDED OPSIN | Eye Cup | Eye Bumper | Swing Arm
Battery | Battery Charger with International Plug Adapters
Power Cable | Adjustment Tool Kit | MOLLE Carry Bag
Helmet Mounting Kit
Register your device and stay up to
date by visiting the URL or scanning
the QR code below.
ONLINE CHAT
SUBMIT A TICKET
24/7 SUPPORT
www.sionyx.com
www.sionyx.com/contact
www.support.sionyx.com
www.sionyx.com/register
NEED HELP?
REGISTER YOUR DEVICE
Share your SIONYX content and
be sure to tag us!
FOLLOW US

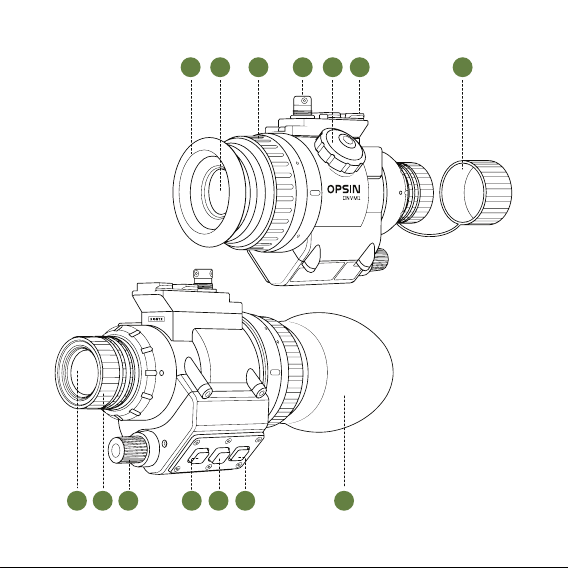

Lens
Lens Cap
Lens Focus
SD Card Compartment Cover
Camera Power Connector
Mini Rail
Eyepiece
Eyepiece Focus
Eyepiece Bumper
Eyecup
Power Switch
+ Screen Brightness Control
Front Button
Center / OK Button
Rear Button
A
B
C
D
E
F
G
H
I
J
K
L
M
N
Quick Release Lock Screw
Quick Release Button
Adjustment Screw
Dovetail Rail
O
P
Q
R

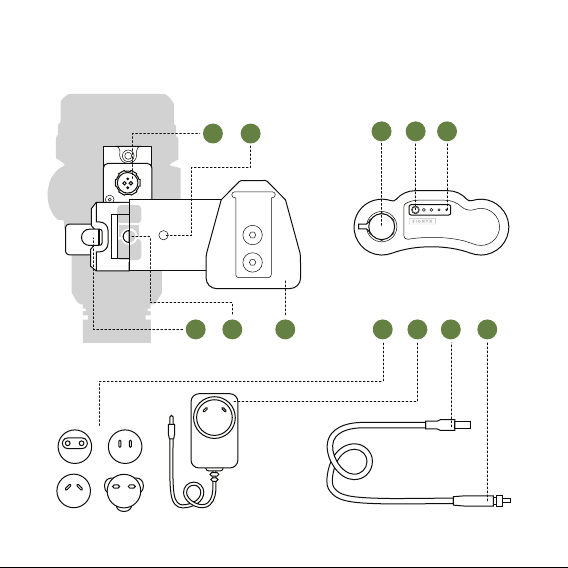

Power Connector
Battery Level Button
Battery Level Indicator LED
Camera Cable Connector
Battery Cable Connector
AC Battery Charger
AC Battery Charger Adapter Kit
S
T
U
V
W
X
Y
OPSIN SWING ARM
BATTERY
PARTS LEGEND
L MKA C N
GI D F BEH
J
OPSIN
O RP
E
SWING ARM
QS T U
BATTERY
V WXY
FRONT BUTTON
CENTER BUTTON
REAR BUTTON
Start / Stop Video Recording
Enter General Settings Menu
Adjust Refresh Rate (FPS)
Take Still Image
Zoom (1x - 2x -3x)
Adjust Exposure Value (EV)
FRONT
CENTER
REAR
BUTTON SHORT PRESS LONG PRESS
Focus on Previous Menu Item
If no submenu exists: Set Current Value
If submenu exists: Go To Next Submenu Level
Focus on Next Menu Item
FRONT
CENTER
REAR
BUTTON SHORT PRESS LONG PRESS
-
Exit Settings
-
CAPTURE / GENERAL MENU BUTTON FUNCTIONALITY
BASIC BUTTON FUNCTIONALITY
Assemble appropriate flip mount, mating the connector if necessary.
Align the mini rail receiver of the swing arm to the mini rail on OPSIN.
Depress lever on the swing arm and slide straight back until the arm locks into place.
Use the set screw to adjust interpupillary distance as needed.
To remove the swing arm from OPSIN, press the quick release button and slide
swing arm o.
1
2
3
4
5
Insert the barrel connector into the battery receiver.
Turn the screw collar finger tight.
Align the witness mark on the cable with the witness mark on OPSIN.
To disconnect the power cable, pull up on the connector metal collar.
1
2
3
4
CONNECT BATTERY TO CAMERA
Select proper AC adapter and attach to battery charger.
Plug battery charger into battery.
Plug in AC adapter to electrical outlet.
Charge the battery until the LED indicator turns green, indicating full charge.
1
2
3
4
CHARGE BATTERY PACK
ASSEMBLE SWING ARM
Connect camera to the battery pack.
Turn the power switch counter-clockwise (past click) to power the camera on.
Continue turning switch to adjust viewfinder brightness.
Turn the power switch clockwise (past click) to power camera o.
1
2
3
4
1
2
POWER CAMERA ON
ADJUST FOCUS + DIOPTER
Turn the diopter adjustment to focus the viewfinder until the on-screen menu
appears sharp.
Turn the lens focus to optimize the image sharpness of the scene.
WARNING
Failure to properly set up, use, and care for this product can increase the risk of
serious injury, death, property damage, or damage to the product or related
accessories. Exercise caution when using a SIONYX product as part of your active
lifestyle. Always be aware of your surroundings to avoid injury to yourself and others.
All product, product specification, and data are subject to change without notice to
improve reliability, function, design, or otherwise. Visit SIONYX.COM for up-to-date
documentation.
Product shall be used in accordance with all manufacturing instruction and limits.
Read all provided documentation, and keep it for future reference.
Follow all instructions and heed all warnings.
Properly install, use, and maintain all power and data cable as per manufacturing
specification.
Only use attachments and accessories specified and/or approved by SIONYX.
SIONYX OPSIN is designed to be serviced only by qualified service personal.
Visit SIONYX.com for more information.
Use, maintain, and store battery in accordance with manufacturing instructions.
1
2
3
4
5
6
7
WARNING
R2
Printed in INDONESIA
1AG6P1P7367-A
FULL USER MANUAL
EN Full Documentation
FR Documentation Complète
IT Documentazione Completa
SP Documentación Completa
DE Vollständige Dokumentation
Aim your cellphone camera at the QR code
to download the full OPSIN User Manual.
We believe that human endeavor should not be limited by daylight.
In the darkness of night, greatness is possible. Adventure enabled.
And a full sense of all sight achievable, no matter the light.
THIS IS SIONYX.
