Sioux Tools 1464 Manuale utente

SIOUX

TOOLS

INC.

Form

A221

Dated

I89

2901 FLOYDBOULEVARD

SIOUXCITY.IOWA

102

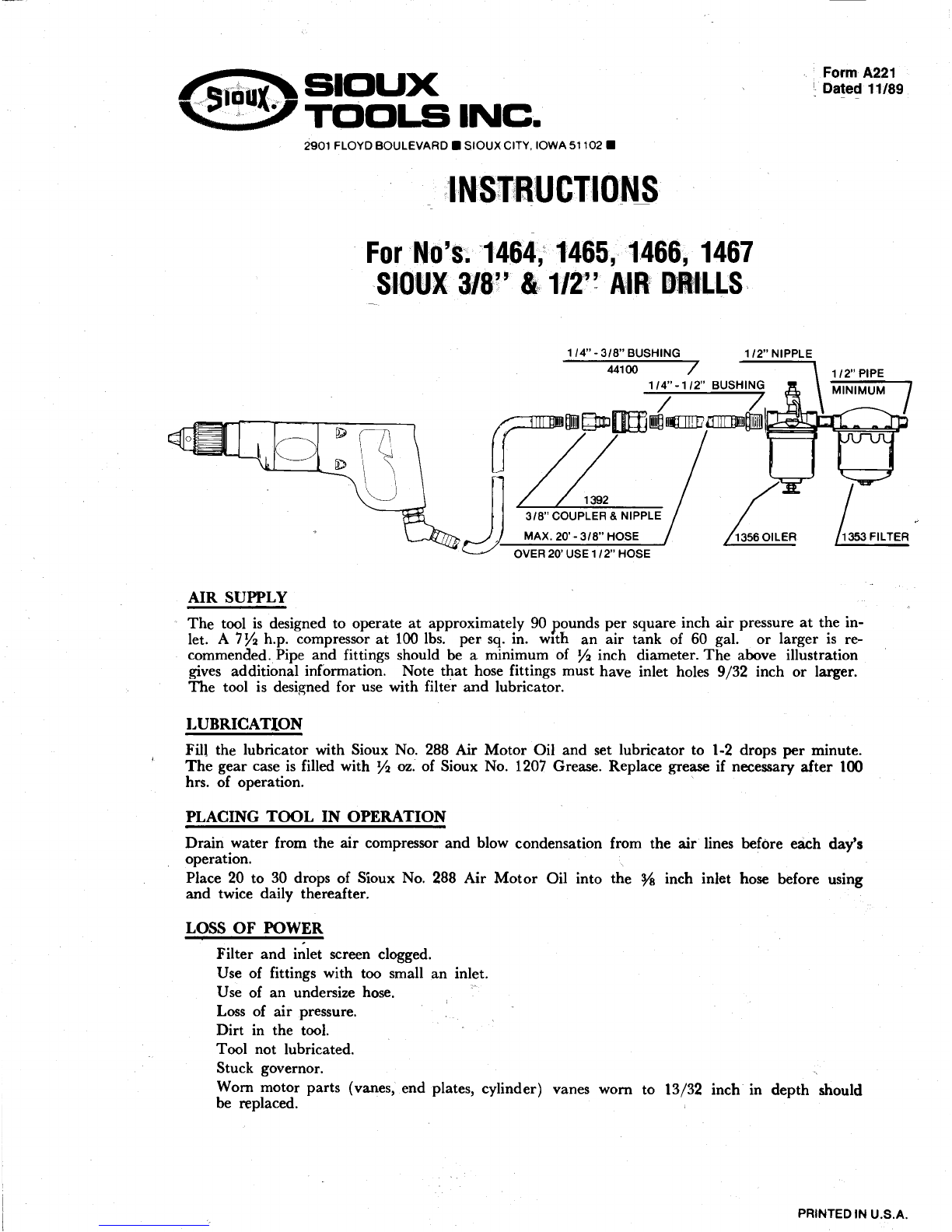

INSTRUCTIONS

For

No's.

1464; 1465, 1466, 1467

SIOUX 318"

112"

AIR

DRILLS

114"

318"

BUSHING 1

NIPPLE

318"

COUPLER

NIPPLE

AIR SUPPLY

The tool is designed to operate at approximately

pounds per square inch air pressure at the in-

let.

h.p. compressor at

100

lbs. per sq. in. with an air tank of

gal. or larger is re-

commended. Pipe and fittings should

minimum of

inch diameter. The above illustration

gives additional information. Note that hose fittings must have inlet holes

9/32

inch or larger.

The tool is designed for use with filter and lubricator.

LUBRICATION

Fill the lubricator with Sioux No.

288

Air Motor Oil and set lubricator to

1-2

drops per minute.

The gear case is filled with

1/2

oz.

of Sioux No.

1207

Grease. Replace grease if necessary after

100

hrs. of operation.

PLACING TOOL IN OPERATION

Drain water from the air compressor and blow condensation from the air lines before each

day's

operation.

Place

drops of Sioux No.

288

Air Motor Oil into the

inch inlet hose before using

and twice daily thereafter.

LOSS

POWER

Filter and inlet screen clogged.

Use of fittings with too small an inlet.

Use of an undersize hose.

Loss of air pressure.

Dirt in the tool.

Tool not lubricated.

Stuck governor.

Worn motor parts (vanes, end plates, cylinder) vanes worn to

13/32

inch in depth should

be replaced.

PRINTED

U.S.A.

This pdf incorporates the following model numbers:

DR1467
