This feeder is designed for feeding an average hog

from about 40 pounds up to about 250 pounds. Some

different breeds of hogs might require modifications,

different feed flow adjustments, or different feeding

techniques for this feeder to do its job properly.

Contact your Sioux dealer if you have any questions.

STEP #1 Check the parts against the packing list. Any claims for damage in shipping

should be made with the delivering carrier immediately. Any shortage claims against

the packing list should be made to Sioux Steel Co. promptly. When ordering repair

parts please use the correct part number as shown on the packing list.

STEP #2 If the taper hopper has not already been bolted to the bottom assembly,

position it so that the twelve holes on the taper hopper line up with the twelve holes

on the inner band. The taper hopper should be placed outside the inner band/drain

channel assembly. Use 1/4 x 5/8 hex head bolts and 1/4 flange nuts (heads to the

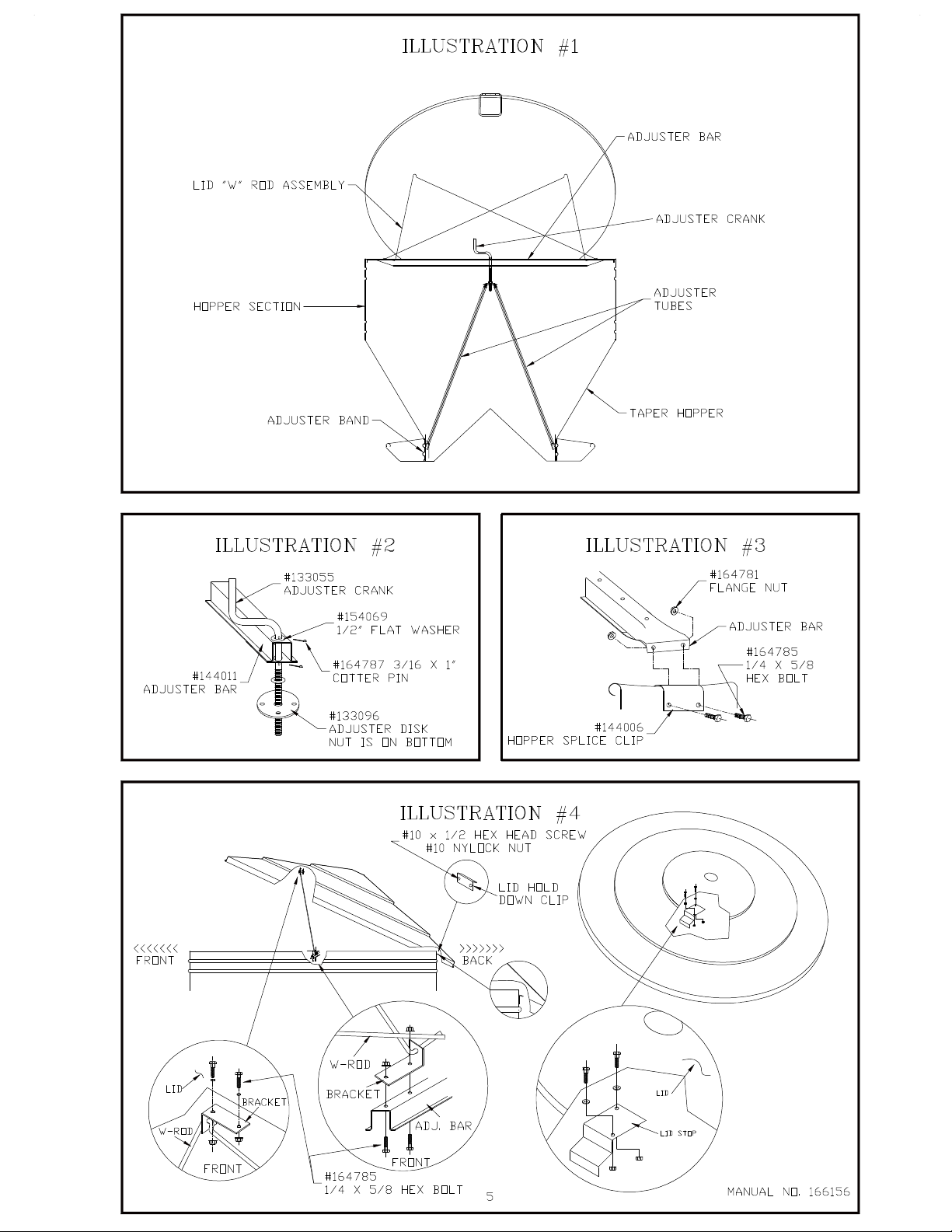

outside). Refer to illustration #1 for part identification.

STEP #3 Install the (4) adjuster tubes (166173). IMPORTANT – Attach each tube to

the adjusting band with 5/16 lock nuts and 5/16 flat washers as seen in illustration #7.

At this point DO NOT tighten these nuts. Attach the tops of the adjuster tubes to the

adjuster disk with 5/16 lock nuts – make sure the concave side of the disk is up. Be

cautious not to over-tighten these nuts. Do not assemble the adjuster crank at this

time.

STEP #4 The hopper rings are pairs of sections which should be assembled into

rings before being set on the taper hopper.

Hopper Extension Assembly

Assemble the two hopper extension sections together with 1/4 x 5/8 bolts and 1/4

flange nuts in all except the top and bottom holes of the vertical seams. Lap the ends

together according to illustration #8 and any markings on the sections. Position the

completed extension ring over the taper hopper with the fold down. Position the

vertical seam on the extension hopper to the front (between the skids). Secure the

extension ring to the taper hopper with 1/4 x 5/8 bolts and 1/4 flange nuts.

Main Hopper Extension Assembly

Position the hopper splice over the main hopper section rolled ends and secure the

front hopper section to the rear section with the 1/4 x 5/8 bolts and 1/4 flange nuts in

all the holes of the vertical seam except the bottom holes. The sections are lapped

together according to illustration #8, with the hemmed edge down. Position the main

SUPREME FEEDER

MANUAL NO. 166156

REV D / 07-13-17 ECN 17-135

STEEL COMPANY

12 DOOR HOG FEEDER

ASSEMBLY INSTRUCTIONS

hopper assembly onto the extension hopper assembly so that the section with the hole

for the lid lock (1 hole) is toward the front of the feeder (this is the side the step will

be attached & the side the feeder will be filled from). Secure the main hopper to the

extension hopper with 1/4 x 5/8 bolts and 1/4 flange nuts. Attach the lid lock to the

front hopper section loosely with a #10 x 1/2 locking screw & #10 hex nut; do not

over-tighten, the lid lock must swing freely. Attach the lid hold down clip directly

opposite the lid lock with two (2) 1/4 x 5/8 hex bolt and 1/4 flange nuts.

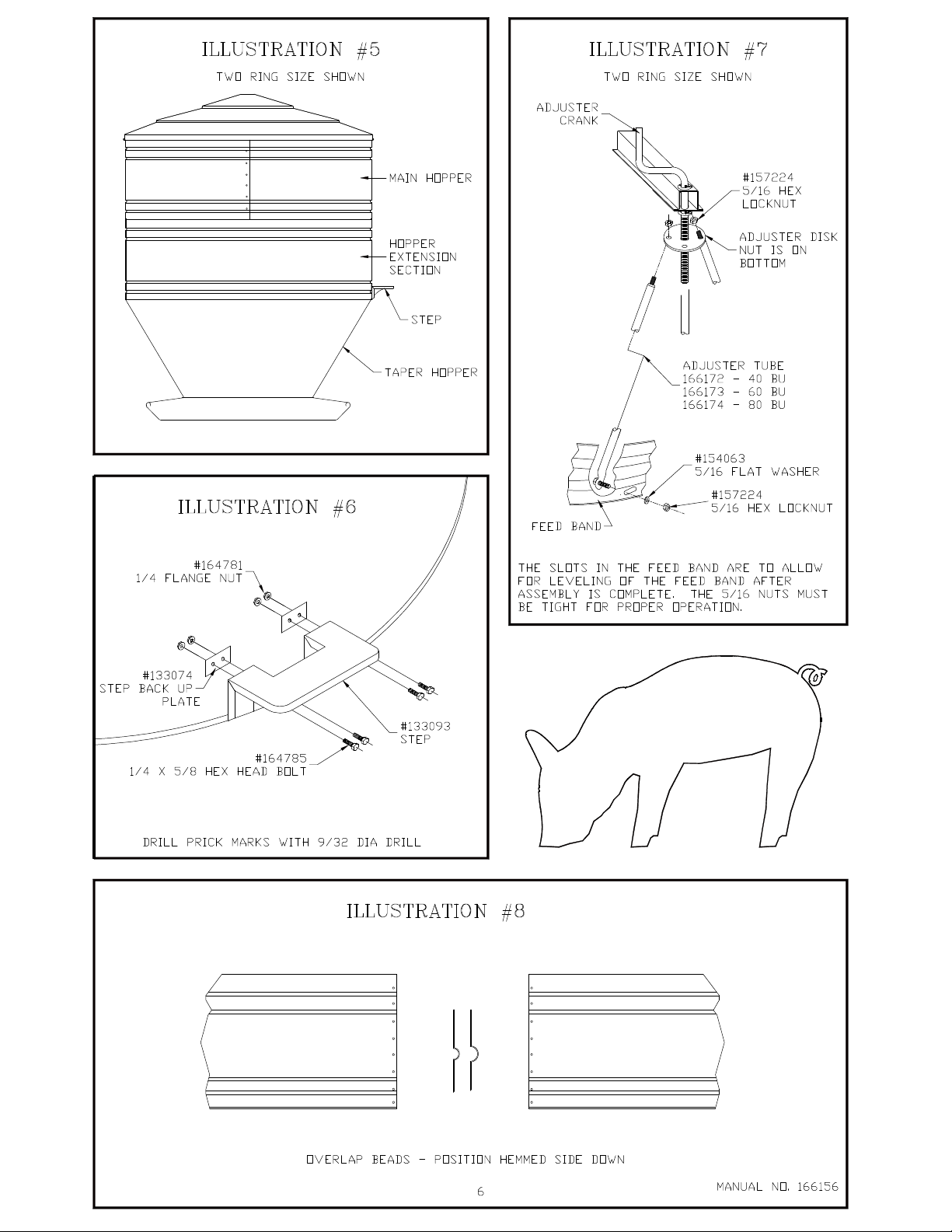

Attach step as shown in illustration #6 using 1/4 x 5/8 hex bolts, and 1/4 flange nuts.

If holes are not provided for the steps, holes must be drilled (9/32 diameter). Prick

marks are provided at four (4) spots around each hopper ring for this purpose.

STEP #5 Assemble the adjuster crank to the adjuster bar with 1/2 flat washers and

3/16 x 1 cotter pins as shown in illustration #2. Thread the adjuster crank down into

the adjuster disk about 1". Position the ends of the adjuster bar in line with the

hopper splice clips and secure each end with 1/4 x 5/8 hex head bolts and 1/4 flange

nuts. Turn the crank to make sure the feed adjusting band moves up and down its

entire range freely. It is usually best to leave the threads of the adjuster crank

ungreased. Dust and feed tend to build up on the greased threads and in time forms a

gummy deposit that interferes with the adjustment.

STEP #6 Attach the lid stop to the top lid using 1/4 x 5/8 hex head bolts, 1/4 flange

nuts and 1-1/4 flat washer (flat washer & bolt head on top). Attach the lid w-rod to

the top lid using 1/4 x 5/8 bolts, 1/4 flange nuts as shown in illustration #4. Position

the lid over the main hopper according to illustration #4, raise the front by the handle,

and slide the lid back until it is held by the lid stop. With the top lid in the open

position attach the lid w-rod brackets to the adjuster bar using 1/4 x 5/8 hex head

bolts, 1/4 flange nuts. See illustration #4.

STEP #7 Make sure the feed band is completely flat against the bottom of the feeder

and tighten the 5/16 lock nuts. See illustration #7.

STEP #8 For standard ground feeds and for pigs weighing about 100 pounds the

suggested starting feed band adjustment height is 1-1/8. Adjust up or down from this

starting adjustment to suit your operating conditions.

In normal operation when the feeder is level the depth of feed in all openings is

approximately the same. If the feeder cannot be leveled, or if it is desired to change

the feed depth on any particular side of the trough, washer(s) may be inserted

between the adjuster tubes and the adjuster disk to tilt the feed adjusting band in the

desired direction.

142002 142702 142802 142902

PART NO. DESCRIPTION 60 BU. L/LID L/DOOR L/LID&DR

142051 BOTTOM ASSEMBLY W/DOORS 1 1 0 0

142054 BOTTOM ASSEMBLY L/DOORS 0 0 1 1

147022 TAPER HOPPER ASSEMBLY 1 1 1 1

168964 HARDWARE BAG 1 1 1 1

144026 LID ASSEMBLY 1 0 1 0

144009 W-ROD ASSEMBLY 1 0 1 0

144011 ADJUSTER BAR ASSEMBLY 1 1 1 1

144044 FRONT HOPPER w/DECALS 1 1 1 1

144018 REAR HOPPER 1 1 1 1

166173 ADJUSTER TUBE 4 4 4 4

144052 EXTENSION HOPPER 2 2 2 2

SUPREME - 12 DOOR HOG FEEDERS

PACKING LIST

DESCRIPTION

QTY

LID STOP 1

CRANK 1

STEP BACK-UP PLATE 2

STEP 1

ADJUSTER DISC 1

HOPPER SPLICE 2

LID HOLD DOWN CLIP 1

LID LOCK 1

5/16 FLAT WASHER 4

1/2 FLAT WASHER 2

5/16 ELASTIC LOCK NUT 8

#10 ELASTIC LOCK NUT 6

1/4 FLANGE NUT 102

1/4 X 5/8 HEX HEAD BOLT 102

3/16 X 1 COTTER PIN 2

#10 X 1/2 HEX HEAD SCREW 6

SUPREME FEEDER MANUAL 1

DESCRIPTION

QTY

STEP 1

STEP BACK-UP PLATE 2

1/4 X 5/8 HEX BOLT 46

1/4 FLANGE NUT 46

5/16 ELASTIC LOCK NUT 8

5/16 FLAT WASHER 4

164781

133074

164785

133093

157224

154063

166156

PACKING LIST CONTINUED:

168964 BASIC HARDWARE BUNDLE 60 BU

PART NO.

133044

133055

133074

144006

164781

164785

154063

164787

PART NO.

133093

133096

144014

157936

#168966 EXTENSION HARDWARE BUNDLE - NEW STYLE

154069

157224

159627

168056

{00506133.3}

NEW PRODUCT WARRANTY

LIVESTOCK EQUIPMENT

LIMITED WARRANTYFOR NEW SIOUX STEEL COMPANY PRODUCTS

A. GENERAL PROVISIONS. “Sioux Steel” means Sioux Steel Company, 196 1/2 East Sixth Street, Sioux Falls, South Dakota 57104. The warranties

described below are provided by Sioux Steel to the original purchasers of new products purchased from Sioux Steel or from an authorized Sioux Steel

Dealer (the “Products”). Under these warranties, Sioux Steel will, at its option, repair or replace at its factory any Product covered under these

warranties which is found to be defective in material and workmanship during the applicable warranty term or refund the purchase price paid for the

defective Product. Customer will be responsible for labor charges for removing the defective Product and reinstalling the repaired or replacement

Product, any premium charge for overtime labor requested of Sioux Steel and shipping charges to and from Sioux Steel’s factory. These warranties are

not transferrable.

B. WARRANTY PERIOD. Subject to exclusions and limitations set forth herein, each new Product is warranted for the number of years specified

below. Each warranty term begins from the date of purchase regardless of delay in receipt of the Product by Customer due to the time required to

process, handle, ship, assemble, construct and install the Product. Customer must retain proof of the date of purchase. Replacement parts for and

repairs to the Product will be warranted only for the remainder of the original warranty term. The replacement parts for or repairs to the Product will not

extend the warranty term beyond the original warranty term. Products described below include all parts, components and accessories.

LIVESTOCK EQUIPMENT

All Poly Products 2 years

Post Puller/Pounder Consumer Use 1 Year

Commercial or Government Use 6 Months

All Other Livestock Equipment, including Bulk Bins 1 Year

Exclusions specific to Livestock Equipment: Damage or loss of any kind from (1) storage of feed products that are not free-flowing or that have a

density greater than 40 pounds per square foot; and (2) the storage of materials other than free-flowing livestock feed.

C. ITEMS COVERED SEPARATELY. The Sioux Steel warranties do not cover any parts, components or materials that are part of the Product, or

used in conjunction with the Product, that are not manufactured by Sioux Steel. Such parts, components and materials will be subject to the warranties

provided by the manufacturer, if any.

D. WHAT IS NOT WARRANTED. Sioux Steel does not warrant and is not responsible for the following: (1) used products; (2) modification or

alteration of the Products; (3) Products that have not been properly installed or not installed in accordance with the instruction manual, improper

assembly, or improper construction by any persons other than Sioux Steel employees; (4) depreciation, damage or loss caused by the use of parts,

components or accessories not provided by Sioux Steel, unauthorized repairs, normal wear, lack of necessary and proper maintenance, a failure to

follow operating instructions/recommendations, misuse, lack of proper protection during storage, vandalism or theft, exposure to the elements or

corrosive materials, accidents or acts of nature including lightning, flooding, hail, straight winds and tornadoes; and (5) cosmetic damage or damage

that does not hinder the functionality of the Products.

E. LIMITATIONS OF WARRANTIES AND CUSTOMER’S REMEDIES. To the extent permitted by law, neither Sioux Steel, the Dealer nor any person

or company affiliated with either of them makes any warranties, representations, conditions or promises express or implied as to the quality,

performance or freedom from defects of the Products covered by these warranties other than those set forth herein. THERE ARE NO IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. NEITHER SIOUX STEEL, THE DEALER, NOR ANY

PERSON OR COMPANY AFFILIATED WITH EITHER OF THEM WILL BE LIABLE FOR ANY DAMAGES, INCLUDING, BUT NOT LIMITED TO,

INCIDENTAL, SPECIAL, EXEMPLARY, CONSEQUENTIAL, LOST PROFITS AND REVENUES, LOST USE OF THE PRODUCTS OR ANY OTHER

PROPERTY, BODILY INJURY OR PROPERTY DAMAGE CLAIMS OF ANY PERSON, LOST COMMODITIES, REMOVAL OR STORAGE COSTS

FOR THE PRODUCTS, OTHER EQUIPMENT AND COMMODITIES, DAMAGE TO THE ENVIRONMENT ARISING FROM OR IN ANY MANNER

RELATED TO ANY RELEASE OF HAZARDOUS MATERIALS, AND REMEDIATION EXPENSES THEREFORE, WHETHER BASED ON CONTRACT,

TORT, STRICT LIABILITY OR ANY OTHER LEGAL BASIS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO INSTANCE

WILL SIOUX STEEL, THE DEALER OR ANY PERSON OR COMPANY AFFILIATED WITH EITHER OF THEM BE LIABLE TO CUSTOMER OR ANY

PERSON IN AN AMOUNT IN EXCESS OF THE PURCHASE PRICE PAID BY CUSTOMER FOR THE PRODUCT.

F. NO DEALER WARRANTY. THE DEALER HAS NO AUTHORITY TO MAKE ANY WARRANTY, REPRESENTATION, CONDITION OR PROMISE

ON BEHALF OF SIOUX STEEL, OR TO MODIFY THE TERMS OR LIMITATIONS OF THIS WARRANTY IN ANY WAY.

G. GOVERNING LAW/VENUE. These warranties, and all terms set forth herein, are governed by the laws of the State of South Dakota and, where

applicable, the laws of the United States of America. Any and all disputes arising from these warranties, the purchase and use of the Products, bodily

injury and property damage claims or otherwise must be venued in the South Dakota Circuit Court sitting in Minnehaha County, South Dakota.

Customer agrees to such venue and waives any challenge to such court’s jurisdiction based upon lack of personal jurisdiction or inconvenience.

H. SECURING WARRANTY SERVICE. In order to receive warranty services, customer must give Sioux Steel written notice of a warranty claim within

30 days of the date of discovery of the defective materials or workmanship, and Customer must complete the following steps:

(1) Obtain from Sioux Steel a Return Goods Authorization Number (“RGA Number”) by calling the Customer Service Department at 1-

800-557-4689, and providing the following information:

¾An explanation as to why the Product is being returned.

¾The name of the territory representative, Dealer or Sioux Steel salesperson from whom the Product was purchased.

¾The Dealer’s identification number.

¾The invoice number and date of purchase.

¾Customer’s name, phone number, fax number, mailing address and email address.

¾The date that the Product will be returned.

(2) Pay the shipping charges to ship the Product to Sioux Steel’s factory, and the return shipping charges.

(3) Ship the Product to Sioux Steel at 196 1/2 East Sixth Street, Sioux Falls, South Dakota 57104.
