SIOUX RO2512 SANDER SERIES

DROP IN MOTOR KIT INSTRUCTIONS

4. Add2-3drops of medium strength threadretaining compound to the threadsof the Lock Ring.

5. Hand tighten the Lock Ring then use the Lock Ring Wrench and a torque wrench to tighten to 200 in-lb (22.5 N-m).

6. Reassemblethe shroud, grip, pad and any vacuum components. ===> Lubricate the motor with with 3-4 drops of

Sioux Air Motor Oil before connecting the sander to the air supply. Operate the sander for 30 seconds to assure

properoperationandtodisperselubricantthroughthemotor.

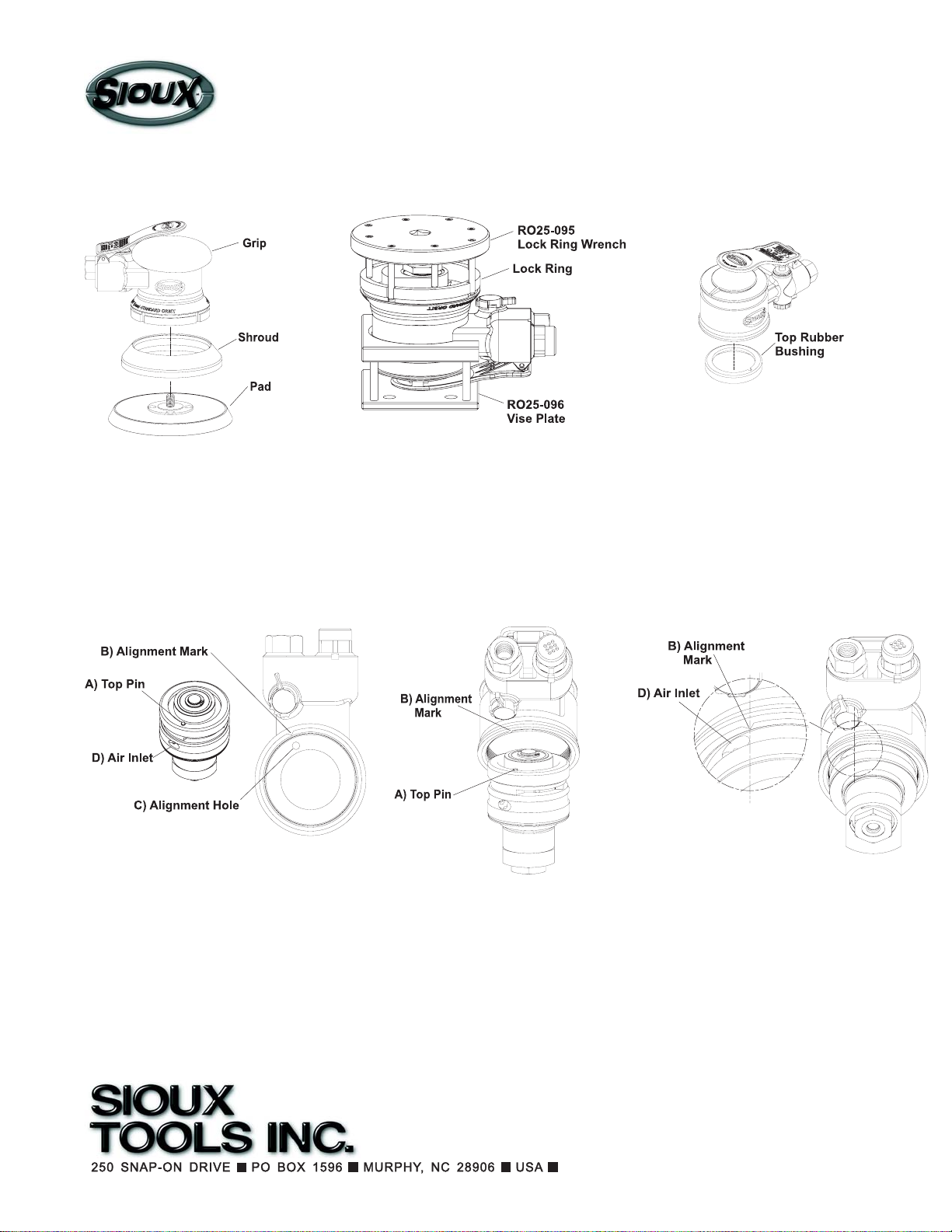

Removing the motor

1. RemoveGrip,Padand

Shroud.

2. Secure Vise Plate by mounting to workbench

or clamping in a vise.

3. Position tool in Vise Plate as shown.

4. Position Lock Ring Wrench on Lock Ring as

shown. Use a 3/8" ratchet to remove Lock Ring.

5. RemoveMotorfromHousingand

removeTopRubberBushingfrom

insideofHousing.

Installing the motor

Important:Clean and inspect all partspriorto assembly. Replace any valve,exhaust,or vacuum components asneces-

sary. Lubricate the motor o-ring and the sides of the top and bottom rubber bushings with Sioux No. 288 Air Motor Oil.

1. Observethetoppinonthemotor

assembly (A), the red alignment mark

onthe housing (B),and the alignment

holeinsidethehousing(C).

2. Align the pin (A) with the

mark (B) and gently insert

the motor into the housing.

3. Theedgeofthemotor’s air inlet (D)

should be tangent with the mark (B).

This pdf incorporates the following model numbers:

RO25-RF, SPRO25-101, SPRO25-102, SPRO25-103, SPRO25-104, SPRO25-105,

SPRO25-106, SPRO25-107, SPRO25-108, RO1512
