Siqura SA-BL37 Manuale utente

Unpack

Connector Definition

Installation Notices Connectors

Drill diagram

Mounting

SA-BL37

2MP Corrosion proof compact bullet, 3.7mm

Quick Start Guide

Find additional manuals, the datasheet,

the EU Declaration of Conformity, and

the latest firmware for this product at:

Siqura.com/downloads/software

SA-BL37 Camera Unit

Note 1: Subject to modification. Actual product and accessories may differ in appearance.

CAUTION:

INSTALLATION SHALL BE PERFORMED BY QUALIFIED PERSONNEL ONLY.

INSTALLATIONSHALL BE IN ACCCORDANCE WITH LOCAL PROCEDURES.

THE CAMERA CONTAINS BATTERIES. DISPOSE OF USED BATTERIESIN

ACCORDANCEWITH LOCAL REGULATIONS.

IF YOU USE AN EXTERNALPOWER SUPPLY, CONTACT SIQURA TO MAKE SURE

THAT THE POWER SUPPLY HAS THE PROPER POWER SPECIFICATIONS.

MAKE SURE THAT THE POWER SUPPLY COMPLIES WITH LPS REQUIREMENTS.

THE CAMERA IS TO BE CONNECTEDONLY TO POE NETWORKSWITHOUT

ROUTINGTO THE OUTSIDE PLANT. For the connector definitions, see table 1.

Version 1.1 (20201119)

SA-BL37 QSG

Table 1 Connector definitions

RJ45 water protection (IP66/67)

Item Description

-45

Ethernet, RJ

-45 port compatible

with 10/100Mbps

PoE Modular Jack

Jack

Main

Power,DC Jack, 12Vdc

:Alarm In

Alarm

input and output, 3pin terminal

: GND

:Alarm Out

MIC

: Audio In

Audio

line input, 2pinterminal

: GND

SPK

:AudioOut

Audio

line output, 2pinterminal

: GND

Upright mount

Ceiling mount

Dimensions in mm.

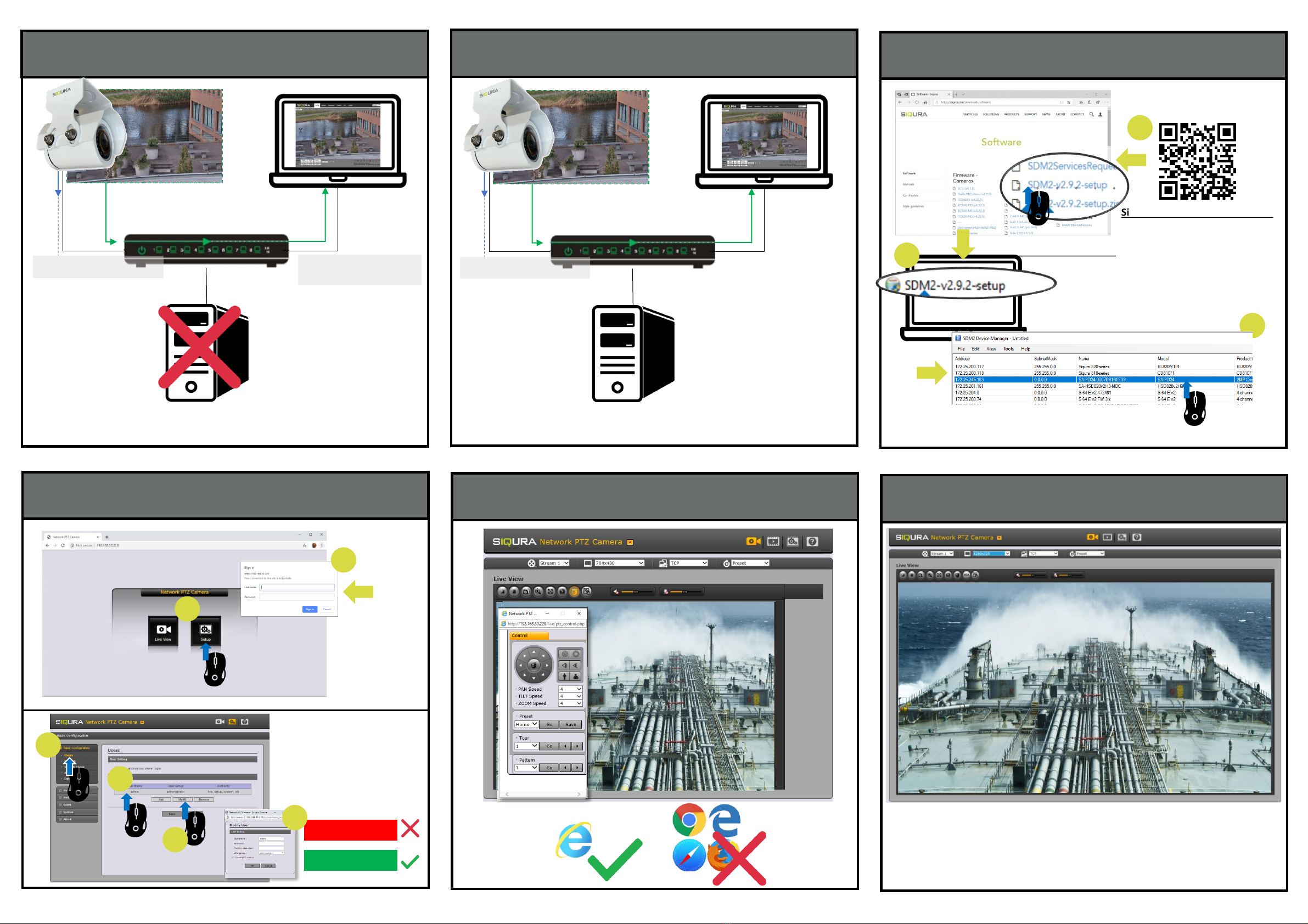

Default IP address Accessing the camera Auto detect with SDM2

1st time camera login Browser-based viewer Browser-based Viewer

IP = dhcp

Network Switch

DHCP

Siqura.com/downloads/software

SDM2-vx.xx-setup.zip

admin

qwer1234

x6W@oM0a!9#

Modify user with

strong password

x6W@oM0a!9#F

IP = 192.168.30.1

Netmask: 255.255.255.0

IP = 192.168.30.220

Network Switch

DHCP
