Sirius Satellite Radio SUPH1 Manuale utente

SUPH1

SIRIUS Plug and Play Home Kit

For use with most newer SIRIUS Plug and Play Receivers

Installation Guide

Congratulations on the Purchase of your new SUPH1 SIRIUS

Plug and Play Vehicle Kit

Your new SUPH1 SIRIUS Plug and Play Home Kit lets you enjoy SIRIUS®Satellite Radio’s

digital entertainment in your home, office, or other location. Use this manual as a guide for the

installation.

The SUPH1 SIRIUS Plug and Play Home Kit will work with most newer SIRIUS plug and play

satellite receivers. See your Plug and Play user manual for specific product compatibility.

For the latest information about this and other SIRIUS products and accessories, visit

http://www.sirius.com.

[Table of Contents ] 3

Table of Contents

TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

WARNING AND SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . 4

Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . . 5

PACKAGE CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installing the Docking Station . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Docking the SIRIUS Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing the Indoor/Outdoor Antenna . . . . . . . . . . . . . . . . . . . . . . . . 9

Connecting the AC Power Adapter . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting the Audio Cable (Recommended). . . . . . . . . . . . . . . . . . . . 12

Selecting an FM Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 13

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

OPTIONAL ACCESSORIES. . . . . . . . . . . . . . . . . . . . . . . . . . . 15

WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

[Warning and Safety Information ]

Warning and Safety Information

Safety Precautions

Be sure to observe the following warnings. Failure to follow these safety instructions and

warnings may result in a serious accident and/or personal injury.

Installation must be performed according to this installation guide. SIRIUS is not respon-

sible for issues arising from installations not performed according to the procedures in this

guide.

Use only the provided AC Power Adapter.

Do not install the unit where it will be exposed to high levels of humidity, moisture, or dust.

To avoid short circuits, do not open the unit, and never put or leave any metallic objects

(coins, tools, etc.) inside the docking station.

If the unit emits smoke or unusual odors, turn the power off immediately, and disconnect

the unit from any power source.

Do not drop the unit or subject it to strong shocks.

The installation and use suggestions contained in this manual are subject to any restric-

tions or limitations that may be imposed by applicable law. The purchaser should check

applicable law for any restrictions or limitations before installing and/or operating this unit.

Warnings

Cleaning and Maintenance

If the docking station becomes dirty, turn the power off and wipe it clean with a soft cloth. Do

not use hard cloths, strong cleaning fluids, paint thinner, alcohol, or other volatile solvents to

clean. These may cause damage to the unit.

•

[Copyrights & Trademarks ] 5

Copyrights & Trademarks

® “SIRIUS”, the SIRIUS dog logo, channel names and logos are trademarks of SIRIUS Satel-

™“Sportster” is a trademark of SIRIUS Satellite Radio.

Hardware, subscription, and activation fee required. For full Terms & Conditions, visit

http://sirius.com. Prices and programming are subject to change. Not available in HI and AK.

Equipment and subscription sold separately. Installation required with some equipment.

[Package Contents ]

Package Contents

The following items are included with your purchase of the SUPH1 SIRIUS Plug and Play

Home Kit. Unpack the kit carefully and make sure that everything shown is present. If anything

is missing or damaged, or if the kit fails to operate properly, notify your dealer immediately. It

is recommended that you retain the original carton and packing materials in case you need to

ship your kit in the future.

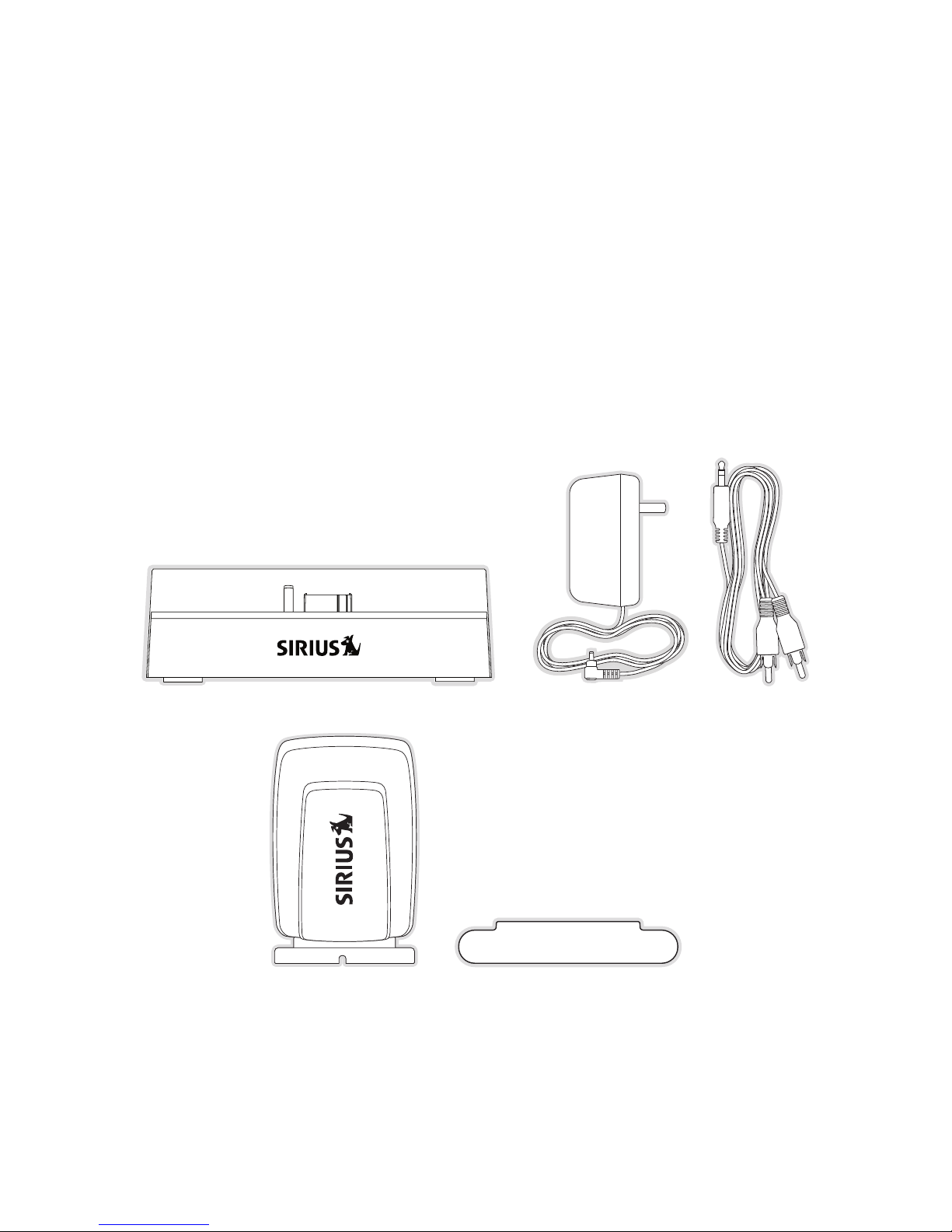

Home Docking StationHome Docking Station Audio CableAudio CableAC AdapterAC Adapter

Indoor/Outdoor AntennaIndoor/Outdoor Antenna Docking Station SpacerDocking Station Spacer

[Controls ] 7

Controls

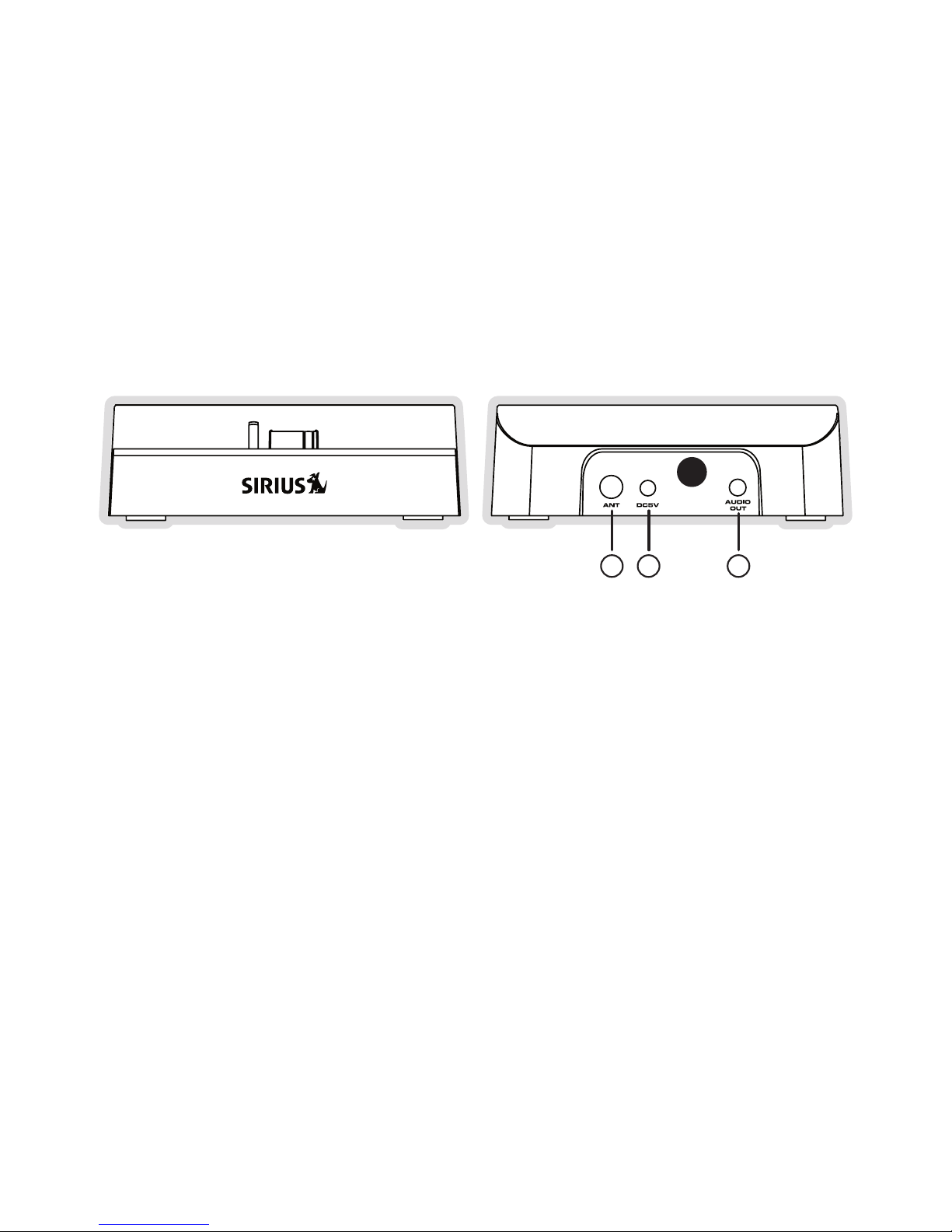

Figure 1 and the section following identify and describe the connectors of the docking station.

1 2 3

ANT Antenna Connector: Connection for the satellite antenna.

DC5V Power Connector: Power connection for the AC Power Adapter.

AUDIO OUT Connector: Audio output connection for connecting to your home enter-

tainment system, if you are not using the FM transmitter.

Figure 1Figure 1

[Installation ]

Installation

Installing the Docking Station

When installing the docking station in your home, choose a location in close proximity to your

home entertainment system, and also where the cable from the indoor/outdoor antenna can

reach the docking station. The location should be easily accessible and provide good visibility

of the display, and should not be located where it will be in direct sunlight which will affect

the visibility of the display screen.

You will also need to decide whether you will be connecting your docking station to your

home entertainment system using the provided audio cable, or whether you will be using the

FM transmitter function to receive the audio using your home FM radio.

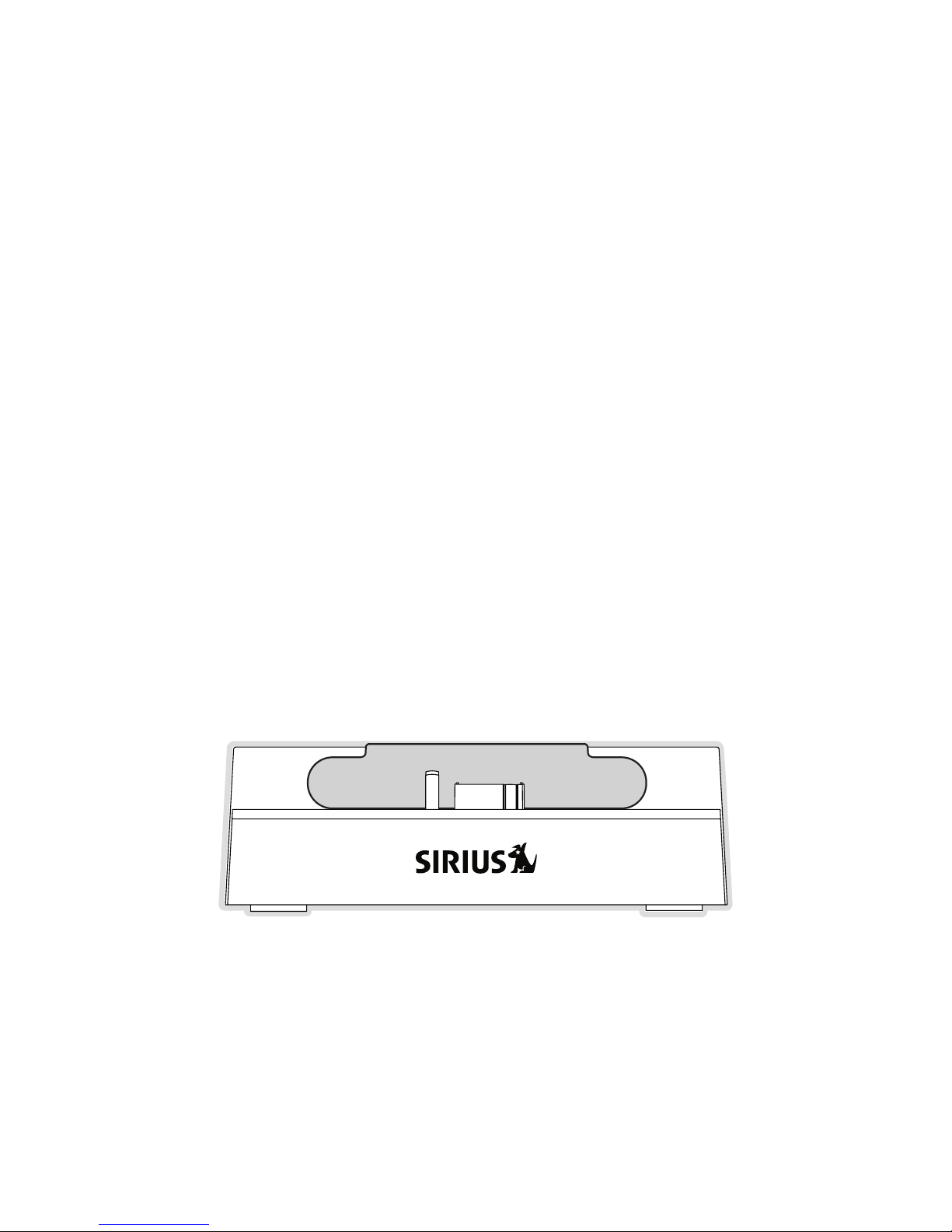

If your receiver is a plug and play model other than the Sportster 3 or Sportster 4, you may

need to install the spacer on the docking station. To install the spacer, peel the backing off

the adhesive strip on the rear of the spacer and position the spacer on the docking station as

shown in Figure 2.

Figure 2Figure 2

[Installation ] 9

Docking the SIRIUS Receiver

Place the SIRIUS receiver into the dock, aligning the connector on the receiver with the con-

nector on the docking station, and gently press the receiver down until it is fully seated in the

dock.

Installing the Indoor/Outdoor Antenna

Before installing the indoor/outdoor antenna, read this entire section.

To ensure consistent reception of the SIRIUS signal in your home, it is important that the

antenna be oriented correctly. Note the following considerations for antenna placement:

BEST reception can be achieved by placing the antenna outside on the roof, with a clear

360 degree view of the sky. This position will afford the best view of the sky for best

reception. When placed in this location, an antenna extension cable may be required.

BETTER reception can be achieved by placing the antenna outside a window, or by

mounting it to the side of the house. In either case, try to achieve the best possible clear

view of the sky.

GOOD reception can be achieved by placing your antenna in a window. Try to achieve

a clear unobstructed view of the sky. If your location is in major metropolitan area, the

antenna may be located inside the home because terrestrial transmitters are used to boost

signal strength.

If you cannot obtain a clear 360 degree view of the sky (Best), then for the Better and Good

installations you must at least have a clear view of the sky in the direction of the SIRIUS satel-

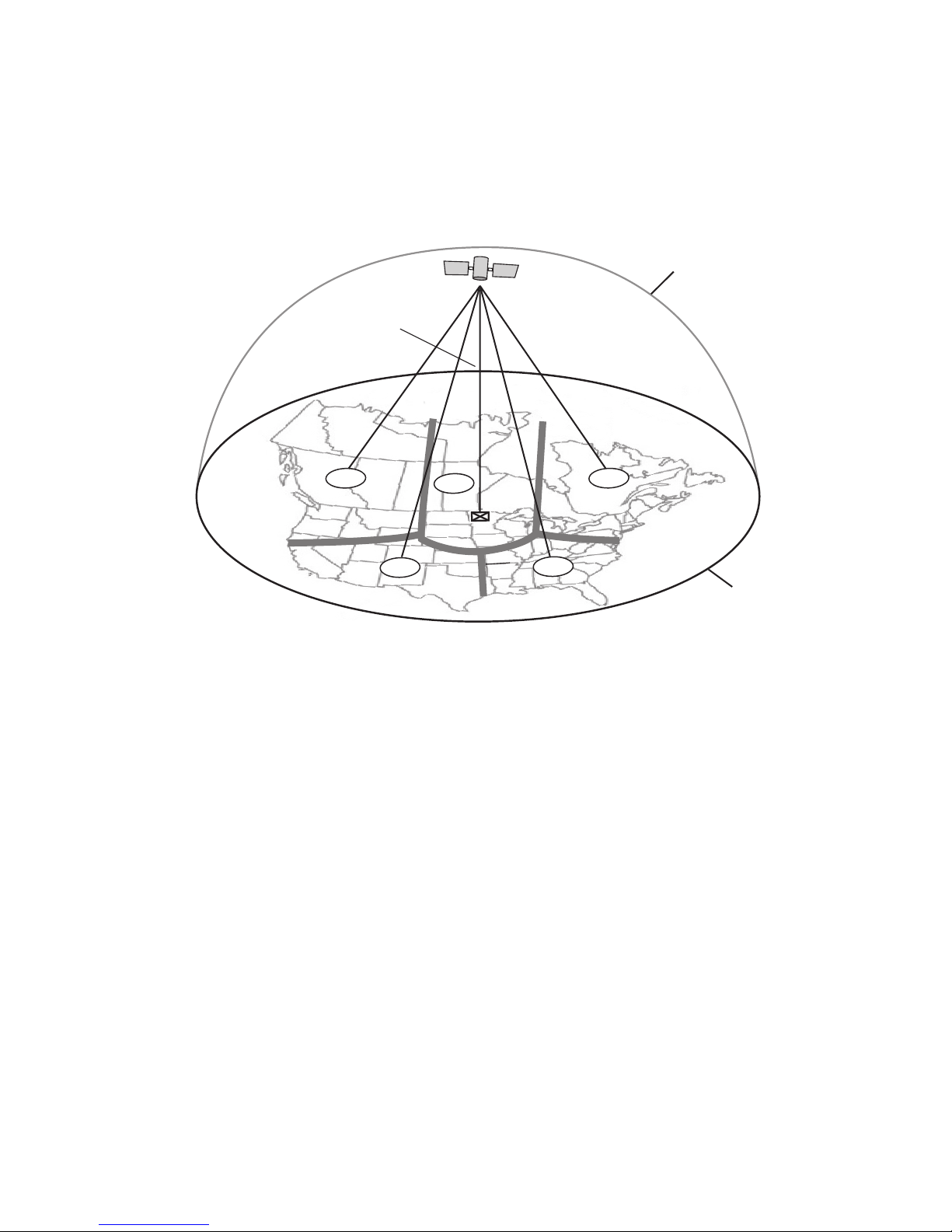

lites, as shown in the following map diagram. (Figure 3)

[Installation ]

HORIZON

SKY

SOUTH

WEST EAST

NORTH

Use the map to find the area you are located in (1to 5). Then find the direction in which you

need to have a clear view of the sky:

Area 1: You will need a location with a clear view of the sky facing EAST or NORTHEAST

or SOUTHEAST

Area 2: You will need a location with a clear view of the sky facing NORTH or NORTH-

EAST

Area 3: You will need a location with a clear view of the sky facing NORTH or NORTH-

WEST

Area 4: You will need a location with a clear view of the sky facing WEST or

NORTHWEST or SOUTHWEST

Area 5: You will need a clear view of the sky facing STRAIGHT UP (Outdoors only)

Choose a mounting location for the antenna which has an unobstructed view of the sky in the

direction for your area.

Figure 3Figure 3
