Six15 Technologies Tac-Eye Manuale utente

Tac-Eye® SMM

(Standard Mobile Monitor)

Six15 encourages customers to read this manual before operating this device.

Tac-Eye SMM User Manual Page 2

TABLE OF CONTENTS

TABLE OF CONTENTS ............................................................................................................. 2

PRODUCT SUMMARY............................................................................................................. 3

FEATURE SET ......................................................................................................................... 3

PRODUCT CONFIGURATIONS ................................................................................................. 4

SMM Module.................................................................................................................................4

SMM Connectors ...........................................................................................................................4

ACCESSORIES ......................................................................................................................... 5

Standard Cable Set.........................................................................................................................5

SIR Cable Set (use with L-3 CSW SIR device) ....................................................................................5

Tac-Eye Battery Pack......................................................................................................................5

USER INTERFACE.................................................................................................................... 6

Keypad ..........................................................................................................................................6

MOUNTING ........................................................................................................................... 7

Velcro Option ................................................................................................................................7

Loop Option...................................................................................................................................7

CLEANING AND CARE............................................................................................................. 8

SAFETY .................................................................................................................................. 8

WARNINGS............................................................................................................................ 8

TROUBLESHOOTING .............................................................................................................. 9

Problems and Solutions..................................................................................................................9

Technical Support ..........................................................................................................................9

SYSTEM SPECIFICATIONS ..................................................................................................... 10

REGULATORY ...................................................................................................................... 10

WARRANTY INFORMATION ................................................................................................. 11

CONTACT INFORMATION ..................................................................................................... 12

Tac-Eye SMM User Manual Page 3

PRODUCT SUMMARY

The Tac-Eye SMM is a low power, portable direct view display system with RCA and

USB connectivity providing a simple interface to other standard equipment. Developed

to support ISR applications, the SMM allows the user to view incoming video on a 5”

display from many composite sources including UAVs, UGVs, IR imagers, and other

remote camera networks such as perimeter security systems. Simple controls allow the

operator to quickly optimize the display to their conditions, with little to no training

required.

FEATURE SET

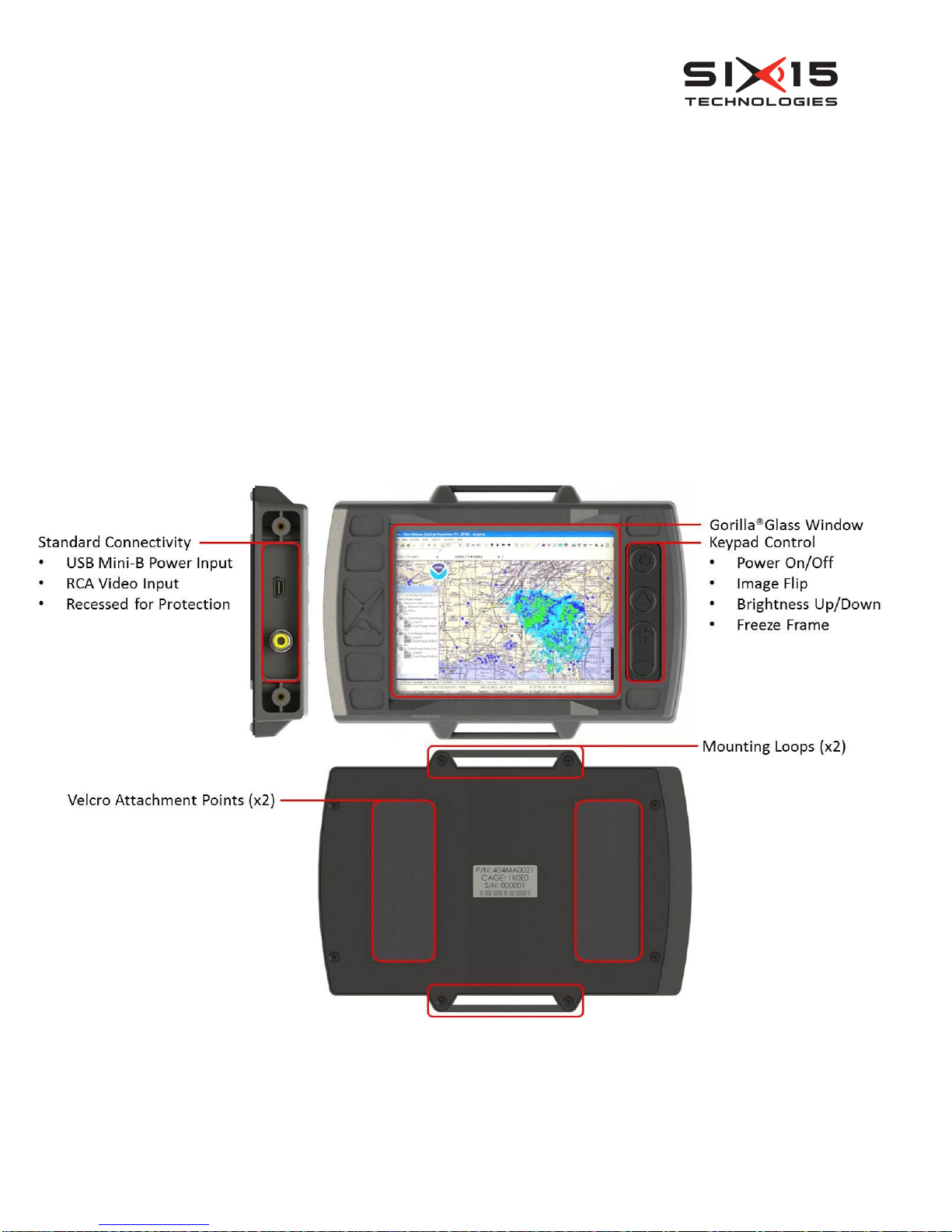

Figure 1: SMM Feature Set

Gorilla is a registered trademark of Corning Incorporated

Tac-Eye SMM User Manual Page 4

PRODUCT CONFIGURATIONS

There are multiple configurations (product / accessories) available from Six15

Technologies; your configuration may be comprised of components listed here.

SMM Module

The SMM is shown in Figure 1 and Figure 2. These figures highlight the feature set and

the physical dimensions of the device.

Figure 2: SMM Dimensions

SMM Connectors

The SMM provides industry standard power and video connectivity in the form of USB

Mini-B and RCA receptacles. The USB connector supports input power per the USB

specification (5V ± 5%) and the RCA connector supports input video from an NTSC

source. Both connectors are recessed in the housing to protect the interfaces. Figure 3

below provides a side view of the SMM, which shows the location of these connectors

within the recess. The USB connector is on the left and the RCA connector is on the

right.

Figure 3: USB Mini-B and RCA Receptacles

Tac-Eye SMM User Manual Page 5

ACCESSORIES

Standard Cable Set

The USB and RCA connections native to the SMM allow for a wide variety of

commercially available cable solutions to be used. Two compatible cables are shown

below in Figure 4 and Figure 5, and many more can be used with the inclusion of

interface adapters like the RCA-BNC converter shown in Figure 6.

Figure 4: RCA Cable

Figure 5: USB Cable

Figure 6: RCA-BNC Converter

SIR Cable Set (use with L-3 CSW SIR device)

A bound 3’cable set (Figure 7) is available for use

with the L-3 CSW SIR device. The video and

power cables each provide the mating connectors

for the SIR and SMM devices so no additional

adapters are necessary. The cables are bound

together with a series of O-rings to simplify cable

management.

Tac-Eye Battery Pack

The Tac-Eye battery pack (Figure 8) is a rugged

power source that provides a regulated 5V output

from two independently selectable banks of CR123

batteries (2 per bank). Power is provided from a

female USB Type-A connector and will power an

SMM for over 14 hours.

Figure 7: SIR Cable Set

Figure 8: Tac-Eye Battery Pack

Tac-Eye SMM User Manual Page 6

USER INTERFACE

Keypad

An illustration of the SMM keypad is shown below in Figure 9. This image shows the

icons on each button for clarity. There are four (4) buttons:

1. Power –This button turns the device off and on. By default, the SMM will turn on

immediately upon connection to a power source. If power is connected, but there

is no video source detected, the SMM will produce a red hashed border on the

display. All configuration modes and settings including image orientation and

brightness levels are saved through power cycles (power button depression or

power connection cycles) and the SMM will always power up in its last

configuration.

2. Image Flip –This button rotates the image 180° allowing the SMM to be

mounted on either side of the body with the cable exits in either direction to

maximize utility and support various usage models.

3. Brightness Up –This button increases display brightness.

4. Brightness Down / Freeze Frame –This button decreases display brightness

with a momentary depression. When held down this button provides a ‘Freeze

Frame’ feature providing the user time to inspect, record, and communicate data.

When in this mode the video frame is outlined by a blue hashed border as visual

feedback that this mode is active. Releasing this button from ‘Freeze Frame’

returns the display to the incoming video stream without decreasing display

brightness.

Figure 9: SMM Keypad

Tac-Eye SMM User Manual Page 7

MOUNTING

Velcro Option

There are two Velcro attachment points

on the rear face of the SMM. These

attachment points, highlighted at right in

Figure 10, include the ‘hooks’ required to

mate to the ‘loops’ found on standard

issue vests, pouches, and other body

worn carriage solutions.

Loop Option

There are two mounting loops on the long

sides of the SMM. These mounting loops

accept straps up to 1.5” wide and can be

used independently to hang the SMM, or

in tandem to bind the SMM in the

intended location. Straps less than 1”

wide and less than 3mm thick can also be

used to mount the SMM to a MOLLE

interface.

Figure 10: Velcro Attachment Points

Figure 11: Mounting Loops

Tac-Eye SMM User Manual Page 8

CLEANING AND CARE

The Tac-Eye SMM is durable and easy to maintain. It is recommended as with any

device that a better user experience is tied to product maintenance. To ensure the SMM

remains at its functional peak, take afforded opportunities to clean the device using the

following instructions.

Instructions:

1. For light cleaning, wipe the SMM down with a damp cloth.

2. To remove caked mud or debris, remove most by hand before wiping down with

a damp cloth. If required, allow the mud/debris to soak and soften, then reuse the

damp cloth, rinsing cloth between uses with fresh water.

3. To decontaminate an SMM, wipe it down with isopropyl alcohol.

SAFETY

Be sure that cables are routed properly to prevent entanglement. The SMM uses

RCA and USB connectors that are implemented to break away as a safety

measure, but attention to routing can still improve the user experience.

As with any other device, it is recommended to read the entire user manual

before operating the SMM.

WARNINGS

Never leave the display of the SMM directly exposed to the sun or other intense

light source. This can damage the display.

Do not attempt to repair an SMM or associated accessories; contact Six15

Technologies to report a non-conforming product. Attempting to disassemble a

system voids the warranty on the product.

Tac-Eye SMM User Manual Page 9

TROUBLESHOOTING

Problems and Solutions

Problem

Possible Solutions*

I plug in the SMM and

nothing happens.

1. The SMM may be configured to wait for power

button depression to turn on, try pressing the power

button.

2. The system may not be powered, verify support

equipment is powered and working properly and that

all interconnect is properly mated.

I have no video image

in the SMM.

3. The brightness may be turned all the way down, try

increasing the brightness.

4. The system may not be turning on, or may have a

poor connection, see Solutions 1 and 2.

The SMM only displays

a red hashed border.

5. The SMM intentionally displays a red hashed border

when it is on, but has no video input. Verify the video

source is powered and operational, and that the

video connection is fully mated.

Table 1: Troubleshooting Options

* If any of the proposed Solutions do not eliminate the problem, contact Six15

Technologies for further resolution.

Technical Support

If there is trouble using the SMM you are encouraged to contact Six15 Technologies to

investigate and report the problem (contact information on back page). To ensure

expedient resolution of any issue be prepared to provide:

Both the Model and Serial Numbers of the SMM (on rear label).

A list of all connected equipment.

A description of the operational environment.

The step by step process that has led to, or continues to demonstrate the failure.

Tac-Eye SMM User Manual Page 10

SYSTEM SPECIFICATIONS

Parameter

Description

Display Type

TFT LCD

Resolution

640x480

Color Depth

24 bit (8 bits per color), 16.7M colors

Contrast Ratio

600:1

Viewing Angle

> 50° in all directions

Display Protection

Gorilla® Glass window

Backlight / Brightness

LED / 500 nits

Backlight Brightness Increments

Size

5 ¾”x 4” x 7/8”

Weight

255 grams / 9 ounces

Gray Levels

Up to 256 per primary color

Max Brightness

500 nits

Display Inputs

RCA (NTSC, RS-170)

Power Input / Consumption

5V ± 5% / < 2.1W

Readiness

Image < 500ms from application of power

Operating Temperatures

-20°C to +70°C

Storage Temperatures

-30°C to +80°C

High Temp / Humidity Operation

+60°C @ 90% Humidity

Ingress Protection

IP-52

Table 2: Specifications List

REGULATORY

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation.
