Sizewise Evolution Expandable Manuale utente

Evolution® Expandable

Quick Reference Guide

This card is not meant to replace

product user manual. For complete

manual, contact Sizewise.

800-814-9389

sizewise.com

Components

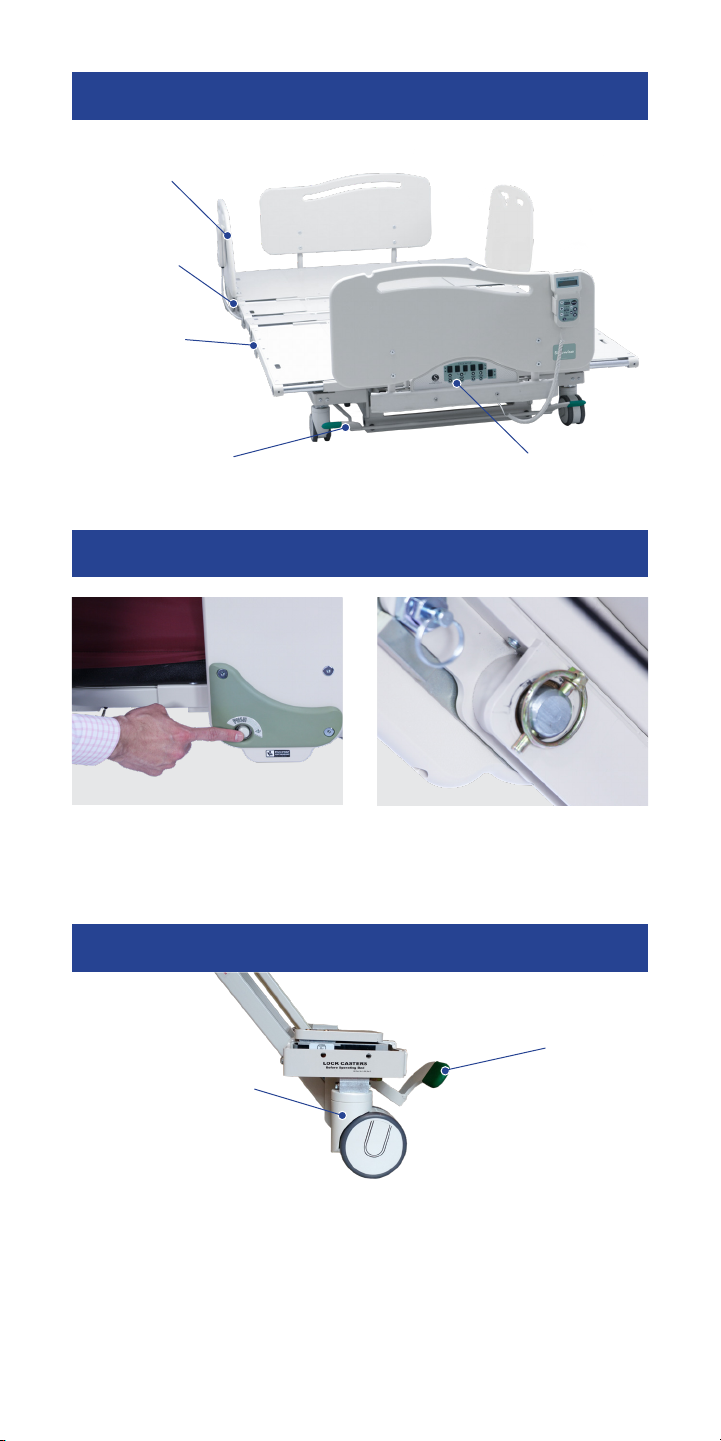

Side Rails

Casters

Installation and Removal: pull pin and pull rail away from frame.

To lower rail: push button and rotate away from center of bed.

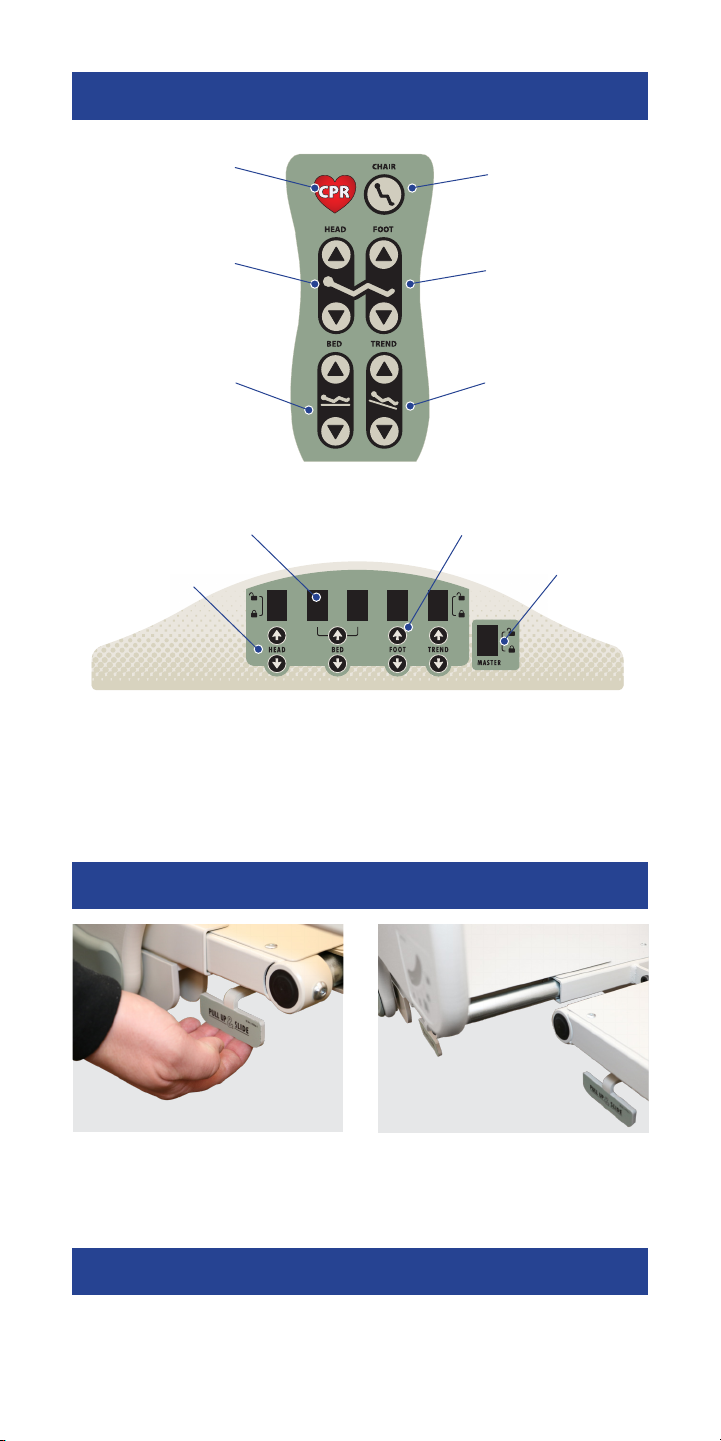

Hand control

Head angle

indication

Brake casters

Lock and

steer casters

Lever

Swivel Point

Front and Rear casters lock and swivel

— To LOCK, press the lever down

— To UNLOCK, raise the lever

Foot controls

Expanding/Retracting Bed Deck

Battery Backup

Lift handle to unlock while

pulling out or pushing in section

Expand/retract all sections on

both sides for 39”/42”and

48” widths

This bed is equipped with an emergency battery backup that will

charge when plugged into an AC outlet.

Located at foot end of bed. Controls include individual lockout

functions as well as master lockout switch.

Locking out specic or all functions will disable aected functions

on both hand and foot control.

Controls

Head section

Hold to atten

bed for CPR

Foot section

Cardiac Chair

position

Bed height Trend/ Reverse

Trend

Control Buttons

Master lockout

switch

Lockout switches Illuminated buttons

sizewise.com 800-814-9389

OPS-0014-0818 27650027 Rev. 3.0

Code Situation

Troubleshooting

If bed fails to function:

1. Verify all functions on footboard control panel are unlocked

2. Verify master switch is unlocked

3. Verify power cord is plugged into working AC outlet and not

cut, frayed, or damaged

4. Inspect patient hand control for damage and ensure it is

properly connected

If individual function does not operate:

1. Verify all functions on footboard control panel are unlocked

2. Verify master switch is unlocked

If bed will not operate on battery power:

Verify patient hand conrol is properly connected

If bed continues to fail:

Contact Sizewise at 800-814-9389.

1. Unlock casters and pull bed from wall.

2. Engage brakes, remove headboard, and lower side rails for patient

access

3. For LAL Support Surfaces: press CPR button or turn CPR dial on

blower and/or open CPR valve at head of mattress if installed.

4. All beds: press and hold CPR button on hand control to atten bed.

New beds: pull and hold CPR handle located between side rails

(both sides of bed).

5. Proceed with facility protocols for resuscitation.
