SJCAM SJ5000 wifi Manuale utente
Thank you for purchasing brand new SJ5000 Camera. Please read this manual notes carefully before using the camera, and hope you
will be familiar with the camera, and have more exciting moment in your life.
Warning
1 It is a high-precision product, do not fall or crash.
2. Do not expose the unit to strong magnetic objects, such as magnet and electrical motor. Avoid strong radio waves. Strong magnetic fields
may cause the products breakdown or images and sounds damage.
3 Never leave the products exposed to high temperatures and direct sunlight.
4 Please choose branded Micro SD card. Neutral cards are not guaranteed to work normally.
5 Do not place Micro SD card near strong magnetic objects to avoid data loss.
6 In case of overheating, smoke, or unpleasant smell in the process of charging, unplug your device immediately to prevent fire hazard.
7 While it is charging, keep the product out of children’s reach. Power line may cause children accidental suffocation or electric shock.
8 Keep the device in cool, dry and dust-proof places.
FPV
Product Features

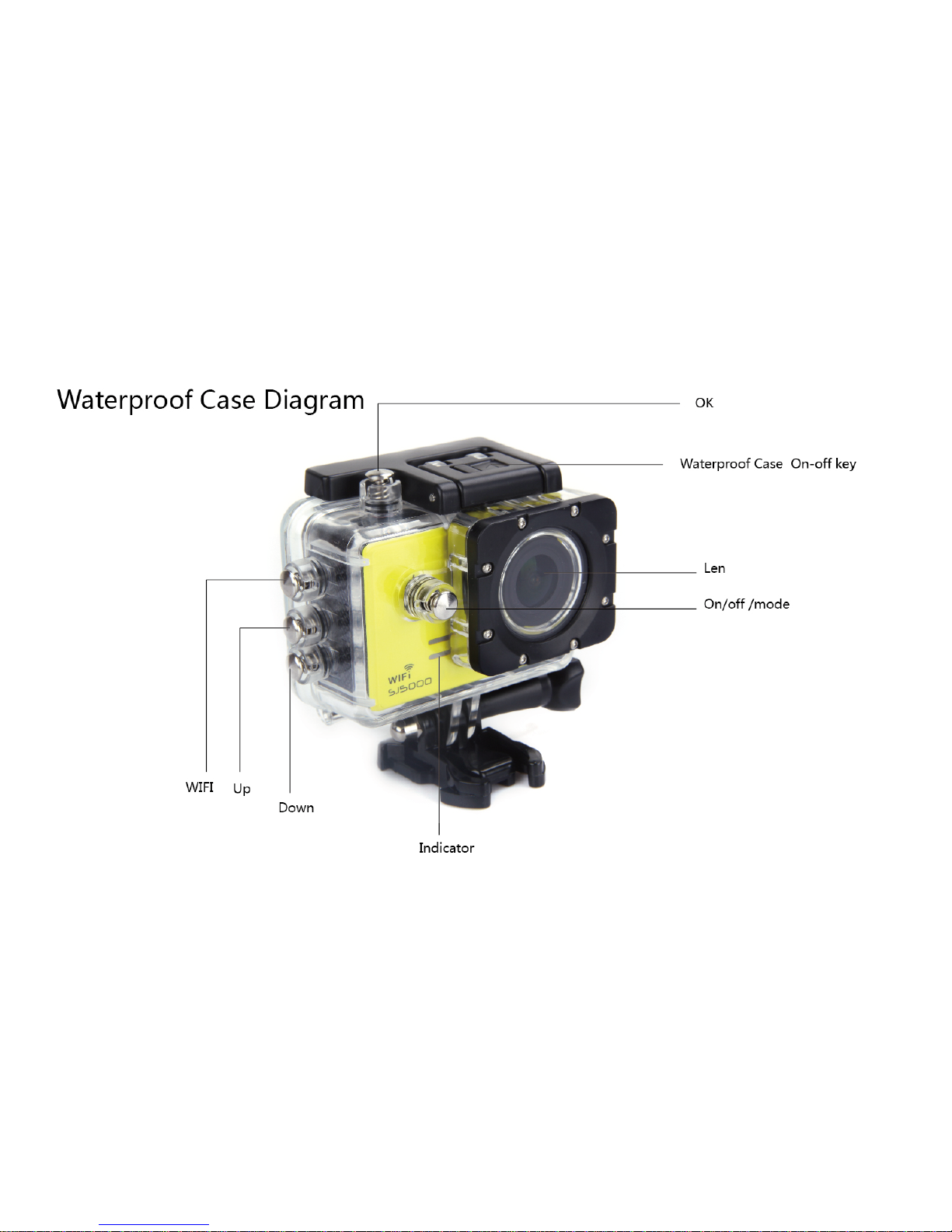

>A water-resistant casing that allows you to film fascinating water sports; water-resistant up to 30 meters under water
>2.0 inch Ultra HD screen show video of shooting
> WIFI
>Detachable battery that is easy to replace and prolongs your camera’s service life
>Vehicle-mounted recording
>14MP（Panasonic MN34110PA)
》170°Ultra orthoscopic camera
>HDMI HD output
>AV video output
>Web camera
> Support storage cards up to 32GB maximum
> Multiple video recording formats: 1080P 720P WVGA
> Recorded in MOV format
>Multiple photo shooting modes: Single shot, Snapper
> Video encryption enabled
> Mini appearance, diversified colors available

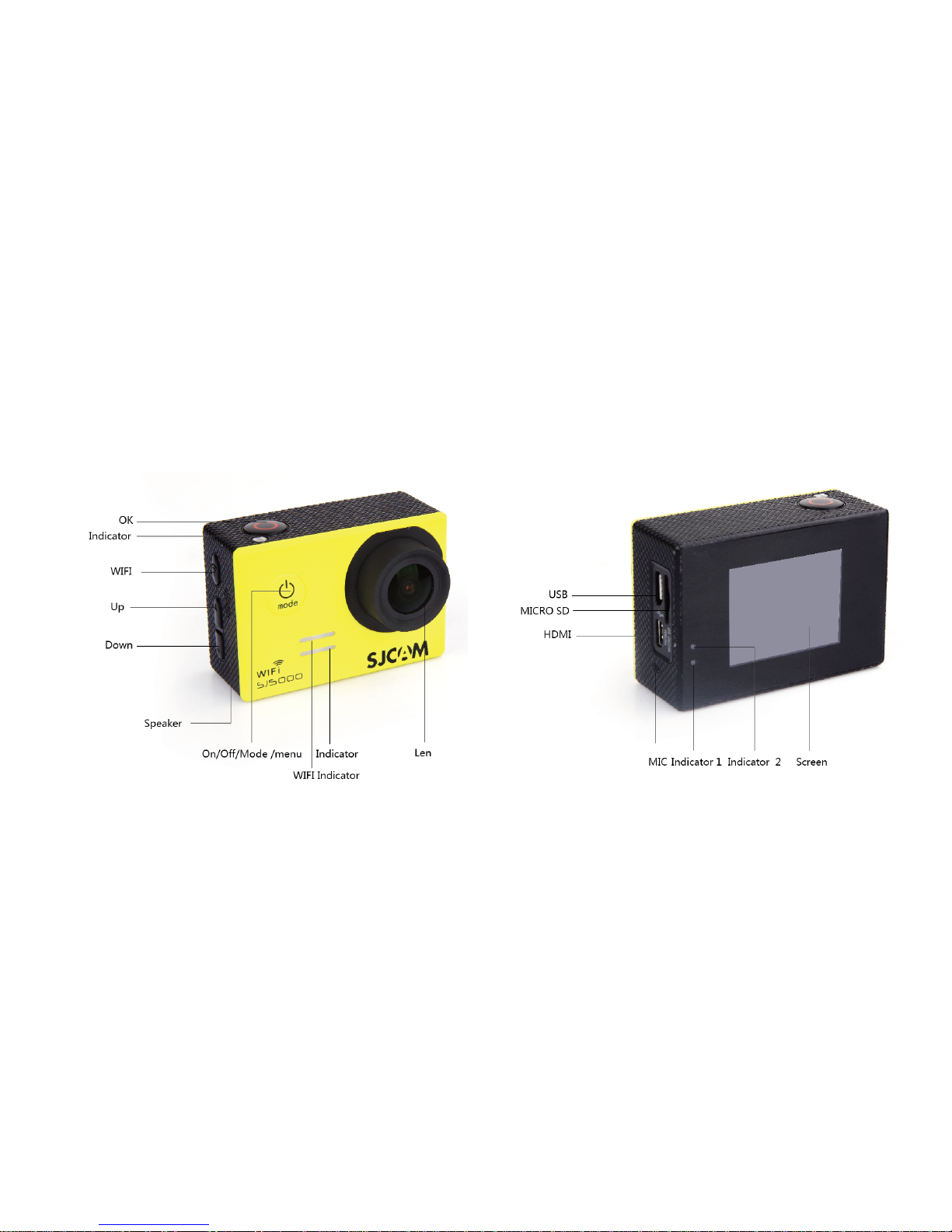

Product Diagram
Operating Instructions
1. Inserting Micro SD Card
Note: Please choose branded Micro SD card and format it on computer before use. Neutral cards are not guaranteed to
work normally.

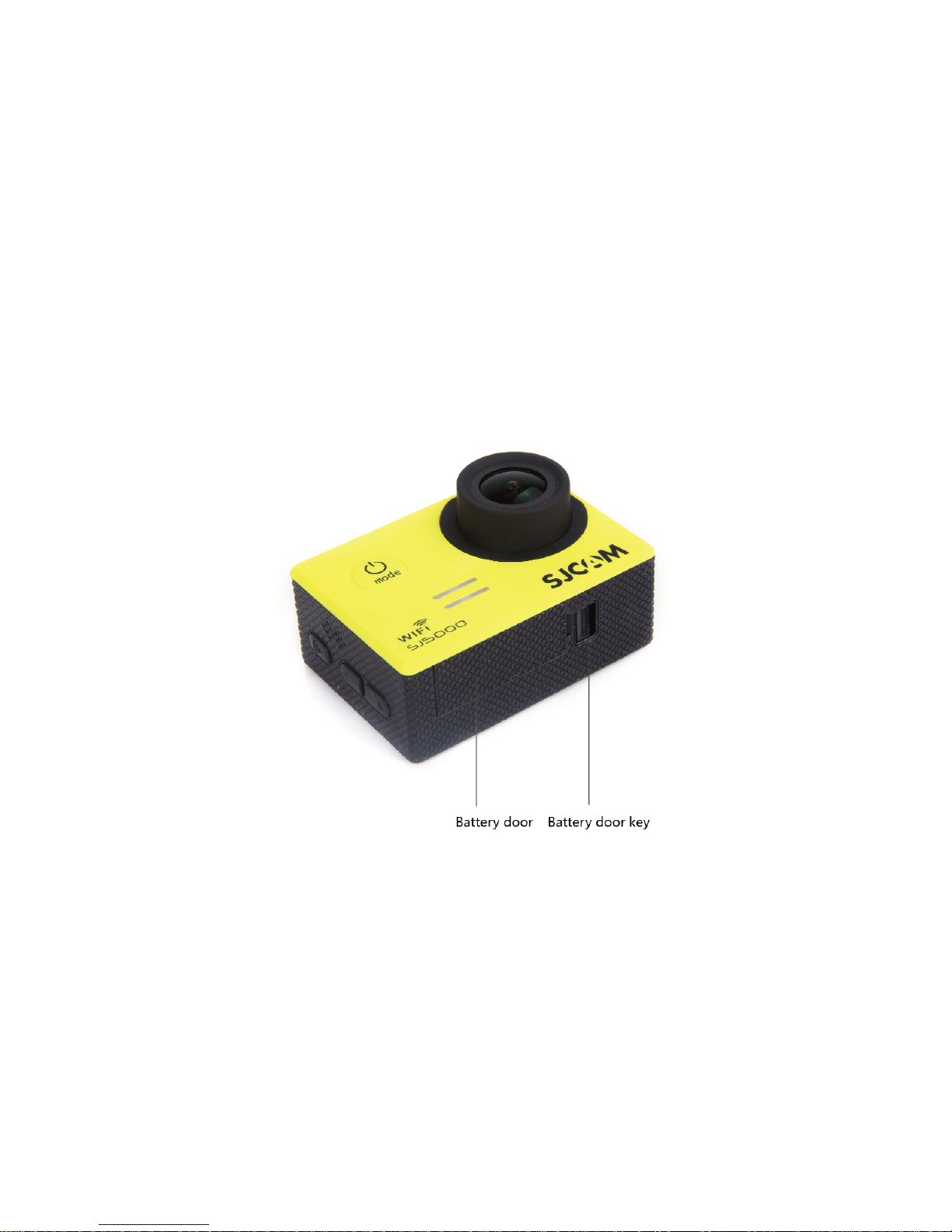

2. Installing and removing batteries
A Press on battery cap to open it.
B
o
rrectly install battery into camera as indicated by +
/
- symbols and direction of
arrows marked on battery until it’s in place.
C Battery Gauge: Please refer to diagram.
D Remove Battery: Open cap to take battery out.
3. Charging
A Charging can be done by either connecting to computer or power adaptor.
B Charge on vehicle by connecting it to car charger.
C SJ5000 WIFI can record video while charging (Switch into Vehicle-mounted Mode
in “Menu”）
D Charging can be done even when it’s powered off.
4. Vehicle mounted video record
A. Firstly set up menu, and search vehicle- mounted mode in the menu, then power on(it
will automatically and circularly record video)
B. Plug in vehicle-mounted charger, and power on the vehicle, and the machine will
automatically start. switch off, the machine will automatically power off.
5. Switching camera on and off
A Press and hold power switch for 3 to 5 seconds to turn it on / off.
B Switch it on and off by turning display screen on and off.
6. Mode Switching
Switch between video recording / photo shooting / playback / menu by pressing “Power On-Off” button.
recording mode, while photo shooting mode. Symbols are displayed on top of screen. Refers to
the function of video playback.
7. How to record videos and configure recording setting
1 Video Recording
Switch to recording mode and there’ll be an icon in the upper left corner
of the screen. Press OK to start recording and the icon in the upper left
corner will start to flash. Press “OK” again if you want to stop and the
icon will disappear.
2 Photo shooting & Settings
Switch the camera on and press “Mode” to select “Photo shooting Mode”, there’ll
be an icon in the upper left corner of display screen and the camera is in
photo shooting mode. Press “OK” to take photos.
Shooting Pattern: Single shot / Self-timer (3s/5s/10s) / Continuous Shooting
8. WI-FI connection
1. This product can connect a mobile phone with android or IOS system or a panel computer via WIFI, the operation steps are
as following:
A. Install SJCAM HD software on a mobile phone or a panel computer(you can search and download on Google Play for android system,
