Skil 6410 Manuale utente
IMPACT DRILL
6410 (F0156410..)
SKIL Europe BV - Konijnenberg 60 01/13 2610Z03603
4825 BD Breda - The Netherlands
ORIGINAL INSTRUCTIONS 7
NOTICE ORIGINALE 9
ORIGINALBETRIEBSANLEITUNG 12
ORIGINELE GEBRUIKSAANWIJZING 15
BRUKSANVISNING I ORIGINAL 18
ORIGINAL BRUGSANVISNING 21
ORIGINAL BRUKSANVISNING 24
ALKUPERÄISET OHJEET 26
MANUAL ORIGINAL 29
MANUAL ORIGINAL 32
ISTRUZIONI ORIGINALI 35
EREDETI HASZNÁLATI UTASÍTÁS 38
PŮVODNÍM NÁVODEM K POUŽÍVÁNÍ 42
ORİJİNAL İŞLETME TALİMATI 44
INSTRUKCJA ORYGINALNA 47
ПОДЛИННИК РУКОВОДСТВА
ПО ЭКСПЛУАТАЦИИ 50
ОРИГІНАЛЬНА ІНСТРУКЦІЯ
З ЕКСПЛУАТАЦІЇ 54
ΠΡΩΤΟΤΥΠΟ Ο∆ΗΓΙΩΝ ΧΡΗΣΗΣ 57
INSTRUCŢIUNI DE FOLOSIRE
ORIGINALE 60
ОРИГИНАЛНО РЪКОВОДСТВО
ЗА ЕКСПЛОАТАЦИЯ 63
PÔVODNÝ NÁVOD NA POUŽITIE 66
ORIGINALNE UPUTE ZA RAD 69
ORIGINALNO UPUTSTVO ZA RAD 72
IZVIRNA NAVODILA 74
ALGUPÄRANE KASUTUSJUHEND 77
ORIĢINĀLĀ LIETOŠANAS PAMĀCĪBA 80
ORIGINALI INSTRUKCIJA 83
ИЗВОРНО УПАТСТВО ЗА РАБОТА 86
UDHËZIMET ORIGJINALE 89
99
96
www.skilmasters.com
2
6410
1
2
E
A
B
C
D
F
G
3
¹ÌÌ
˅˂ʽ
ʾƓˆÃ¿
ʽʾƯʿʽʽˀ
0-3000/min ʿƘʾˀÅÅ
ʾˀ ÅÅ ʾ˃ ÅÅ ˀ˂ÅÅ
0-48000 p/min
ʿʿʽ
Ƙ
ʿˁʽ
3
6
5
4
4
C
78
9
5
!
0
6
@
#
7
Impact drill 6410
INTRODUCTION
• This tool is intended for impact drilling in brick, concrete
and stone as well as for drilling in wood, metal, ceramic
and plastic
• Read and save this instruction manual 2
TECHNICAL SPECIFICATIONS 1
TOOL ELEMENTS 3
A Switch for on/o and speed control
B Button for switch locking
C Wheel for maximum speed control
D Switch for changing direction of rotation
E Switch for selecting drilling function
F Auxiliary handle
GDepth gauge
SAFETY
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference. The term “power tool” in the warnings refers to
your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use an earth leakage circuit breaker.
Use of an earth leakage circuit breaker reduces the risk
of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will do
the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
8
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations dierent
from those intended could result in a hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
SAFETY INSTRUCTIONS FOR IMPACT DRILLS
• Wear ear protectors (exposure to noise can cause
hearing loss)
• Use auxiliary handle(s), if supplied with the tool
(loss of control can cause personal injury)
• Hold power tool by insulated gripping surfaces,
when performing an operation where the cutting
accessory or fastener may contact hidden wiring or
its own cord (cutting accessory and fasteners
contacting a “live” wire may make exposed metal parts of
the power tool “live” and could give the operator an
electric shock)
• Use suitable detectors to find hidden utility lines or
call the local utility company for assistance (contact
with electric lines can lead to re or electrical shock;
damaging a gas line can result in an explosion;
penetrating a water pipe will cause property damage or
an electrical shock)
• Avoid damage that can be caused by screws, nails and
other elements in your workpiece; remove them before
you start working
• Always keep the cord away from moving parts of the tool
• Secure the workpiece (a workpiece clamped with
clamping devices or in a vice is held more securely than
by hand)
• When you put away the tool, switch o the motor and
ensure that all moving parts have come to a
complete standstill
• Use completely unrolled and safe extension cords with a
capacity of 16 Amps (U.K. 13 Amps)
• In case of electrical or mechanical malfunction,
immediately switch o the tool and disconnect the plug
• SKIL can assure awless functioning of the tool only
when the correct accessories are used which can be
obtained from your SKIL dealer
• Use only accessories with an allowable speed matching
at least the highest no-load speed of the tool
• This tool should not be used by people under the age of
16 years
• Do not work materials containing asbestos (asbestos
is considered carcinogenic)
• Dust from material such as paint containing lead, some
wood species, minerals and metal may be harmful
(contact with or inhalation of the dust may cause allergic
reactions and/or respiratory diseases to the operator or
bystanders); wear a dust mask and work with a dust
extraction device when connectable
• Certain kinds of dust are classied as carcinogenic (such
as oak and beech dust) especially in conjunction with
additives for wood conditioning; wear a dust mask and
work with a dust extraction device when
connectable
• Follow the dust-related national requirements for the
materials you want to work with
• If the cord is damaged or cut through while working, do
not touch the cord, but immediately disconnect the plug
• Never use the tool when cord is damaged; have it
replaced by a qualied person
• Always check that the supply voltage is the same as the
voltage indicated on the nameplate of the tool (tools with
a rating of 230V or 240V can also be connected to a
220V supply)
• If the drill bit becomes unexpectedly jammed (causing a
sudden, dangerous reaction), immediately switch o
the tool
• Be aware of the forces that occur as a result of jamming
(especially when drilling metals); always use auxiliary
handle F 3and take a secure stance
• Alwaysdisconnectplugfrompowersourcebefore
making any adjustment or changing any accessory
WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire
in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut o the cord of this tool,
it must be disposed of safely and not left unattended
USE
• On/o 4
• Switch locking for continuous use 5
• Speed control for smooth starting 6

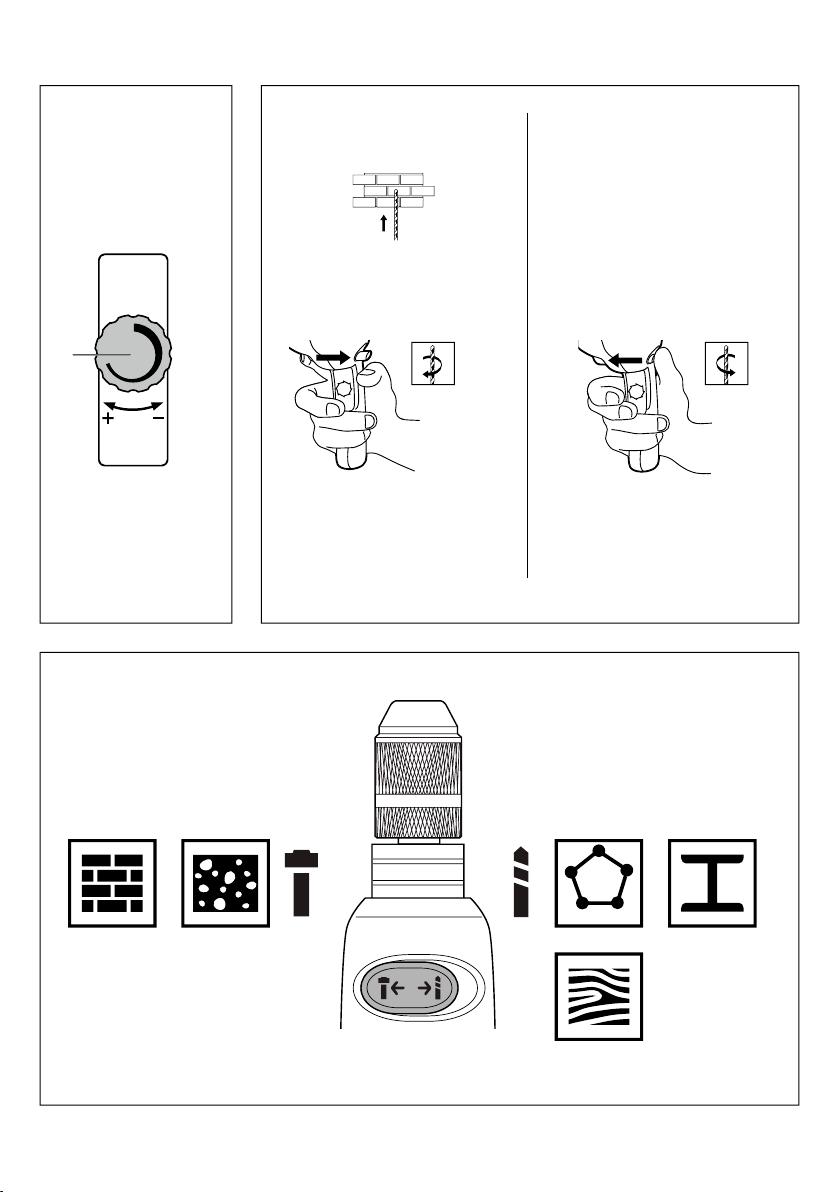

• Maximum speed control 7
With wheel C the maximum speed can be adjusted from
low to high
- switch on the tool
- lock the switch
- turn wheel C to select maximum speed
• Changing direction of rotation 8
- when not properly set in left/right position, switch A
cannot be activated
! change direction of rotation only when tool is at a
complete standstill
• Normal drilling versus impact drilling 9
! select drilling function only when tool is switched
off and plug is disconnected

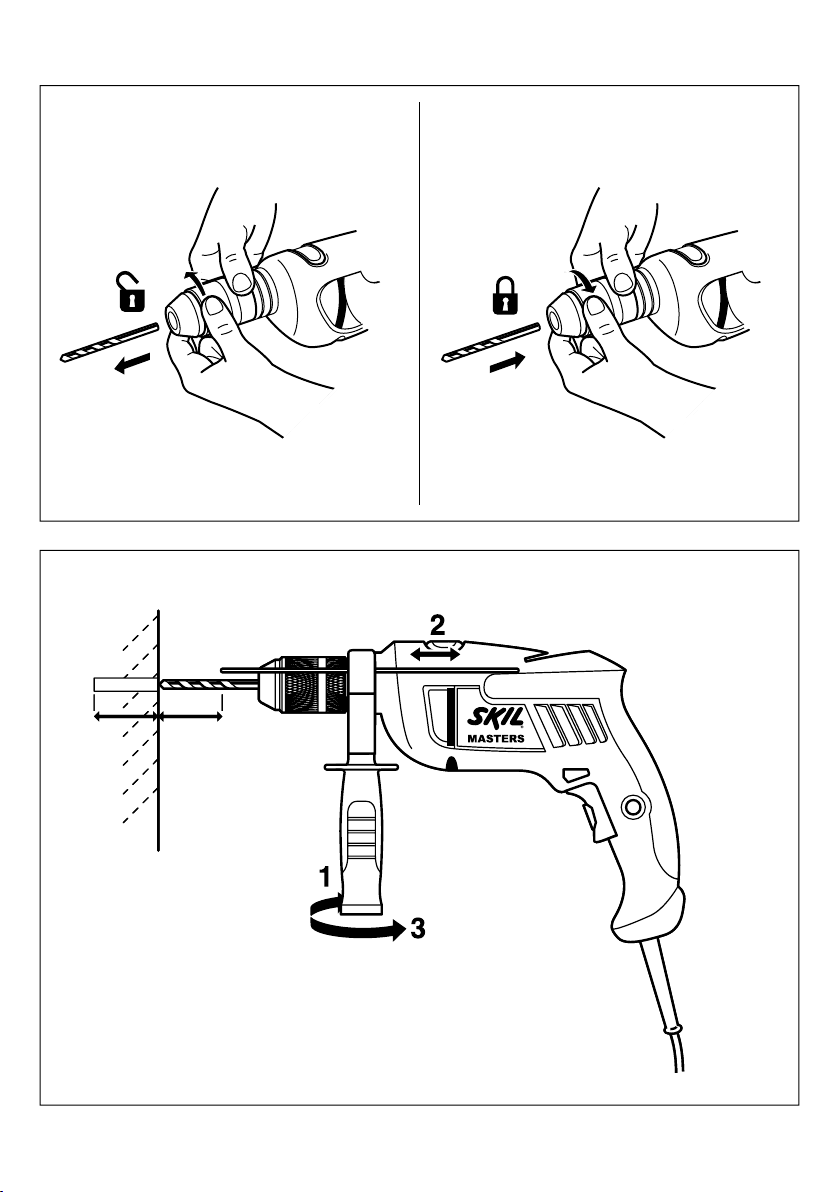

• Changing bits 0
- insert the bit as deep as possible in the chuck
! do not use bits with a damaged shank
! only use sharp bits
• Adjusting drilling depth !

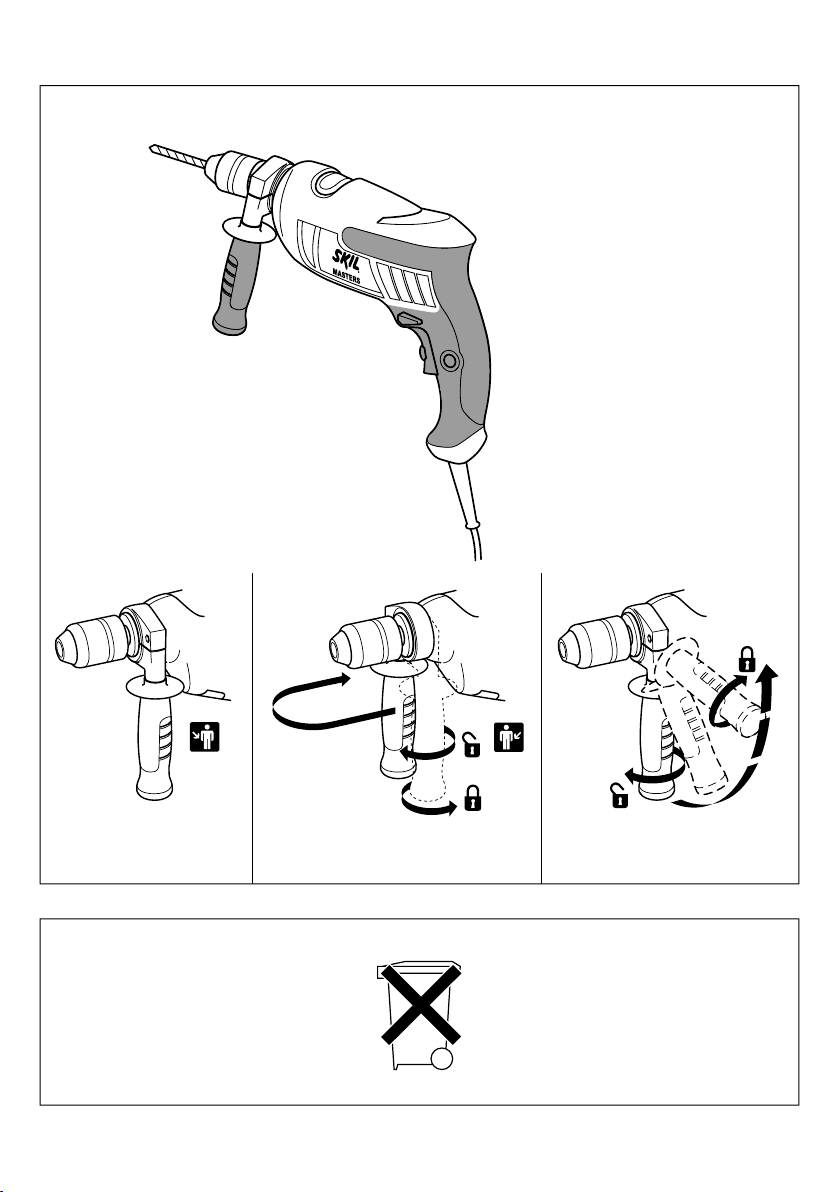

• Holding and guiding the tool @
! while working, always hold the tool at the
grey-coloured grip area(s)
- always use auxiliary handle F 3(can be adjusted
as illustrated)
- keep the ventilation slots uncovered
- do not apply too much pressure on the tool; let the tool
do the work for you
9
APPLICATION ADVICE
• For drilling in concrete or stone a steady pressure on the
drill is required
• When drilling ferrous metals
- pre-drill a smaller hole, when a large hole is required
- lubricate drill bit occasionally with oil
MAINTENANCE / SERVICE
• Always keep tool and cord clean (especially the
ventilation slots)
! disconnect the plug before cleaning
• If the tool should fail despite the care taken in
manufacturing and testing procedures, repair should be
carried out by an after-sales service centre for SKIL
power tools
- send the tool undismantled together with proof of
purchase to your dealer or the nearest SKIL service
station (addresses as well as the service diagram of
the tool are listed on www.skilmasters.com)
ENVIRONMENT
• Do not dispose of electric tools, accessories and
packaging together with household waste material
(only for EU countries)
- in observance of European Directive 2002/96/EC on
waste of electric and electronic equipment and its
implementation in accordance with national law,
electric tools that have reached the end of their life
must be collected separately and returned to an
environmentally compatible recycling facility
- symbol # will remind you of this when the need for
disposing occurs
DECLARATION OF CONFORMITY
• We declare under our sole responsibility that this product
is in conformity with the following standards or
standardized documents: EN 60745, EN 61000,
EN 55014, in accordance with the provisions of the
directives 2004/108/EC, 2006/42/EC, 2011/65/EU
• Technical file at: SKIL Europe BV (PT-SEU/ENG1),
4825 BD Breda, NL
¹ÊÁÂÆιƼ½ÊÇǾ¼½Æ
ȽʹÌÁÇÆËŵÆ¿Áƽ½ÊÁÆ¿
ÍÊÇȽƓˁ˅ʿ˂ʽ¼¹Ɠ
Ĺ¾ÁÂÿʹ¹¾
ÈÈÊÇιĹƹ¿½Ê
23.01.2013
NOISE/VIBRATION
• Measured in accordance with EN 60745 the sound
pressure level of this tool is 94 dB(A) and the sound
power level 105 dB(A) (standard deviation: 3 dB), and the
vibration ✱ (hand-arm method; uncertainty K = 1.5 m/s²)
✱ when drilling in metal 5.6 m/s²
✱ when hammer drilling in concrete 13.7 m/s²
• The vibration emission level has been measured in
accordance with a standardised test given in EN 60745; it
may be used to compare one tool with another and as a
preliminary assessment of exposure to vibration when
using the tool for the applications mentioned
- using the tool for dierent applications, or with dierent
or poorly maintained accessories, may signicantly
increase the exposure level
- the times when the tool is switched o or when it is
running but not actually doing the job, may signicantly
reduce the exposure level
! protect yourself against the effects of vibration
by maintaining the tool and its accessories,
keeping your hands warm, and organizing your
work patterns
Perceuse à percussion 6410
INTRODUCTION
• Cet outil est conçu pour les travaux de perçage de
percussion dans la brique, le béton et dans la pierre
naturelle ainsi que le perçage dans le bois, le métal, la
céramique et les matières plastiques
• Lisez et conservez ce manuel d’instruction 2
SPECIFICATIONS TECHNIQUES 1
ELEMENTS DE L’OUTIL 3
A Interrupteur de marche/arrêt et réglage de vitesse
B Bouton de blocage de l’interrupteur
C Molette de réglage de la vitesse maximum
D Commutateur pour inverser le sens de rotation
E Commutateur pour sélectionner la fonction de perçage
F Poignée auxiliaire
G Jauge de profondeur
SECURITE
INSTRUCTIONS GENERALES DE SECURITE
ATTENTION! Lisez tous les avertissements de
sécurité et toutes les instructions. Ne pas suivre les
avertissements et instructions peut entraîner un choc
électrique, un incendie et/ou de graves blessures sur les
personnes. Conservez tous les avertissements et
toutes les instructions pour pouvoir s’y reporter
ultérieurement. La notion d’”outil électroportatif” dans les
avertissements se rapporte à des outils électriques
raccordés au secteur (avec câble de raccordement) et à
des outils électriques à batterie (sans câble
de raccordement).
1) SECURITE DE LA ZONE DE TRAVAIL
a) Maintenez l’endroit de travail propre et bien éclairé.
Un lieu de travail en désordre ou mal éclairé augmente le
risque d’accidents.
Altri manuali per 6410
2
Questo manuale è adatto per i seguenti modelli
1
Indice
