Skilsaw SPT5007-EA Manuale utente

IMPORTANT

Read Before Using

◆

IMPORTANT

Lire avant usage

◆

IMPORTANTE

Leer antes de usar

For English Version

See page 2

◆

Version française

Voir page 53

◆

Versión en español

Ver la página 117

Instruction Manual

Mode d'emploi

Manual de instrucciones

1-877-SKIL999 (1-877-754-5999) www.skilsaw.com

Call Toll Free for Consumer Information & Service Locations

Pour obtenir des informations et les adresses de nos centres de service après-vente, appelez ce numéro gratuit

Llame gratis para obtener información para el consumidor y ubicaciones de servicio

For English Version

See page 2

◆

Version française

Voir page 18

◆

Versión en español

Ver la página 34

EARLY ENTRY ATTACHMENT

ATTACHEMENT À PÉNÉTRATION PRÉCOCE

ADITAMENTO DE ENTRADA TEMPRANA

SPT5007-EA

-2-

Table of Contents

Page

Safety Symbols..........................2

Intended Use............................3

Unpacking and Checking Contents ..........3

Getting to Know Your Early Entry Attachment .4

Safety Symbols

The denitions below describe the level of severity for each signal word. Please read the manual and

pay attention to these symbols.

This is the safety alert symbol. It is used to alert you to potential personal

injury hazards. Obey all safety messages that follow this symbol to avoid

possible injury or death.

DANGER DANGER indicates a hazardous situation which, if not avoided, will result

in death or serious injury.

WARNING WARNING indicates a hazardous situation which, if not avoided, could

result in death or serious injury.

CAUTION CAUTION, used with the safety alert symbol, indicates a hazardous situ-

ation which, if not avoided, will result in minor or moderate injury.

Page

Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Operation .............................13

Maintenance ...........................16

WARNING Familiarize yourself with Oper-

ating/Safety instructions (man-

ual) for Skilsaw SPT79A. The manual for SPT79A

contains additional information that is not covered

in this manual. If the SPT79A manual is missing,

please download a copy from

www.skilsaw.com/service-manuals.

WARNING

Some dust created by power

sanding, sawing, grinding, drill-

ing and other construction activities contains

chemicals known to the State of California to

cause cancer, birth defects or other reproductive

harm. Some examples of these chemicals are:

–Lead from lead-based paints,

–Crystalline silica from bricks and cement and

other masonry products, and

–Arsenic and chromium from chemically-

treated lumber.

Your risk from these exposures varies, depending

on how often you do this type of work. To reduce

your exposure to these chemicals: work in a

well-ventilated area, and work with approved

safety equipment, such as those dust masks that

are specially designed to lter out microscopic

particles.

-3-

This attachment allows SKILSAW SPT79A Medusaw™ walk behind saw to function as an early

entry concrete saw and is designed for residential and light commercial projects. Early entry saw

controls random cracking of the concrete by making early contraction cuts, often within 1 – 2 hours

after the nishing process is complete. The combination of the spring-loaded skid plate and the early

entry diamond wheel specically designed for this application, allows early entry sawing while min-

imizing chipping and spalling of the cut edges.

Intended Use

WARNING

For your own safety, never

connect the saw to a power

outlet until all assembly steps are completed

and until you have read and understood the

entire instruction manual.

TOOLS REQUIRED: A screwdriver that accepts

standard 1/4" hexagonal bits is required to use

the T25 torx bit.

Separate all parts from the packing materials and

check each one against the “Loose Parts List" to

make sure that all items are accounted for before

discarding any packing material.

WARNING If any parts are missing, do

not attempt to assemble the

early entry attachment until the missing parts

are obtained and are installed correctly.

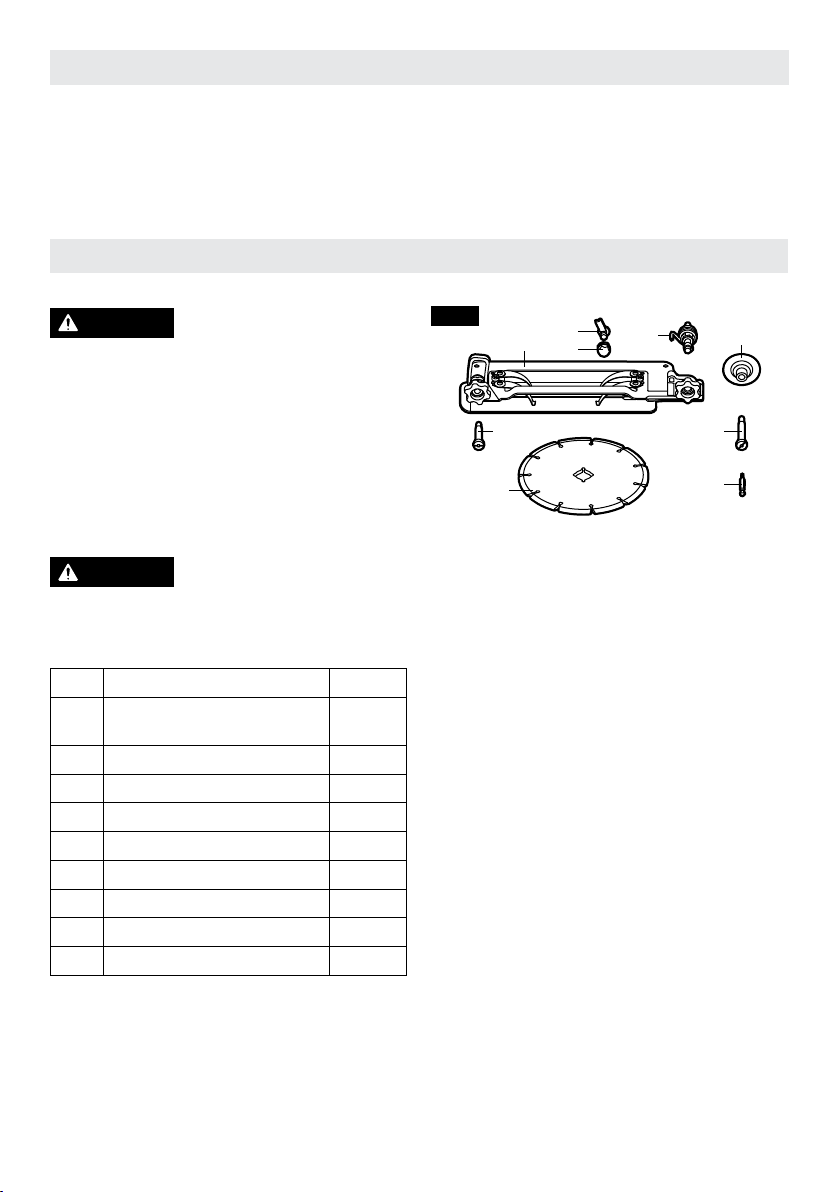

LOOSE PARTS LIST

Item Description Qty

AEarly entry attachment main

body 1

BFront locking bolt 1

C1-1/2 inch depth stop 1

DHex nut for depth stop 1

ETorsion spring assembly 1

FLine guide wheel 1

GLong bolt for line guide wheel 1

HEarly entry diamond wheel 1

IT25 torx bit 1

Unpacking and Checking Contents

ADE F

FIG. 1

-4-

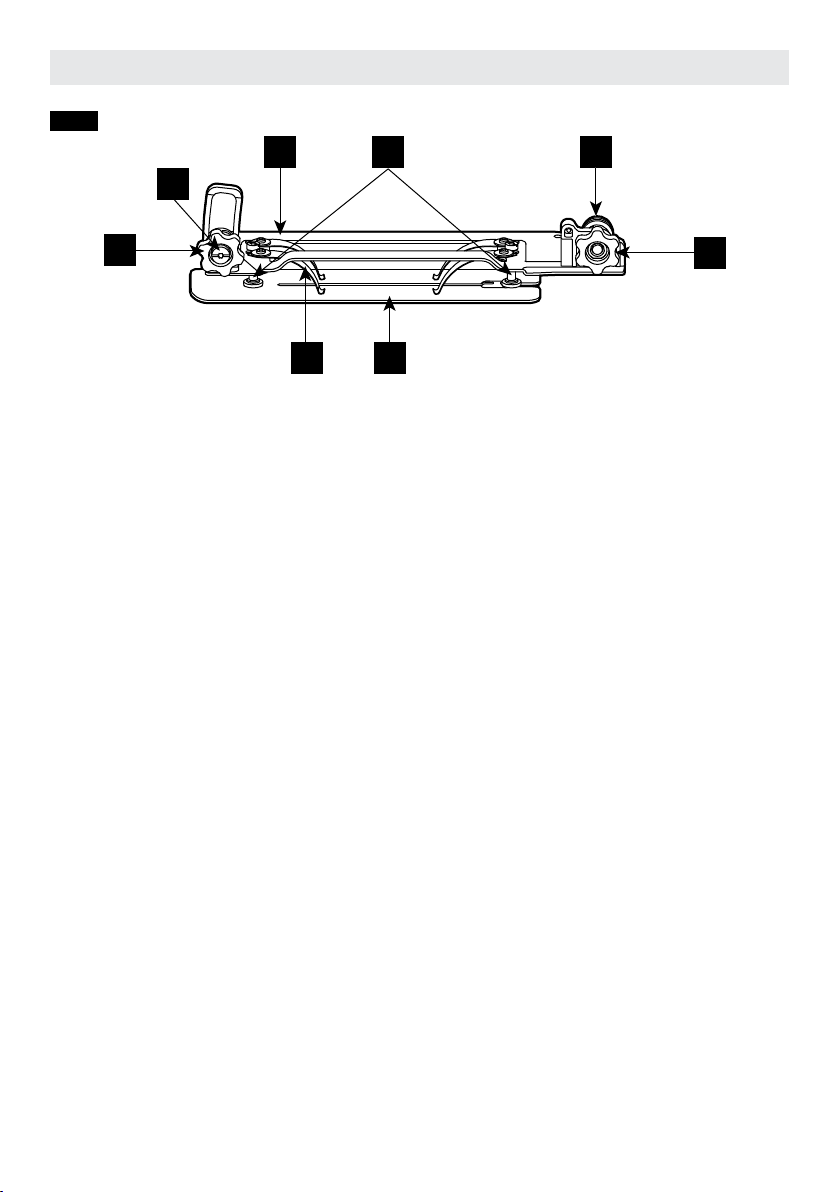

Getting to Know Your Early Entry Attachment

1. Front knob

2. Front locking bolt

3. Fixed plate

4. Guide rod

5. Torsion spring assembly

6. Rear knob

7. Skid plate

8. Spring plate

FIG. 2

543

8 7

-5-

NOTE: Keep the original Operating/Safety in-

structions (manual) for Skilsaw SPT79A handy.

The manual for SPT79A contains additional in-

formation that is not covered in this manual. If the

SPT79A manual is missing, please download a

copy from www.skilsaw.com/service-manuals

WARNING

Disconnect the saw from the

power source before making

any assembly, adjustments or changing ac-

cessories. Such preventive safety measures

reduce the risk of starting the tool accidentally.

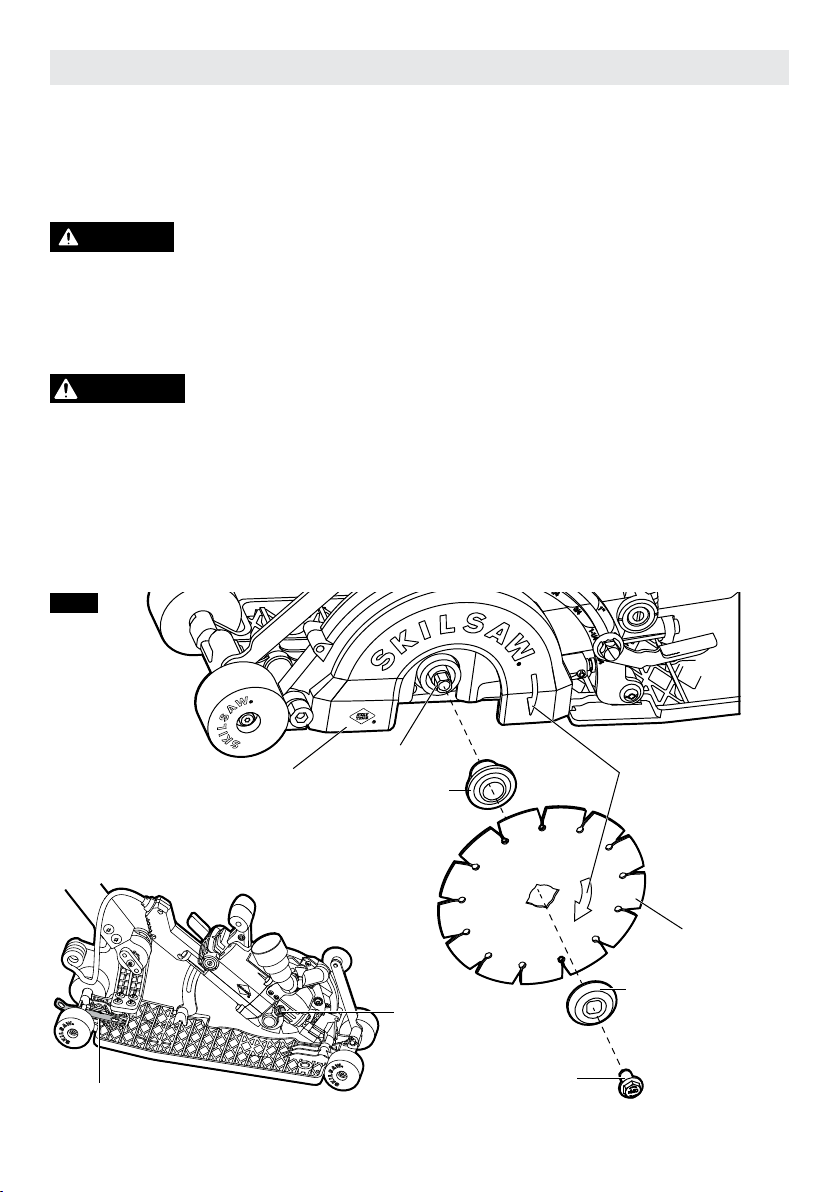

ATTACHING THE EARLY ENTRY

DIAMOND WHEEL

CAUTION

Use only SKILSAW early

entry diamond wheel with

this attachment. Using other wheels will lead to

unsatisfactory results and possible damage to

the tool or work area.

1. Tip the tool back with the guard facing up.

2. Press the lock button (on the back of the

saw) and turn the wheel bolt using the 1/2”

slot of the wrench (included with the saw and

stored in the foot of the saw) until the lock

button engages. The shaft is now locked.

Continue to depress button, turn wrench

clockwise and remove the wheel bolt and

OUTER WASHER (Fig. 3).

3. Make sure that the arrow on the diamond

wheel is pointing in the same direction as the

arrow on the guard.

4. Slide the diamond wheel into the guard and

mount it against the INNER WASHER on the

shaft. Be sure that the large diameter of the

INNER and OUTER washers lay flush

against the diamond wheel.

5. Reinstall the OUTER WASHER. First tighten

the wheel bolt nger tight, then tighten the

wheel bolt 1/8 turn (45˚) with the wrench pro-

vided. Do not use wrenches with longer han-

dles, since it may lead to over tightening of

the wheel bolt.

NOTE: Install a new skid plate every time a new

early entry diamond wheel is installed. SKILSAW

set SPT5008-EA includes 1 (one) replacement

wheel and 1 (one) replacement skid plate.

Direction of

rotation arrow

Diamond wheel

OUTER WASHER

Large diameterfaces

the wheel

Wheel bolt

Lock button

Wrench

INNER WASHER

Large diameterfaces

the wheel

Shaft

Guard

Assembly

FIG. 3

-6-

Assembly

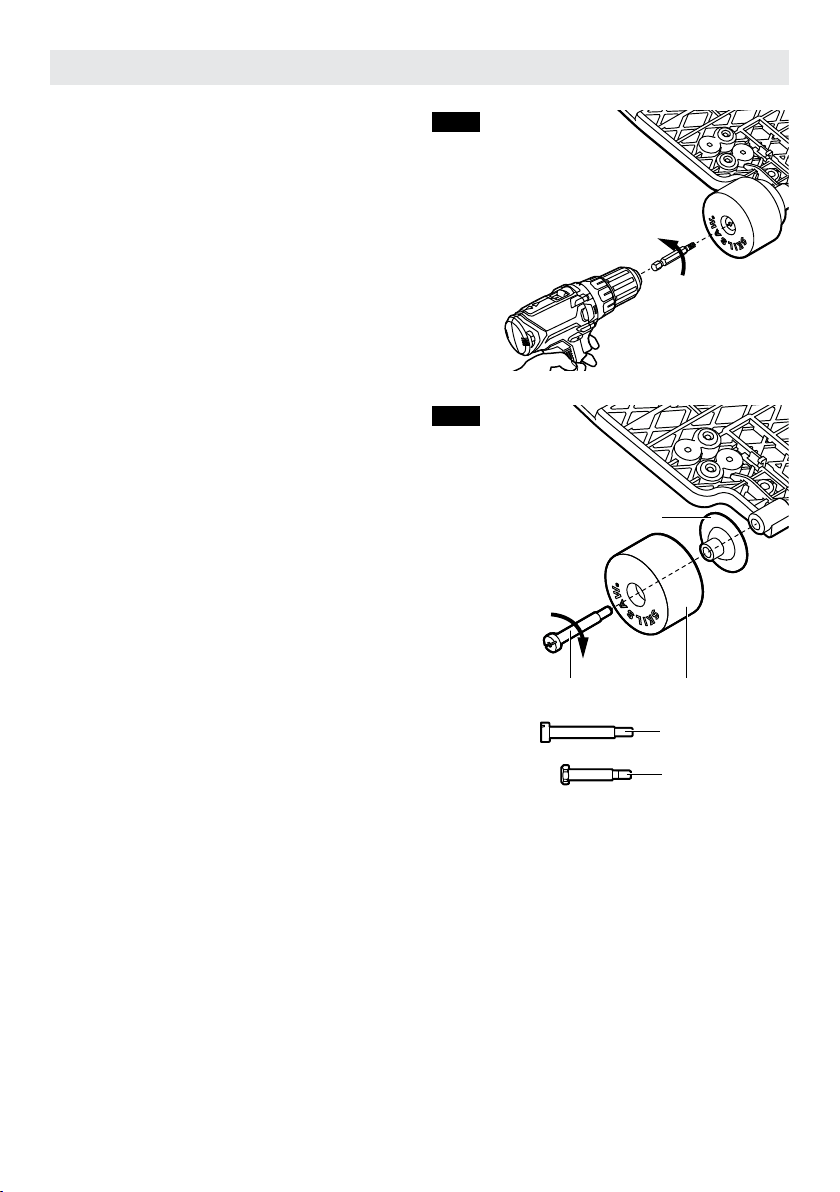

ATTACHING THE LINE GUIDE WHEEL

1. Set the saw on its side on a at surface with

the blade guard facing up.

2. Loosen the locking bolt from the rear left

wheel by using T25 torx bit and an optional

screwdriver (Fig. 4a).

3. Remove the rear left wheel and its locking

bolt.

NOTE: Keep the original locking bolt in a safe

place in case the saw needs to be reverted back

to its original conguration.

4. Attach the line guide wheel, the rear left

wheel and the long bolt in the order shown

(Fig. 4b).

NOTE: The side of the rear left wheel with “SKIL-

SAW" logo should be facing out.

5. Start tightening the long bolt by hand, then

tighten 1/2 turn using T25 torx bit.

FIG. 4a

FIG. 4b

Long bolt Rear left wheel

Line guide

wheel

Long bolt

Original bolt

-7-

Middle control knob Lower control knob

FIG. 5a

FIG. 5b

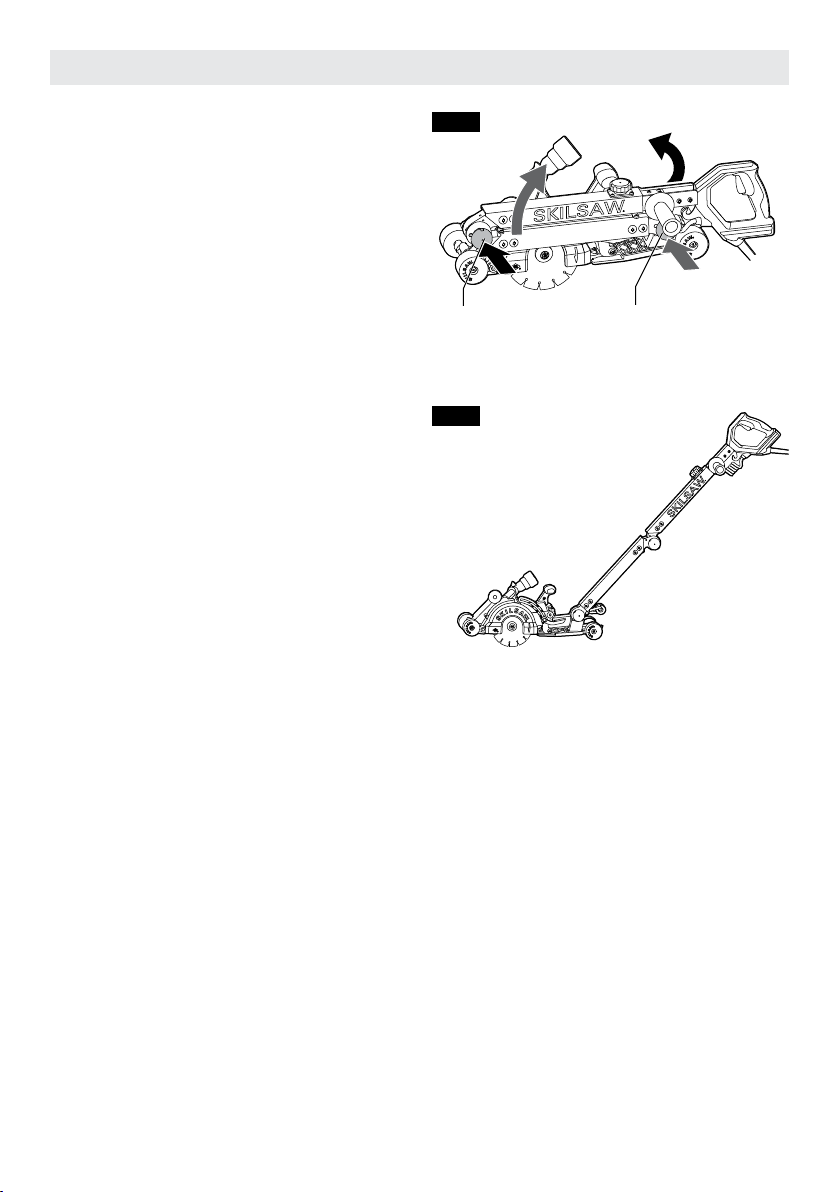

ATTACHING THE TORSION SPRING

ASSEMBLY

1. Unfold the handle:

a. Press the middle control knob (Fig. 5a).

b. Unfold the upper part of the handle 180°

as shown in Fig. 5a until it audibly locks in

place.

c. Press the lower control knob (Fig. 5a)

d. Unfold the lower part of the handle as

shown in Fig. 5a until it audibly locks in place.

e. The saw should look as shown in Fig. 5b.

Assembly

-8-

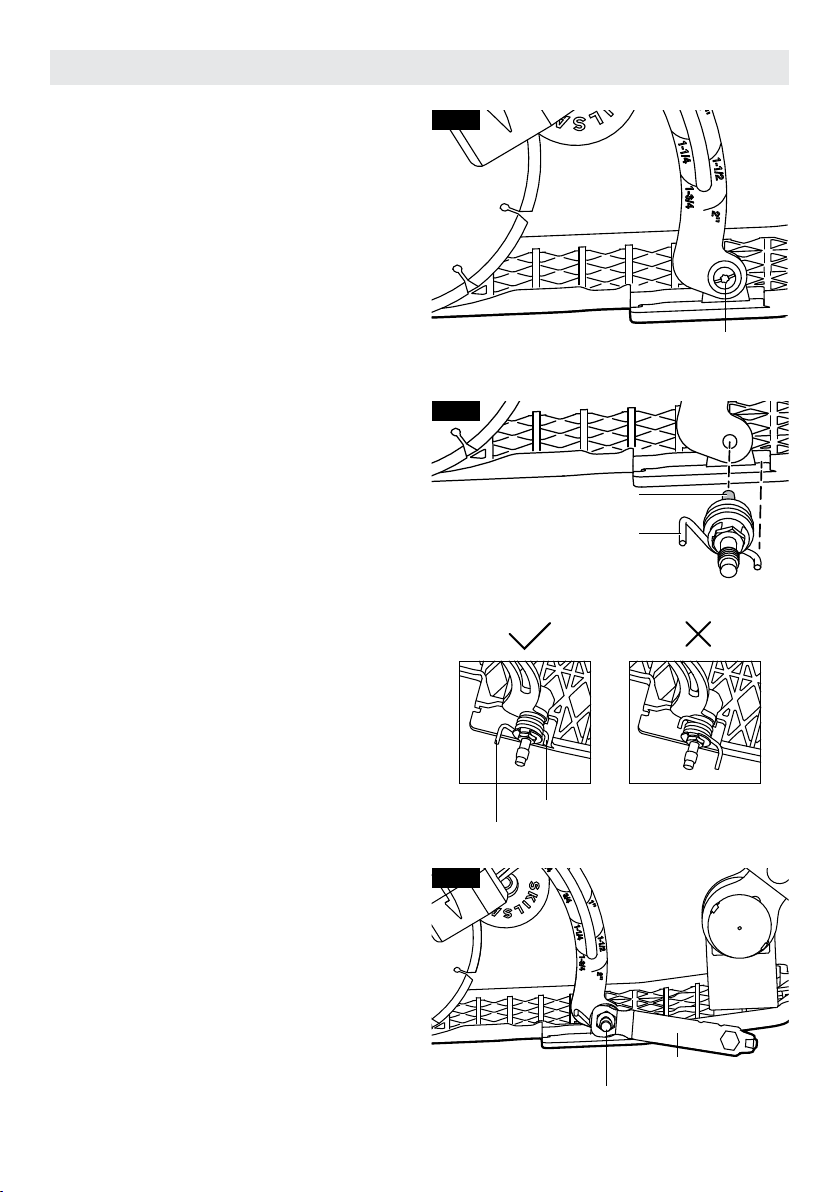

Screw for calibrated

depth bracket

Wrench

Torsion spring

assembly

2. Set the saw on its side on a at surface with

the guard facing up.

3. Using T25 torx bit, remove the screw from

the calibrated depth bracket and keep it in a

safe place in case the saw needs to be re-

verted back to its original conguration (Fig.

6a).

4. Insert the torsion spring assembly as shown

in Fig. 6b.

a. The threaded end, with blue thread locker

painted on, should be inserted into the open-

ing in the calibrated depth bracket.

b. Keep proper orientation of the ends of the

torsion springs: the short end must be touch-

ing the foot of the saw.

5. Tighten the torsion spring assembly by using

the wrench provided with the saw (Fig. 6c).

Assembly

FIG. 6a

FIG. 6b

FIG. 6c

Short end

Long end

Blue thread locker

Long end

-9-

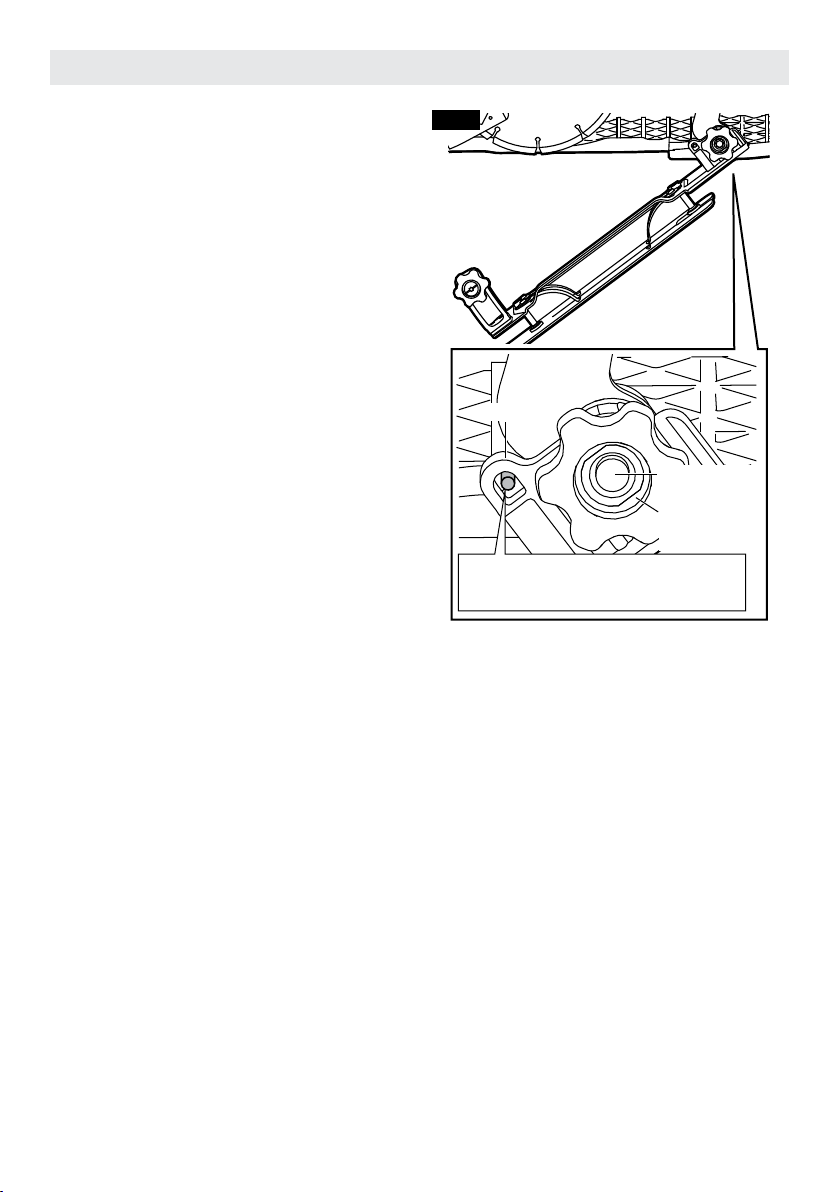

ATTACHING THE EARLY ENTRY

ATTACHMENT

1. Set the saw on its side on a at surface with

the blade guard facing up.

2. Attaching rear part.

Align the rear knob of the early entry attach-

ment with the stud of the torsion spring as-

sembly, then tighten the rear knob. The

below points need to be observed (Fig. 7):

• Ensure that the long end of the torsion spring

is inserted into the opening of the block.

• Ensure that the end of the stud is ush with

the stepped inner surface of rear knob.

Assembly

FIG. 7

End of the

stud

Stepped

inner surface

Ensure that the long end of the

torsion spring is inserted into the

opening of the block.

Block

-10-

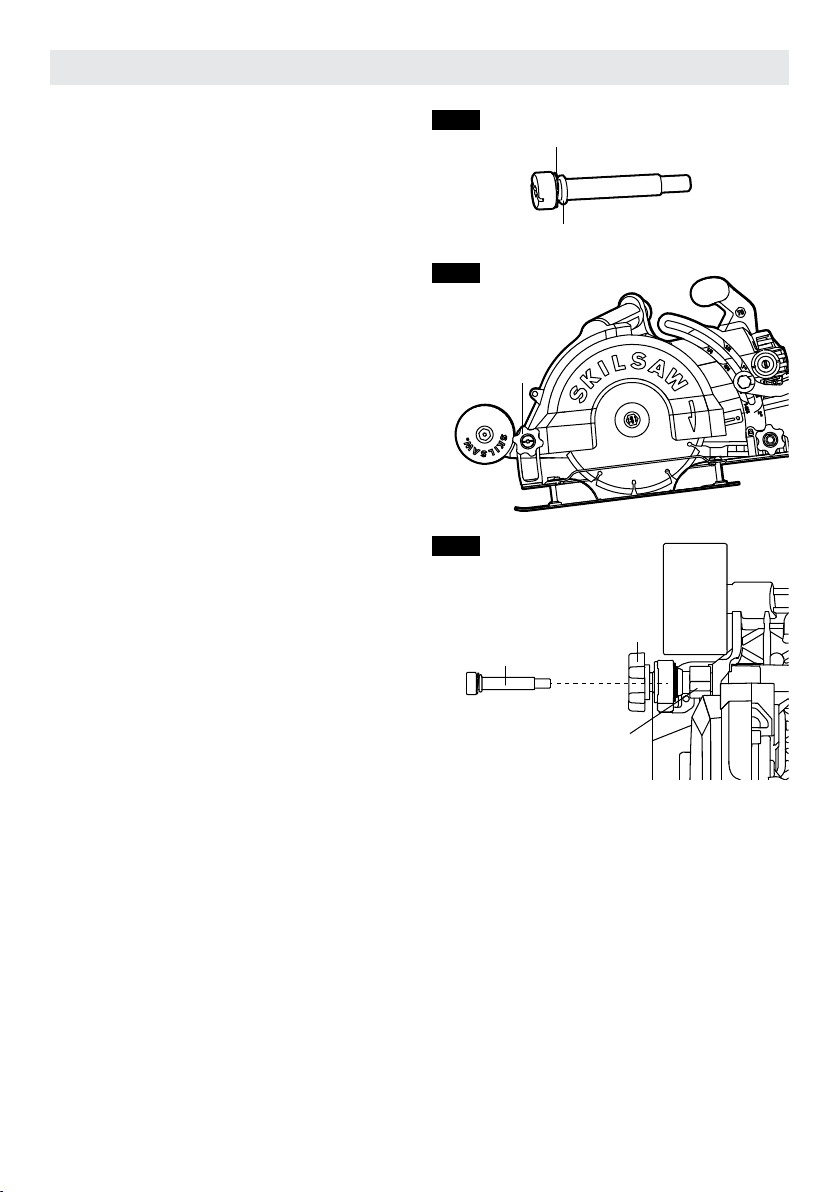

Front

locking bolt

Wave washer

Sealing ring

ATTACHING THE FRONT PART

• Ensure that the wave washer and the sealing

ring are properly seated on the front locking

bolt (Fig. 8a).

• Thread the front locking bolt into the opening

of the front knob on the early entry attach-

ment (Fig. 8c).

• Align the front locking bolt with its mounting

opening in the saw and rst tighten the bolt

by hand, then further tighten 1/2 turn using

T25 torx bit (Fig.8b). Do not overtighten.

Assembly

FIG. 8a

FIG. 8b

FIG. 8c

Front

locking

bolt

Front knob

Mounting

opening

Indice

Lingue:

Altri manuali skilsaw Sega

skilsaw

skilsaw SPT67WMB Istruzioni per il montaggio

skilsaw

skilsaw SPT67W Istruzioni per il montaggio

skilsaw

skilsaw SPT77WM Istruzioni per il montaggio

skilsaw

skilsaw SPT99T Istruzioni per il montaggio

skilsaw

skilsaw SPT70WM-01 Istruzioni per il montaggio

skilsaw

skilsaw SPT79 Istruzioni per il montaggio

skilsaw

skilsaw SPTH77M Istruzioni per il montaggio

skilsaw

skilsaw SPT67WE Istruzioni per il montaggio

skilsaw

skilsaw SPT44A Istruzioni per il montaggio

skilsaw

skilsaw SPT77W Istruzioni per il montaggio

skilsaw

skilsaw SPT44A Istruzioni per il montaggio

skilsaw

skilsaw SPT84 Istruzioni per il montaggio

skilsaw

skilsaw SPT77WML Istruzioni per il montaggio

skilsaw

skilsaw SPT67FMD Istruzioni per il montaggio

skilsaw

skilsaw SPT70V Istruzioni per il montaggio

skilsaw

skilsaw SPT88 Istruzioni per il montaggio

skilsaw

skilsaw SPT62MTC Istruzioni per il montaggio

skilsaw

skilsaw SPT78W Istruzioni per il montaggio

skilsaw

skilsaw SPT70WM Manuale utente

skilsaw

skilsaw SPT67M8 Istruzioni per il montaggio

skilsaw

skilsaw SPTH70M Guida rapida

skilsaw

skilsaw SPT70WT Istruzioni per il montaggio

skilsaw

skilsaw SPT99 Istruzioni per il montaggio

skilsaw

skilsaw SPT70WM Istruzioni per il montaggio

Manuali Sega popolari di altre marche

RIDGID

RIDGID BS1400 Manuale utente

ATIKA

ATIKA BWS 400-2 Manuale utente

RGC

RGC FS20 Manuale utente

Makita

Makita M2300 Manuale utente

IMET Spa

IMET Spa BASIC 300 PLUS SHI Manuale utente

IMET Spa

IMET Spa SIRIO 370 AF-E Manuale utente

Optimum

Optimum OPTisaw CS 275 Manuale utente

Makita

Makita BPB180 Manuale utente

Stihl

Stihl MS 462 C-M Manuale utente

AEG

AEG TS 250 K Manuale utente

Meec tools

Meec tools 004665 Manuale utente

Makita

Makita LS1018L Manuale utente

Ryobi

Ryobi RCS1400 Manuale utente

DeWalt

DeWalt DCS391 Manuale utente

Sealey

Sealey SA72 Manuale utente

Urrea

Urrea SI810 Dimensioni e guida di installazione

EINHELL

EINHELL BKG 210/1 Manuale utente

Altrad

Altrad BELLE RANGER 450 Manuale utente

skilsaw SPT5007-EA Manuale utente

Manuali Sega popolari di altre marche
