Layout of this Owner's Manual
(explanations)
This Owner's Manual has been systematically designed to make it easy for you to
search for and obtain the information you require.
Chapters, table of contents and subject index
The text of the Owner's manual is divided into relatively short sections which are
combined into easy-to-read chapters. The chapter you are reading at any particular
moment is always specified on the bottom right of the page.
The Table of contents is arranged according to the chapters and the detailed Sub-
ject index at the end of the Owner's Manual helps you to rapidly find the informa-
tion you are looking for.
Direction indications
All direction indications such as “left”, “right”, “front”, “rear” relate to the direction of
travel of the vehicle.
Measures
All values are expressed in metric units.
Explanation of symbols
Denotes a reference to a section with important information and safety
advice in a chapter.
Denotes the end of a section.
Denotes the continuation of a section on the next page.
Indicates situations where the vehicle must be stopped as soon as possi-
ble.
® Denotes a registered trademark.
Notes
WARNING
The most important notes are marked with the heading WARNING. These
WARNING notes draw your attention to a serious risk of accident or injury.
CAUTION
A Caution note draws your attention to the possibility of damage to your vehicle
(e.g. damage to gearbox), or points out general risks of an accident.
For the sake of the environment
An Environmental note draws your attention to environmental protection aspects.
This is where you will, for example, find tips aimed at reducing your fuel consump-
tion.
Note
A normal Note draws your attention to important information about the operation
of your vehicle.
Preface
You have opted for a ŠKODA – our sincere thanks for your confidence in us.
Your new ŠKODA offers you a vehicle featuring the most modern engineering and a wide range of equipment.
We recommend that you read this Owner's Manual carefully so that you can quickly familiarise yourself with
your vehicle and all that it has to offer.
If you have any questions about your vehicle, please contact a ŠKODA Service Partner.
National legal provisions take precedence over the information contained in the operating instructions.
We wish you much pleasure with your ŠKODA and pleasant motoring at all times.
Your ŠKODA AUTO a.s. (hereinafter referred to as ŠKODA) £
The on-board literature
The on-board literature for your vehicle consists of this “Owner's Manual” as well
as a “Service schedule” and the “Help on the road” brochure.
Depending on the vehicle model and equipment, other additional operating man-
uals and instructions may be provided (e.g. an operating manual for the radio).
If one of the publications listed above is missing, please contact a specialist ga-
rage.
The details given in the vehicle's technical documentation always take prece-
dence over the details in the Owner's Manual.
The Owner's Manual
These operating instructions describe all possible equipment variants without
identifying them as special equipment, model variants or market-dependent
equipment.
Consequently, this vehicle does not need to contain all of the equipment compo-
nents described in this Owner's manual.
The scope of equipment for your vehicle is described in the sales documentation
you were given when purchasing the car. For more information, contact your local
ŠKODA retailer.
The illustrations can differ in minor details from your vehicle; they are only inten-
ded for general information.
The Service schedule
contains:
›Vehicle data
›Service proof
›Confirmation of mobility warranty (only valid in certain countries)
›Important information on the warranty
The confirmations of the service work performed are one of the conditions for
possible warranty claims.
Please always present the Service Schedule when you take your car to a special-
ist garage.
If the Service Schedule is missing or worn, please contact the specialist garage
that regularly services your car. You will receive a duplicate, in which the previ-
ously carried out service work is confirmed.
The Help on the Road brochure
The Help on the Road brochure contains the most important telephone numbers
in individual countries as well as the addresses and telephone numbers of ŠKODA
importers.
Table of Contents
Abbreviations
Using the system
Cockpit 7
Overview 6
Instruments and Indicator Lights 8
Instrument Cluster 8
Multi-function display (onboard computer) 11
MAXI DOT (information display) 14
Indicator lights 17
Unlocking and locking 24
Vehicle key 24
Central locking system 25
Remote control 28
Anti-theft alarm system 29
Interior monitor and towing protection
monitoring 30
Boot lid 30
Electric power windows 31
Lights and Visibility 33
Lights 33
Interior light 37
Visibility 38
Windscreen wipers and washers 38
Rear window 41
Seats and Stowage 43
Front seats 43
Head restraints 45
Rear seats 46
Luggage compartment 47
Roof rack system 50
Cup holder 51
Cup holder in the centre console 51
Cup holder in the rear armrest 52
Ashtray 52
Cigarette lighter, 12-volt power socket 52
Storage compartments 53
Clothes hooks 57
Parking ticket holder 57
Heating and air conditioning system 58
Heating and air conditioning system 58
Air outlet vents 59
Heating 59
Air conditioning system (manual air conditioning
system) 61
Climatronic (automatic air conditioning
system) 64
Starting-off and Driving 67
Starting and stopping the engine 67
Brakes and brake assist systems 69
Shifting 73
pedals 73
Parking aid 73
Cruise control system (CCS) 74
START/STOP 76
Automatic gearbox 78
Automatic gearbox 78
Communication 83
Mobile phones and two-way radio systems 83
Universal telephone preinstallation GSM II 83
Voice control 86
Multimedia 88
Safety
Passive Safety 90
General information 90
Correct seated position 91
Seat belts 94
Seat belts 94
Airbag system 98
Description of the airbag system 98
Front airbags 99
Side airbags 100
Head airbags 101
Deactivating airbags 102
Transporting children safely 104
Child seat 104
Driving Tips
Driving and the Environment 108
The first 1 500 km 108
Catalytic converter 108
Economical and environmentally friendly
driving 109
Environmental compatibility 111
Driving abroad 112
Avoiding damage to your vehicle 112
Driving through water on the street 113
Towing a trailer 114
Towing a trailer 114
General Maintenance
Taking care of and cleaning the vehicle 116
Taking care of your vehicle 116
Inspecting and replenishing 123
Fuel 123
Engine compartment 125
Vehicle battery 132
3
Table of Contents
Wheels and Tyres 137
Tyres 137
Accessories, changes and replacement of parts 144
Introductory information 144
Changes and impairments of the airbag
system 144
Do-it-yourself
Do-it-yourself 145
First-aid kit and warning triangle 145
Fire extinguisher 145
Vehicle tool kit 145
Changing a wheel 146
Breakdown kit 149
Jump-starting 152
Towing the vehicle 153
Fuses and light bulbs 156
Fuses 156
Bulbs 159
Technical data
Technical data 164
Introductory information 164
Data on the vehicle data sticker and
identification plate 164
Dimensions 165
Specifications and engine oil capacity 166
Vehicle-specific details per engine type 167
Index
4Table of Contents
Abbreviations
Abbreviation Definition
rpm Engine revolutions per minute
ABS Anti-lock brake system
TCS Traction control
CO2 in g/km discharged quantity of carbon dioxide in grams per driven kilo-
meter
DSG Automatic double clutch gearbox
EDL Electronic differential lock
ESC Electronic Stability Control
HBA Hydraulic Brake Assist
HHC Hill Hold Control
kW Kilowatt, measuring unit for the engine output
MFD Multi-function display
N1 Panel van intended exclusively or mainly for the transporta-
tion of goods
Nm Newton meter, measuring unit for the engine torque
TDI CR Diesel engine with turbocharging and common rail injection
system
TSI Petrol engine with turbocharging and direct injection Ð
5
Abbreviations

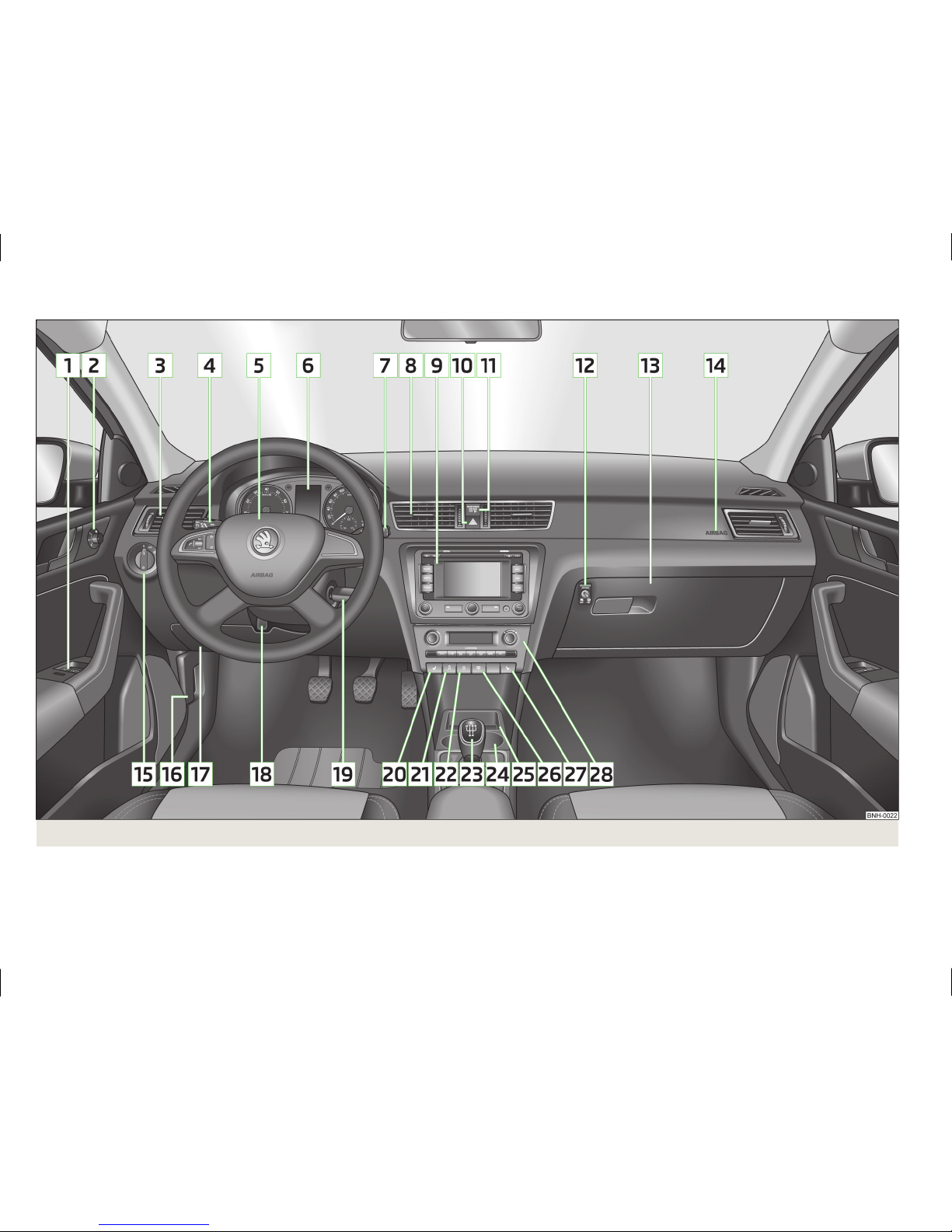

Fig. 1 Cockpit
6Using the system
Using the system
Cockpit
Overview
Electric windows 32
Electric exterior mirror adjustment 41
Air outlet vents 59
Lever for the multi-functional switch:
›Turn signal light, headlight and parking light, headlight flasher 35
›Speed regulating system 74
Steering wheel:
›With horn
›With driver’s front airbag 99
›With pushbuttons for radio, navigation system and mobile
phone 83
Instrument cluster: Instruments and indicator lights 8
Lever for the multi-functional switch:
›Multi-functional indicator 11
›Windshield wiper and wash system 39
Air outlet vents 59
Depending on equipment fitted:
›Radio
›Navigation system
Switch for hazard warning lights 36
Warning light for the deactivated front seat passenger airbag 102
Key-operated switch for the front seat passenger airbag 102
Storage compartment on the front passenger side 54
Front passenger airbag 99
Light switch and headlamp beam adjustment 33, 35
Bonnet release lever 127
Fuse box in the dashboard 157
Lever for adjusting the steering wheel 68
Ignition lock 69
Regulator for left seat heating 45
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
TCS switch 71
Central locking system 27
Depending on equipment fitted:
›Gearshift lever (manual gearbox) 73
›Selector lever (automatic gearbox) 79
Depending on equipment fitted:
›Cup holder 51
›Ashtray holder 52
Storage compartment 56
Switch for rear window heater 38
Regulator for right seat heating 45
Depending on equipment fitted:
›Operating controls for the heating 59
›Operating controls for the air conditioning system 61
›Operating controls for Climatronic 64
Note
The arrangement of the controls and switches and the location of some items on
right-hand drive models may differ from that shown in » Fig. 1. The symbols on
the controls and switches are the same as for left-hand drive models. Ð
21
22
23
24
25
26
27
28
7
Cockpit
Instruments and Indicator Lights
Instrument Cluster
äIntroduction
This chapter contains information on the following subjects:
Overview 8
Engine revolutions counter 9
Speedometer 9
Coolant Temperature Display 9
Fuel Gauge 9
Counter for distance driven 10
Service Interval Display 10
Digital clock 11
Recommended gear 11
WARNING
■Concentrate fully at all times on your driving! As the driver you are fully re-
sponsible for road safety.
■Never operate the controls in the instrument cluster while driving, only
when the vehicle is stationary! Ð
Overview

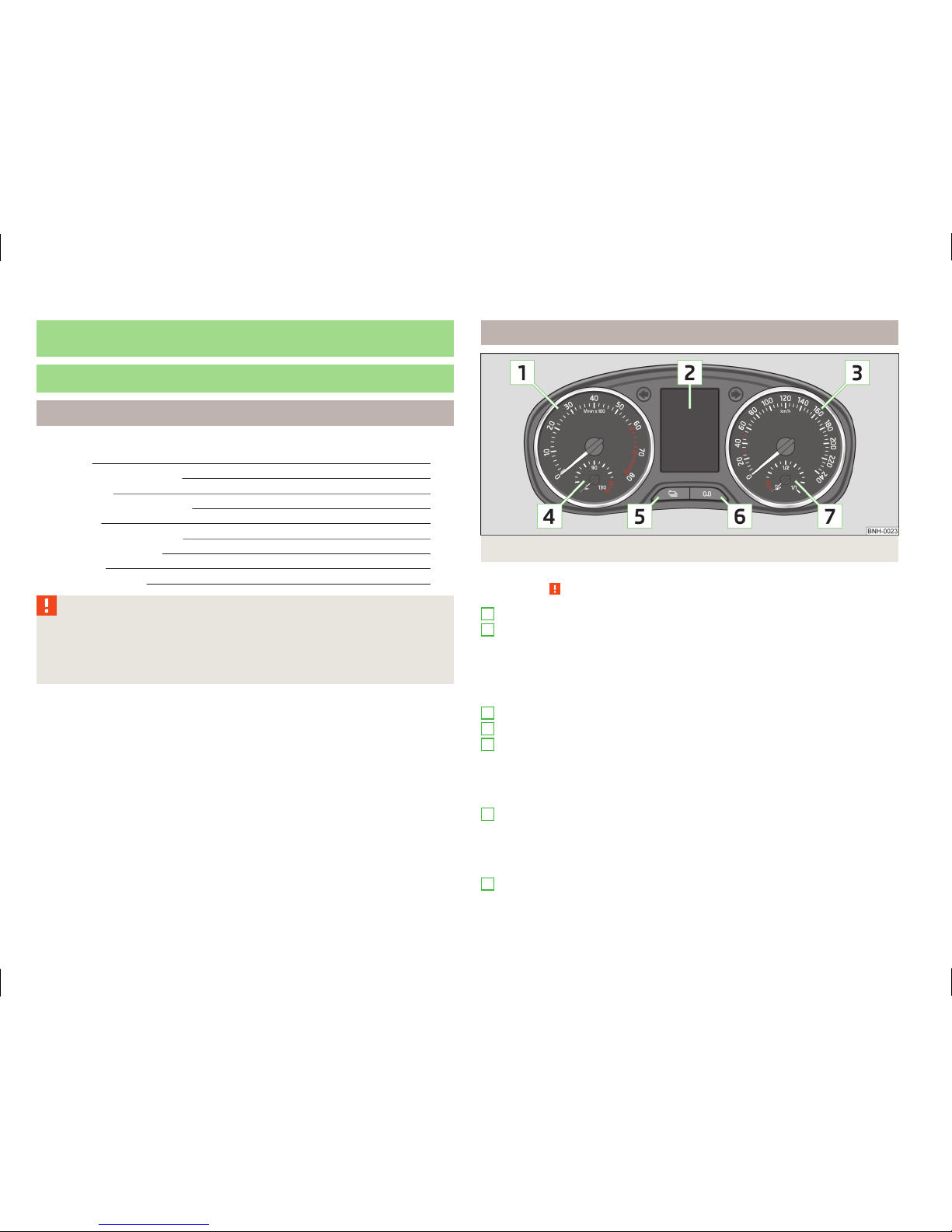

Fig. 2 Instrument cluster
First read and observe the introductory information and safety warn-
ings on page 8.
Engine revolutions counter » page 9
Display:
›With counter for distance driven » page 10
›With Service Interval Display » page 10
›With digital clock » page 11
›With Multi-functional display » page 11
›With Information display » page 14
Speedometer » page 9
Coolant temperature gauge » page 9
Button for display mode:
›Setting the hours/minutes
›Activating/deactivating the second speed in mph or km/h
›Service intervals - Display of the number of days and kilometres remaining
until the next Inspection Service
Button for:
›Reset trip counter for the distance driven
›Reset service interval display
›Set hours/minutes
›Activate/deactivate display mode
Fuel gauge » page 9 Ð
ä
1
2
3
4
5
6
7
8Using the system
Altri manuali per 2014 Rapid Spaceback
10
Indice
Altri manuali Skoda Automobile
Skoda
Skoda OCTAVIA Manuale di istruzioni
Skoda
Skoda ROOMSTER - 05-2009 Manuale utente
Skoda
Skoda 2000 Fabia Manuale utente
Skoda
Skoda KAROQ 2020 Manuale utente
Skoda
Skoda Octavia III 2013 Manuale di istruzioni
Skoda
Skoda OCTAVIA - 05-2010 Manuale utente
Skoda
Skoda Fabia III 2015 Manuale di istruzioni
Skoda
Skoda ROOMSTER Manuale utente
Skoda
Skoda 2011 Praktik Manuale utente
Skoda
Skoda SUPERB IV Manuale utente
Skoda
Skoda Octavia II 2004 Manuale di istruzioni
Skoda
Skoda 2009 Yeti Manuale utente
Skoda
Skoda OCTAVIA Manuale utente
Skoda
Skoda OCTAVIA - SUPPLEMENT FOR VEHICLES WITH LPG DRIVE... Manuale del proprietario
Skoda
Skoda Scala 2020 Manuale utente
Skoda
Skoda Citigo Manuale utente
Skoda
Skoda 2000 Fabia Manuale utente
Skoda
Skoda OCTAVIA Manuale utente
Skoda
Skoda OCTAVIA Manuale utente
Skoda
Skoda 2012 Citigo Manuale utente
