Skov DA 150B-S Manuale
DA 150B-S Pad Cooling
Technical User Guide
604535 • 2023-11-22
DA 150B-S Pad Cooling
Technical User Guide 3
Product and Documentation Changes
SKOV A/S reserves the right to change this document and the product herein described without further notice.
In case of doubt, please contact SKOV A/S.
The date of change appears from the front and back pages.
Note
• All rights belong to SKOV A/S. No part of this manual may be reproduced in any manner whatsoever without
the expressed written permission of SKOV A/S in each case.
• All reasonable efforts have been made to ensure the accuracy of the information contained in this manual.
Should any mistakes or imprecise information occur in spite of this, SKOV A/S would appreciate being noti-
fied thereof.
• Irrespective of the above, SKOV A/S shall not accept any liability with regard to loss or damage caused or
alleged to be caused by reliance on any information contained herein.
• Copyright by SKOV A/S.
DA 150B-S Pad Cooling
Technical User Guide
1 Product description ....................................................................................................................................... 5
2 Product survey ............................................................................................................................................... 6
3 Mounting guide............................................................................................................................................. 10
3.1 Recommended tools................................................................................................................ 10
3.2 Mounting of sandwich screws................................................................................................ 11
3.3 Positioning of the pad cooling modules................................................................................ 12
3.4 Wall preparation....................................................................................................................... 12
3.4.1 Free space for the pump-fitted pad cooling module .................................................................. 12
3.4.2 Free space for pad cooling modules without pump ................................................................... 13
3.4.3 Free space when using the obstacle kit..................................................................................... 13
3.4.4 Spacing frame dimensions......................................................................................................... 14
3.5 Positioning of the spacing frame ........................................................................................... 14
3.6 Mounting the spacing bracket on the wall ............................................................................ 15
3.7 Mounting the gutter system.................................................................................................... 16
3.7.1 Mounting the gutter bracket ....................................................................................................... 16
3.7.2 Mounting the gutter .................................................................................................................... 17
3.7.3 Mounting brackets for supply unit .............................................................................................. 18
3.8 Installation of the water distribution system......................................................................... 18
3.8.1 Mounting the top bracket ........................................................................................................... 18
3.8.2 Installation of the water distribution pipe.................................................................................... 19
3.8.3 Mounting the deflector ............................................................................................................... 19
3.8.4 Mounting the inner pad rail ....................................................................................................... 20
3.9 Piping at pump ......................................................................................................................... 20
3.9.1 Supply unit ................................................................................................................................. 20
3.9.2 Non-return valve ........................................................................................................................ 21
3.9.3 Piping ......................................................................................................................................... 21
3.10 Gluing........................................................................................................................................ 21
3.10.1 Gluing instructions ..................................................................................................................... 22
3.10.2 Gluing of gutter and pipe............................................................................................................ 22
3.11 Mounting end plates and pad rails......................................................................................... 24
3.12 Mounting pads ......................................................................................................................... 26
3.13 Pointing..................................................................................................................................... 27
3.14 Placement of DOL 10 ............................................................................................................... 28
4 Installation guide.......................................................................................................................................... 29
4.1 Electrical connection............................................................................................................... 29
4.2 General information about circuit diagrams ......................................................................... 29
4.2.1 Power supply isolator................................................................................................................. 29
4.2.2 Letter code ................................................................................................................................. 29
4.3 Cable plan and circuit diagram............................................................................................... 30
4.3.1 Cable plan.................................................................................................................................. 30
4.3.2 Circuit diagram........................................................................................................................... 30
5 Start-up test .................................................................................................................................................. 31
6 Maintenance instructions ............................................................................................................................ 32
6.1 Recommended routines .......................................................................................................... 33
6.2 Recycling/Disposal .................................................................................................................. 34
7 Technical data .............................................................................................................................................. 35
7.1 Load on wall/bracket ............................................................................................................... 35
DA 150B-S Pad Cooling
Technical User Guide 5
1 Product description
DA 150B-S pad cooling is used in livestock houses with Combi-Tunnel or LPV ventilation. The cooling takes
place when fresh air passes through cooling pads kept moist by recirculating water into the system. The air
passing through the pads is cooled and moistened.
Pad cooling for wall inlets is available in modules that fit one or more wall inlets in blocks. The plastic pad is very
robust, UV resistant and easy to clean. Hence, no special water quality requirements are required.
DA 150B-S pad cooling is used when a high cooling capacity is required and wet housing equipment surfaces
are not acceptable.
The pad cooling system is controlled from a BlueControl controller by means of a DOL 10 temperature sensor
placed at the basic pad cooling module.
DA 150B-S Pad Cooling
6 Technical User Guide
2 Product survey
750 750 750
750 750 750
1000
1000
750750
750 750
750
682
393
1000
1000
750
750
Pad cooling module 3 m 2.5 m pipe Pad cooling module 3m with
pump
4 m pipe Pad cooling module
1.2 m
437050
437828 437052
437056 437056 + 437057
437059
437060 437061 437060 437061 437060
437059 437059 437059 437059
1000 1000
1000 1000
437050 DA 150B-S pad cool basic 3m 1X230V 50Hz
Pad cool basic 3m is a complete 3-meter pad cooling module.
Pad cool basic must be placed in the middle of the pad cooling system.
Includes:
Supply unit including pump
Center/end pieces
Top pipe with pipe holder
Bottom gutter with plastic brackets
Non-return valve
Can cover the following number of wall inlets in 1 row:
1 for each 4 x DA 1200/DA 1211
1 for each 3 x DA 1911
1 for each 2 x DA 3800
Ordered separately:
437054 Pad PP 150x600x600
437055 Pad PP 150x600x1000
437059 DA 150B-S top bracket kit complete
437060 DA 150B-S pad cool gutter bracket complete
140246 DOL 10 temperature sensor
437828 DA 150B pad cool extension 3m
The 3-meter pad cooling extension is used in the pad cooling system with
pad cool basic if multiple modules of 3 m are requested - besides the basic
module - 437050.
The total length of the pad cooling system modules is max. 24 meter per
pump exclusive of the pipe kit.
Includes:
Center piece
Top pipe with pipe holder
Bottom gutter with plastic bracket
Can cover the following number of wall inlets in 1 row:
1 for each 4 x DA 1200/DA 1211
1 for each 3 x DA 1911
1 for each 2 x DA 3800
Ordered separately:
437054 Pad PP 150x600x600
437055 Pad PP 150x600x1000
437059 DA 150B-S top bracket kit complete
437060 DA 150B-S pad cool gutter bracket complete
DA 150B-S Pad Cooling
Technical User Guide 7
437052 DA 150B-S pad cool module 1.2 m
The 1.2-meter pad cooling module is used in the pad cooling system with
pad cool basic if modules of 1.2 m are requested.
Can also be used to extend a 3-meter pad cooling module.
The total length of the pad cooling modules is 24 meter per pump exclusive
of the pipe kit.
Includes:
Center piece
Top pipe with pipe holder
Bottom gutter with plastic bracket
Can cover the following number of wall inlets in 1 row:
1 for each 1 x DA 1200/DA 1211
1 for each 1 x DA 1911
1 for each 1 x DA 3800
Ordered separately:
437054 Pad PP 150x600x600
437055 Pad PP 150x600x1000
437059 DA 150B-S top bracket kit complete
437060 DA 150B-S pad cool gutter bracket complete
437054 Pad PP 150x600x600
The plastic pad is very robust, UV resistant and easy to clean.
Can cover the following number of wall inlets in 1 row:
DA 1200/DA 1211
DA 1911
Order 1 per 600 mm pad cooling module.
437055 Pad PP 150x600x1000
The plastic pad is very robust, UV resistant and easy to clean.
Can cover the following number of wall inlets in 2 rows:
DA 1200/DA 1211
DA 1911
Can cover the following number of wall inlets in 1 row:
DA 3800
Order 1 per 600 mm pad cooling module.
437056 DA 150B-S pad cool pipe kit 2.5m
Pipe kit is used between the pad cooling modules at distances up to 2.5 m.
Includes:
End pieces
Top pipe 3 m incl. pipe holder and pipe couplings
ø89 bottom pipe 2.5 m with pipe couplings
Ordered separately:
437059 DA 150B-S top bracket kit complete
437061 DA 150B-S ø90 bracket kit complete
DA 150B-S Pad Cooling
8 Technical User Guide
437057 DA 150B-S pad cool pipe kit extension 2.5 m
Pipe kit extension 2.5 m is used between the pad cooling modules at dis-
tances of 2.0 - 4.0 m. The distance between the pad cooling modules must
be a maximum of 4 m.
Includes:
Top pipe 3 m incl. pipe holder and pipe couplings
ø89 bottom pipe 2.5 m with pipe couplings
Ordered separately:
437059 DA 150B-S top bracket kit complete
437061 DA 150B-S ø90 bracket kit complete
437058 DA 150B-S pad cool obstacle kit
The obstacle kit is used when the top and bottom pipes are to be routed
around concrete pillars or rafters. Obstacle up to a width of 350 mm and a
depth of 400 mm.
Includes:
3 x 2" top pipe 300 mm
4 x 2" 45° elbow
3 x ø89 bottom pipe 300 mm
4 x ø89 45° elbow
Max. 4 obstacle kits on each side of the pump.
437059 DA 150B-S top bracket kit complete
The distance top bracket is used so the distance of 150 mm between the
wall and the pad cooling module is maintained.
Complete with screws, washers, and nuts for mounting on top bracket. Wall
mounting screws are not supplied.
Use 1 for each 750 mm at the pad cooling modules.
Use 1 for each 1000 mm at the pipes.
437060 DA 150B-S pad cool gutter bracket complete
The distance gutter bracket is used so the distance of 150 mm between the
wall and the pad cooling module is maintained.
Complete with screws, washers, and nuts for mounting on plastic gutter
bracket. Wall mounting screws are not supplied.
Use 1 for each 750 mm at the pad cooling modules.
437061 DA 150B-S ø90 bracket kit complete
The ø90 bracket kit is used so the distance of 150 mm between the wall
and the ø89 pipe is maintained.
Includes:
Distance bracket
ø90 pipe holder
Screws, washers, and nuts for mounting on ø89 bottom pipe.
Wall mounting screws are not supplied.
Use 1 for each 1000 mm at the pipes.
DA 150B-S Pad Cooling
Technical User Guide 9
437584 DA 150B glue kit - max. 12 m
Contains cleaning fluid, glue, and brushes for bonding the gutter system up
to 12 meters.
140246 DOL 10 temperature sensor
Is used as pad cooling sensor. Must be placed between the cooling pad and
the wall inlet.
Requires a version 8.3 software or later.
Cable length: 1.5 m.
1 per house.
DA 150B-S Pad Cooling
10 Technical User Guide
3 Mounting guide
Check that the ordered parts are present and undamaged before starting assembly. Please read through the
entire guide before starting assembly and fitting.
If the pad cooling is installed in areas with risk of load of snow or ice/snow slide, precau-
tions must be made to avoid damage to the pad cooling modules.

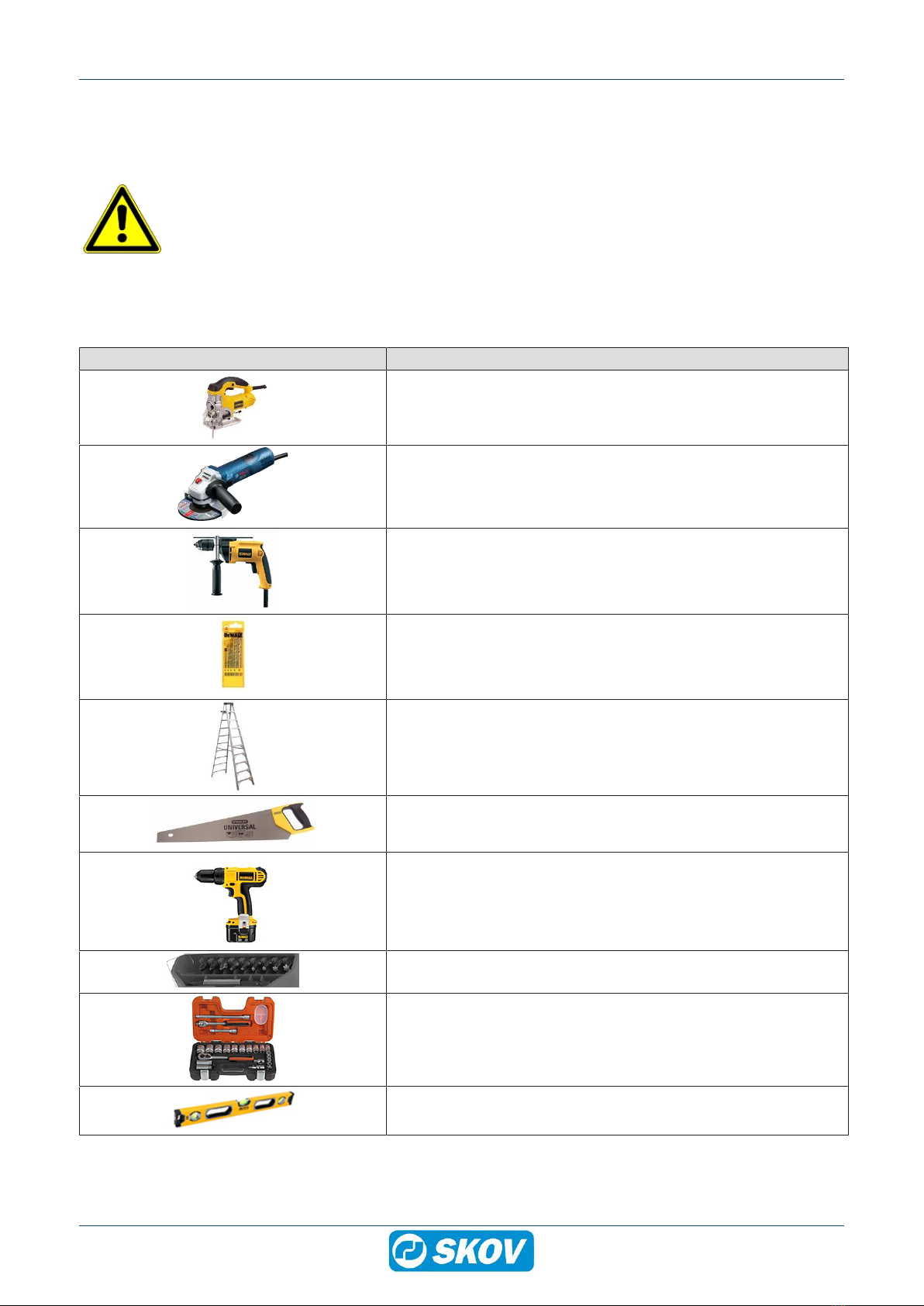

3.1 Recommended tools
Below is a list of tools recommended for assembly.
Topic Description
Jigsaw
Angle grinder
Impact drill
Drill kit
Ladder
Saw
Cordless drill
Screwdriver bits
Socket wrench set
Spirit level
Indice
Manuali Hardware per computer popolari di altre marche
EMC2
EMC2 VNX Series Manuale del proprietario
Panasonic
Panasonic DV0PM20105 Manuale utente
Mitsubishi Electric
Mitsubishi Electric Q81BD-J61BT11 Manuale utente
Gigabyte
Gigabyte B660M DS3H AX DDR4 Manuale utente
Raidon
Raidon iT2300 Manuale utente
National Instruments
National Instruments PXI-8186 Manuale utente
