These instructions will help you to use the +COM/UNIT safely.
Keep the instructions at hand
➤ These instructions are part of the +COM/UNIT.
➤ Always keep these instructions in a safe place.
➤ Please hand over these instructions if you sell or otherwise pass on the product.
Design characteristics of these instructions
Various elements in these instructions include clearly determined characteristics. You can easily
differentiate between the following elements:
Normal text
• Enumerations
➤ Action steps
DESIGNATION OF PRODUCTS
4

Information concerning the Instructions and the Manufacturer
Copyright
These instructions include information that is protected by copyright. These instructions are not to be
copied, printed out, filmed, processed, duplicated or distributed in any form whatsoever, whether in part
or in its entirety without prior written approval of SKS metaplast Scheffer-Klute GmbH.
©2019 SKS metaplast Scheffer-Klute GmbH
All rights reserved.
Address of the Manufacturer
SKS metaplast Scheffer-Klute GmbH
Zur Huberstushalle 4
59846 Sundern
Tel.: +49-2933-8310
Website: www.sks-germany.com
GERMANY
5

GERMANY
Safety
Safety
Intended use
The +COM/UNIT is designed for private use.
The +COM/UNIT is intended for charging your smartphone with or without a Qi charging function and
can be mounted on the COMPIT.
COMPIT is a smartphone holder. It is mounted on the bicycle’s handlebar.
The smartphone can only be used on the +COM/UNIT with a cover (not included in the scope of delivery).
Please refer to the section entitled Accessories,
page 26.
Intended use also includes observing and following all the information contained in these instructions,
particularly the safety instructions. Any other use is expressly considered improper.
6

GERMANY
Safety
Basic Safety Instructions
Avoid fire, explosions or electric shocks
Severe or mortal injuries resulting from an explosion, fire or electric shock are possible should the
product not be used correctly.
➤ Check whether the voltage stated on the power adapter is the same as the local mains voltage before
you connect the adapter to the power supply.
➤ Always only use authorised power adapters.
➤ Do not use the COMPIT or +COM/UNIT power adapter should it be damaged.
➤ Never open the housing of the +COM/UNIT. Always have repair work carried out by qualified specialists.
➤ Do not adhere any metallic labels or other objects to the +COM/UNIT.
➤ Do not use the +COM/UNIT close to heated surfaces.
➤ Do not use an extension cable or overloaded multiple sockets.
➤ Ensure that children and persons with a mental handicap only use the +COM/UNIT under supervision.
Avoid a cardiac pacemaker or other implant failure
A cardiac pacemaker or other implant failure can occur when using the +COM/UNIT.
➤ Should you have a cardiac pacemaker or another implant, please consult your doctor or the implant
manufacturer before using the +COM/UNIT.
7
Design characteristics of tips
Tips provide additional information.
i

GERMANY
Description

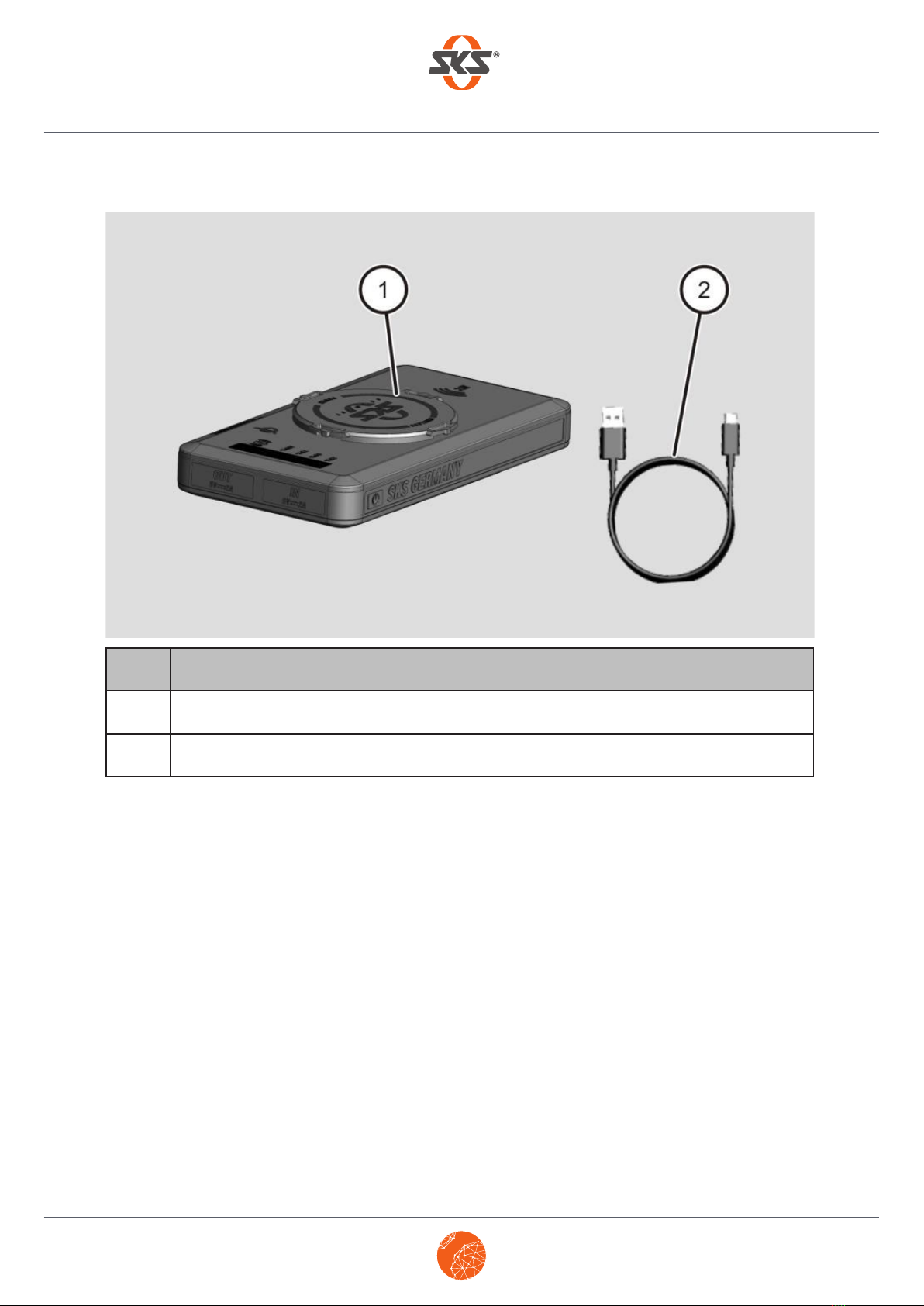

Overview of the +COM/UNIT’s scope of delivery
8
+COM/UNIT
USB cable
1
2
DesignationNo.

GERMANY
Description
9

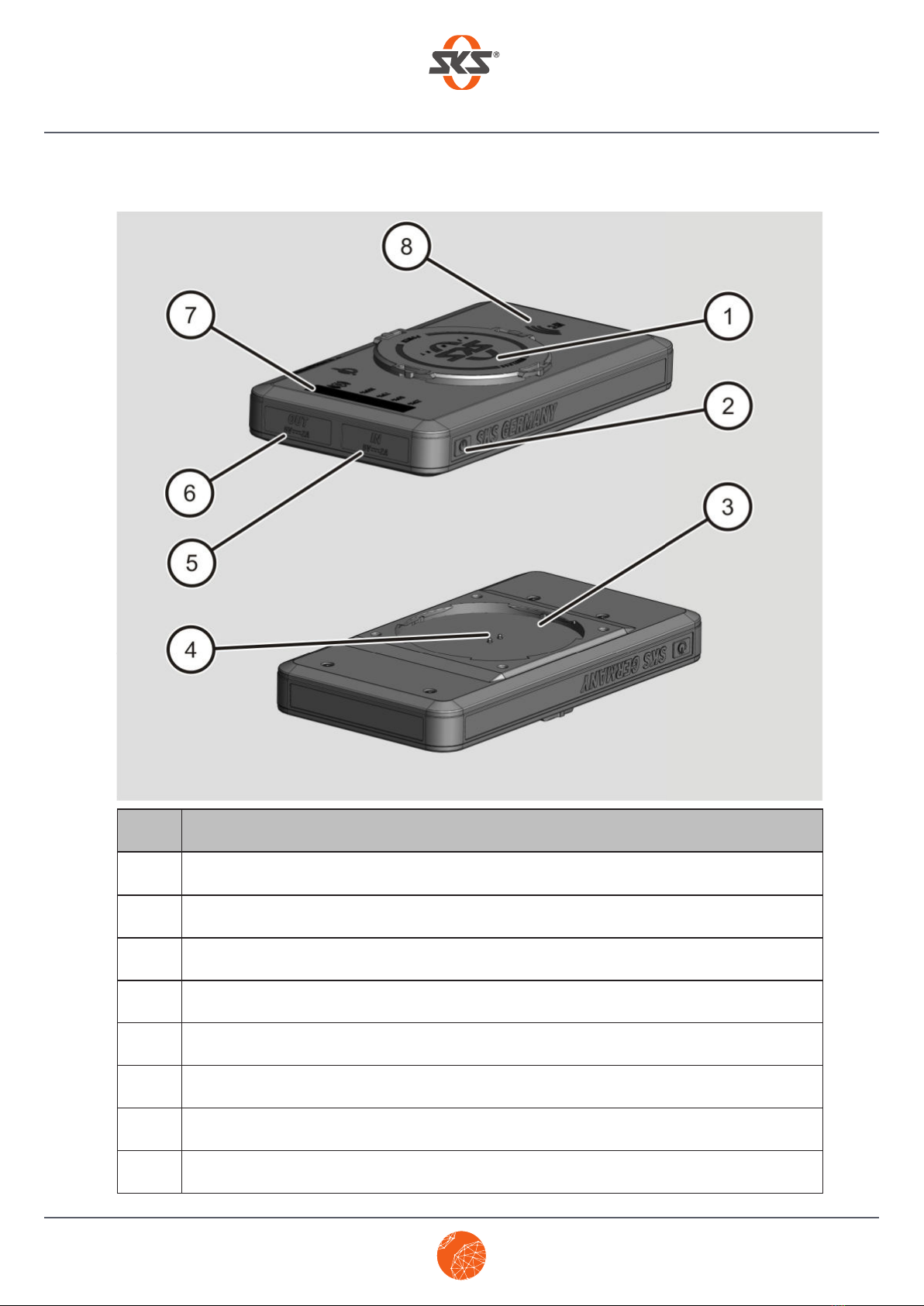

+COM/UNIT overview
Qi docking station (cableless charging) for mounting the smartphone with cover
Button for switching on and off
Docking station for mounting on the COMPIT
Housing input (two contact pins in the housing)
USB-Input
USB-Output
LED status indicator
NFC reading area
DesignationNo.
1
2
3
4
5
6
7
8

GERMANY
Description
10

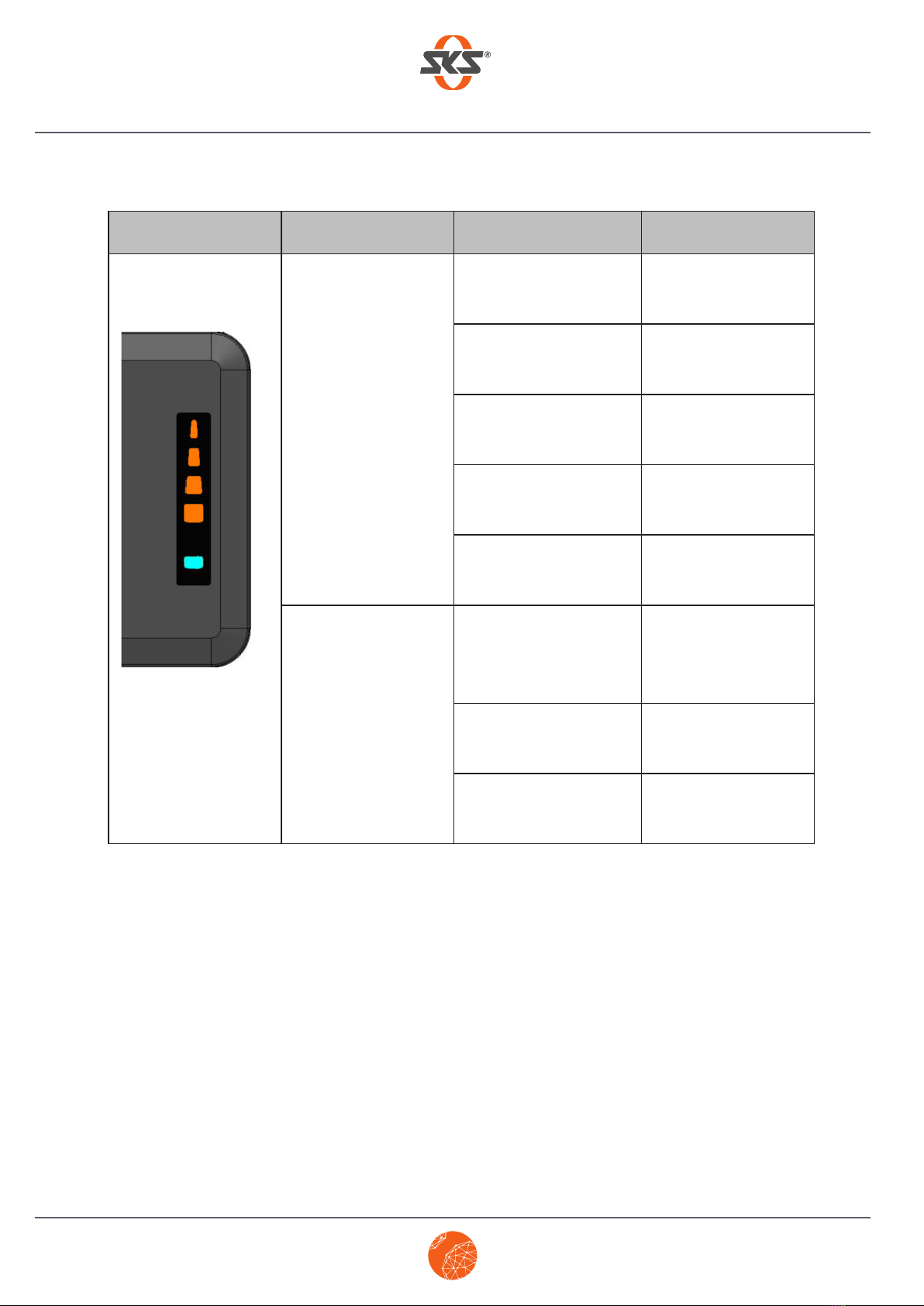

LED status indicator
LED STATUS INDICATES
+COM/UNIT
Battery indicator 4 orange LEDs flash in
succession
1 LED illuminated
2 LEDs illuminated
3 LEDs illuminated
4 LEDs illuminated
Blue
Blue flashing approx.
1 x per second
Blue flashes fast
approx. 5x per second
Indicator for
cableless charging
+COM/UNIT is being
charged
0 %–25 % battery
capacity
25 %-50 % battery
capacity
50 %-75 % battery
capacity
75 %-100 % battery
capacity
Standby or charging
completed
Charging in process
Charging error
