MOUNTING INSTRUCTION MUDROCKER REAR ¬ 11670
MOUNTAIN
GERMANY
PARTS
1.Insert the rubberized wedge into the mudguard.
Silicon velcro straps for
tting mudguards
Rubberised
wedge
Frame protection foil EXTENDER
EXTENSION
1.1. Adjust the space of the mudguard to the tyre. (2 positions possible)
1.
or
2.
2. Thread the velcro strap with the rubberized side to the frame.
Always retighten the straps before the ride!
End position strap
1.2. Afx the protective lm on the bicycle frame.
(Thoroughly clean the frame before afxing)
ATTENTION!
We strongly recommend to use the frame protection lm.
ATTENTION!
Clamp the extender in the mudguard
and cut it so that it ts between
the seating stays.
Avoid in general the contact
to the seating stays.
EXTENDER
MUDROCKER
Riding in rough terrain, short contacts of the mudguard
and the tyre may occur.
3. Optional
EXTENDER
EXTENSION

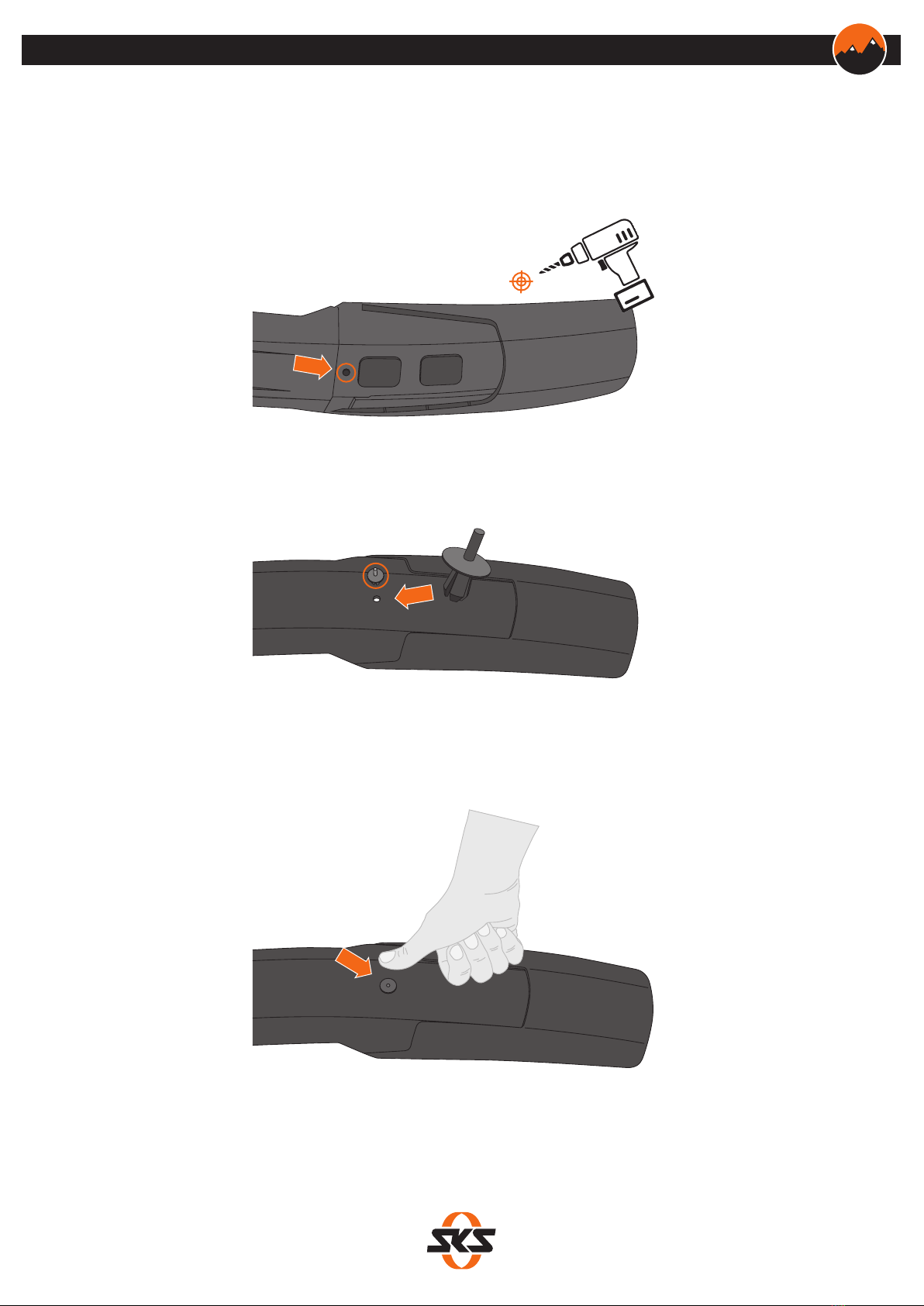

1. Using a 6 mm drillbit, drill a hole through the
mudguard and extension at the marked location.
2. Insert the plug from the outside through the two superimposed holes.
6 mm
3. Press down the protruding pin with a tool if necessary.
This expands the plug and it is rmly installed.
MOUNTING INSTRUCTION MUDROCKER REAR EXTENSION ¬ 11670
MOUNTAIN
GERMANY
