What’s in the case?

• 1 Telescope with attached Finderscope

• 1 Eyepiece with 2 protective caps (20 mm)

—See Figure 1

• 1 Eyepiece (either 4 mm or 10 mm )

with 2 protective caps—See Figure 1

• 1 Setup Guide

• 1 Night Sky Pocket Guide

The Telescope Kit and all contents must be returned to a Coquitlam Public Library branch Help Desk.

Parts Diagram

1. Eyepiece

2. Eyepiece screws

3. Focusing wheel

4. Dust cap

5. Telescope tube

6. Tension control knob

7. Finderscope

8. Finderscope focusing wheel

9. Finderscope alignment screws

Sky-Watcher Heritage 76 Dobsonian Telescope

Figure 1: Eyepieces

Eyepieces with

protective caps

Eyepieces without

protective caps

WARNING: Never use the telescope to look directly at the sun.

Permanent eye damage will result.

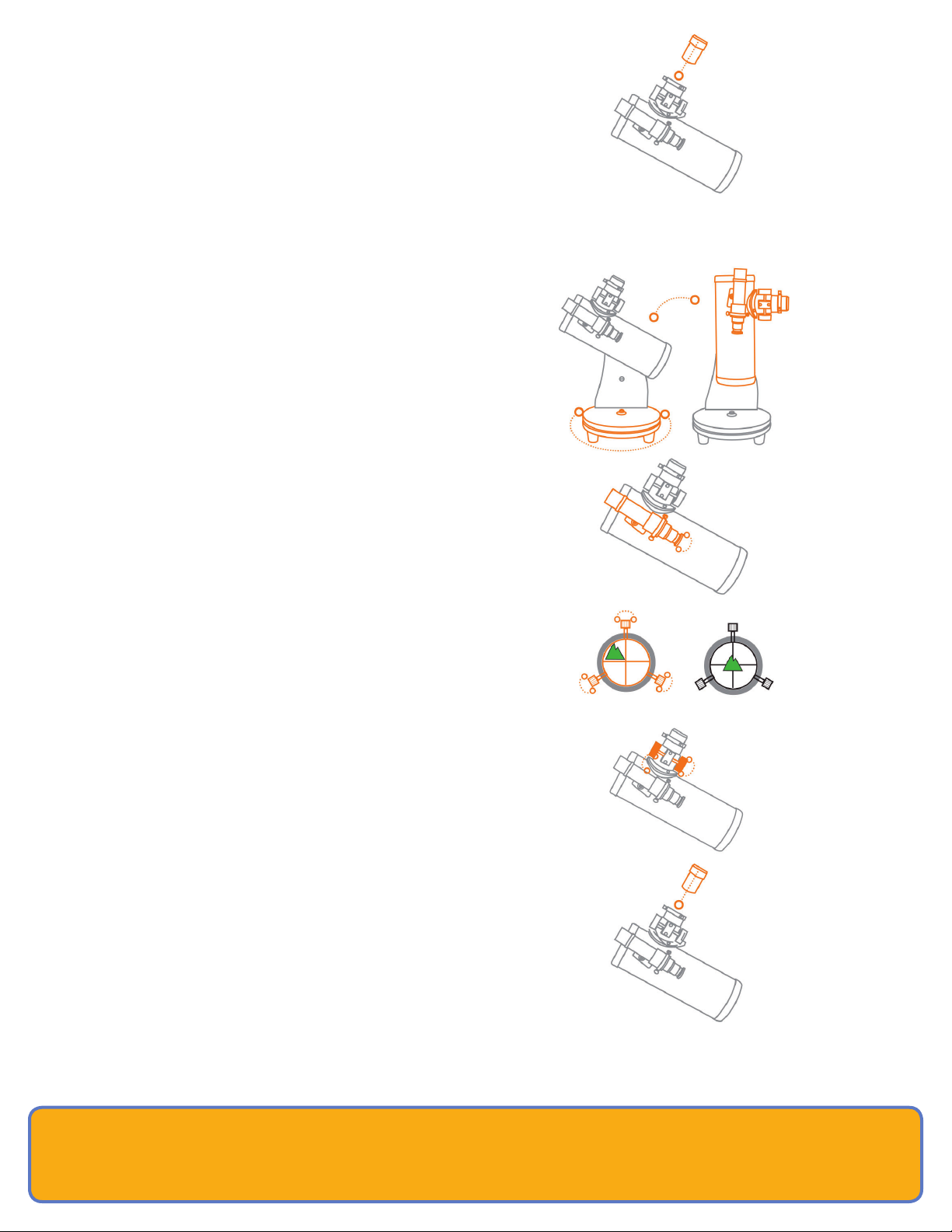

Using the Telescope

1. Select the 20 mm (wide-angle) eyepiece. Remove the

protective caps (see Figure 1 on reverse). Carefully insert the

chrome barrel of the eyepiece into the focuser. Tighten the

screws gently to secure.

2. Remove the main telescope dust cap.

3. Position the telescope to the desired angle by tilting the

telescope tube up and down or swiveling the telescope around

the base. Adjust the tension control knob as needed.

4. Use the nderscope to roughly point your telescope at your

target. Outdoors during the day, sight an object at least 500

metres away. Twist the nderscope focusing wheel until focus

is reached.

5. Check that the object is in the centre of the view in the

nderscope. If not, use the three alignment screws to centre

the nderscope crosshairs on the object.

6. Once your object is aligned, look through the 20 mm (wide-

angle) eyepiece. Focus your telescope by turning the focusing

wheel until you have a sharp image.

7. For viewing at a higher magnication, swap to the 4 mm or

10 mm (high magnication) eyepiece. You may need to use the

focusing wheel to focus and sharpen the image.

For more information, visit coqlibrary.ca/telescopes
