Skydio X2E Manuale utente
Updated: June 16, 2022
WARNING: Please read all documentation provided with your Skydio
X2E including but not limited to the Safety & Operating Guide:
www.skydio.com/getstartedX2
Quick Reference Guide
Skydio X2E-Color
Skydio X2E-Color/Thermal
This document contains instructions from the original product manufacturer Skydio, Inc.
Table of contents
Hardware overview
Skydio X2E
Skydio Enterprise Controller
Safety
Guidelines
Pre-flight
Charge
Skydio X2E
Skydio Enterprise Controller
Deploy
Skydio X2E
Skydio Enterprise Controller
Pairing devices
Flight
Joystick controls
Flight controls
Launch
Return
Land
Obstacle avoidance
GPS night flight
Emergency behavior
Low battery
Lost connection
Replacing propellers
When to replace propellers
How to replace propellers
Additional resources
1
1
3
5
5
7
7
7
8
9
9
12
12
15
15
15
15
16
16
16
17
17
17
17
18
18
19
20
1Skydio X2E /Quick Reference Guide
HARDWARE OVERVIEW
Skydio X2E
1. Chassis
2. Navigation camera (6)
3. Gimbal
4. Motor hub and lights (4)
5. Propeller hub
6. Propeller blades
clockwise (6) counter-clockwise (6)
7. Arm (4)
8. Arm clamp (4)
9. Antennas
Skydio X2E Color/Thermal variantSkydio X2E Color variant
2© 2022 Skydio, Inc. All rights reserved.
10. MicroSD memory card ports and seal
11. USB-C port and seal
12. Cooling outlet (2)
13. Hard stop (4)
14. Battery
15. Gimbal isolator (3)
16. Thermal camera
17. Color camera
18. Gimbal pitch motor
19. Gimbal roll motor
20. Cooling inlet
21. Skydio X2E label
HARDWARE OVERVIEW
WARNING: Skydio X2E is not weatherproof. Do not operate in any precipitation,
including rain, fog, snow, or similar environments.
3Skydio X2E /Quick Reference Guide
HARDWARE OVERVIEW
Skydio Enterprise Controller
1. Left joystick
2. Right joystick
3. Menu/back button
4. D-pad
5. C1 button (customizable)
6. C2 button (customizable)
7. RTH (Return to Home) button
8. Power button
9. Launch/Land button
10. Pause button
11. Controller clamshell
12. User interface screen
4© 2022 Skydio, Inc. All rights reserved.
13. R1 button shutter/record
14. Right wheel zoom
15. L1 button boost
16. Left wheel gimbal tilt
17. R2 button toggle map
18. L2 button toggle thermal to color
19. USB-C port
20. Cooling fan
21. Neck-strap and tripod (¼-20) mount
HARDWARE OVERVIEW
WARNING: Skydio Enterprise Controller is not weatherproof. Do not operate in any
rain, fog, snow, or similar environments. Do not rest the controller in fine sand, dirt
or on similar terrain where particles can get trapped in the fan.
5Skydio X2E /Quick Reference Guide
SAFETY
Safety Guidelines
Keep your fingers away from moving
propellers at all times
Skydio X2E does not avoid moving
objects or cars
Skydio X2E is not weatherproof –
don’t fly in rain, snow, fog, high winds,
etc
Use caution around reflective surfaces
(still water, mirrors, etc.) and small
obstacles (thin branches, utility lines,
ropes, chain link fencing, etc.)
Before flying over water, ensure your
drone has GPS lock. Launch and land
your drone over a dry surface.
6© 2022 Skydio, Inc. All rights reserved.
For more Skydio safety information visit: Skydio.com/safety
Check your propellers for damage
before flying
Follow all civil aviation authority
regulations, as well as any applicable
local and federal laws
Clean all of the cameras so Skydio
X2E can see clearly
Skydio X2E obstacle avoidance is o
during GPS Night Flight mode and can
be impaired when in low light & poor
visibility. Fly with extreme caution
under these conditions
SAFETY
7Skydio X2E /Quick Reference Guide
PRE-FLIGHT
Charge
Skydio X2E
Skydio Dual Charger is capable of simultaneously providing current to two batteries.
However, it will prioritize fully charging the battery with the highest charge level. Allow
approximately two hours to fully charge batteries.
The current charge level is accessed by pressing the power button on the battery. The
battery charge level is indicated by the lights:

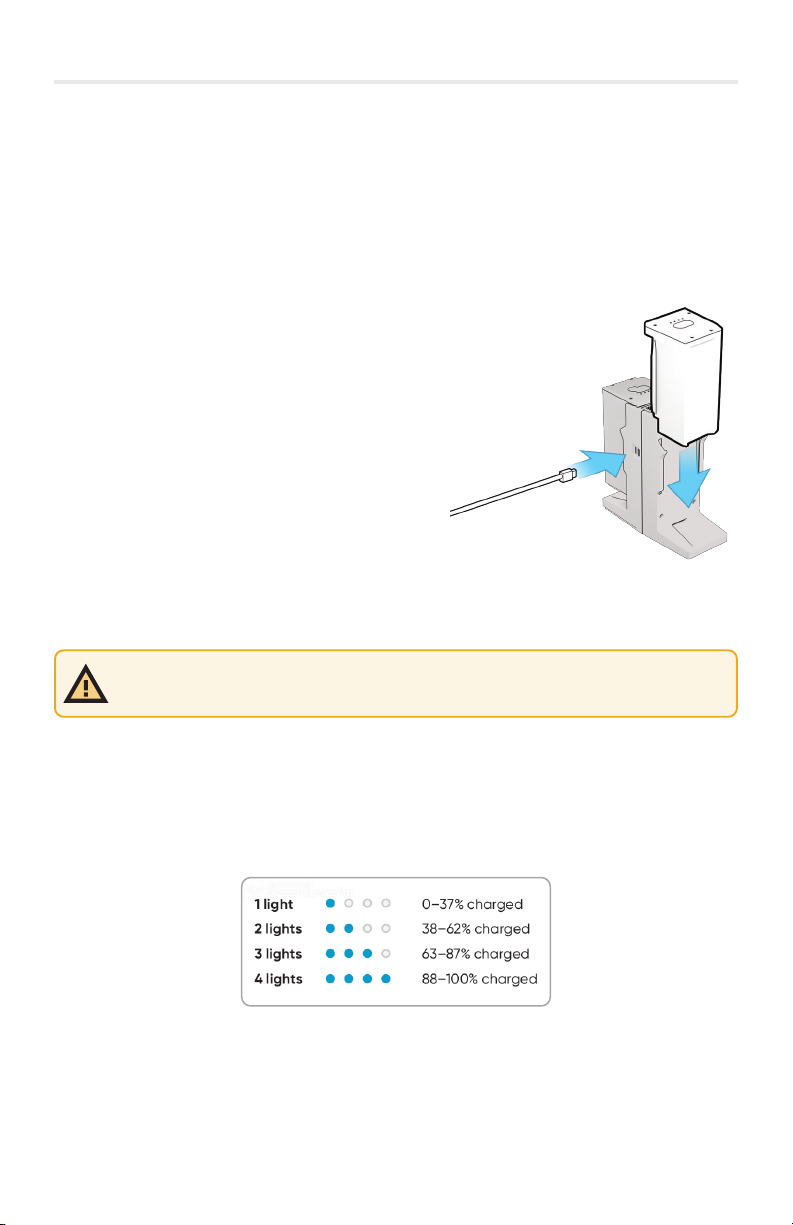

X2E battery charge levels
Step 1 - Slide one or both batteries down the rails onto the Dual Charger
• magnets will engage properly seating the battery
Step 2 - Connect the provided USB-C cable and the 65 W power adapter
Step 3 - Plug the power adapter into the Dual Charger and
a 100-240 V power source
• flashing lights indicate charging
• no light indicates that the charge is complete
WARNING: Avoid exposure to extreme hot or cold temperatures. Instructions and
warnings for battery storage are located in the X2E Operator Manual
