Installation and Quick Start Guide
Welcome to skydrop™
This guide will help you set up
your skydrop™controller. For
more information, check out
our step-by-step installation
video or visit our website.
Installation video.
skydrop.com/install-video
Learn more.
skydrop.com/features
Scan this QR
code to watch the
installation video
Questions?
We’re here to help! Please
contact skydrop support for
assistance rather than the retailer.
skydrop.com/support
support@skydrop.com
1-844-SKYDROP | 1-844-759-3767
Before you begin
Wireless access.
The skydrop™controller uses
WiFi and must be installed close
to a strong signal source for
optimal performance.
If the WiFi signal strength is low,
you may need to move your
wireless router or install a WiFi
range extender.
Installing outdoors.
The skydrop™controller is
designed to be installed
indoors. If you need to place it
outdoors, ensure it is encased
in a weather-resistant enclosure.
Visit skydrop.com/outdoors for
additional information.
Power Down.
If you need to remove
the controller, it is highly
recommended to power down
the device rst. To power down,
press and hold the power
button located on the bottom
of the device until the jog
dial glows yellow and wait 10
seconds. Then you can detach
the controller from the wall plate.
Contents
Step 1: Remove existing sprinkler controller
Take note of your valve wire
numbering and common wire(s),
usually white.
Disconnect wiring and remove
the existing controller from the
wall.
Straighten and strip wire
ends to expose leads to the
recommended length.
TIP: Take a photo
of the wiring with
your smartphone.
9.5mm
to
12.7mm
3/8"
to
1/2"
2
1
Step 2: Mount the skydrop™wall plate
Position the skydrop™wall plate
using the integrated level, and
secure using anchor screws
(included).
NOTE: Wall anchors are not necessary
for mounting to drywall. Pre-drilling
with a 1/8” (3mm) bit is recommended
when mounting to wood studs. Do not
over-tighten screws; hand tightening is
recommended.
TIP: Install at eye level for
optimal screen viewing.
Step 3: Install power and wiring
Insert the power cable through bottom wiring
slot (or through the breakaway tab on the rear of
the wall plate) and secure into the top, center plug.
Push each valve wire rmly into a zone (1-8) and
pull back slightly to verify it is secure. The “C”
positions are for common wire(s). To remove a
wire, press its corresponding button and pull out.
Common Master Valve
(optional)
Common
Hot Position
(for testing)
Step 4: Place controller onto wall plate
Align the snap pegs on the
back of the controller with the
corresponding holes in the wall
plate, then push the two rmly
together. The skydrop™logo will
illuminate when the controller is
powered.
Step 5: Initial setup
The rst time you power up the
skydrop™ controller, you will be
guided through the initial setup
process to connect to your WiFi
network and congure your
watering zones.
Create your account.
Visit my.skydrop.com to create
your user account and manage
your controller online.
Using the jog dial.
Make selections on the
controller using the illuminated
jog dial. Rotate the dial to
navigate and push the ring to
select. Press and hold the dial to
go back to the previous screen.

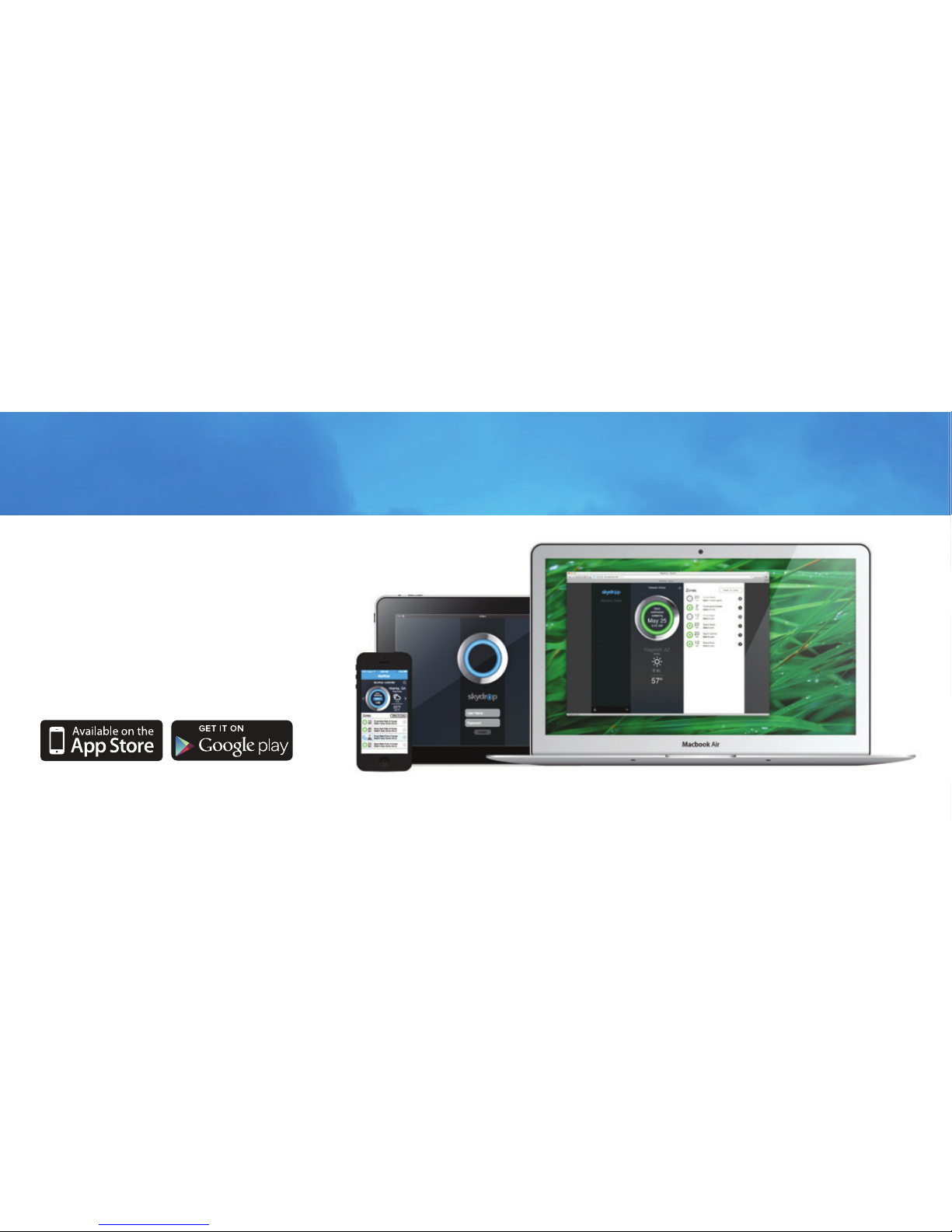

Step 6: Mobile control
The skydrop™controller can be
managed directly on the device,
via the web, or through an iOS
or Android device.
Download the mobile app.
Visit skydrop.com/mobile
