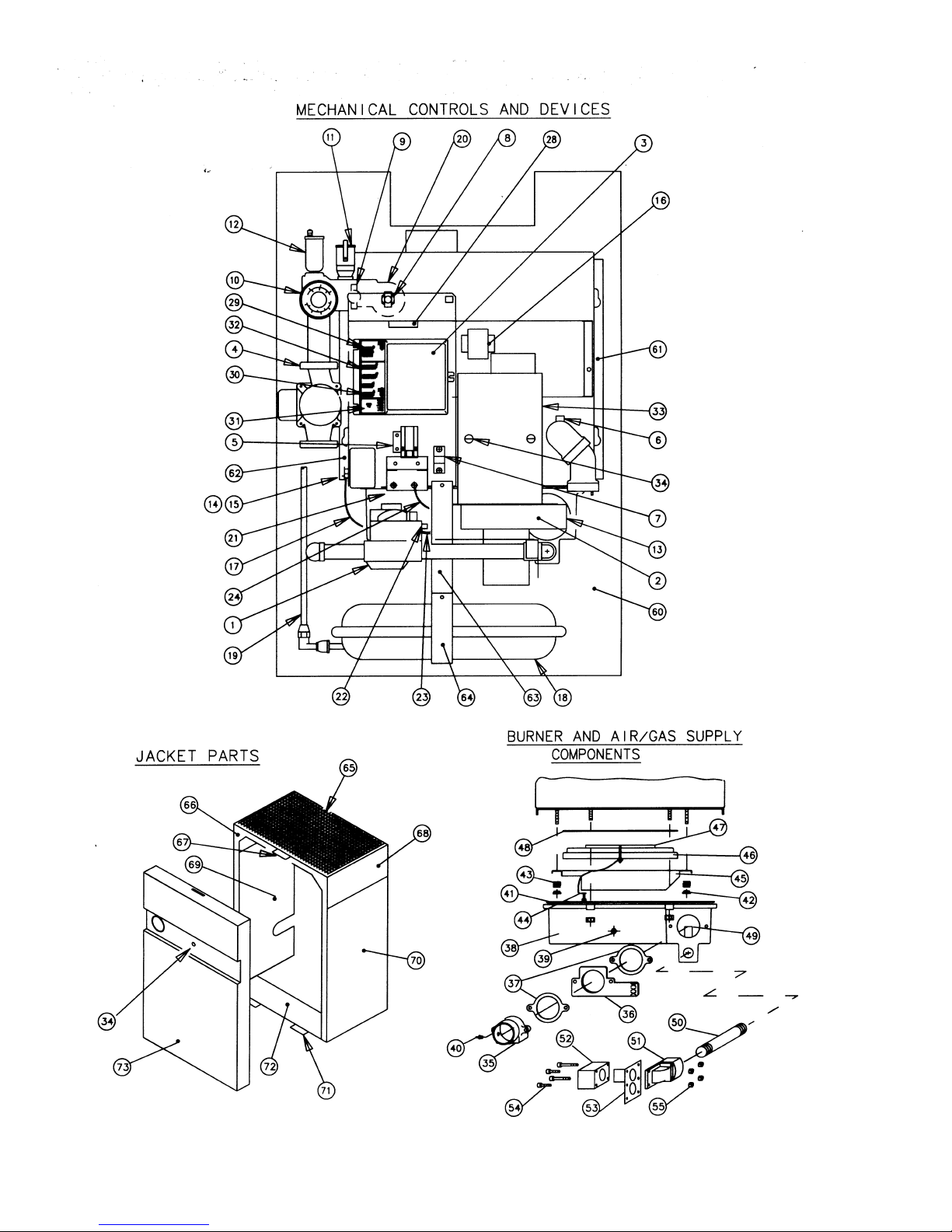

Ref. Description KCS-50 KCS-100

1 Gas Valve-RS7200 Dern 660520 660520

2Combustion Blower 660527 660527

3Electronic Control-United Tech.1013-12 660589 660589

4Circulator Pump-Taco 007 660561 660561

4A Circulator Pump-Grundfos UP15-42F 660562 660562

4B Circulator Pump-B&G NRF-22 660564 660564

5Air Pressure Switch 651302 651302

6Low Water Cutoff-Manual Reset 651341 651341

6A Low Water Cutoff Spring 651342 651342

6B Water Limit Connector Harness 651343 651343

7Water High Limit 650564 650564

8 High Limit Well 410674 410674

9Secondary High Limit (Optional) 660524 660524

10 Temperature/Pressure Gauge 910373061 910373061

11 Pressure Relief Valve 650550 650550

12 Automatic Air Vent 651303 651303

13 Blower Connector Hose 660510150 660510225

14* Hot Surface Ignitor 660720 660720

14A* Hot Surface Ignitor Hold-down 660276 660276

14B* Ignitor Guide Assembly 665038 665038

14C* Ignitor Perforated Shield 660721 660721

15 Flame Detector 660501 660501

15A Flame Detector Bracket 660161 660161

15B Flame Detector Seal 660439 660439

16 24v Transformer 660528 660528

17 Silicone Tubing 1/8 I.D. x 26" Long 660598026 660598026

18 Expansion Tank 650536 650539

19 Expansion Tank Connector Tube 651713 651713

20 Water Outlet Manifold 650401 650401

21 Air Pressure Service Fitting 660529 660529

22 Gas Pressure Service Fitting 660530 660530

23 Clear Tubing 1/8 I.D. x 8" Long 660531 660531

24 Clear Tubing 3/16 I.D. x 8" Long 660532 660532

28 Thermostat Terminal Block 660523 660523

29 Safety Circuit 9 Pin Harness 651344 651344

30 Power Supply 3 Pin Harness 660652 660652

31 Flame Sensor Harness 660660 660660

32 Circulator Harness 660653 660653

33 Air Filter 6" x 11" 651306 651306

34 1/4 Turn Fastener 650541 650541

PRODIGY 21®Gas-fired • Direct Vent • Cast-iron • Hot water boilers

BOILER REPLACEMENT PARTS LIST

For Models KCS-50 and KCS-100

When ordering replacement parts, specify the boiler model number, serial number and gas by name (natural or

propane). Parts are available from your local Slant/Fin heating contractor, wholesaler or Slant/Fin Corporation.

This parts list must be left with owner, hung on or adjacent to

the boiler. Owner should retain parts list for future reference.

PUBLICATION NO. P-10PL-B

Part No. 65-2113

Printed in U.S.A. 1100

*Special Note on Reference Item #14: This Hot Surface Ignitor part number is only for use with Prodigy 21 boilers which incorporate an

air-cooled ignitor guide and perforated shield. Refer to identification label above ignitor on boiler.

Ref Description KC-50 KC-100

34A 1/4 Turn Receptacle 650542 650542

35 Air Orifice Adapter 660031 660031

36 Air Orifice Plate* 660191 660192

37 Air Orifice Gasket 660410 660410

38 Burner Enclosure 660021 660022

39 Barbed Fitting - 3/16" Tubing 650600 650600

40 Barbed Fitting - 1/8" Tubing 660596 660596

41 Burner Enclosure Seal 660441041 660441044

42 Burner Thumb Nut 660608 660608

43 Burner Hold-down Spring 650512 650512

44 Burner Ground Wire 660654 660654

45 Burner Compression Bracket 665101 665102

46 Ceramic Burner 660511 660512

47 Burner Ground Strip 660503 660503

48 Burner Seal Gasket 660431 660432

49 Gas Tube 660179 660179

50 3/4 NPT x 8" Long Gas Manifold Pipe 460514 460514

51 3/4 Angle Flange 660032 660032

52 3/4 Straight Flange 660033 660033

53 Convertible Gas Orifice Plate* 660181 660182

54 Socket Head Screw 8-32 x 2-1/4" 660631 660631

54 Socket Head Screw 8-32 x 1-1/2" 660632 660632

55 8-32 Hex Nut 650668 650668

60 Wall Mounting Panel 651714 651714

61 Boiler Support - Right Side 650233 650233

62 Boiler Support - Left Side 650234 650234

63 Expansion Tank Upper Strap 650221 650221

64 Expansion Tank Lower Strap 651711 651712

65 Jacket Top Screen 650218 650219

66 Jacket Brace Assembly 651118 651118

67 Jacket Upper Cover Clip 650733 650733

68 Jacket Removable Side Panel 650216 650217

69 Jacket Left Side Panel 651721 651722

70 Jacket Right Side Panel 651723 651724

71 Jacket Lower Cover Clip 650742 650742

72 Jacket Bottom Brace 650215 650215

73 Front Cover Panel - Black 650971 650971

73 A Front Cover Panel - White 650972 650972

73 B Front Cover Panel - Gray 650973 650973

73 C Front Cover Panel - Off-white 650974 650974

* Note: These Prodigy boiler models utilize the same air and gas orifices as the Concept series of boilers. Therefore, the model number

shown on the orifice plates reflect the Concept boiler model’s identification. (Prodigy KCS-50 uses orifice plates marked “45” and KCS-100

uses orifice plates marked “90”.)

Optional Boiler Calibration Equipment:

Calibration Gage Kit . . .665185 . . . .0 to 1” gage on stand with tubing and service fitting adapters.

Service Fitting Adapter .660533 . . . .for gages with 3/16" I.D. tubing.

©Slant/Fin Corp.

SLANT/FIN CORPORATION, Greenvale, N.Y. 11548 • Phone: (516) 484-2600

FAX: (516) 484-5921 • Canada: Slant/Fin LTD/LTEE, Mississauga, Ontario

www.slantfin.com

Ref Description Slant/Fin Part # Heat Fab Part #

80 12” Long Vent Adapter 660547 7302FIN

— 6” Long Vent Pipe 440671 7301GC

— 12” Long Vent Pipe 440672 7302GC

— 18” Long Vent Pipe 440673 7304GC

— 24” Long Vent Pipe 440674 7305GC

— 36” Long Vent Pipe 440675 7307GC

— 48” Long Vent Pipe 440676 7308GC

— Tee (For Drain) 440686 7316GC

— Drain Tee Cover 440687 7317GCD

— In-line Cond. Drain* 440677 7320GC

84 Screen Term. Tee 440683 7390TEE

85 Screen Term. Straight 660548 7392GC

— Screen Term. Elbow 440678 7314TERM

— 90° Elbow (Standard) 440682 7314GC

83 90° Elbow (Tight Radius) 651310 SF651310

— 45° Elbow 440681 7311GC

— 18” Slip-Joint Connector 440684 7324GC

— Support, 6” Clearance 440679 7323GCC

— Support, 2” Clearance 440692 7323GC2

— Support Clamp 440680 4327SS

—Firestop 440685 5318CI

86 GE-RTV 106, 3 oz. Tube 440690

—Dow-Corning 732, 3 oz. Tube 440691

— Dow-Corning 732, 10 oz. Cartridge 440693

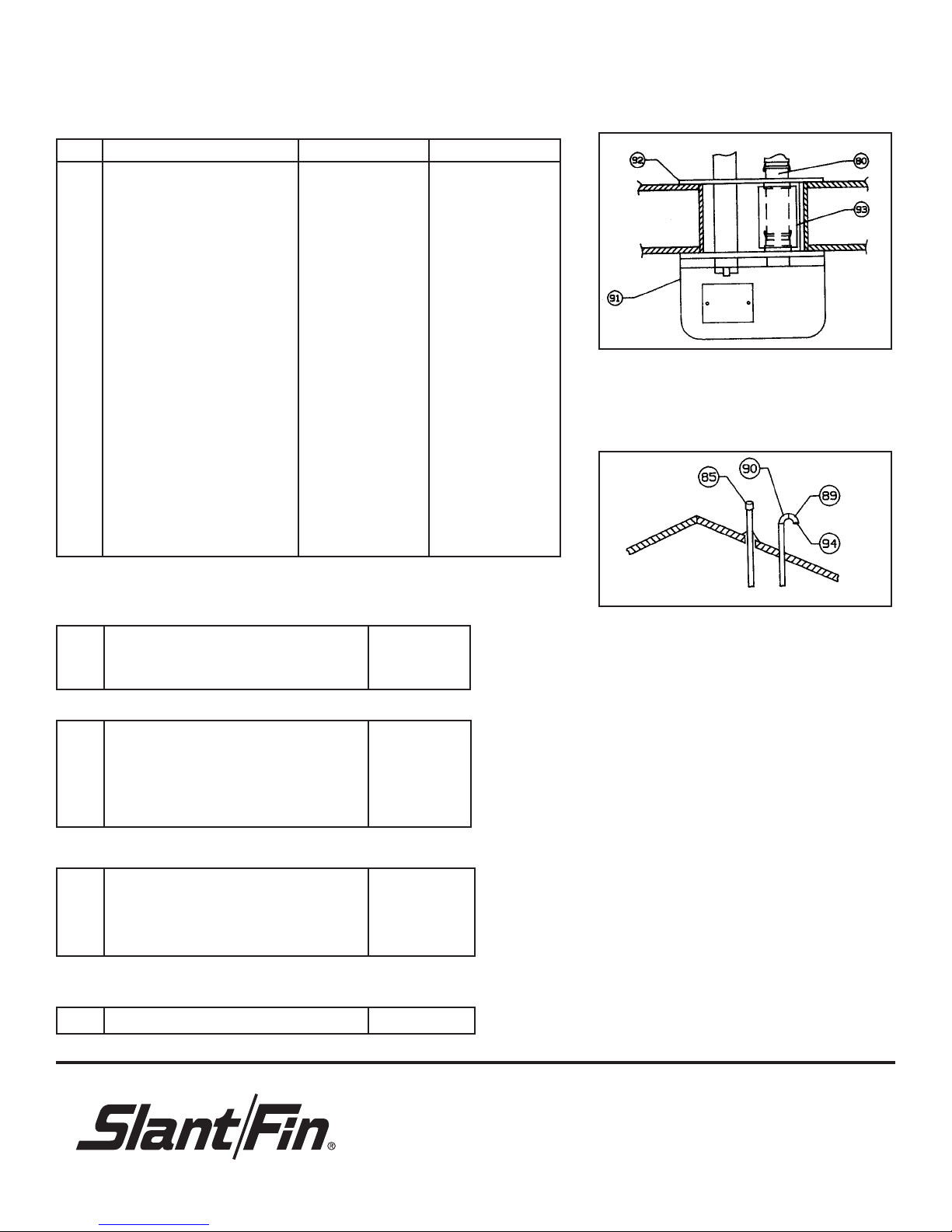

3” DIAMETER SAF-T VENT SYSTEM (AL 29-4C STAINLESS STEEL)

OPTIONAL VENT SYSTEM PARTS AND KITS Horizontal Venting Vent Terminal Kit

(Standard)

Part No. 651702

Includes Ref # 80, 81, 82, 83, 86, 88, 89, 91, 92, 93

SEALANTS FOR VENT SYSTEM

81 24” Long Pipe (Schedule 40) 651316

82 Coupling (Schedule 40) 651315

88 Coupling (Sewer and Drain) 660571

89 90° Elbow (Schedule 40) 660577

90 90° Street Elbow (Schedule 40) 660578

3” PVC FOR AIR INTAKE SYSTEM

91 Vent Terminal (Stainless) 665020

92 Indoor Wall Plate 665119

93 Wall Passage Thimble† 660539

94 3” Air Inlet Screen (Stainless) 660236

SLANT/FIN MANUFACTURED VENT SYSTEM PARTS

— Wall Passage Thimble 440695

Vertical Venting Roof Termination Kit

(Optional)

Part No. 665192

Includes Ref # 85, 86, 88, 89, 90, 94

* In-line condensate drain can be used as an alternate to the combination of drain tee

and cover. A 1⁄2” I.D. drain tube is required for this part.

† For use with vent terminal only. For installations where vent terminal is

not used, wall passage requires thimble listed below, in conjunction with

aslip-joint connector.
