SM580
Build Guide
RED M3 x 5mm FLAT HEAD
Chassis Top Assembly
Rear AC Inlet
SSDs (on SSD bracket)
SFX PSU Mount Bracket

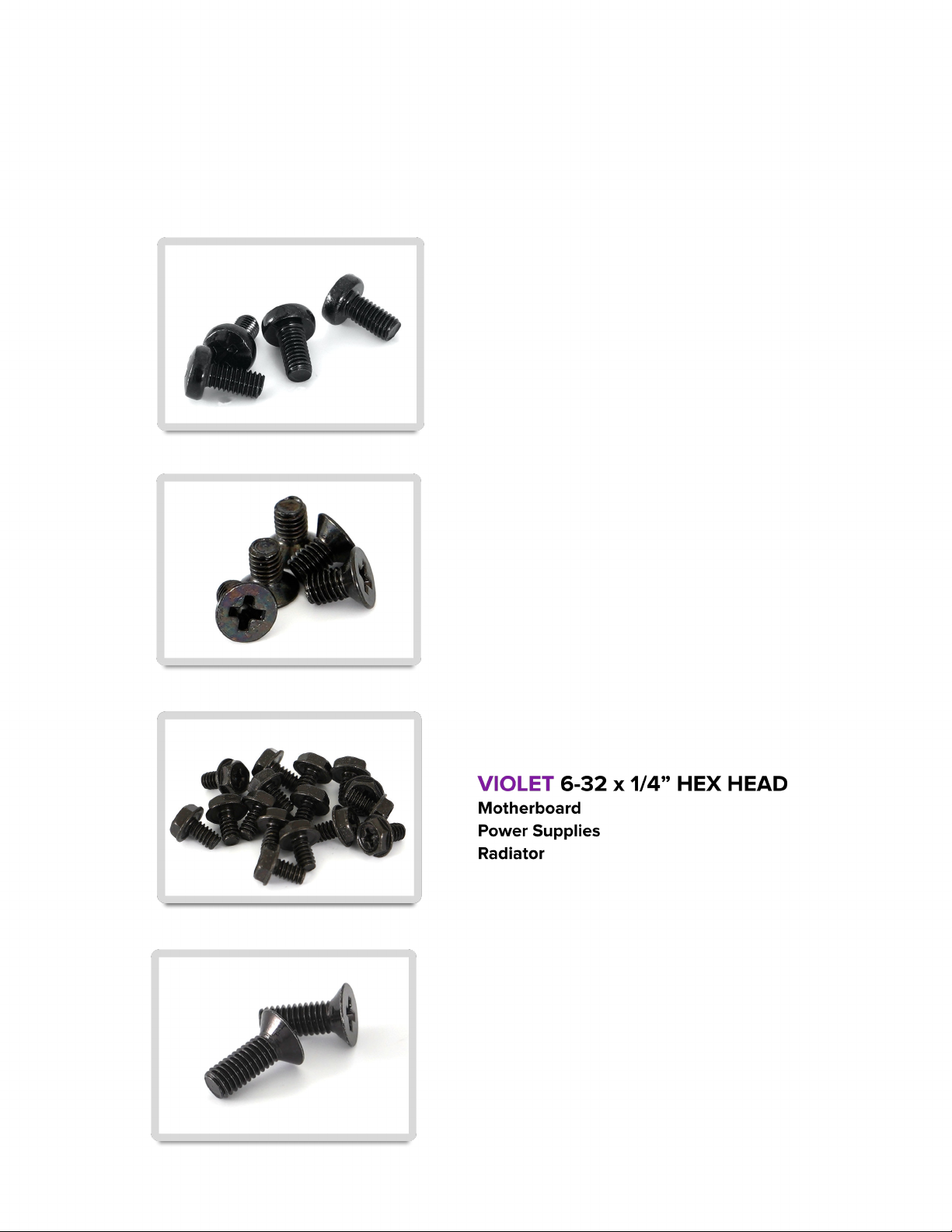

SCREWS
GREEN M3 x 6mm PAN HEAD
Securing PCIe Cards
PINK M3 x 8mm FLAT HEAD
Power pig tail
The SM580 comes with a total of 4 dierent screws. For the purposes of this guide
we will assign a unique color to each screw to signify their locations in this guide.
EASY-OFF PANELS
RE-ASSEMBLY NOTES
Side panels are reversible to either side.
Front Panel can be installed with either end at top or bottom.
The front and side panels all have tool-less removal via their ball-stud mounting
points. Careful, panels may be very tight on the rst few times on/o.
CAUTION: The Top Panel is attached with screws, see next page.
THE TOP PANEL
The top panel on the SM580 is held on via 6x M3 x 5mm FLAT HEAD screws.
Two are located by the power switch in the front.
Two are located on the rear top edge of the case.
Lastly, two are located on the top rear corners of each side of the case.
REASSEMBLY NOTE: When putting the top panel back on the case it is
recommended to position the tabs on the rear corners rst, then place the rear
ange onto the outside of the frame. This will position the front ange correctly.
STEP 1
Slide rst fan into the case at
the bottom front. Be sure to
double check your fan blade
direction matches your desired
airow direction!
NOTE: We recommend setting
bottom fans to INTAKE and top
fans to EXHAUST.
STEP 2
Slider rst fan to the back of the
case.
BOTTOM FANS
IT IS RECOMMENDED TO INSTALL BOTTOM FANS FIRST.
You may run into troubles getting them into the case if you install the PSU,
motherboard, or GPU before the fans.
Fan mounting screws are not included.
Countersunk holes are for KB5 head screws. Purchasing new screws
can be done on Amazon or NewEgg.
STEP 3
Install second fan into the front
bottom of the case.
MOTHERBOARD
Be sure to install your IO shield rst!
Some CPU coolers and AIOs may require a back plate to be installed before
installing the motherboard into the case. It is advised to check that any M.2 drives
on the back of the motherboard are installed before mounting the motherboard.
Once the IO shield is properly installed the motherboard can now be mounted
using 4x 6-32 x 1/4” HEX HEAD screws.
A Phillips #2 screw driver with a minimum 3” shaft length
is recommended for installing these screws.
POWER SUPPLY
The SFX PSU mounting bracket is secured to the case spine via
2x M3 x 5mm FLAT HEAD screws. These screws are located at the top
middle of the spine, next to the motherboard corner stando. There are
also 2x M3 x 5mm FLAT HEAD screw locations behind the front panel
of the case.
POWER SUPPLY CONT.
The SFX PSU can be attached
to the PSU Mounting Bracket
with the included 6x M3x5mm
HEX HEAD screws.
Note: Not all SFX Power
Supplies have all 6x holes.
It is recommended to attach
your power supply's modular
cables rst, and loosely
route them.
Once the SFX PSU is attached
to its mounting bracket and the
cables are routed into position, the
SFX PSU can be screwed back in
via the 4x M3x5mm FLAT HEAD
screws removed in the last step.
PCIe CARDS
All GPU and other PCIe cards (if using bifurcated / trifurcated riser)
should now be installed into the case. The PCIe cards are mounted
3x M3 x 6mm PAN HEAD screws.
Power Cords
PIGTAIL MOUNT
The cord should be installed by pulling it
in from the rear through the power cord
mount hole. With the cable partially out
of the case the cable grommet should be
clipped on to the power cord, and then
clipped into the metal plate. The metal
plate can then be mounted via 2x
M3x5mm FLAT HEAD screws.
STANDARD MOUNT
The power cord should be installed by
pulling it in from the rear through the
power cord mount hole, passing through
the cable mounting bracket. The inlet
and metal plate are then mounted via 2x
M3x5mm FLAT HEAD screws as shown.
